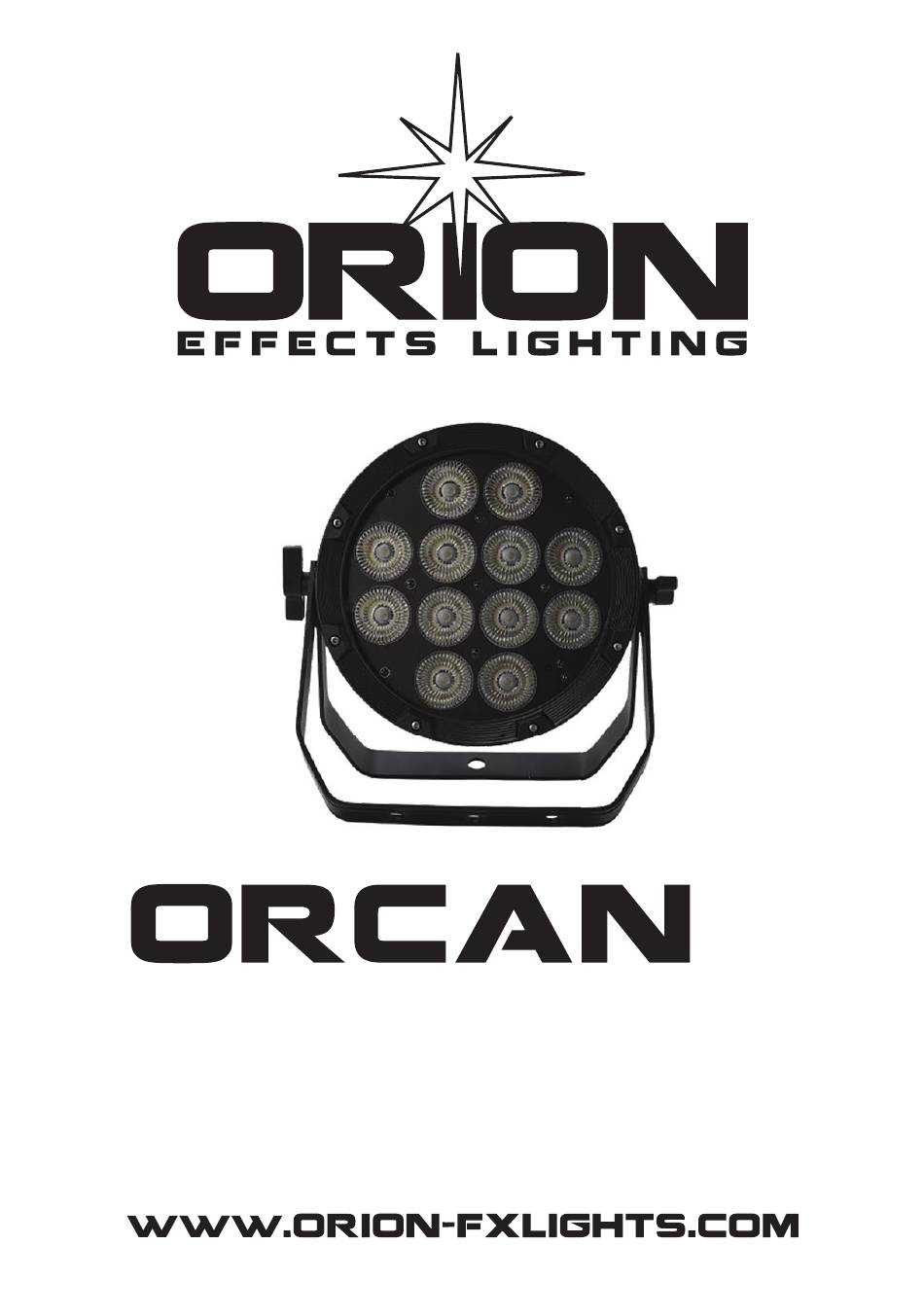

- Page 1 BATTERY POWERED LED PAR CAN Owner’s Manual SAVE THIS MANUAL FOR FUTURE REFERENCE Manuel du Propriétaire CONSERVEZ CE MANUEL POUR RÉFÉRENCE FUTURE BATTERY POWERED PAR CAN WITH REMOTE CTRL...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER ON THIS LIGHT. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. NEVER look directly at the laser emitter as serious eye injury can occur. This symbol indicates that there is laser radiation emitted from this unit.
- Page 3 CONSIGNES DE SÉCURITÉ IMPORTANTES ATTENTION : POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE DE CETTE APPAREIL D’ÉCLAIRAGE. IL N'Y A AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIEZ TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ. Ne regardez JAMAIS directement l'émetteur laser, car vous pourriez vous blesser gravement aux yeux. Ce symbole indique qu'un rayonnement laser est émis par cet appareil.
-
Page 4: Features & Specifications
Thank you for choosing the Orion ORCAN6 LED Par Can, this document provides instructions on how to set up, operate, and get the most out of your ORCAN6 LED lighting unit. With its real-world gear and features tailored for real users, the ORCAN6 is designed to be intuitive and versatile for a range of lighting applications. -
Page 5: Remote Control
Owner’s Manual Linked Mode Connect multiple ORCAN6 units using 3-pin XLR cables to synchronize their operation. The first unit in the chain will control the downstream units. (All slave units downstream must be in DMX mode). • Master and slave can be controlled via DMX cable •... -
Page 6: Menu Description
• Display Sleep (Screen Saver) Can be set to normally open or automatically turn off the display back-light after 5, 10 or 15 seconds • Infrared remote control can be turned on or off through menu settings • LED output power can be selected (high 60W, middle 42W, low 35W) •... -
Page 7: Control Panel
The display will turn on, you can then begin to setup the unit. 3. To turn OFF hold MENU button for 3 seconds until the display powers off Note: The ORCAN6 charges when connected to AC regardless of being power up or not. Setting Up the ORCAN6 Preset Function To select a preset function, press MENU to enter the main menu. - Page 8 Choose Pattern Select “Choose Pattern,” press ENTER to confirm and the display will show the corresponding function menu such as static color, macro color or show mode. Use UP/DOWN to select between the functions. If you press ENTER, the display will enter the next menu item. If you press Menu to exit to the previous menu mode. Note: The parameters will be saved automatically after selection.
-
Page 9: Dmx512 Channels
DMX512 Channels 7CH: Number Specification 0~255 Red dimmer 0~255 Green dimmer 0~255 Blue dimmer 0~255 White dimmer 0~255 Amber dimmer 0~255 UV dimmer 0-19 Normal 20-39 Dimmer-1 40-59 Dimmer-2 60-255 Dimmer-3 11CH: Number Specification 0~255 General dimmer,ch 9(0~9) Strobe off strobe：10 slowest ，255 fastest 10~255 0~255... -
Page 10: Remote Control (Optional)
Remote Control (Optional) BLACK OUT Mode This remote control features a “BLACK OUT” button. Upon pressing this button once, it will activate the infrared remote-control mode and default to the “Show Mode.” Additionally, if any mode has been previously saved, it will enter that saved mode. Pressing the “BLACK OUT” button again will deactivate the remote-control function and save the current settings. - Page 11 FADE Mode It is a color gradient mode. 1. Press “FADE” on the remote controller. 2. Press “+” or “-” to either increase or decrease the speed of the program. NUMBER 0~9 0-9 lets you pick the “Macro Color” you want, choose the color what you want from “0” to “9” keys. You may have to press the “MANUAL”...
- Page 14 One Year Limited Warranty: If this product should fail within one year of the original purchase date due to a manufacturing defect, simply return the product to your Orion dealer with the original proof of purchase and it will be repaired free of charge. This warranty excludes damage considered by the vendor to be the result of improper installation, normal wear, abuse or shipping damage.
