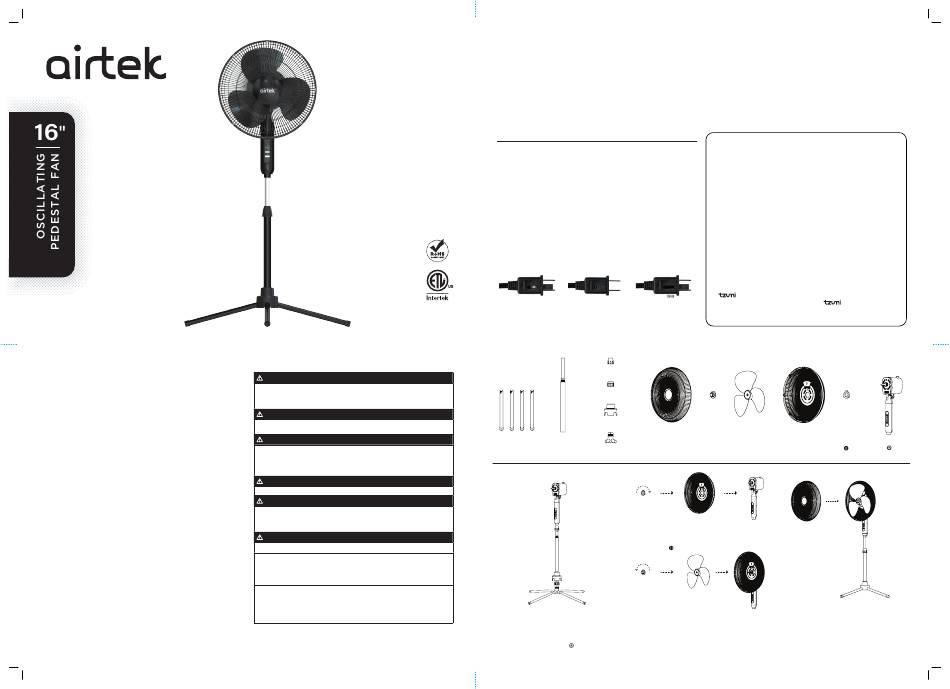

AirTek ATF3B Owner's Manual

TM
TM
P O W E R O F E X T R E M E C O M F O R T
Features:
• Patented Fast Assembly Folding Base
• Wide Area Oscillation
• ON/OFF Switch with 3 Speed Settings
• High Performance Blade
• Adjustable Height and Vertical Tilt
• Simple assembly is required
• 120V A.C. / 60Hz.
INTENDED USE:
This product is intended for indoor residential and office use only, not for industrial or other
commercial applications. Use only with electrical wiring that is in good working order and that
meets applicable codes and ordinances. If you have any questions whether your wiring is adequate,
consult a qualified electrician.
While using your fan, you should follow the INSTRUCTIONS listed below. As part of those
instructions, we have used the word "WARNING" to indicates the level of hazard; "WARNING"
indicates a hazard which, if not avoided, could result in injury or death.
INSTRUCTIONS
As with all electrical appliances, basic safety precautions should always be followed to reduce the
risk of electric shock, fire, or injury to persons, including the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual. Any other use not recommended by the
manufacturer may cause electrical shock, fire or injury to persons.
• Do not operate the fan with a damaged power cord or after the fan malfunctions or has been
dropped in any manner.
• Use of extreme caution is necessary when any fan is used by or near children, disabled persons or
pets and whenever the fan is left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any surface which might allow fan to tip or fall.
• For proper operation, fan should be placed on a smooth, non-combustible, level surface.
• Always unplug fan when not in use, when moving from place to place, when assembling or
disassembling parts, and before cleaning.
• The use of attachments, not recommended or sold by the manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause electrical hazard (for non-window models).
• Do not operate the fan with blade guards or any safety device removed.
• Avoid the use of extension cords due to risk of fire. If an extension cord must be used, the cord
must be minimum 14AWG and rated not less then 1875 watts.
• Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or the like.
Arrange cord away from traffic area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the fan. Doing so may cause electric
shock and/or fire hazard. Avoid contact with moving parts.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
ATF3B Airtek 16in Manual.indd 1 ATF3B Airtek 16in Manual.indd 1
Owner's Manual
Please Read & Save These Instructions
Model: ATF3B
READ & SAVE THESE INSTRUCTIONS
WARNING: Shock Hazard
Use your fan only in dry environments. This fan is not intended for use in a bathroom, laundry
area, or similar locations, or near sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other water receptacle. Do not use in
damp environments such as flooded basements.
WARNING: Hot Surfaces
Do not touch fan motor when in use. This motor is hot when in use, to avoid burns, do not let bare
skin touch hot surfaces.
WARNING: Fire Hazard
Fans have arcing or sparking parts inside. Do not use near combustible materials or flammable
gases or sources of heat. DO NOT USE in areas where gasoline, paint or flammable materials are
used or stored. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock, fire, or damage the fan.
WARNING: Electrical Shock Hazard
Do not use with damaged cord or plug. Use with adequate electrical system that is up to code.
CAUTION: To Prevent Electric Shock
This product has a polarized two prong plug (one blade is wider than the other) that must be
fully inserted in to a matching properly grounded outlet. This plug is designed to fit a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If the plug still
does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
WARNING: To Reduce the Risk of Fire or Electric Shock
DO NOT
use this product with any solid- state speed control device.
DO NOT
operate any fan with a damaged cord or plug or after fan malfunctions, has been
dropped or damaged in any manner. Do not operate fan with a broken blade, safety cage or any
visual imperfections. Disconnect power before servicing. For repairs covered under warranty,
see warranty statement. For all other repairs contact Tzumi® Innovations Customer Service by
telephone or mail for information and assistance.
DO NOT
run power cord under carpeting. DO NOT cover cord with throw rugs, runners or
the like. Arrange cord away from traffic area where it will not be tripped over. Avoid the use of
extension cords due to risk of fire. If an extension cord must be used, the cord must be minimum
14 AWG and rated not less then 1875 watts. Do not use an extension cord unless the plug can be
completely inserted into its receptacle. Unplug the fan when not in use. Do not operate fan with
its ventilation obstructed.
USAGE:
Fan Operation:
Always operate the fan in the upright position following all instructions and
recommendations listed in this manual.
Fan Location:
Place the fan in the area of the room that will provide proper fan cooling.
Fan Connection:
Plug fan directly into 120 volt A.C., 60 Hz wall outlet. Be sure plug fits
tightly in outlet. A loose connection may cause overheating and damage to the plug or fan.
Note: To prevent overloading a circuit, do not plug the fan into a circuit that is servicing other
electrical needs.
Turning Fan ON/OFF:
Place fan on stable level surface. Plug fan into properly grounded
outlet. To start the fan, press desired speed button: 1-LOW, 2-MED, 3-HIGH. Press 0-OFF to
discontinue use. Unplug fan when not in use.
Oscillation:
To start fan oscillation, press Oscillation Control Knob down (located above
Motor Shaft). To stop oscillation function pull Oscillation Control Knob up while the fan is in any
oscillation position.
Note: Some models come with a plug where you can replace a fuse. If your model has this, please
read and folllow the below instructions to replace the fuse.
This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit
situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user
servicing instructions (follow product marking for proper fuse rating) and check the product. If the
replacement fuse blows, a short-circuit may be present and the product should be discarded or
returned to an authorized service facility for examination and/or repair.
Fuse Replacement:
1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling
on cord.
2. Open fuse cover by sliding open fuse access cover on top of attachment plug towards blades
– See Image B.
3. Remove fuse carefully. Use a small tool to pry the end of the fuse from holder cavity. Be careful
not to break glass window – See Image C.
4. Replace fuse. WARNING: Risk of fire. Replace fuse only with identical 2.5 or 5.0 Amp, 125 Volt
fuse (3.6mm x 10mm). Be sure fuse is properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed position.
Slide Cover to Open
Image A Image B Image C
THE PARTS
➌
Collar Nut
➍
Collar Nut
➎
Decorative Flange
➊ ➋ ➏ ➐
Base legs x 4 Pedestal Pole Base Receptacle Front Grille
FAN ASSEMBLY:
Loosen
Step 2.
- Remove the Blade Cap
holding the metal shaft tightly. Note: Threads are reversed.
Unscrew = Clockwise.
- Assemble Rear Grille
- Thread Locknut
Tighten
Step 1. Step 3.
- Put Base Legs ➊ into Base Receptacle ➏ - Remove any protective covering over shaft before Fan Blade
Installation. Place Fan Blade
- Place decorative Flange ➎ over Extension Pole to cover the
base. Slide Pedestal Pole into base receptacle. Tighten nut pin on Motor Shaft should fit into slots of Fan Blade.
➋
to secure in place. Slide flange over base connection. - Thread Blade Cap
Note: Threads are reversed. Tighten = Counter-clockwise.
- With Collar Nut ➍ loosened, pull Chrome Extension out of Fan Pedestal.
- Assemble fan Control Panel/Motor assembly onto Chrome
Extension and tighten thumbscrew.
CARE AND MAINTENANCE
Cleaning:
CAUTION-Before cleaning the fan be sure to disconnect power cord from the plug.
Clean the grille surface with a clean damp cloth. Do not use harsh chemical or abrasive cleaners.
DO NOT IMMERSE THE FAN OR ANY WIRES IN WATER. Replace front grille before fan use. Allow
fan to dry completely before use. Periodic grille cleaning with a vacuum will prevent dust build up.
The motor is sealed and does not require any interior maintenance, cleaning or lubrication.
Maintenance:
The Internal motor bearings are permanently lubricated at the factory and do not
require any additional lubrication.
Repair:
DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN PLACE. DO NOT USE THE FAN IF
IT HAS MALFUNCTIONED OR BECOME DAMAGED IN ANY WAY.
Storage:
Keep original carton for storage of the fan. Coil and tie the power cord to avoid damage
during storage.
LIMITED WARRANTY
This unit is guaranteed to the original retail purchaser against defects in quality or
workmanship for a period of one year from the date of original purchase. If this unit
fails because of a manufacturing defect within 30 days of purchase, return the unit, with
your receipt, to the retailer. After 30 days, but within the warranty period, if the unit
was purchased within the continental United States, return it, freight prepaid, to Tzumi®
Innovations for repair or replacement. If the unit was purchased outside the continental
United States, return the unit to the place of purchase. This warranty does not cover
damage caused by misuse, abuse, overheating or alteration. Repairs made by anyone
other than Tzumi® Innovations are not covered in this warranty. Tzumi® Innovations will
not be held liable for any losses due to neglectful operation. All implied warranties,
including the warranties of merchantability and of fitness of purpose, if applicable,
are hereby limited in duration to the period of one year from the date of original retail
purchase. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitations may not apply to you. Incidental or consequential damages
arising from a breach of either express or implied warranties are hereby disclaimed
and excluded. Some states do not allow the exclusion of limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you. Upon
the expiration of this warranty all such liability will terminate. No other warranties are
expressed or implied.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state. No informal dispute settlement mechanisms are available. This
limited warranty is given in lieu of all other warranties.
Innovations Customer Support:
®
New York, NY 10016, USA 1-855-GO- (1-855-468-9864)
®
www.airtekcomfort.com support@tzumi.com
➑ ➒ ➓
Blade Cap Fan Blade Rear Grille Locknut
➑ by twisting it CLOCKWISE while
onto Motor Housing.
➓
onto Motor Housing to lock Rear Grille in place.
Step 4.
- With logo upright, attach Front Grille
➒ onto Motor Shaft. Notice the by snapping them together. Be sure all 8 clips are secure.
➑ onto threaded end of Motor Shaft.
Control Panel/Motor
➐ to Rear Grille ➓
