Summary of Contents for Imrita IMT-P-ZL6

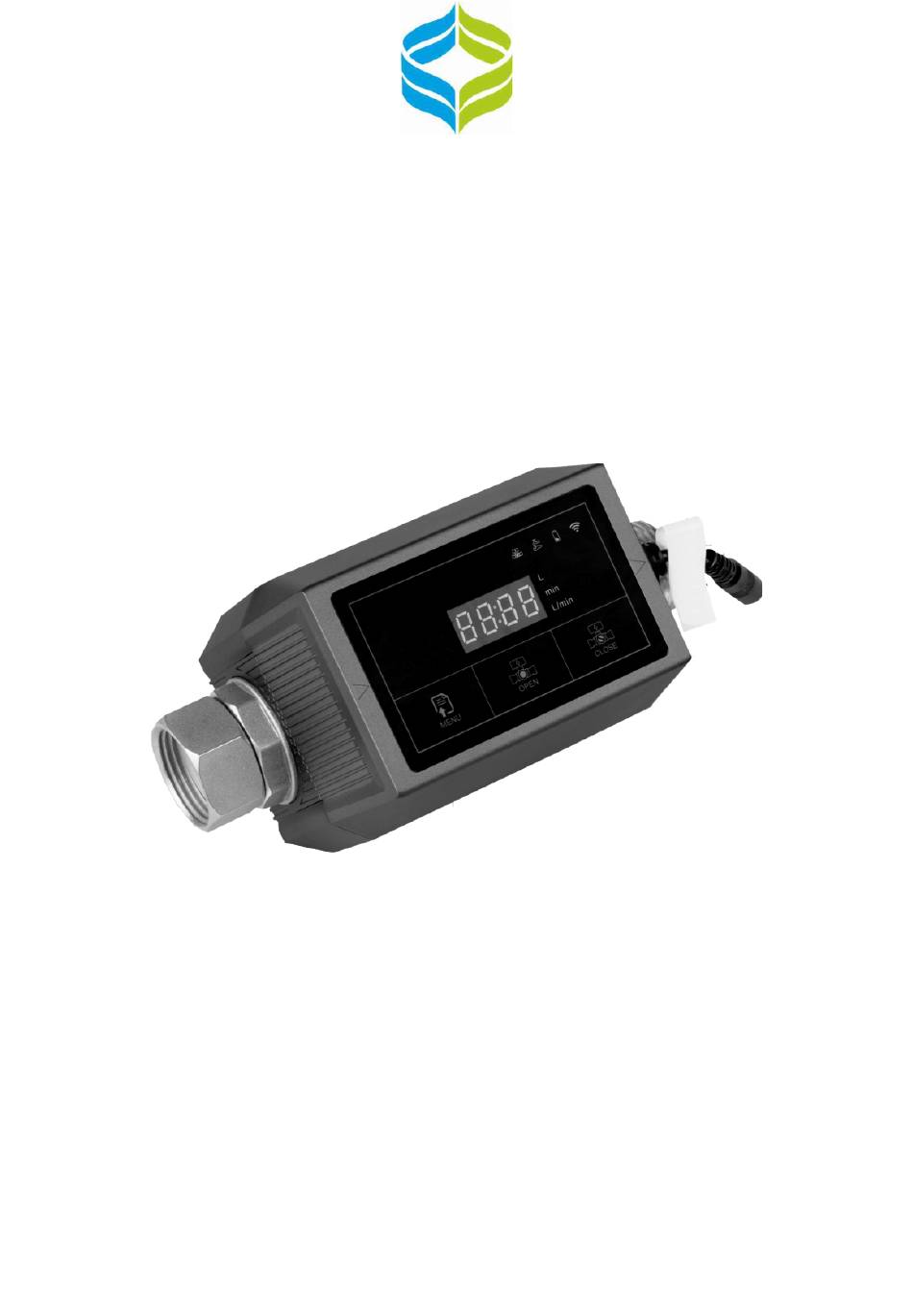

- Page 1 Imrita Complete Home Water Leak Detection Alarm Installation Instructions...
- Page 2 Note: Pressing the menu button once (for less than 1 second), when water is flowing through the Imrita, shows the count down in time and litres set against the set thresholds. Please refer to volume and time settings...
- Page 3 Fit Horizontally Note: Width = 85mm 3/4" / 1" BSP 3/4" / 1" BSP 127.5mm 230mm Note: The Imrita requires power. It is supplied with a 3 pin plug adapter with 1.5m of cable.
-
Page 4: Setting The Time
ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Setting the time: Volume Volume Volume Time Time Time Leak Time Leak Time Leak Time L/min L/min L/min Max Flow Max Flow Max Flow MENU OPEN CLOSE MENU OPEN CLOSE... - Page 5 Note: In the example above, a maximum of 135 litres of continuous water will flow through the Imrita unit. Any amount above this will trigger an alarm and shut the valve. The maximum amount that can be set is 9999 litres.
- Page 6 Note: In the example above, a maximum of 25 miuntes of continuous water will flow through the Imrita unit. Any amount above this will trigger an alarm and shut the valve. The maximum amount that can be set is 9999 minutes. Setting the value to zero will switch off this feature.
- Page 7 Setting the leakage time: This setting allows for small leaks to be detected. There are two different flow meters in the Imrita, the main one is used for monitoring the volume and time. There is also a more precise flow meter capable of detecting flow as low as just 5 litres per hour.
- Page 8 flow settings. Note: In the example above, a maximum of 50 litres of continuous water will flow through the Imrita unit in a 1 minute period. Any amount above this will trigger an alarm and shut the valve. The maximum amount that can be set is 9999 litres.
- Page 9 EXAMPLE: The Imrita may be set to alarm when the volume of water exceeds 100 litres or after there's been continuous flow for more than 20 minutes. During garden watering the volume of water may well go over 100 litres or 20 minutes.
- Page 10 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Setting the holiday feature: This setting is used to automatically close the valve when there is no flow through the main unit for a set period of time. This is set in number of days.
- Page 11 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Setting the valve test feature: This setting is used to automatically close the valve and then re-open it at a set time interval. This ensures that the valve operates regularly and prevents malfunction through lack of use.
- Page 12 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Positioning the remote sensors Locating the sensors is critical to detecting water leaks and some time should be taken when considering where to place them. Areas where pipes connect to taps or appliances and areas where multiple connections occur such as manifolds.
- Page 13 flash and the sounder will beep 10 times. Once the main unit has beeped 10 times, the LED screen will go blank (the Imrita will still be in detection mode during this time). The main unit will then repeat the 10 beeps every hour.
- Page 14 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 :The Key Fob To pair the key fob to the main unit it is essential that the mains power is connected to the main unit, it will not pair if running on the battery backup.
- Page 15 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Wireless ewater APP for Water Leak Detector interface Download the ewater app either for Apple or android, depending on your phone / tablet (please ensure you type ewater as one word).
- Page 16 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Wireless E-water APP for Water Leak Detector interface Tells you that the Tells you that the Tells you that there is Tells you that the status of the battery status of the valve is...
- Page 17 Editing device details: It is possible to add more than one Imrita on the same phone app. There is no limit to the number of devices you can add. To add a device, press the Add Device button and follow the instruction previously described in this manual.
- Page 18 ENVIROTECH ALARMS - IMRITA - INSTALLATION INSTRUCTIONS - VERSION 1.0 Factory Reset Press the gear wheel Click on Factory Confirm when prompted towards the top right Defaults of your screen Consumption Reporting 99475 7964 1950 You can monitor the water use into the property using the data report. The current flow in litres per minute can be seen at the top of the screen.
