Summary of Contents for AIMIBO Q3-ZL

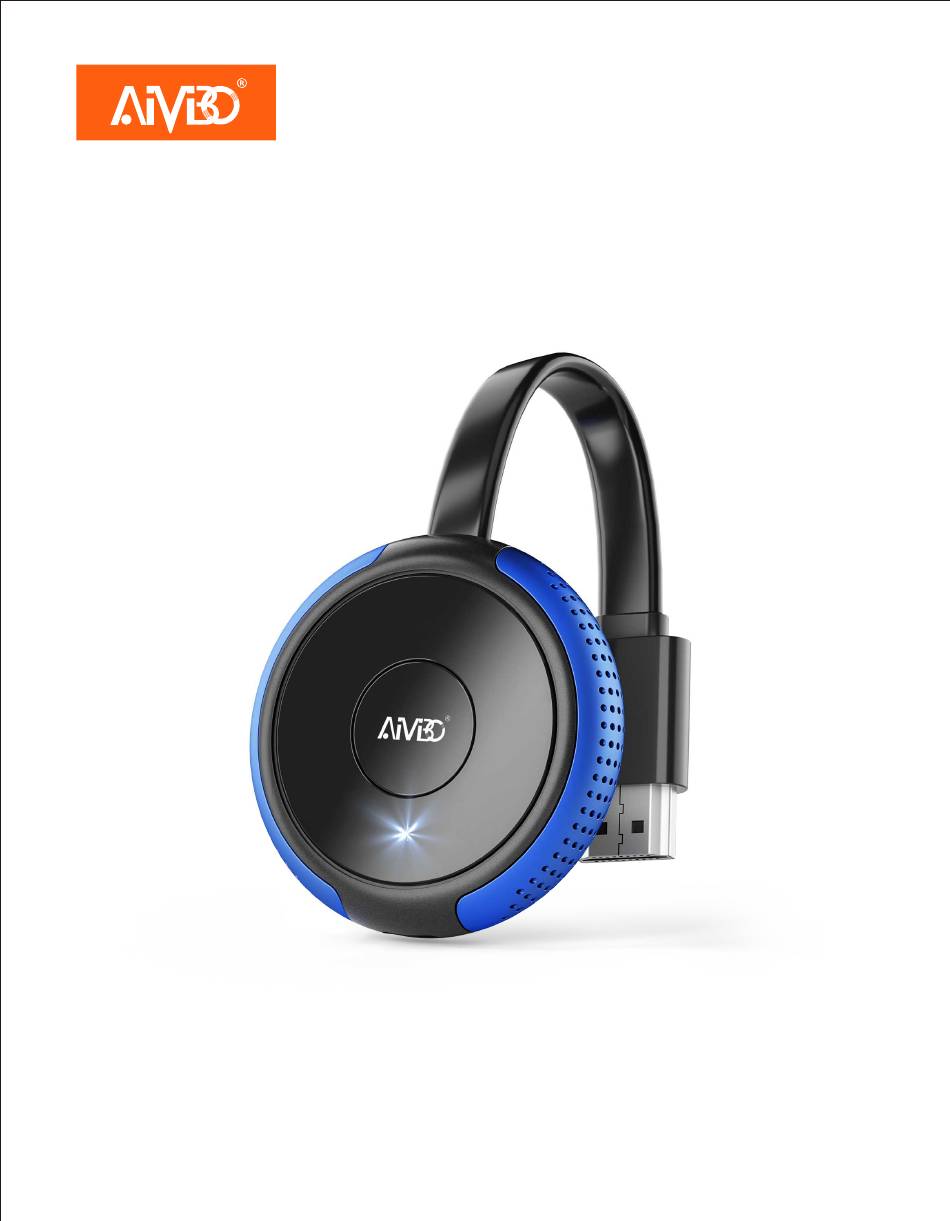

- Page 1 Wireless Display Adaptor True plug-and-play,saving your precious time User Manual Ver. A�.� Please read this manual carefully before use it correctly and keep it properly.
-
Page 2: Product Features
Introduction Our wireless display adapter incorporates the latest technology and features DLNA Mirror and Direct Connect dual modes, catering to various needs. It offers wide compatibility with iOS, Android, Windows, and OS software. Supports �K HDMI decoding and outputs at ����P ��Hz for high-quality visuals. With dual-band �.�G and �G frequencies, enjoy uninterrupted connectivity. -
Page 3: Product Parameters
Screen mirroring protocols: Miracast, Airplay, DLNA, Chrome. Android and Windows devices support most streaming apps or websites, such as Netflix. iOS and Mac OS only support free apps or websites, such as Tiktok. Not compatible with subscribed paid apps featuring "HDCP"... - Page 4 HDTV Projector Monitor HDMI Input Wireless Connect iPhone Android Phone iPad/Tablet MacBook Laptop HDMI Input Devices: TV, monitor, projector or other displays. Compatible Devices: iPhone, iPad, Macbook, Samsung, Huawei, Oneplus, Xiaomi, or other Android smartphones, tablets, laptop, PC and more. Compatible System iOS, Android, Windows, and Mac OS...
- Page 5 Compatible Occasions Business presentation, Classroom education, Home entertainment, Gaming, Hotel room, Exhibition, Shop show and more that need display small screen to big screen. Compatible Streaming Apps Wins / Android: NIKE TRAINING CLUB Facetime Messenge More... Android/ Windows compatible with most streaming websites and apps, including Netflix, Prime video, Disney+, HBO Max, Hulu plus, Spotify, etc.
- Page 6 * Note: While we haven't tested every device, if your device can stream TikTok but not Netflix, it may indicate that the device is unable to support the HDCP protocol. iOS/Mac OS: NIKE TRAINING CLUB Facetime Messenge More... iOS/Mac OS compatible with Zoom, Safari, Microsoft Office Suite, Zwift, YouTube, TikTok, WhatsApp, Skype, Twitter, Reddit, etc.
-
Page 7: Packaging Contents
Packaging Contents �* Wireless Display Dongle �* USB C Cable �* User Manual Product Overview USB C Charging Port HDMI port Function Button Indicator Light... -
Page 8: Connection Method
Connect it to TV, Monitor, Projector, or other screen device that has the HDMI HDMI Port: input function. Indicator Light: Blue Light Connect it to dongle and a �V �A USB charger or your device's USB port. USB-C Some TV s might have not enough power, Charging Port: please use USB charger for stable streaming. - Page 9 your TV's USB port. Once connected, your TV/monitor will display the interface of the dongle. �V/�A or TV's USB Port How to use Direct Connect mode? (Real plug and play)
- Page 10 TV screen will display a �-digit password. Please enter the code and wait for � seconds for the connection. After that, you can cast your iPhone, iPad, or MacBook to the TV. iPhone: “AMB-123” AMB-123 AIMIBO-Q3 � �...
- Page 11 Mac OS: � � A verification code is required for the first connection. Mac OS Extend Mode: Click 'Screen Mirror' , choose 'Mirror Built-in Display' or 'Use As Separate Display' mode.
- Page 12 For Windows Please press ' ', choose 'AMB-XXXX' as target, wait for � seconds for the connection. After that, you can cast your laptop / PC to the TV. * Press ' ', choose 'Duplicate' or 'Extend'mode.
- Page 13 For Androids AMB-123 Please find your smartphone or tablet's mirror function on its setting page, choose 'AMB-XXXX' as target, wait for � seconds for the connection. After that, you can cast your Android smartphone or tablet to the TV. � �...
- Page 14 ○ HUAWEl: Setting>Smart Assist> Multi-screen Interactive ○ Xiaomi: Settings>Connection&Sharing>Cast (Turn on cast) ○ OnePlus: Settings- Bluetooth & device connection - cast ○ OPPO: Settings>Other wireless connections>Screencast ○ MElZU: Setting-Display>Projection Screen ○ Lenovo: Setting Display>Wireless Display ○ SAMSUNG: Phone From Top To Bottom> Smart View ○...
- Page 15 For Google Pixel: If you can’ t use the Direct Mode, please upgrade the dongle on your Google Pixel devices. Switch to DLNA mode by holding the function button for �s. DLNA Direct Mirror Connect Connect your device to the dongle's antenna signal. (Name: AMB-XXX, Password: ��������).
- Page 16 Then click "Upgrade" and confirm by clicking "OK". (*Please ensure your device remains connected to the dongle's antenna signal during the upgrade.) Wait for the upgrade to complete until the progress bar reaches ���%. Once the upgrade is successful, the device will automatically restart.
- Page 17 How to use DLNA Mirror mode? (The dongle is needed to connect to router's network) When you connect your device using the methods below, you can not only mirror your content to the TV, but also extend your video to the TV using your video streaming app's DLNA function. You can mirror content to the TV while simultaneously using your phone without any interaction, even you can turn off...
- Page 18 Turn on your device (iPhone, iPad, MacBook, Android smartphone or tablet) Wifi setting. Connect it to the dongle's antenna signal. Name: AMB-XXX, Password: ��������. When you connect to the dongle's wireless signal, the TV blue screen's right upper corner will show number � and the above image.
- Page 19 �.�.� For iOS device Click 'Screen Mirroring' and choose 'AMB-XXX' as target, then you can cast your iPhone to TV. AMB-123 �.�.� For Android device �). Find your smartphone mirror function on its setting page, such as, Samsung phone's screen function called "smart view" �).
- Page 20 * Note: Since the Tablet, iPad, MacBook, and Laptop do not have internet connectivity on their own, they can't be used without router. �.� In the presence of a router: If you have a router, we suggest connecting your device to the router for a more stable connection.
- Page 21 When the dongle's background setting connects to your router's network, the TV blue screen's right upper corner will show your router's name. Check the above image. * Note: Once you have set up the router information in the IP address settings during the initial setup, you or your friends using the same router network won't need to Ago to the Wifi...
- Page 22 �.�.� For Mac OS device �). Please back to your Wifi setting page, and choose back your router's network. �). Click 'Screen Mirror' and choose 'AMB-XXX' as target, then you can cast your Mac OS to TV. �.�.� For Android devices �).
- Page 23 �). Find your smartphone or tablet's mirror function on its setting page, such as, Samsung phone's screen function called "smart view" Choose 'AMB-XXX' as target, then you can cast your smartphone �). or tablet to TV. For Windows devices (Don't need the above steps) �).
- Page 24 *Press ' ', choose 'Duplicate' or 'Extend' mode. In DLNA mode, how to use the extend function? If you using the video streaming app, such as, Youtube. You can click the app's DLNA function , choose AMB-��� as target. You will extend your screen to TV and get a full screen and higher quality picture quality in this streaming way.
-
Page 25: How To Reset
How to reset? Long press the function button for �� seconds, till the screen shows 'Release to default' and release the button. How to change the dongle's name and password? Turn on your device (iPhone, iPad, MacBook, Android smartphone or tablet) Wifi setting. Connect it to the dongle's antenna signal. - Page 26 � � � � After modifying the password, unplug the dongle's charging cable and reconnect it, or click "reboot" in the IP '���.���.���.�' setting page, for the changes to take effect.
- Page 27 Description of the dongle setting page? If the language of the setting page is not your native language, please click item � to change the language. Internet: Choose your router and enter its password. Device Name: This dongle name: AMB-XXX. WiFi Password: This dongle password:��������.
-
Page 28: Troubleshooting
Troubleshooting My Google Pixel device is not showing Wi-Fi. You can resolve this issue by upgrading the firmware, the steps are as below: �). Switch to DLNA mode by holding the function button for �s. �). Connect your device to the dongle's antenna signal. (Name: AMB-XXX, Password: ��������). - Page 29 �). Avoid using the dongle across walls. The optimal usage distance is �� meters in line of sight. Why does my TV show "no signal" ? It could be due to an insufficient power supply for your TV. Please plug the USB cable into a �V �A USB charger instead of the TV itself.
- Page 30 What are the differences between DLNA Mirror and Direct Connect modes ? DLNA Mirror allows screen mirroring with clearer video quality and a full screen display on Android and iOS. You can also use your smartphone/ tablet for other tasks while screen mirroring, achieving the effect of a second screen.
- Page 31 Can I still use DLNA functionality if I don't have a router at the moment ? Yes, you can. Connect your phone to the network named "AMB-XXX" displayed on the blue screen, and then click on Screen Mirroring, selecting "AMB-XXX", then you can use your phone's network to mirror content to TV.
- Page 32 device. Please contact us for a refund. Why does the screen orientation become vertical when I screen mirror to the TV ? It may be due to the system recognizing your device as vertical. Press and hold the dongle's function button for � seconds to switch to landscape mode.
- Page 33 Can this dongle pair with AIMIBO's TX ? No, it cannot. The TV is displaying a blue screen. Why isn't the "AMB-XXX" appearing on Screen Mirroring ? Please make sure you have switched to Direct mode. If you selected DLNA, please refer to the DLNA operation steps mentioned above.
-
Page 34: After Sales Support
After-sales Support Our Warranty: money back guarantee free replacement If you have any quality issue or operation issue, please kindly contact us to figure out the problem. Email: support@aimibo.tv SUBSCRIBE AIMIBO: WhatsApp...
