Summary of Contents for i3 DMControl
- Page 1 Instruction for use i3 DMC ontrol Smart Control Unit Your Companion ES-10.0136 Life Science Separation...
-
Page 2: Table Of Contents
7 Preparing the product for use ......page 6 7.1 Unpacking 7.2 Supplied material 7.3 Recycling 8 Operation ............... page 6-12 8.1 Installation of i3 DMC ontrol 8.2 Start and run i3 DMC programs ontrol 8.3 Single Voltage 8.4 Presets 8.4.1 Square Wave 8.4.2 Triangle 8.4.3 Sawtooth... -

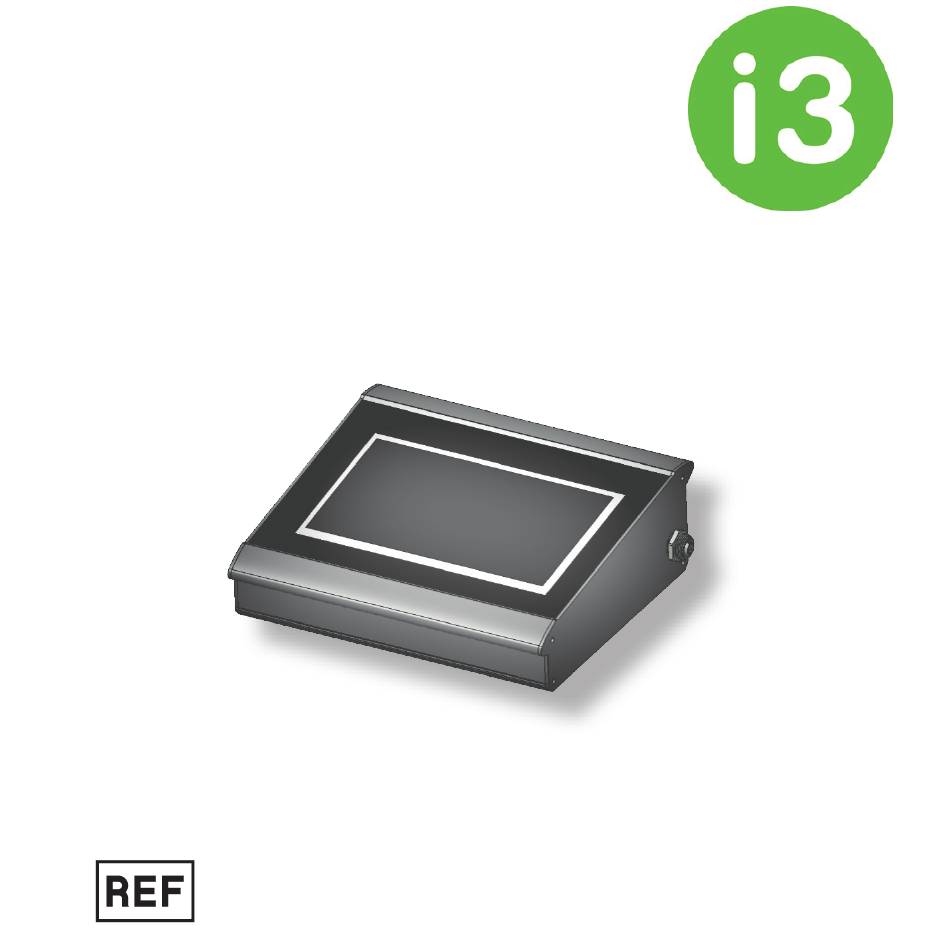

Page 3: Intended Use
Smart Control Unit for customized voltage operations with i3 ontrol DMC Membrane Adsorber. It enables to apply voltages (max. +/- 5V) to i3 DMC Membrane Adsorber. Voltage profiles are set via a 7-inch touch display and are graphically displayed in real time. 2 Requirements... -
Page 4: Symbols And Signs
Specification Rated voltage DC 12V Operating voltage DC 12V to 12.4V Operating current max. 2.5 A Total input power 30 W i3 Control Box max. Permissible ambient temperature during 0° C to 40° C operation 32° F to 104° F... -
Page 5: Mechanical Properties
Length: 204 mm | 8.0‘‘ Width: 180 mm | 7.0‘‘ Weight i3 DMC 1,140 g ontrol Power supply: 150 g i3 DMC Membrane Adsorber connection cables: 140 g Sum: 1,430 g Colour of casing silver Material of casing Extruded profile: Al Mg Si 0.5 anodized;... -
Page 6: Preparing The Product For Use
DMC port and then into the appropriate power socket. ontrol Additionally, connect the i3 DMC to the i3 DMC Membrane Adsorber according ontrol to the instructions outlined of the i3 DMC Membrane Adsorber instruction for use. -
Page 7: Start And Run I3 Dmc
Pressing the button (approx. 1s) will initiate a controlled shutdown of the device. Once the control box starts up, the LED indicates green. After the controlled shutdown, the LED switches to red. Follow the instructions below to start the i3 DMC and run the ontrol program. - Page 8 Follow the instructions below to start the Smart Control Unit and run the program. Step 3: The device conducts a self-check of the connected Membrane Adsorber. After successful completion of the self-check, i3DMC is ready to perform an experiment. ontrol Upon successful completion of the self-check for the connected membrane adsorbers, the options to ‘Rerun Checks’...
-
Page 9: Single Voltage
You can stop the experiment at any time using the ‘Stop‘ button. 8.4 Presets The Presets program enables a selection of pre-defined voltage programs for experiments with i3 Membrane Adsorber. Available presets include: - Square Wave - Triangle - Sawtooth - Descending Triangle. -
Page 10: Square Wave
8.4.1 Square Wave The Square Wave program enables the application of a positive or negative voltage for a defined duration after a set start delay. This program can run multiple cycles, with the option to customize the end duration for each cycle. Follow the instructions below to run Square Wave program. -
Page 11: Sawtooth
8.4.3 Sawtooth The Sawtooth program enables to gradually ramp up a customized positive or negative voltage over a customized time duration. After reaching the maximum of customized voltage, the voltage decreases back to zero. This program can run multiple cycles, with the option to customize the end duration for each cycle. Follow the instructions below to run Sawtooth program. -
Page 12: Customs Sequence
8.5 Customs sequence The Custom Sequence program enables to define individual voltage profile with maximal 99 data points. Different parameters (e.g. cycles, duration, voltage) can be configured to define different increments or slopes for customized runs. In this context, programming can involve either an instantaneous transition to a specific voltage or a gradual increase to a specific voltage. -
Page 13: Export And Import Of Data
„sequences“. In this folder you put your .csv file. If you have already used the micro SD-card on the i3 DMC device, the folder has already been created automatically and you can ontrol put your file there. -
Page 14: Connector
10 Connector To control voltage on the Membrane Adsorber, the i3 DMC has an eight-pole ontrol socket. For a secure connection, the nut should be tightened solidly. 11 Related documents In addition to these instructions, please observe the following documents at www.i3membrane.com. - Page 15 NOTES...
