Summary of Contents for Smaxtec SOLAR UNIT

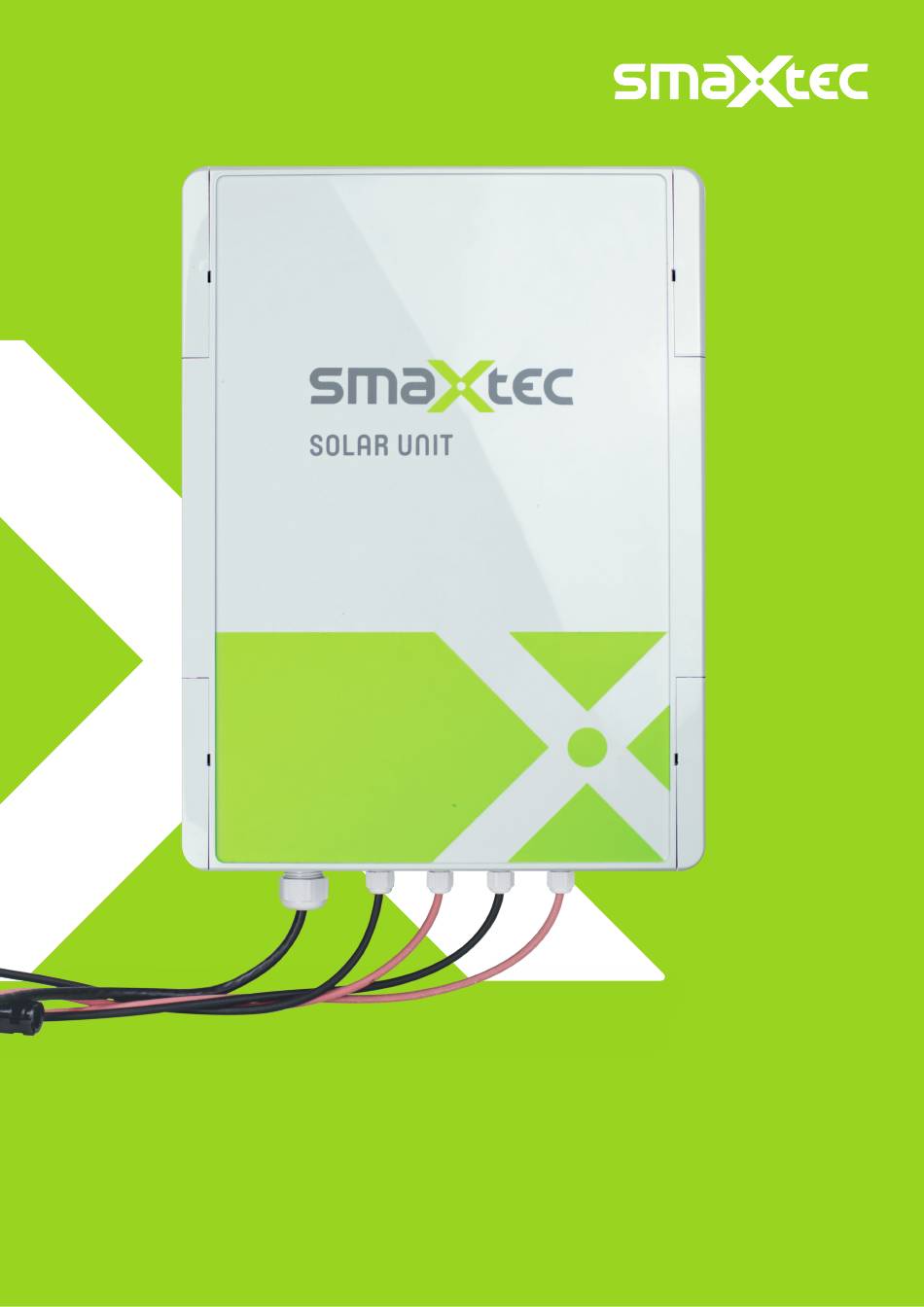

- Page 1 SMAXTEC SOLAR UNIT...
- Page 2 PREREQUISITES Components needed to use the smaXtec Solar Unit: smaXtec Solar Unit package including: · pole mount · cables: - battery cable - cable for solar panel - LAN cable (Base Station) pole mount 2x Solar panel with a maximum of 120W...
- Page 3 PREPARING POLE MOUNT Install the pole mount to the back of the Solar Unit using 4 screws: Open the Solar Unit box Insert the screws into the Attach the pole Secure the screws four marked openings mount on the back...
-
Page 4: Installation
INSTALLATION Prepare all cables of the Solar Unit: LAN cable for Base Station Battery cable (PLUS) pole red cable (MINUS) pole black cable Cable for solar panel www.smaXtec.com... - Page 5 INSTALLATION The next step is to connect the Solar Unit to the battery using the battery cable. It is important that the “-” terminal is connected to the black cable first. Connect the black cable to the „-“ terminal Connect the red cable to the „+“...
- Page 6 INSTALLATION Now connect the plugs of the Solar Unit and the solar panel www.smaXtec.com...
- Page 7 INSTALLATION Finally use the LAN cable to connect the Solar Unit to the Base Station After connecting the LAN cable to the Base Station install the sealing kit! Scan the code to watch a video explaining how to mount the sealing kit.
- Page 8 SMAXTEC SUPPORT YOU HAVE QUESTIONS OR NEED ASSISTANCE? WE ARE HAPPY TO HELP! Support UK T +44 1629 380 800 Support Ireland T +353 61 5248 00 Support US (toll-free) T +1 (608) 817-6170 Support New Zealand T +64 7 810 89 30...
