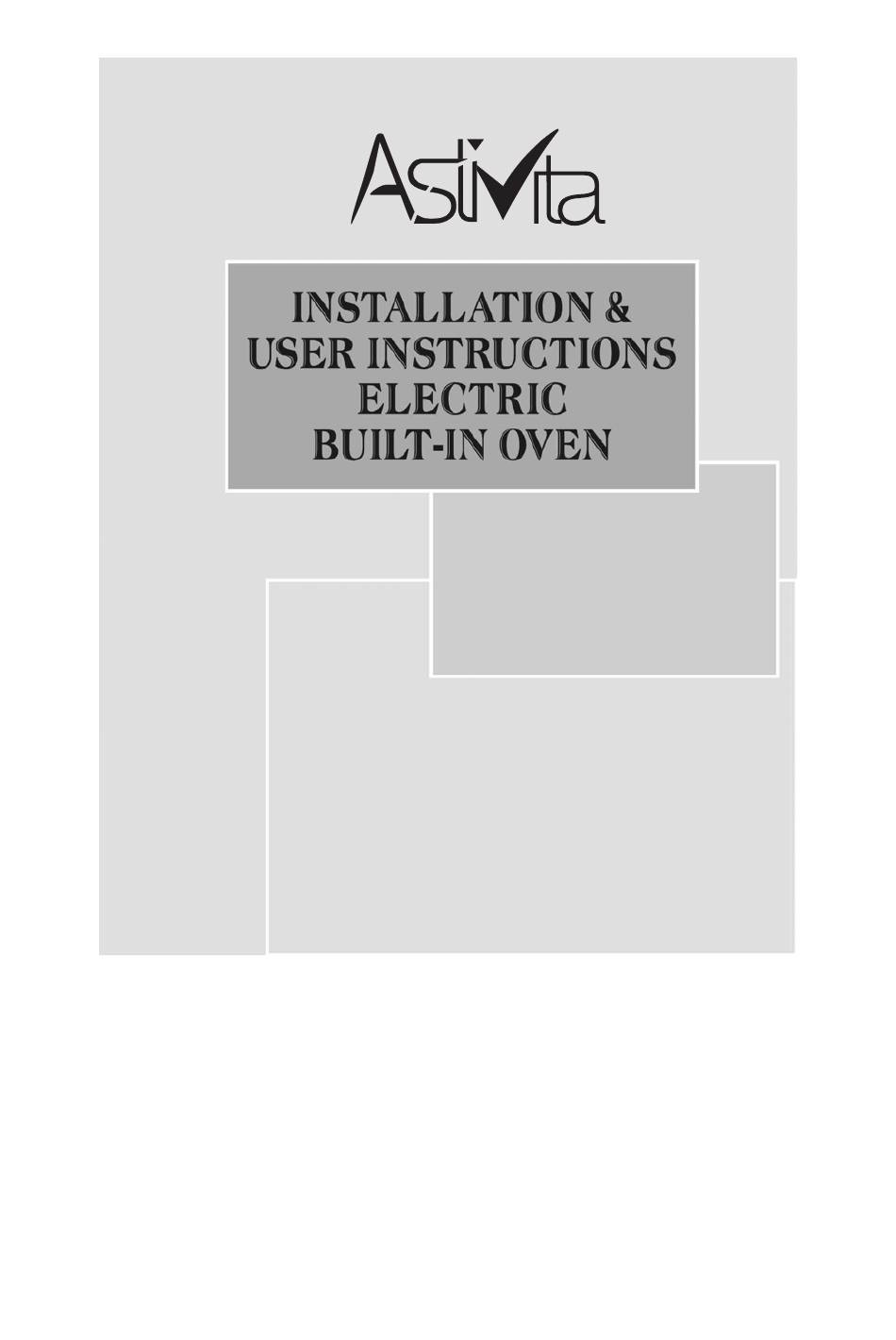

  • Page 1 AST73LOV60...

  • Page 3: General Warnings

    USER INSTRUCTIONS GENERAL WARNINGS Read carefully all the instructions contained in this booklet. It provides you with important information regarding the safe installation, use and maintenance of the appliance as well as useful advice for getting the best out of your oven.
  • Page 4 The following items are potentially dangerous, and therefore, appropriate measures must be taken to prevent children and the disabled from coming into contact with them: Controls and the appliance in general; Packaging (bags, polystyrene, nails, etc.); The appliance immediately after use of the oven or grill due to the heat generated; The appliance when no longer in use (potentially dangerous parts must be made safe).

  • Page 5: Specification

    Service Canters authorized by the manufacturer must be contacted in the following cases: If in doubt about the soundness of the appliance after removing it from the packaging; If the power supply cord has been damaged or needs to be replaced; If the appliance breaks down or functions poorly;...

  • Page 6: Indicator Lights

    INDICATOR LIGHTS The indicator lights situated above the control panel go on and off when the heating elements are inserted or removed. During the thermostatic functioning of the oven, the neon light remains on until the pre-chosen temperature is reached and when it goes out, this is a sign that the temperature has been reached. When the oven cools, the thermostat determines the re-insertion of the heating elements with consequent re-lighting of the indicator lights.

  • Page 7: Connection To The Mains Supply

    IMPROTANT During use the appliance becomes hot, Care should be taken to avoid touching heating elements inside the oven. Accessible parts may become hot during use. Yong children should be kept away. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  • Page 8 WARNING: THIS APPLIANCE MUST BE EARTHED - Check that the power rating of the mains supply and of the sockets are suitable for the maximum power of the appliance as indicated on the specification plate. - plug should be accessible after installation. Fit the plug into a socket fitted with a third contact which corresponds with the earth connection.

  • Page 9: Oven Structure

    30mm.min Oven structure The Open space oven has a capacity of 70 litres and offers users the option of cooking on 4 shelves at the same time or cooking large quantities which would not necessarily be possible in a traditional oven. ! The first time you use your appliance , heat the empty oven with its door closed at its maximum temperature for at least half an hour .
  • Page 10 INSTRUCTIONS FOR USE: to switch off the oven, turn the knobs on position ( ) and ( CONVECTIONAL OVENS 4 FUNCTIONS Light A light in the oven Defrosting with fan The air at temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration, Fan oven Both of the fan and the circular heating element operate together .The hot air adjustable...
  • Page 11 CONVECTIONAL OVENS 5 FUNCTIONS N.B.: All functions will start after selecting the temperature with the thermostat knob. Light A light in the oven Total grill It is indicated for grilling and gratin traditional food.This function must always be used with half-open door and control protection in position. Fan assisted total grill The air which is heated by the grill heating element is circulated by the fan and so helps to distribute the heat between 50 and 200 .This function can be used for...
  • Page 12 MULTIFUNCTIONAL OVENS 8 AND 9 FUNCTIONS N.B.: All functions will start after selecting the temperature with the thermostat knob. Light A light in the oven Defrosting with fan The air at temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration, Natural convention Both of the lower and upper heating elements operate.This is the traditional cooking,...
  • Page 13 Lower heating element + Fan The air which is heated by the lower heating element is circulated by the fan and so helps to distribute the heat between 50 and 200 . This function can be used for sterilizing glass jars. Upper heating and inside hearting Series + Lower heating element This function is used multibarreled has also worked, in the gallbladder gave off heat evenly,the energy consumption was low.
  • Page 14 Fig.6 Using the turnspit In the “CONVECTIONAL OVEN” models, the turnspit can be used in combination with the grill. After fitting the food on to the spit S, block it with the two forks F. then proceed as follows: Fit the knobs protection as shown in (fig. 6) Fit the support into the circular groove in the spit.

  • Page 15: Clock Functions

    Clock Functions Cooking Time Time Setting Indicate Alarm AUTO Function Select Button Plus Minus...
  • Page 16 A. On/Off Switch (1) Connecting to power, display panel keep flashing, default showing “12.00” and “.”. Now press “Function Select Button” for 3 seconds, display will stop flashing, and show current time. “.” Keep flashing and remind user to set time. (2) Press “Function select Button”...

  • Page 17: How To Keep Your Oven In Shape

    How to keep Your Oven in Shape This appliance is for household use only, don’t use it outdoors! Important: Unplug your oven before cleaning, or performing maintenance! To extend the life of your oven, it must be cleaned frequently, keeping in mind that: Do not uses steam equipment to clean the appliance.
  • Page 18 WARNING: Ensure that the appliance is unplugged before replacing the lamp to avoid the possibility of electric shock. Warning: Do not operate appliance with damaged cord or plug or after the apliance malfunctions, or has been damaged in any manner, return appliance to the nearest Authorized Service Center for exanmination. Repair, or adjustment! USEFUL NOTES FOR COOKING In the following table, some indicative hints for cooking:...
  • Page 19 Disassembling/assembling the oven door To make it easier to clean the inside of your oven, the oven door can be removed, by proceeding as follows (fig. 11): Open the door completely and lift the 2 levers “B” (fig.11-1); Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as shown in figure 2. To reassemble the door: With the door in a vertical position, insert the two hooks “A”...
  • Page 20 Step 1 Step 2 Step 3 Step 4 Sliding rack kit assembly (Optional Accessory) To assemble the sliding racks: Fig.1 Fig.2 Fig.3 1. Remove the two frames, lifting them away from the spacers A (See Fig.1) 2. Choose which shelf to use with the sliding rack. Pay attention to the direction in which the sliding tack is to be extracted, position joint B and the joint C on the frame.

  • Page 21: Fitting Oven Shelves

    Fitting Oven Shelves 1.Ensure shelf orientation is correct(refer picture below) 2.Slide into oven at an angle until raised back of shelf is past the stop on side runners. 3.Lower front of shelf and push in until stop is reached. 4.To remove oven shelves, withdraw to the stop and raise the front of shelf to clear the stop.
