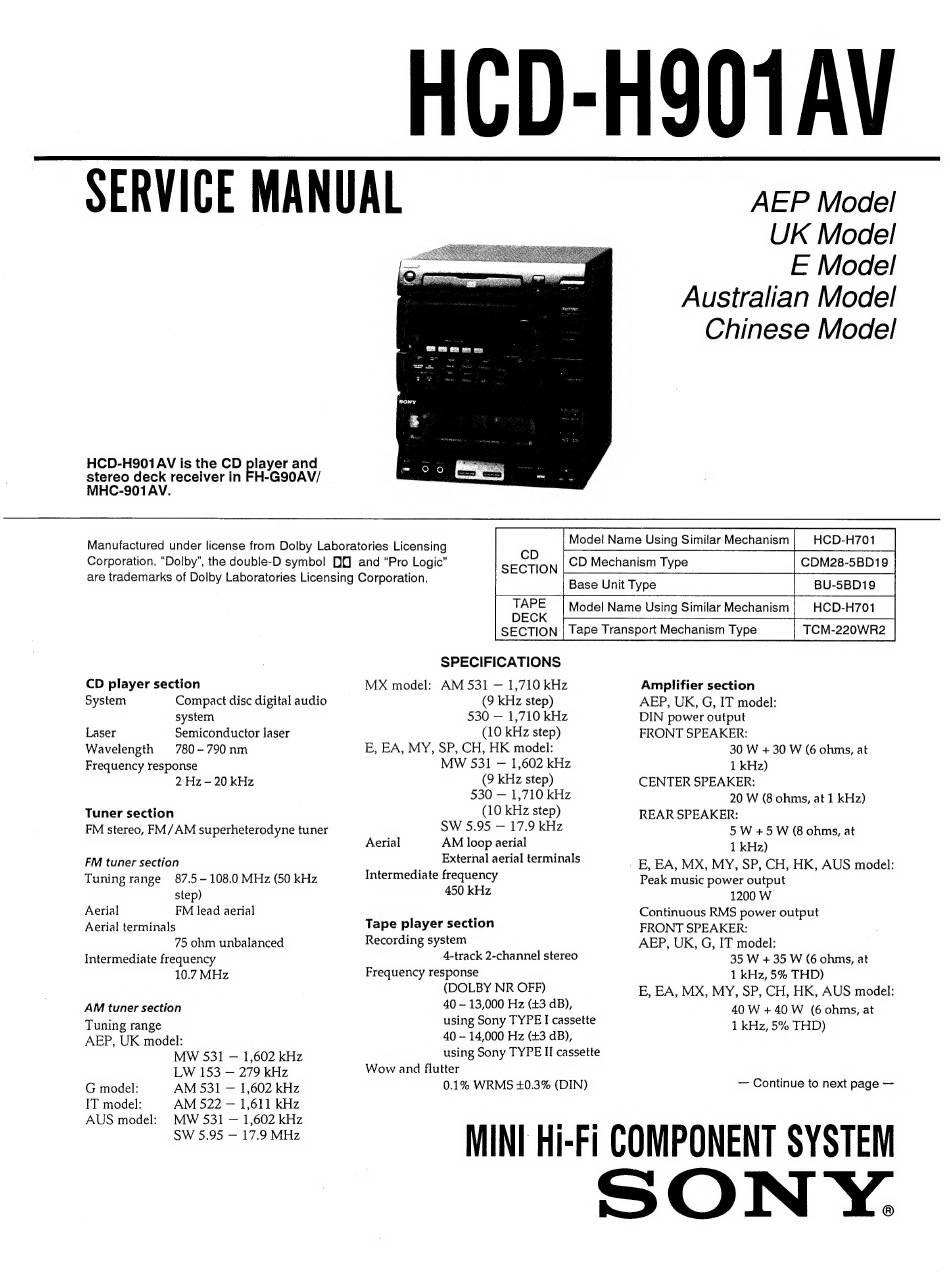

Sony HCD-H901AV Service Manual

SERVICE MANUAL
HCD-H901 AV is the CD player and
stereo deck receiver in FH-G90AV/
MHC-S01 AV.
HCD-H9OTAV
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Manufactured under license from Dolby Laboratories Licensing
Corporation. "Dolby", the double-D symbol 9 and "Pro Logic"
are trademarks of Dolby Laboratories Licensing Corporation.
CD player section
System Compact disc digital audio
system
Laser Semiconductor laser
Wavelength 780-790 nm
Frequency response
2 Hz—- 20 kHz
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz (50 kHz
step)
Aerial FM lead aerial
Aerial terminals
75 ohm unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
AEP, UK model:
MW 531 — 1,602 kHz
LW 153 — 279 kHz
G model: AM 531 — 1,602 kHz
IT model: AM 522 — 1,611 kHz
AUS model: MW 531 — 1,602 kHz
SW 5.95 — 17.9 MHz
Model Name Using Similar Mechanism HCD-H701
CD
SECTION CD Mechanism Type CDM28-5BD19
Base Unit Type BU-5BD19
Las Model Name Using Similar Mechanism HCD-H701
SECTION | Tape Transport Mechanism Type TCM-220WR2
SPECIFICATIONS
MX model: AM 531 — 1,710 kHz Amplifier section
(9 kHz step) AEP, UK, G, IT model:
530 — 1,710 kHz DIN power output
(10 kHz step) FRONT SPEAKER:
E, EA, MY, SP, CH, HK model: 30 W + 30 W (6 ohms, at
MW 531 — 1,602 kHz 1 kHz)
(9 kHz step) CENTER SPEAKER:
530 — 1,710 kHz 20 W (8 ohms, at 1 kHz)
(10 kHz step) REAR SPEAKER:
SW 5.95 — 17.9 kHz 5 W +5 W (8 ohms, at
Aerial AM loop aerial 1 kHz)
External aerial terminals
. | E, EA, MX, MY, SP, CH, HK, AUS model:
Intermediate frequency
Peak music power output
: Continuous RMS power output
Tape player section FRONT SPEAKER:
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
40 - 13,000 Hz (+3 dB),
using Sony TYPE I cassette
40 — 14,000 Hz (+3 dB),
using Sony TYPE II cassette
Wow and flutter
0.1% WRMS +0.3% (DIN)
MINI Hi-Fi COMPONENT SYSTEM
SONY.
AEP, UK, G, IT model:
35 W +35 W (6 ohms, at
1 kHz, 5% THD)
E, EA, MX, MY, SP, CH, HK, AUS model:
40W +40W (6 ohms, at
1 kHz, 5% THD)
— Continue to next page —
