Summary of Contents for KING BIRD Garden Bed 4x3x4.92 FT

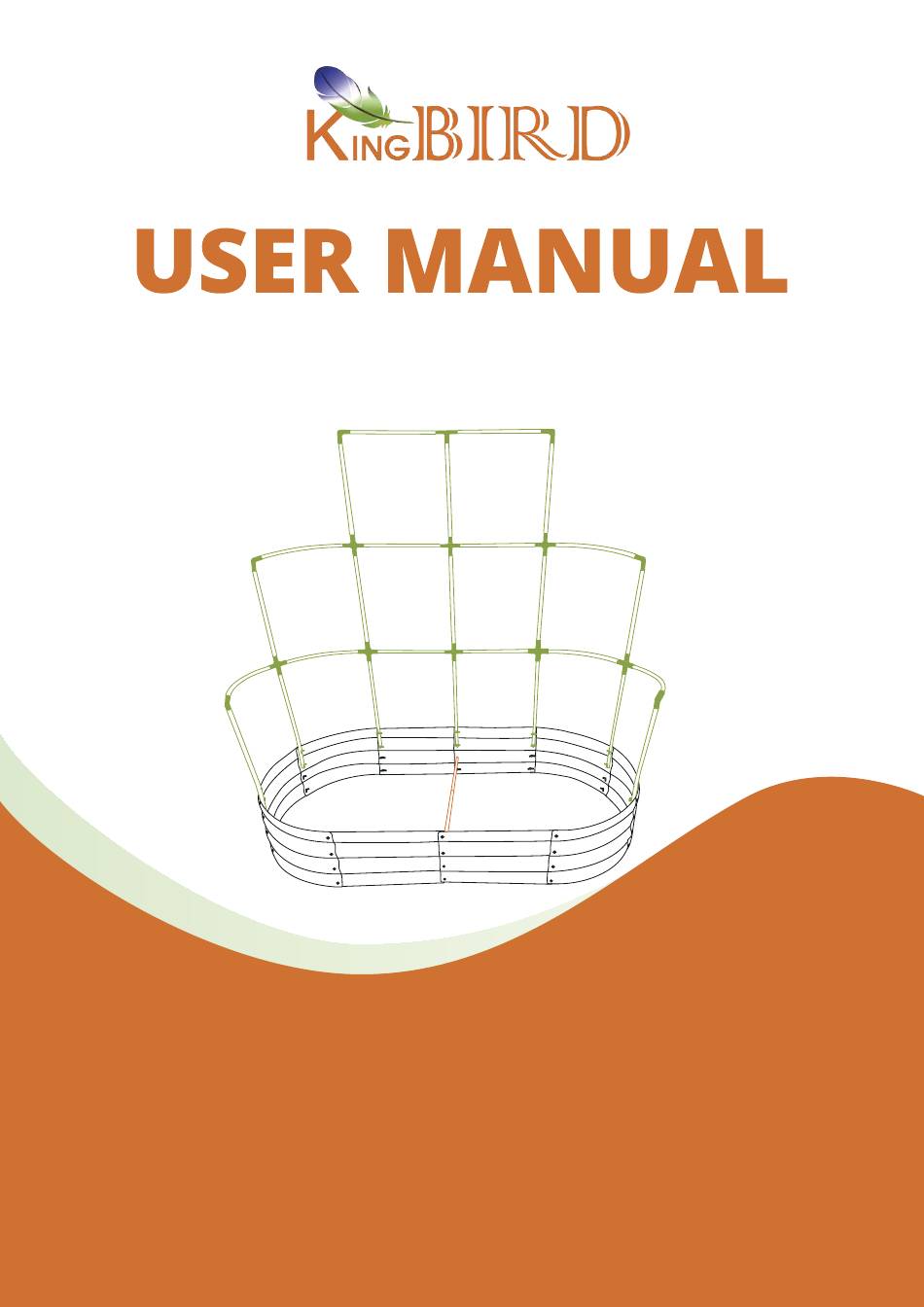

Page 1 Garden Bed 4x3x4.92 FT 6x3x4.92 FT 8x4x4.92 FT Please read, understand, and practice the guidelines in this user manual before use, and keep it for future reference.
Page 2: Table Of Contents
Table of Contents Garden Beds from KING BIRD 4x3x4.92 FT 6x3x4.92 FT 8x4x4.92 FT Warranty IMPORTANT We'd love to hear from our customers. If you have any questions about the manual, would like us to help in anyway, or have any sug- gestions and comments about our products, please feel free to contact the support team.
Page 3: Garden Beds From King Bird
Garden Beds from KING BIRD Elevated Garden Bed with Cover Galvanized Elevated Garden Bed...
Page 4 Patented Screwless Garden Bed Raised Bed with Net Cover...
Page 5 Galvanized Garden Bed 2pcs Galvanized Garden Bed 3 Tiered Raised Bed...
Page 6: 4X3X4.92 Ft
4 x 3 x 4.92 FT Model#GB-35 You’ll receive only one (1) box. If you need any help, please CONTACT the support team. For more details about the assembly, please refer to the video on the product listing page. Please contact our support team whenever you need help.
Page 7: Parts List
PARTS LIST Part Image Description Part# 14.57'' Straight Sheet 19.29'' Curve Sheet 18.3'' Reinforcement Pole With Pin 18.1'' Reinforcement Pole With Hole Vertical Pole with 2 Holes 16.54” Vertical Pole 12.8” Horizontal Pole Curve Pole 1 Pair Gloves...
Page 8: Installation Instruction
Part Image Description Part# Screw Bag (Short Screws*24 & 1 Pack Long Screws*8 & Nuts*28) Screwdriver 3-Way Connector Flat 4-Way Connector Plastic Connector L Installation Instruction Step1 Attach 3 x Curve Sheet (#2) to one side of the 2 x Straight Sheet (#1) with short screws ﬁrst, and then connect the other side of the Straight Sheet with 3 x Curve Sheet (#2) in the same way.
Page 9 The Curve Sheet (#2) should always be on the outside (away from the interior of the garden bed). As shown, it is necessary to reserve the orange holes empty for ﬁxing poles later. Rolled Edge Inside Outside Step2 Connect 18.3'' Reinforcement Pole With Pin (#3) and 18.1'' Reinforcement Pole With Hole (#4).
Page 10 Step3 Assemble the climbing trellis of the garden bed. It is recommended to tighten connectors and poles patiently in this step, for better stability and better shape of the frame. 1) For the ﬁrst tier, attach 4 x Vertical Pole with 2 Holes (#5) to the garden bed by long screws.
Page 11 3) For the third tier, ﬁx 4 x 16.54” Vertical Pole (#6) to the second tier. Connect 2 x 3-Way Connector (#B), 2 x Plastic Connector L (#L), 1 x 12.8” Horizontal Pole (#7) and 2 x Curve Pole (#8) together.
Page 12: 6X3X4.92 Ft
6 x 3 x 4.92 FT Model #GB-36 You’ll receive only one (1) box. If you need any help, please CONTACT the support team. For more details about the assembly, please refer to the video on the product listing page. Please contact our support team whenever you need help.
Page 13 PARTS LIST Part Image Description Part# 19.7'' Straight Sheet 19.3'' Curve Sheet 18.3''Reinforcement Pole with Pin 18.1''Reinforcement Pole with Hole Vertical Pole with 2 Holes 16.5" Vertical Pole 17.7" Horizontal Pole Curve Pole 1 Pair Glove...
Page 14 Part Image Description Part# Screw Bag (Short Screws*26& 1 Pack Long Screws*14& Nuts*38) Screwdriver 3-Way Connector Flat 4-Way Connector Plastic Connector L Installation Instruction Step1 Start from the two ends of the garden bed. Finish forming one end by connect- ing 2 x Straight Sheets (#1) and 3 x Curve Sheets (#2) with the screws;...
Page 15 2). The Curve Sheets (#2) should always be on the outside (away from the interior of the garden bed). 3). As shown, it is necessary to reserve the orange holes empty for ﬁxing poles later. 4). Only short bolts needed for garden bed part. Rolled Edge Inside Outside...
Page 16 #3&#4 Step 3 Assemble the climbing trellis to the garden bed. It is recommended to tighten connectors and poles patiently in this step, for better stability and better shape of the frame. 1). For the ﬁrst tier, attach 7 x Vertical Pole with 2 Holes (#5) to the garden bed by long bolts and nuts.
Page 17 2). For the second tier, ﬁx 5 x 16.5" Vertical Pole (#6) to the Flat 4-Way Connector (#C). Connect 3 x Flat 4-Way Connector (#C), 2 x Plastic con- nector L (#L), 2 x 17.7" Horizontal Pole (#7) and 2 x Curve Pole (#8) together.
Page 18: 8X4X4.92 Ft
8 x 4 x 4.92 FT Model#GB-37 You’ll receive only one (1) box. If you need any help, please CONTACT the support team. For more details about the assembly, please refer to the video on the product listing page. Please contact our support team whenever you need help.
Page 19 PARTS LIST Part Image Description Part# 24.8'' Straight Sheet 19.88'' Curve Sheet 24.02'' Reinforcement Pole With Pin 24.02'' Reinforcement Pole With Hole Vertical Pole With 2 Holes 16.55” Vertical Pole 22.83” Horizontal Pole Curve Pole 1 Pair Gloves...
Page 20 Part Image Description Part# Screw Bag (Short Screws*36 & 1 Pack Long Screws*12 & Nuts*40) Screwdriver 3-Way Connector Flat 4-Way Connector Plastic Connector L Installation Instruction Step1 Start from the two ends of the garden bed. Finish forming one end by connect- ing 3 x Straight Sheet (#B) and 2 x Curve Sheet (#A) with short screws;...
Page 21 As shown, it is necessary to reserve the orange holes empty for ﬁxing poles later. Rolled Edge Inside Outside Step2 Connect 24.02'' Reinforcement Pole With Pin (#3) and 24.02'' Reinforcement Pole With Hole (#4), repeat what you've done until you ﬁnish four all poles. Then connect 2 ends of garden bed and 2 x Straight Sheet (#1) together, ﬁx the reinforcement poles to the garden bed.
Page 22 1) For the ﬁrst tier, attach 6 x Vertical Pole with 2 Holes (#5) to the garden bed by long screws. Connect 4 x Flat 4-Way Connector (#C), 2 x 3-Way Connector (#B), 3 x 22.83” Horizontal Pole (#7) and 2 x Curve Pole (#8) together.
Page 23 3) For the third tier, ﬁx 4 x 16.55” Vertical Pole (#6) to the second tier. Connect 2 x 3-Way Connector (#B), 2 x Plastic connector L (#L), 3 x 22.83” Horizontal Pole (#7) together.
Page 24: Warranty
Quantity required for each part Pictures (or video clips, if applicable) WARNING Restructuring the product without written permission from KING BIRD in advance would VOID the warranty. Damages due to improper use in severe weather conditions, including but not limited to high winds, heavy rain, sleet, snow, etc., will NOT becovered by the warranty.

This manual is also suitable for:

Garden bed 6x3x4.92 ft Garden bed 8x4x4.92 ft
