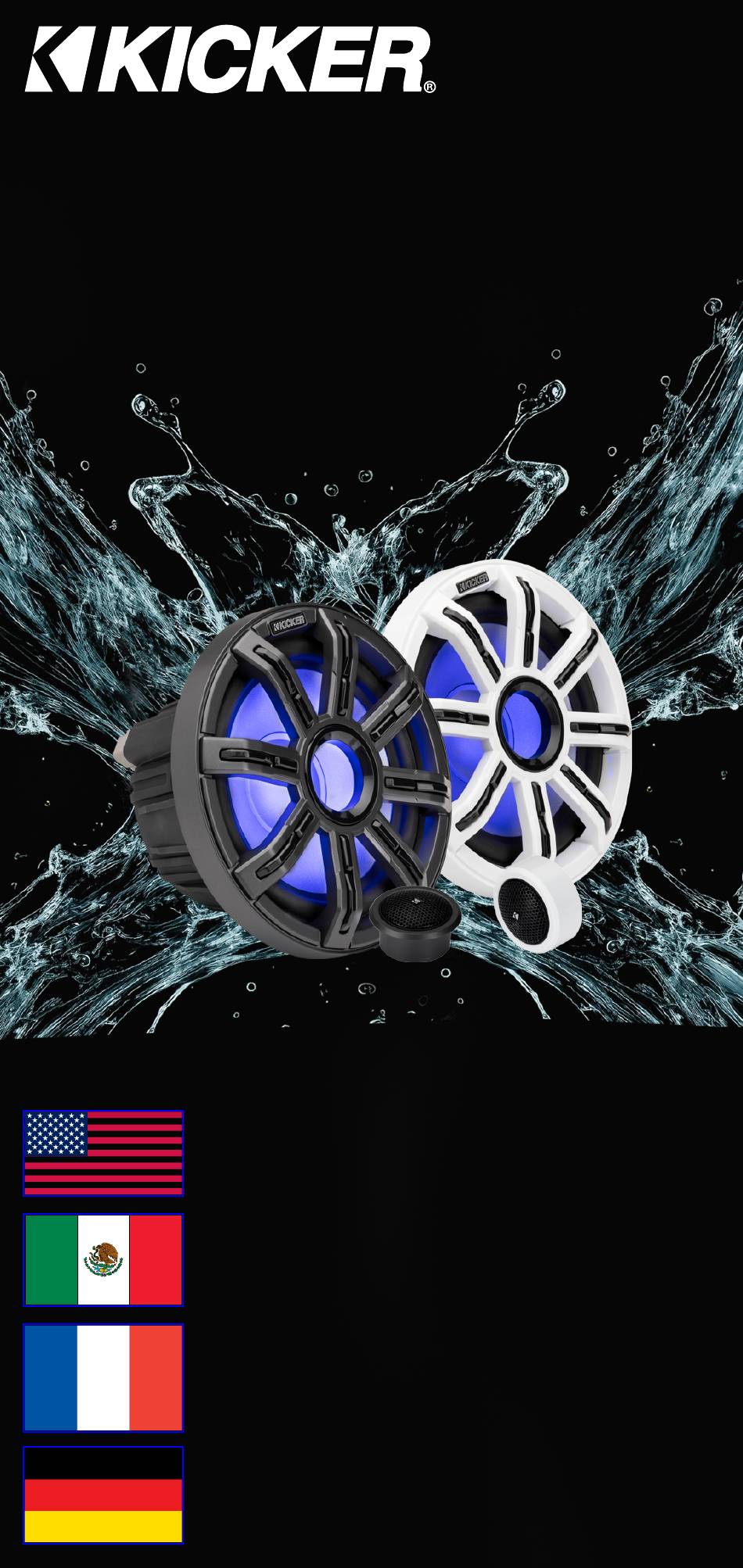

- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisatio Benutzerhandbuch select language MSS Components seleccione Altavoz Componentes MSS el idioma choisir la Haut-parleurs Composants MSS langue sprache MSS Komponenten-System auswählen...
-
Page 2: Table Of Contents
Contents Overview ......3 Specifications ......4 Installation ......5 Wiring Configuration ....5 LED Wiring Configuration .... 7 Speaker Mounting ...... 8 Grille Installation ......11 Tweeter Mounting ..... 12 Warranty ......20 Garantía | Garantie ....English 51mss-d... -
Page 3: Overview
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL. -
Page 4: Specifications
Note: All specifications and performance figures are subject to change. Please visit www.kicker.com for the most current information. To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. Please allow two weeks of break-in time for the speakers to reach optimum performance. -
Page 5: Installation
Installation Wiring Configuration We recommend using 16 gauge (or larger) wire. The MSS Speakers are rated at 4 ohms and work with any source unit or amplifier designed to operate at a 4 ohm load. Make sure your source unit or amplifier is rated for 4 ohm operation. - Page 6 3. Connect the MSS audio & LED plugs to the MSS. Pro Tip: You’re a KICKER KXM amplifier a few cables away from a full system upgrade that will dominate out on the water! Also, ask your KICKER Dealer about KICKER Premium Marine subwoofer upgrades.
-
Page 7: Led Wiring Configuration
LED Wiring Configuration When wiring the LED lighting, the black lead is +12V and the blue, red, green and white leads are ground. 1. Connect the black LED wire to the positive terminal of the battery. a. Place a 2-amp fuse (not included) no further than 7”... -
Page 8: Speaker Mounting
MSS product page KICKER.com. If necessary, pre-drill the mounting screw holes using a 7/64” (2.5mm) bit following the template. Use masking tape to help prevent damage to the paint in the locations to be cut or drilled. - Page 9 Make sure the mounting screws and speed nuts will not puncture the fuel cell, wiring, or interfere with any mechanical parts on the underside of the mounting surface. If the supplied hardware is not applicable to your installation, some other means of securely attaching the speakers to the boat must be used.
- Page 10 Secure speaker to desired location. Possible locations for MSS Speaker Mounting Mounted Stern Mid-Ship Mounted Mounted in the Bow English...
-
Page 11: Grille Installation
The MSS Speaker Grille is a snap-lock configuration that must be correctly oriented to be installed properly. To do this, make sure the KICKER badge logo at the top of the grille is in the same orientation as the KICKER “K” logo located on the tweeter bridge, directly above the tweeter. -
Page 12: Tweeter Mounting
Tweeter Mounting The tweeter may be surface-mounted using the Surface Mounting Cup or flush-mounted using the Flush Mounting Cup. Flush Mounting: Choose a flat location with space behind the panel to allow room for the motor structure and tweeter. After checking the clearances, cut a 2”... - Page 13 Attach the Retaining Strap to the back of the Flush Mounting Cup - about 5 or 6 complete turns. English...
- Page 14 Push the Flush Mounting Cup into the mounting hole until the Retaining Strap is through and “catches” the inside of the mounting surface. Position the Flush Mounting Cup so the rear crossing is oriented as an “x” not a “+”. This will prevent the wires from becoming pinched.
- Page 15 Hold the Retaining Strap and Flush Mounting Cup in place while using a screwdriver to finish securing the cup to the mounting location. Route the wires through the Flush Mounting Cup. English...
- Page 16 With the tweeter positioned so the “K” badge is orientated up, gently push the tweeter into the Flush Mounting Cup until it fully seats. To remove the tweeter, push on the back of the tweeter until it pops out. English...
-
Page 17: Surface Mounting
Surface Mounting: Position the Surface Mounting Cup on the desired surface and mark the mounting holes. Drill two 7/64” holes for the mounting screws and one 1/4” hole through which to route the tweeter wire. Position the Surface Mounting Cup so that the weep hole is oriented down. - Page 18 Secure the Surface Mounting Cup to the surface using the provided screws. Route the tweeter wire through the hole in the mounting surface. English...
- Page 19 With the tweeter positioned so the “K” badge is orientated up, gently push the tweeter into the Surface Mounting Cup until it fully seats. To remove the tweeter, insert a 90-degree pick into the weep hole to work the tweeter out of the Surface Mounting Cup.
-
Page 20: Warranty
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. - Page 21 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
-
Page 22: Garantía | Garantie
(“a todo volumen”) en todo sentido. La línea de altavoces y amplificadores KICKER es la mejor del mercado de audio de automóviles y por lo tanto representa el “combustible” para vivir a todo volumen en el área de “estéreos de automóvil” de la vida de nuestros clientes.
