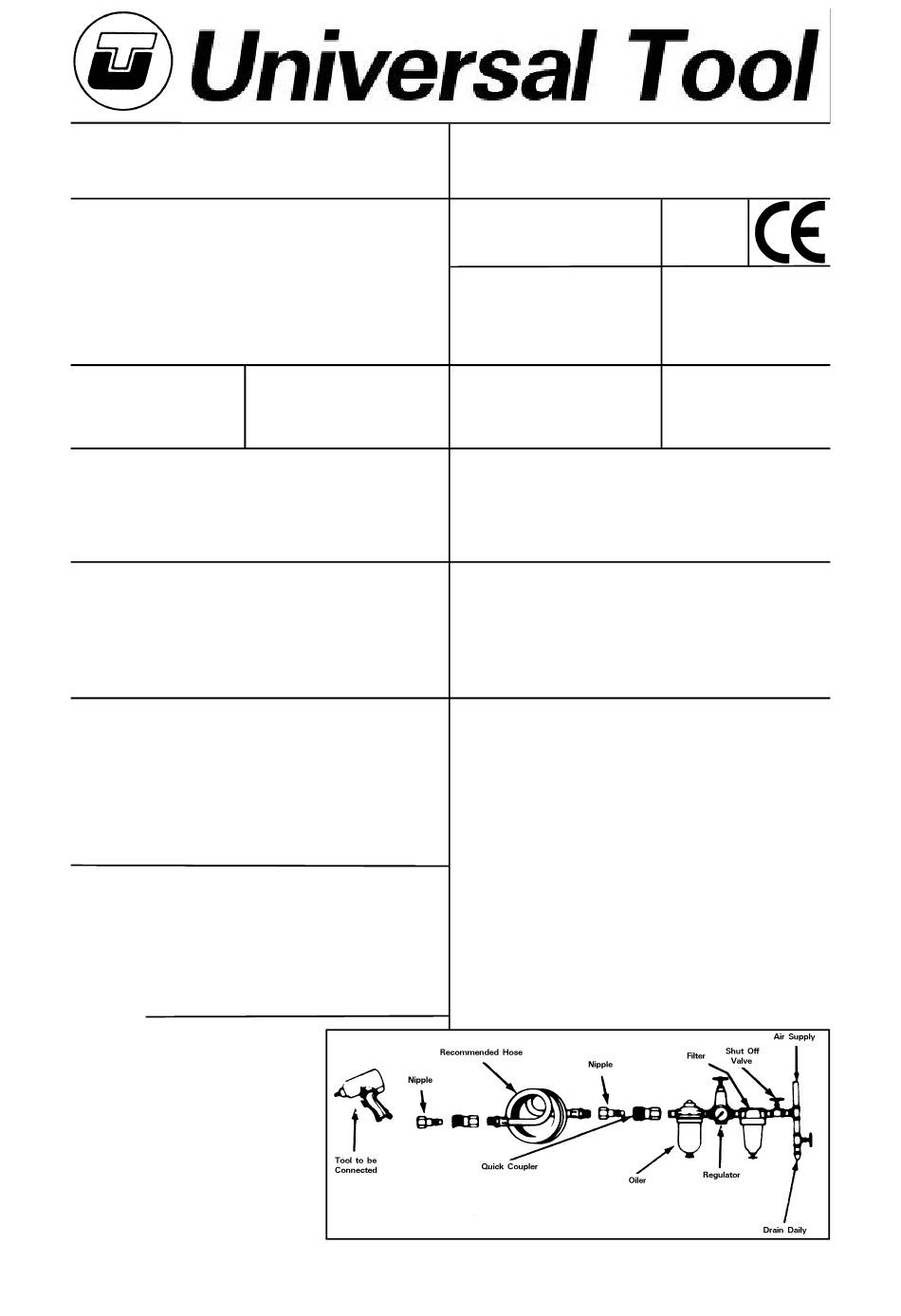

Universal Tool UT1054 Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
2.0 lbs
0.9 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use Of the Tool
This tool is primarily designed for use with 1/4" dia. shank
carbide burrs of hardened steel countersink cutters provided their
speed rating matches the speed of the tool.
This tool should not be fitted with cutting off wheels, bonded
abrasive mounted point grinding wheels, saw blades, drill bits,
etc. If there is any doubt about the correct use of this product
contact your supplier for advice.
Work Station
The tool should only be used as a hand held, hand operated tool.
It is always recommended that the tool is used when standing on
the solid floor. It can be used in other positions but before any
such use, the operator must be in a secure position having a firm
grip and footing and be aware of the extra safety precautions that
must be observed when using this tool.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will
give a measured air pressure at the tool of
90 psi/6.3 bar when the tool is running
with the lever/trigger fully depressed. Use
recommended hose size and length. It is
recommended that the tool is connected to
the air supply as shown in figure 1. Do not
connect the tool to the air line system
without incorporating an easy to reach and
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Yes
Yes
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Laminate Trimmer
Model No/Nos
UT1054
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level Sound Pressure Level 83.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level Less than 2.5
Test Method Tested in accordance with ISO
standards 8662/1
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier.
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
pressing the lever/trigger on the tool. Disconnect the air line and
pour into the intake bushing a teaspoonful (5ml) of a suitable
pneumatic motor lubricating oil preferably incorporating a rust
inhibitor. Reconnect tool to air supply and run tool slowly for a
few seconds to allow air to circulate the oil. If tool is used
frequently lubricate on daily basis and if tool starts to slow or lose
power.
It is recommended that the air pressure at the tool whilst the tool
is running is 90 psi/6.3 bar. The tool can run at lower and higher
pressure with the maximum permitted working air pressure of
100 psi/7.0 bar.
RPM
22,000
Cycles Per Min
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
Metres / Sec²
If such
