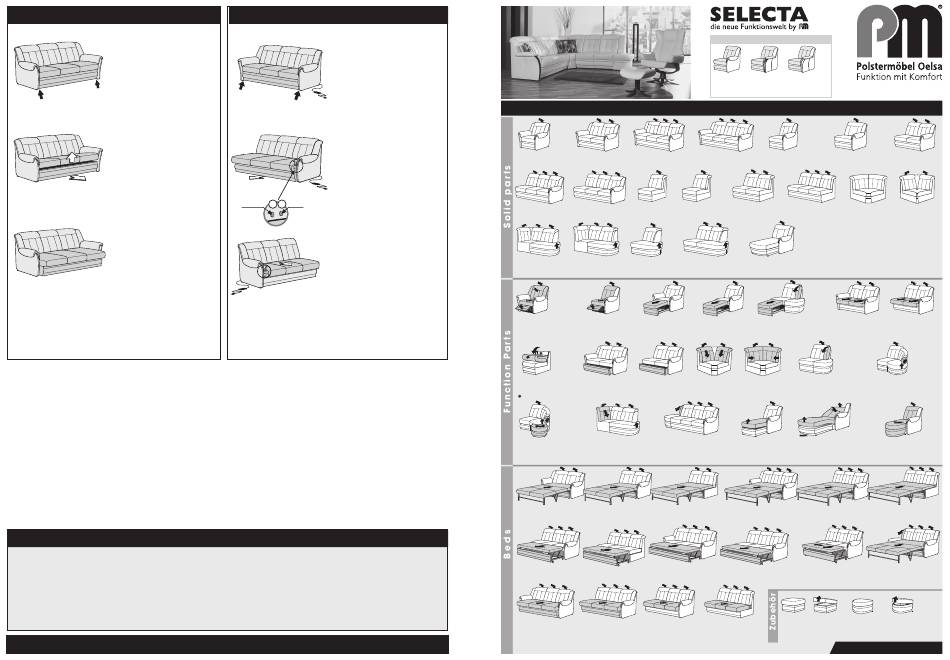

PM Selecta ANDORRA 3750 Installation And Operating Instructions

Relaxecke
2,5-/3-Pull-out couch manual
mit verstellbaren Rückenlehnen
1
Remove the safety cords on the
underside on both sides.
2
Grasp with one hand centrally
under the seat frame (recessed
grip), press with the other hand
centrally on the seat in the rear seat
area. Lift up the front edge of the
seat and fold it upwards. The bed
drawer is now accessible.
3
If you now pull the seat on the front
panel forward and simultaneously
press it down, the lying surface is
folded out.
The bed drawer only moves approx.
25 cm forward with the 3-person
sofa bed.
Retransformation
Raise the seat with one hand at the front edge and simultaneously
press the rear seat area with the other hand to open the seat. Now
press the seat down at the front edge and simultaneously backwards
into the starting position.
In the 3-seater version, the bed drawer also moves back.
ATTENTION - General information
When transforming our functional furniture, it is absolutely essential to avoid reaching into the mechanism or fittings.
There is a risk of injury!
To avoid damaging the floor, do not push furniture without additional sliding aids!
Illustrations are only schematic sketches, therefore illustrations may differ from your model.
Please keep the model sheet together with the warranty card.
