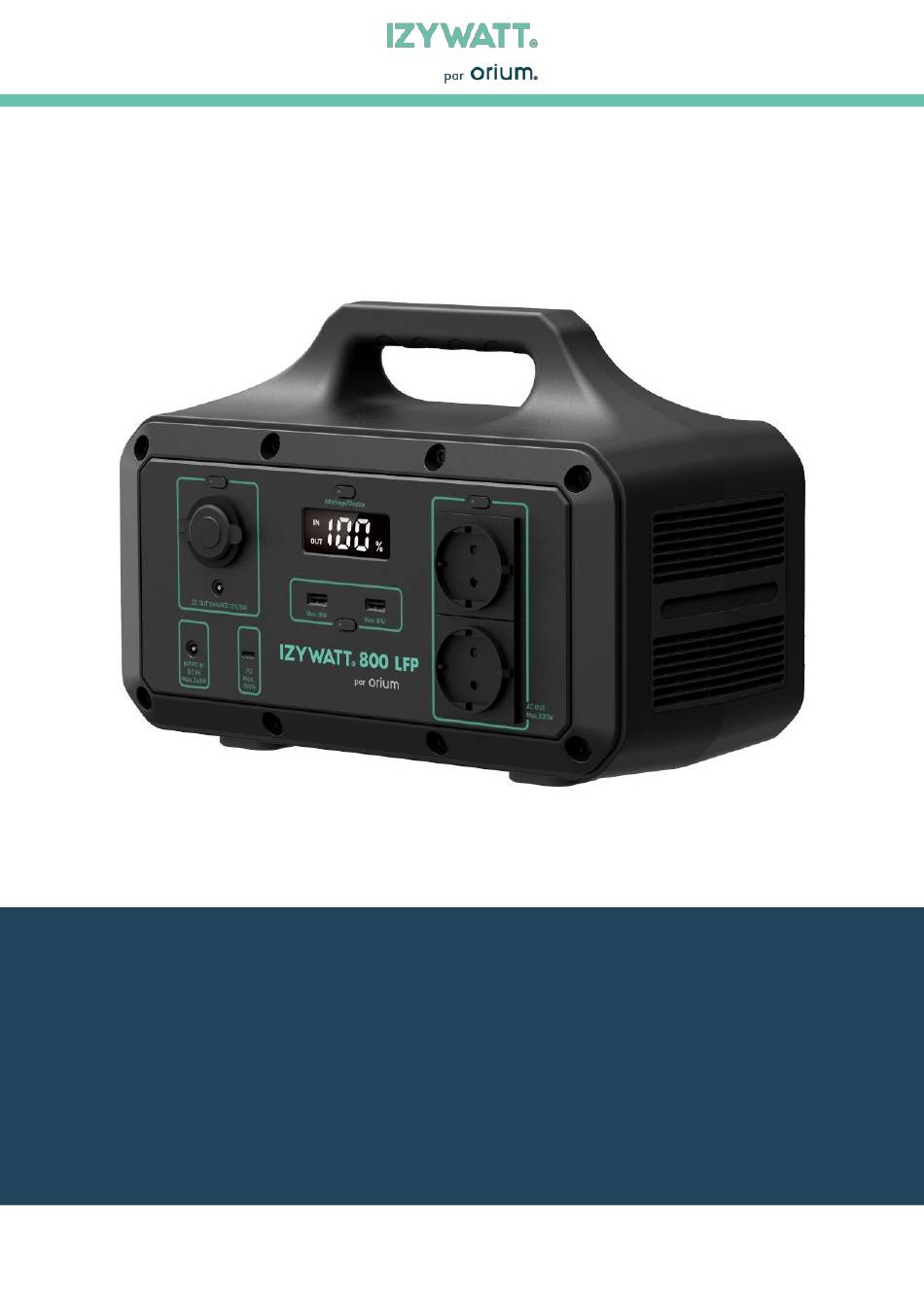

- Page 1 USER MANUAL Non-contractual photos Portable energy station IZYWATT 800 LFP #39246 VERSION 1...
-
Page 2: Table Of Contents
Charging via USB Type C ..............9 Output ports ..................11 Transport and storage ................. 12 Breakdown index .................. 13 Standards and environment..............14 Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 3: Important Information, Maintenance And Storage
The mains charger supplied (30V/8A = 2h00 to 2h30 required) • A solar installation consisting, for example, of a 200W Orium 39210 solar panel (approx. 3.5 hours to 5 hours with a loss of yield of 80% depending on the orientation of the panels and the amount of sunlight). -
Page 4: Recommendations For Use
- The IZIWATT 800 LFP is not designed to feed power back into the mains. Direct connection to a domestic socket is therefore prohibited. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 5: Technical Data
Input voltage 17-24V Battery information Cell chemistry LiFePo4 (LFP) Lifecycle 3000 cycles at 80% capacity Energy 518Wh Rated voltage & capacity 19.2V 27A Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 6: General Information
Contents of the box Central unit with IZYWATT 800 battery 1 piece Mains charger 230V 30V 8A 1 piece Cigar-lighter charger 29.4V 5A 1 piece Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 7: Diagram Of Ports And Functions
4. Display screen 10. Port 12V DC 5525 a. In: Load in progress 11. 12V cigarette lighter port b. Out: Discharge in progress Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 8: Installation
"IN" logo below is activated. Charging via 230V AC power supply (supplied) Input socket for mains charger, solar panel or cigarette lighter Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 9: Solar Charging (Solar Panel Not Supplied)
Other compatible products are available at www.oriumfrance.com. When the battery is fully charged, the digital display shows "100%". It takes approximately 5 hours to recharge the battery with a 160W panel (ref. Orium Reference 39246 - Izywatt 800 LFP Imported by :... -
Page 10: Charging Via The Cigarette Lighter (Supplied)
39209) and 4 hours to fully recharge the battery with a 200W panel (ref. Orium 39210) correctly installed in the sun. Charging via cigarette lighter (supplied) Input port for mains charger, solar panel or cigarette lighter Connect the plug of the battery charger supplied (C) to the DC 7909 socket on the IZYWATT 800 battery, then plug it into your vehicle's cigarette lighter. - Page 11 Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
-
Page 12: Output Ports
The central unit produces a high voltage current: handle with care. Under no circumstances should you short-circuit the battery or the AC 230V output. This will damage the battery or create a fire hazard. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 13: Transport And Storage
When the battery is no longer in use, disconnect it from all connections and put it away. Do not expose the battery to extreme heat. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 14: Breakdown Index
- Try charging the battery using the cigarette lighter charger or a solar panel. -If the battery does not restore or store energy: contact the after-sales service. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... -
Page 15: Standards And Environment
This product complies with the WEEE and ROHS directives. When disposing of this appliance, please observe local laws and regulations. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France... - Page 16 User manual Folding solar panel #39209...
- Page 17 Index 1. General information 2. Installation 3. Parallel connection of two panels 4. Technical information 5. Transport and storage Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 18 A dirty panel will not charge the battery optimally, if at all. Warning Read the operator's manual DO NOT modify or remove the identification and information plates/labels Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 19 Failure to do so will invalidate the product warranty. Please contact our after-sales service in the event of a malfunction. sav@oriumfrance.com Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 20 Elements included : 1 piece 160W folding solar panel MC4 positive and negative 1 pair cables 1 piece MC4 to DC7909 adapter Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 21 You can connect two #39209 panels in parallel to increase charging power. Please use a pair of duo or trio MC4 multipin connectors (Orium model ref. 39213). Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 22 22.6% (approx.) Voc and Isc maximum voltage and 23.6V 8.8A current Vmp and Imp optimum voltage and 20V 8A current Dimensions unfolded 172*76.2*1.5cm Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
- Page 23 This product complies with the WEEE and ROHS directives. When disposing of this appliance, please comply with local laws and regulations. Reference 39246 - Izywatt 800 LFP Imported by : Orium - 44980 Ste Luce sur Loire - France...
