Hand Microphone CT-HM HD2
Operating Instructions
1

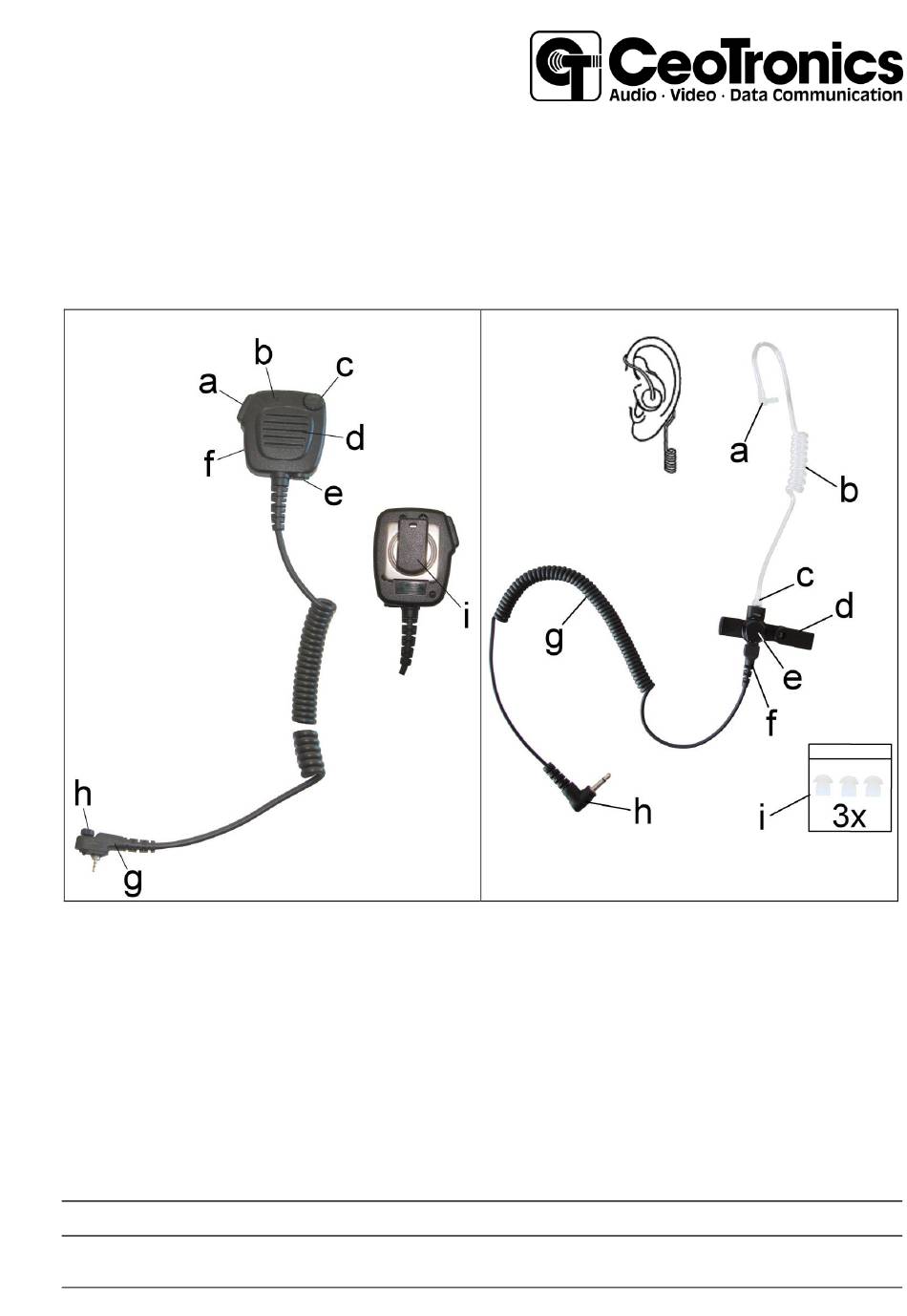

Key to Fig. 1
a
PTT button (PTT = push to talk)
b
Microphone (speaking distance approx. 10 cm)
c
Loudspeaker control (two-step)
d
Loudspeaker
e
Jack for connection earphone
f
Emergency button
g
Radio plug dependent on the two-way radio
h
Lock screw for radio plug
i
Fastening clip (turn able 360 degrees)
Revision: 01/0516 DOK 1353-be
2
Key to Fig. 2
a Adaptor for ear olive (Fig1/i)
b Audio Tube
c Adaptor for audio tube
d Turn able clip with ear phone adaptor
e Ear phone
f Plug for connection ear phone
g Coiled cable, approximately 140mm
h Plug for connection hand microphone
i
3 x ear olive in plastic bag
English
Advertisement
Summary of Contents for CeoTronics CT-HM HD2
- Page 1 Hand Microphone CT-HM HD2 Operating Instructions Key to Fig. 1 Key to Fig. 2 PTT button (PTT = push to talk) a Adaptor for ear olive (Fig1/i) Microphone (speaking distance approx. 10 cm) b Audio Tube Loudspeaker control (two-step) c Adaptor for audio tube...
- Page 2 Use CeoTronics products only without damage and abrasion. If repair work of any kind needs to be done to CeoTronics products, arrange for it to be performed only by the company CeoTronics or by a specialized workshop that is authorized by CeoTronics. In all other cases, our warranty and liability for the product shall lapse.
- Page 3 Road traffic hazard! Do not leave CeoTronics products lying around loose in cars, e.g. on the parcel shelf. Stow these products in a suitable, safe place in the car so that they do not present a danger to you or to other occupants of the car, if emergency braking is effected.
- Page 4 The end user has to check and decide that the products can be used without risk. CeoTronics does not take over responsibility for any damage or material losses nor injuries to persons, caused by the use described above or by any other abnormal use of the products.
-
Page 5: Brief Description
2 Brief description Purpose The hand microphone is used in conjunction with two-way radios. The connection to the two-way radio is made via a radio plug is connected to the accessory socket. An earphone can be connected to the hand microphone. The hand microphone is equipped with a emergency button. 3 Commissioning and operation 3.1 Commissioning a. -
Page 6: Visual Inspection - Cleaning
Examine the device and in particular the cables and connectors regularly for signs of fractures, cracks and wear. Send defective devices to CeoTronics for repair. Do not immerse the device in water. No moisture may be allowed to penetrate the device. Do not use any solvents (benzine, alcohol, etc.) for cleaning purposes. - Page 7 Revision: 01/0516 DOK 1353-be 7 / 8...
