- Page 1 MODBUS SCOUT Portable RS485 Modbus Communicator User Manual Doc # 9006890 Part # 201194 Rev A, 03/2025...
-
Page 2: Table Of Contents
CHAPTER 2: INSTALLATION PROCEDURES Physical Installation Notes Tools Needed Setup CHAPTER 3: HOW TO USE THE APP Connect to the Modbus Scout Device Read/Write Sensor Registers Broadcast Mode CHAPTER 4: TROUBLESHOOTING NOTE: Find product specifications, accessories, and more in the Data Sheet. -
Page 3: Introduction

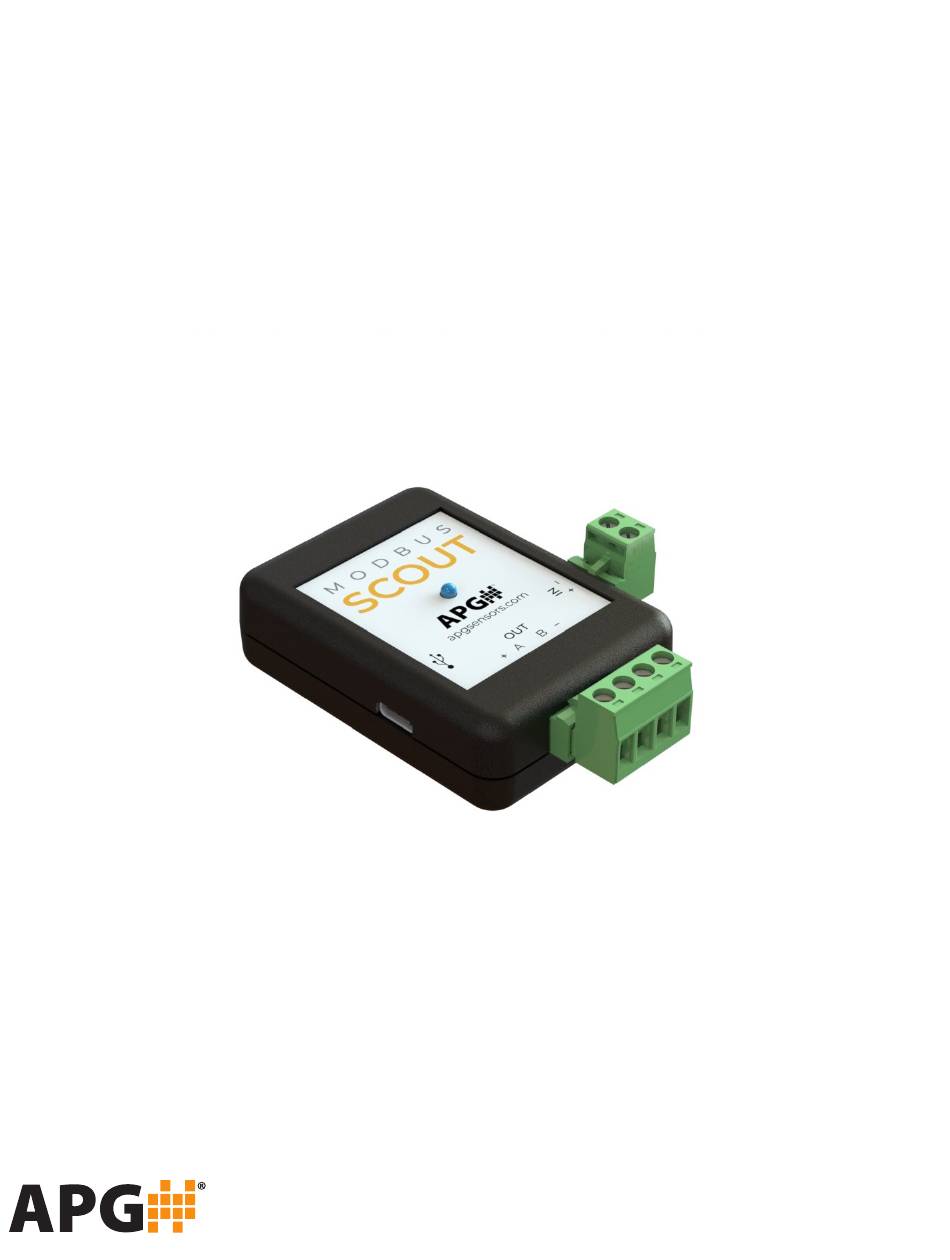

RS485 Modbus sensors in the field and communicate with them via an easy-to-use app or a convenient USB port. Additionally, Modbus Scout can broadcast simple readings to the app, so users can quickly check the status of several devices within range at once. -
Page 4: Warranty And Warranty Restrictions
Return Material Authorization before shipping your product back. Repair and Returns Should your Modbus Scout require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. You can also find the form on our website by clicking “RMA”... -
Page 5: Chapter 1: Dimensions And Wiring
3.30” Modbus Scout Wiring Modbus Scout can be powered via the 2-Pin External Power connector or the USB connector. If both connectors are plugged in, power will be supplied by the 2-Pin External Power. Power In Options • 2-Pin Connector: 8 to 30 VDC, 3 Amp max •... -
Page 6: Chapter 2: Installation Procedures
Physical Installation Notes Modbus Scout can be used as a portable device to set up a RS485 Modbus sensor or it can be installed and set to broadcast mode, allowing users to view 1-2 registers per device on the Bluetooth app within range without requiring a paired connection. -
Page 7: Chapter 3: How To Use The App
2. Identify your device and press “Connect.” The LED will turn solidly blue when connected. 3. Press “Communicate.” 4. Set the Device Address and choose the APG sensor model from the “Model” list. 5. The sensor’s calculated and raw reading will appear, along with the Modbus registers. -
Page 8: Broadcast Mode
Broadcast Mode Broadcast Mode allows users to view readings from multiple Modbus Scout devices in range. To set a Modbus Scout device to broadcast: Identify your device in the Scan For Devices page and press “Connect.” 2. Press “Configure,” then press “Send.”... -
Page 9: Chapter 4: Troubleshooting
CHAPTER 4: TROUBLESHOOTING Most issues can be resolved by restarting the app or turning Modbus Scout off and on again. Type Issue Solution Power LED does not turn on • Check power supply and connections. • Verify 2-Pin connector pinout. - Page 10 Automation Products Group, Inc. Tel: 1 (888) 525-7300 or 1 (435) 753-7300 e-mail: sales@apgsensors.com www.apgsensors.com Automation Products Group, Inc. 1025 W. 1700 N. Logan, UT 84321...
