Summary of Contents for Testa iFiD Mobile NMHC

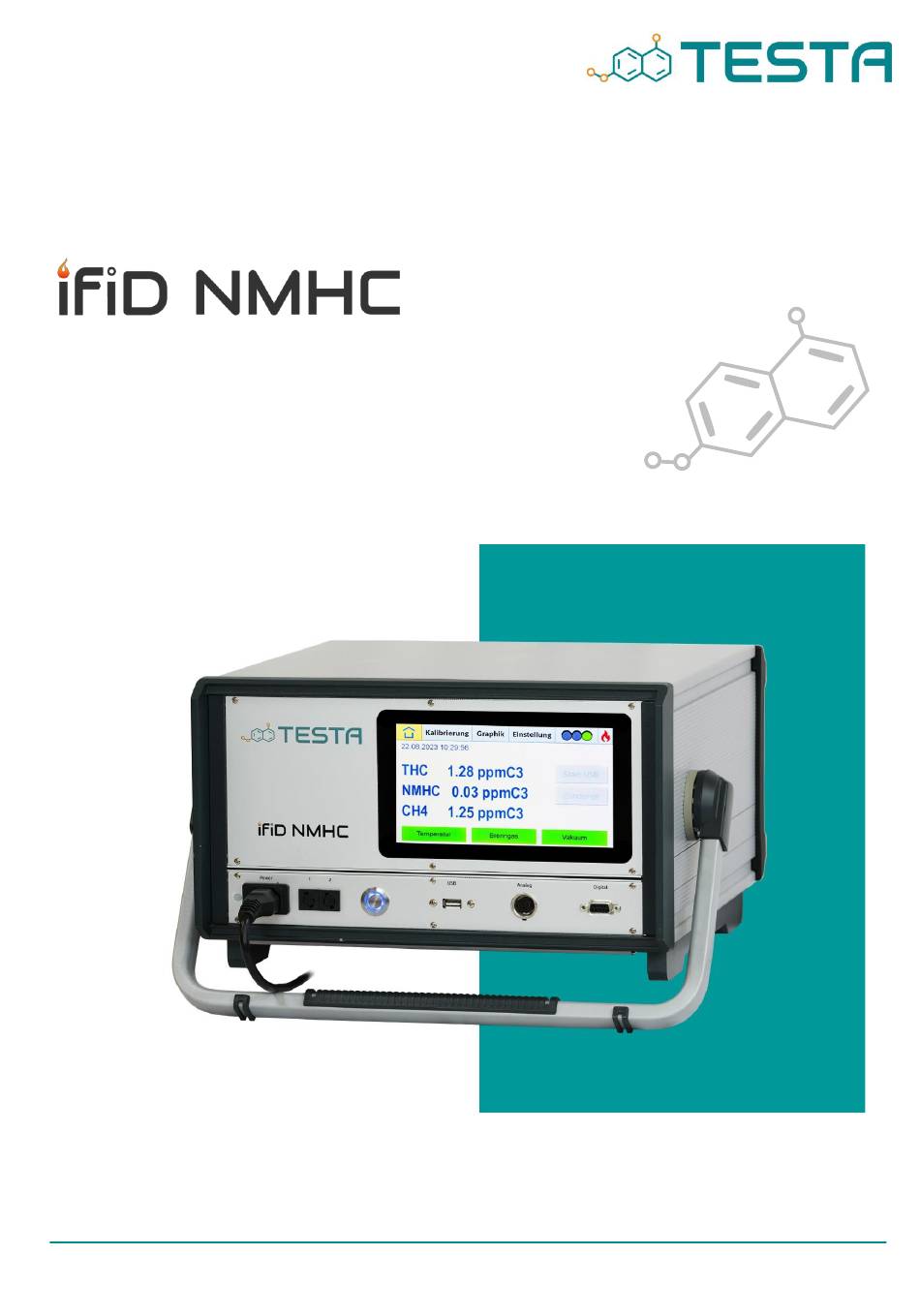

- Page 1 Manual Flame Ionization Detector (FID) for measuring NMHC TESTA GMBH KATHI-KOBUS-STR. 15 ● DE-80797 MUNICH TEL: +49 89 129 30 05 ● EMAIL: INFO@TESTA-FID.DE ● INTERNET: WWW.TESTA-FID.DE...
-
Page 2: Information Symbols
Email: Info@testa-fid.de Original documents The German version of this document in version 2.4 is an original document from Testa GmbH. Testa GmbH does not assume any liability for the accuracy of an unauthorized translation Legal information Subject to errors and changes. -
Page 3: Table Of Contents
Specific local conditions ......................8 1.3.4 Storage of documents ......................... 8 Additional documentation / information ..................9 Notes on transport and storage of Testa iFiD NMHC devices ..........9 Product description ........................10 Product identification ........................10 Features of the iFiD NMHC ......................10 2.2.1... - Page 4 Auto Cal setting ..........................29 Operation ............................30 Operating and display elements ....................30 5.1.1 Operating status ........................30 5.1.2 Device status ..........................31 5.1.3 Symbols / Functions ........................32 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 4...
- Page 5 Description of the maintenance work ..................48 8.3.1 Visual inspection - before each commissioning ..............48 8.3.2 Scope of maintenance ....................... 48 8.3.3 Calibration after maintenance ....................48 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 5...
- Page 6 Annex ..............................57 11.1 Gas flow diagram ........................57 11.2 Remote control ........................... 58 11.3 File Options ..........................60 Guarantee certificate ........................61 EU Declaration of Conformity ...................... 62 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 6...
-
Page 7: Important Notes
1.2.2 Point of use The iFiD Mobile NMHC is designed for operation in well-ventilated rooms as well as for field measurements. The measuring device must be protected from direct atmospheric influences such as weather (wind, precipitation, sun), as influences of this kind can damage the device and reduce measuring accuracy. -
Page 8: Responsibility Of The User
1.3.4 Storage of documents Operating instructions and system documentation • Always have it ready for reference • Pass on in case of change of ownership Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 8... -
Page 9: Additional Documentation / Information
• CE declaration of conformity Notes on transport and storage of Testa iFiD NMHC devices Flame ionization detectors are sensitive measuring instruments and should therefore be handled with the necessary care, expertise and only by qualified personnel in accordance with the valid recognized rules of technology. -
Page 10: Product Description
The iFiD NMHC works extractively, i.e. the sample gas is extracted from the gas channel by means of a gas sampling probe via a heated pre-filter and fed to the analysis system via a heated sample gas line. Image 2.2-1 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 10... -
Page 11: Functionality
Touch screen, which is used both as an input medium and for the output of important settings and signals • The instrumental analysis of the FID to analyze the measuring component C Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 11... -
Page 12: Measuring Principle
The following interfaces are available for iFiD NMHC: • Ethernet interface (LAN via RJ45) • Digital interface RS232 / USB with adapter cable • Analogue interface (Volt / mA) with identification Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 12... -
Page 13: Remote Control
TESTA operating program (PC program) The iFiD NMHC can also be parameterized via the Testa program. The operating program runs on an external PC which is connected to the iFiD NMHC via the Ethernet interface. Gas flow diagram iFiD NMHC See chapter 11.1... -
Page 14: Zero Gas And Test Gas
Recommendation: a 2-stage pressure regulator (200 bars / 6 bars) with connection according to DIN 477 or mobile Testa gas supply with integrated pressure reducer Sample gas IMPORTANT: Prevent danger of condensation during measuring operation! 2.8.1... -
Page 15: Installation And Connection
• Find a suitable installation location for the zero and test gas cylinders as well as the fuel gas cylinder in compliance with the local regulations for the installation of gas cylinders. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12... -
Page 16: Prepare Interfaces And Gas Connections
NMHC assessment! IMPORTANT: Watch the fuel gas cylinder carefully for pressure drop. • Check the gas tightness of the H supply with a leak detector. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 16... -
Page 17: Connection Overview
Sample gas Analogue alarm inlet (SUB-D connector) Span & Zero -Main & pre-alarm input -fault -function control Fuses Ext. A RJ45 Connection Ext. B Fuel gas Connection Image 3.4-2 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 17... -
Page 18: Combustion Air Treatment With Catalyst
The iFiD NMHC is operated with an external zero gas supply using synthetic air with a purity of 5.0 or higher Select external zero gas: Connect zero gas (black coupling as standard) to the 3rd gas inlet socket from above on the rear wall marked "Zero". Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 18... -
Page 19: Connecting The Sample Gas
NMHC via a T-piece. If the sample gas contains large amounts of dust, an external dust filter (e.g. Testa iFiD Filter) must be installed in the sample gas flow as a heated pre-filter. -
Page 20: Analogue Measured Value Output
10 0ppm/mgC 1000 ppm/mgC 10000 ppm/mgC 100000 ppm/mgC or freely selected measuring range (e.g. at a measured value of 6ppm/mgC 1V is applied between pin 1 and pin 4) Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 20... - Page 21 "OK" (see Fig. 3.5.4). The following table describes which settings allow a 2nd measuring range: Channel 1 Channel 2 automatically automatically custom range custom range custon range automatically Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 21...
-
Page 22: Analogue Cable
(green banana plug) Identification 1-5 Volt Pin 4 (black banana plug) GND Pin 3 (yellow banana plug) mA Channel 1 Pin 7 (white banana plug) mA Channel 2 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 22... - Page 23 Pin 3 (yellow banana plug) mA Channel 1 Pin 7 (white banana plug) mA Channel 2 Pin 4 (black banana plug) GND Pin 8 (black banana plug) GND Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 23...
-
Page 24: Analogue Output: Pin Assignment On The Device
3.7.1 Pin assignment of the analogue alarms (SUB-D) Pin 8+9 Pin 6+5 Functional check Fault Pin 1+2 Pin 5 Pin 3+4F Pre-alarm Not documented Main alarm Image 3.7-1 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 24... -
Page 25: Tablet Usage
NMHC is only operated "behind" a firewall. 3.10 Connecting the power supply Compare the existing mains voltage with the data on the type plate and contact TESTA Customer Service if there is any discrepancy. Only then connect the power supply. -
Page 26: Commissioning
When the unit is put into operation for the first time or after a test gas change, it is necessary to carry out an input calibration. To do this, activate the input calibration as shown in chapter 6.3.5 and then proceed as described in the next chapter. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 26... -
Page 27: Ifid Nmhc Calibration
In this way you always have an overview of the remaining runtimes. Image 4.3-4 Image 4.3-3 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 27... -
Page 28: Ifid Nmhc Calibration Over The Entire System
By tapping on Export or Import, calibrations can be exported to a USB stick that is connected to a USB port on the front panel and can be saved or loaded. Image 4.5.2 Image 4.5.1 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 28... -
Page 29: Auto Cal Setting
If one of the faults mentioned, an error message with the options "Skip" or "Retry" is shown. The "Retry-Button" starts the calibration from beginning. The "Skip" command cancels the calibration and the iFiD Mobile applies the last valid calibration. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 29... -
Page 30: Operation
Device has an error message - possible causes see device status Yellow Device is in the function control Green Device is working properly Red + Yellow See red and yellow Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 30... -
Page 31: Device Status
Green - Status OK (target temperature reached, fuel gas pressure available, vacuum built up) Status error message (fuel gas pressure insufficient, vacuum not possible) Status: OK Status: Error message Image 5.1-2 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 31... -
Page 32: Symbols / Functions
By acknowledging the "Quit" button you can return to the previous screen page without saving any changes you have made. Press "OK" to confirm your entry and save the settings you have made. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 32... -
Page 33: Menu Tree
Cancel calibration Single gas Adjustment Start calibration Graphs The graphical representation of the measured value in time by the blue line. Further settings for the graphs in chapter 6.3.2 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 33... -
Page 34: Setup
By tapping on "More settings" you can access the advanced calibration settings. Shows the last For storing calibration performed performed calibrations Shows all calibrations that has been saved To load previous calibrations Image 6.3.3 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 34... -
Page 35: Ch4 Mode And Dual Mode
The dual mode shows you both the measured TOC concentration and the measured methane value (without response factor). Image 6.3.4 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 35... -
Page 36: Graph Menu: Setup
(ppmC³,mgC..) is saved in the recording. If this is nevertheless changed during recording, the concentration value changes, but without any indication that the value is higher or lower due to this setting. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 36... -
Page 37: Menu: Standby
The unit is thus very quickly ready for operation again! To activate the iFiD Rack, tap "Standby" again and then tap "Ignition" in the start screen. Image 6.3.11 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 37... -
Page 38: Menu: Auto Cal
On & Off function of AutoCAL On & Off Input calibration Image 6.3.14 function Display of the last input calibration Changing the desired start interval Image 6.3.15 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 38... -
Page 39: Menu: System
With the menu item Units you can select the most suitable output unit. With the drop-down menu you have the possibility to switch between ppm C1, ppm C3 and mgC. Image 6.3 -19 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 39... -
Page 40: Pyrolysis
Image 6.3.21 Important! Check the software version: Compare the software versions listed under the version info with the certified and registered software versions Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 40... -
Page 41: Menu: Admin
Temperatures and Pressures Further settings under "Alarm & Ignition" and "Devices Setting for temperature Cat and FID Settings for temperature heated line and filter Settings for flame detection Image 6.3.24 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 41... -
Page 42: Ignition
Image 6.3.26 6.3.14 Alarm Under Admin -> Expert and Alarms, you will find the possibility to select the threshold and the gas to be monitored. Image 6.3.27 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 42... -
Page 43: Main Alarm
Main alarm: Image 6.3.29 If the Main alarm value set under Admin->Alarm & Ignition and active monitoring is activated, the main alarm appears highlighted in red Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 43... -
Page 44: Menu: Admin -> Device
The device safes the last 400 days or 1GB data. When the button is pressed the amount of data will be copied, so it will took a few seconds. When the process is done a feedback will be shown. Image 6.3.31 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 44... -
Page 45: Menu: Status
By tapping on "Status" you can access the current device status as shown in the next picture Image 6.3.32 Date and time view View the current sensor data and device status Image 6.3.33 View of the last calibration Image 6.3.34 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 45... -
Page 46: Switch-Off Procedure
Switch off iFiD Mobile using the power switch. (Do not disconnect the power cable!) Disposal The device can be disposed of in industrial waste or returned to Testa GmbH. IMPORTANT: Observe the applicable local regulations for the disposal of industrial waste. -
Page 47: Maintenance/Inspection
Maintenance intervals depend on the individual application conditions, but must be carried out annually at the latest and exclusively by Testa or a Testa service partner. During this work, visual inspections and tests are carried out, e.g. to check the functionality of pumps, filters and fans and to replace them if necessary. -
Page 48: Description Of The Maintenance Work
• After maintenance work has been carried out, a basic calibration of the iFiD NMHC and measuring range linearization must be carried out again by the authorized Testa service partner or by the Testa factory customer service. Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12... -
Page 49: Troubleshooting
Red = At least one parameter that influences the measurement result is out of the set point range. For more information, see Menu -> Settings -> Status • Yellow + Red: both stats, yellow and red Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 49... -
Page 50: Failure
If the error message disappears automatically, e.g. in the event of a temporary temperature malfunction, the iFiD NMHC automatically switches back to measuring mode. If the error occurs permanently, please contact Testa Customer Service immediately. FID does not ignite / does not burn (frequent causes of faults) -
Page 51: Troubleshooting
Heating fault sample gas line Heating fault sample gas line Calibration error Wrong test gas connected or Compare test gas value in certificate with wrong test gas value entered set value Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 51... -
Page 52: Technical Documentation
EN 61010-1 (usual non-conductive contamination and temporary conductivity due to occasional condensation) 10.1.3 Device protection class The iFiD NMHC has the device protection class IP 42 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 52... -
Page 53: Ifid Nmhc (Analyzer)
180° C. Image 10.1.2 10.1.6 iFiD measuring gas probe (sampling probe) To take the sample at the measuring point Image 10.1.3 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 53... -
Page 54: Ifid Line (Heated Sample Gas Line)
PTFE swells when exposed to hydrocarbons and oils containing fluorine • Alkali metals attack PTFE in dissolved form under brown coloration. • Halogens cause a chemical reaction • Stainless steel can be attacked by acidic gases Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 54... -
Page 55: Technical Specifications
[1] With daily zero and reference point adjustment [2] Maintenance interval = 4 weeks according to DIN EN 15267 Analogue output Analogue output (2x) 0-20mA with living zero point at 4mA Burden 300 Ohm Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 55... - Page 56 Protection class IP 42, for use in rooms Permissible contamination Pollution degree 2 [1] If the pressure is different: If necessary, adjust the pressure after consultation with Testa customer service. Energy supply Mains voltage: – - Electronics & 115/230 VAC (multi-range power supply)
-
Page 57: Annex
Annex 11.1 Gas flow diagram Image 11.1-1 Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 57... -
Page 58: Remote Control
11.2 Remote control Testa iFiD device series: interface commands for polling via TCP/IP and serial Interface (RS232) based on AK protocol Query commands The command syntax consists of 4 characters e.g. "AKON". The commands are executed each time they are entered via the TCP/IP interface ended with the CR symbol "\r\n". -
Page 59: Setting Commands
Command AGRW returns the set tolerance deviation of zero and test gas, for calibration Query of the command pre-alarm and main alarm from the set value via the command AVOR and AHAU Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 59... -
Page 60: Control Commands
Absolute pressure in the measuring cell in bar P H2 Controlled hydrogen Pressure in bar Mean value 30 Min Half-hour average concentration Mean value 1 day Daily average of the concentration Testa GmbH Fon +49 89 1293005 Service@Testa-FID.de V 3.0 2023-12 Page 60...
