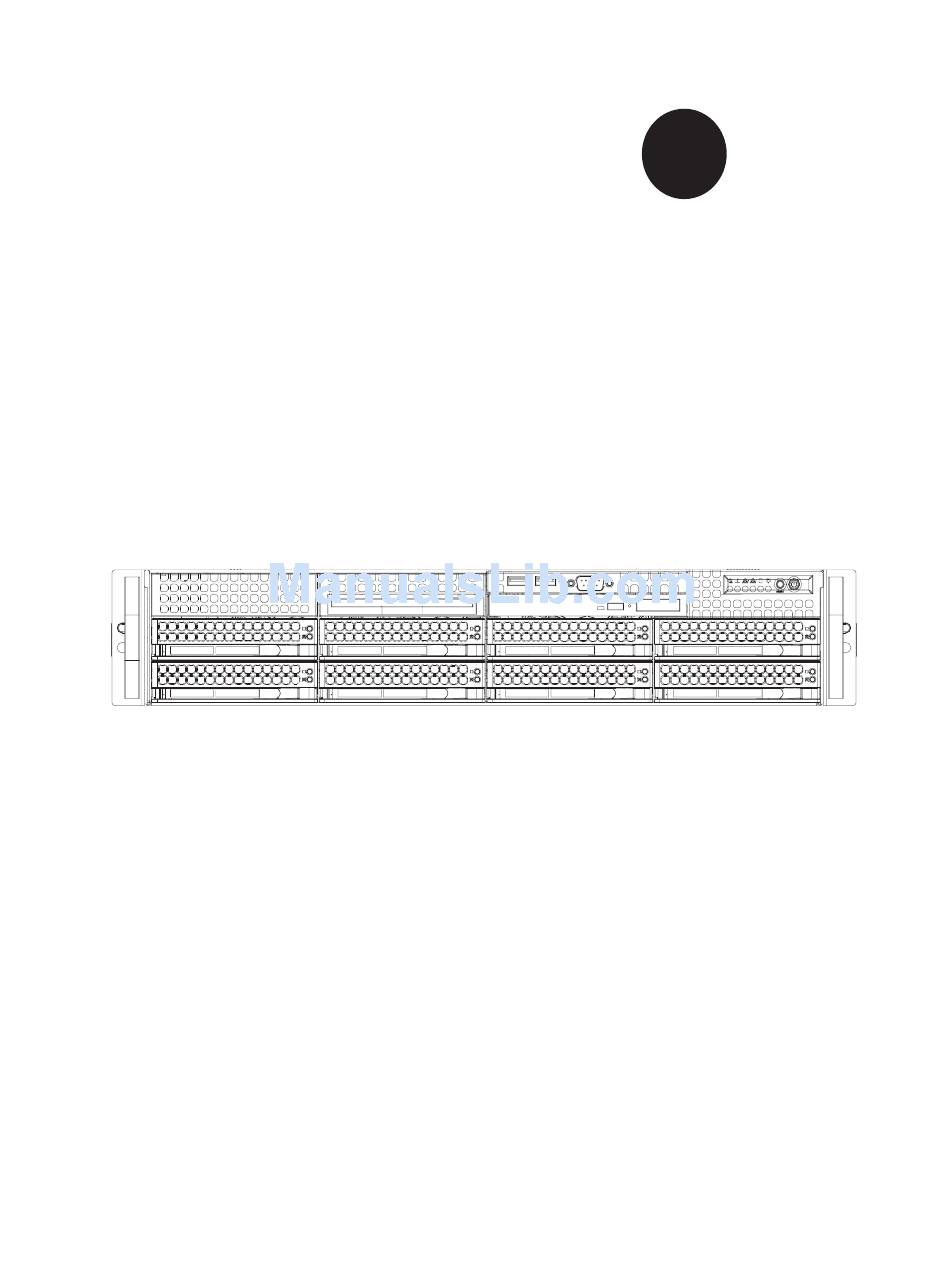

  • Page 1 ® UPER AS2021M-UR+ USER’S MANUAL...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. SUPER MICRO COMPUTER reserves the right to make changes to the product described in this manual at any time and without notice.

  • Page 3: Preface

    Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the 2021M-UR+. Installation and maintenance should be performed by experienced technicians only. The AS2021M-UR+ is a high-end server based on the SC825TQ-R700U 2U rack- mount chassis and the H8DMU+, a dual processor serverboard that supports single or dual AMD 64-bit Socket F, Opteron 2000 type processors and up to 64 GB of DDR2-667/533/400 registered ECC SDRAM.
  • Page 4 AS2021M-UR+ User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the 2021M-UR+. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the H8DMU+ serverboard, including the locations and functions of connections, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    AS2021M-UR+ User's Manual Table of Contents Preface About This Manual ...................... iii Manual Organization ....................iii Chapter 1: Introduction Overview ......................1-1 Serverboard Features ..................1-2 Server Chassis Features ................1-3 Contacting Super Micro .................. 1-6 Chapter 2: Server Installation Overview ......................
  • Page 7 Table of Contents Chapter 4: System Safety Electrical Safety Precautions ................4-1 General Safety Precautions ................4-2 ESD Precautions .................... 4-3 Operating Precautions ..................4-4 Chapter 5: Advanced Serverboard Setup Handling the Serverboard ................5-1 Processor and Heatsink Installation ............... 5-2 Connecting Cables ..................
  • Page 8 AS2021M-UR+ User's Manual Chassis Intrusion ..................5-16 Wake-On-LAN ..................5-17 Wake-On-Ring ..................5-17 Power Supply I C Header ..............5-17 SMBus Header ..................5-17 Power Fail Alarm Reset Header ............5-18 Compact Flash Power ................5-18 SGPIO ....................5-18 UID Button ....................5-18 Jumper Settings ....................
  • Page 9 Table of Contents Chapter 7: BIOS Introduction ..................... 7-1 Main Menu ...................... 7-2 Advanced Settings Menu ................7-2 Boot Menu ....................7-16 Security Menu ....................7-17 Exit Menu ...................... 7-18 Appendices: Appendix A: BIOS Error Beep Codes Appendix B: BIOS POST Checkpoint Codes Appendix C: System Specifi...
  • Page 10 2021M-UR+ User's Manual Notes...

  • Page 11: Chapter 1: Introduction

    SC825TQ-R700U 2U server chassis and the H8DMU+ dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com). In addition to the serverboard and chassis, various hardware components have...

  • Page 12: Serverboard Features

    GB of DDR2-667/533/400 registered ECC SDRAM. Please refer to Chapter 5 for memory speed jumper settings. The H8DMU+ is a specially-designed serverboard that features Supermicro's UIO (Universal I/O) technology. UIO serverboards have a PCI-Express x8 connector that can support any one of several types of UIO card types to add SAS ports, additional LAN ports, etc.

  • Page 13: Server Chassis Features

    Chapter 1: Introduction ATI Graphics Controller The H8DMU+ features an integrated ATI video controller based on the ES1000 graphics chip. The ES1000 was designed specifi cally for servers, featuring low power consumption, high reliability and superior longevity. Other Features Other onboard features that promote system health include onboard voltage moni- tors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue.
  • Page 14 AS2021M-UR+ User's Manual Front Control Panel The control panel on the SuperServer 2021M-UR+ provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activ- ity, system overheat and power supply failure. A main power button and a system reset button are also included.

  • Page 15: System Block Diagram

    Chapter 1: Introduction Figure 1-1. MCP55 Pro Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. DDR2-667/533/400 DDR2-667/533/400 128-bit data + 16-bit ECC 128-bit data + 16-bit ECC DIMM 4B DIMM 4B 16 x 16 HT link (1 GHz) DIMM 4A DIMM 4A...

  • Page 16: Contacting Super Micro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 17: Chapter 2: Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2-1 Overview This chapter provides a quick setup checklist to get your 2021M-UR+ up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 18: Choosing A Setup Location

    AS2021M-UR+ User's Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for suffi...

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 20: Installing The System Into A Rack

    AS2021M-UR+ User's Manual Installing the System into a Rack This section provides information on installing the 2021M-UR+ into a rack unit. If the 2021M-UR+ has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.
  • Page 21 Chapter 2: Server Installation Figure 2-1. Installing Chassis Rails...

  • Page 22: Installing The Rack Rails

    AS2021M-UR+ User's Manual Installing the Rack Rails: Determine where you want to place the 2021M-UR+ in the rack. (See Rack and Server Precautions in Section 2-3.) Position the fi xed rack rail/sliding rail guide as- semblies (made up of two inter-locking sections) at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack and the rollers toward the front of the rack.
  • Page 23 Chapter 2: Server Installation Figure 2-2. Installing the Server into a Rack...

  • Page 24: Checking The Serverboard Setup

    AS2021M-UR+ User's Manual Checking the Serverboard Setup After you install the 2021M-UR+ in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. 1. Accessing the inside of the System (see Figure 2-3) First, grasp the two handles on either side and pull the unit straight out until it locks (you will hear a "click").
  • Page 25 Chapter 2: Server Installation Figure 2-3. Accessing the Inside of the System...

  • Page 26: Checking The Drive Bay Setup

    AS2021M-UR+ User's Manual Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives have been properly installed and all connections have been made. 1. Accessing the drive bays All drives are accessable from the front of the server. For servicing the DVD-ROM and fl...

  • Page 27: Chapter 3: System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 28: Control Panel Leds

    AS2021M-UR+ User's Manual Control Panel LEDs The control panel located on the front of the chassis has several LEDs to provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 29: Nic2

    Chapter 3: System Interface NIC2: Indicates network activity on LAN2 when fl ashing . NIC1: Indicates network activity on LAN1 when fl ashing. HDD: Indicates IDE channel activity. On the SuperServer 6015A-NT, this light indicates SATA and/or DVD-ROM drive activity when fl ashing. Power: Indicates power is being supplied to the system's power supply units.
  • Page 30 AS2021M-UR+ User's Manual Notes...

  • Page 31: Chapter 4: System Safety

    Chapter 4: System Safety Chapter 4 System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the 2021M-UR+ from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 32: General Safety Precautions

    AS2021M-UR+ User's Manual The power supply power cord must include a grounding plug and must be plugged into grounded electrical outlets. Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarities (see Figure 4-1).

  • Page 33: Esd Precautions

    Chapter 4: System Safety Remove any jewelry or metal objects from your body, which are excellent metal conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present. After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made.

  • Page 34: Operating Precautions

    AS2021M-UR+ User's Manual For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the serverboard. Operating Precautions Care must be taken to assure that the chassis cover is in place when the 2021M-UR+ is operating to assure proper cooling.

  • Page 35: Chapter 5: Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the H8DMU+ serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 36: Processor And Heatsink Installation

    AS2021M-UR+ User's Manual Processor and Heatsink Installation Exercise extreme caution when handling and installing the proces- sor. Always connect the power cord last and always remove it be- fore adding, removing or changing any hardware components. CPU Backplates Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to prevent the CPU area of the serverboard from bending and to provide a base for attaching the heatsink retention modules.
  • Page 37 Chapter 5: Advanced Serverboard Setup 3. Align pin 1 of the CPU with pin 1 of the socket. Once aligned, carefully place the CPU into the socket. Do not drop the CPU on the socket, move the CPU horizontally or vertically or rub the CPU against the socket or against any pins of the socket, which may damage the CPU and/or the socket.
  • Page 38 See Figure 2-1. Repeat for the second CPU socket. Note: BKT-0012L is included for use with non-Supermicro heatsinks only. When installing Supermicro heatsinks, only BKT-0011L (the pre-installed CPU backplate) is needed. The BKT-0012L retention module was designed to provide compatibility with clip-and-cam type heatsinks from third parties.

  • Page 39: Connecting Cables

    Chapter 5: Advanced Serverboard Setup Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 40: Connecting The Control Panel

    AS2021M-UR+ User's Manual Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-1 for the pin locations of the various front control panel buttons and LED indi- cators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 41: I/O Ports

    Chapter 5: Advanced Serverboard Setup I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-2 below for the colors and locations of the various I/O ports. Figure 5-2. Rear Panel I/O Ports Installing Memory CAUTION Exercise extreme care when installing or removing memory modules...
  • Page 42 AS2021M-UR+ User's Manual (however, the CPU2 DIMM slots are not required to be populated when two CPUs are installed). Populating two adjacent slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory.

  • Page 43: Adding Pci Expansion Cards

    Chapter 5: Advanced Serverboard Setup Figure 5-3. Installing DIMM into Slot DDR2 FBD DIMM To Install: Insert module vertically and press down until it snaps into place. Pay attention to the bottom notch. To Remove: Use your thumbs to gently push each release tab outward to free the DIMM from the slot.

  • Page 44: Serverboard Details

    AS2021M-UR+ User's Manual Serverboard Details Figure 5-4. SUPER H8DMU+ Layout (not drawn to scale) JPW2 JPW1 Kybd/ FAN8/CPU2FAN FAN6 FAN1 Mouse CPU1 / DIMM 4A USB0/1 CPU1 / DIMM 4B CPU1 / DIMM 3A CPU1 / DIMM 3B CPU2 CPU1 / DIMM 2A CPU1 / DIMM 2B CPU1 / DIMM 1A FAN2...

  • Page 45: H8Dmu+ Quick Reference

    Chapter 5: Advanced Serverboard Setup H8DMU+ Quick Reference Jumper Description Default Setting JBT1 CMOS Clear See Section 5-9 JCF1 Compact Flash Card Master/Slave Closed (Master) Onboard Speaker Pins 6-7 (Enabled JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled) C1/JI C to PCI-Express Enable/Disable Closed (Enabled) Watch Dog Pins 1-2 (Reset)

  • Page 46: Connector Defi Nitions

    AS2021M-UR+ User's Manual Connector Defi nitions ATX Power 20-pin Connector Pin Defi nitions (JPW1) ATX Power Connector Pin# Defi nition Pin # Defi nition The primary ATX power supply con- +3.3V +3.3V nector (JPW1) meets the SSI (Super- -12V +3.3V set ATX) 20-pin specifi...

  • Page 47: Hdd Led

    Chapter 5: Advanced Serverboard Setup HDD LED HDD LED Pin Defi nitions (JF1) The HDD (IDE Hard Disk Drive) LED Pin# Defi nition connection is located on pins 13 and See below* 14 of JF1. Attach the IDE hard drive HDD Active LED cable to display disk activity.

  • Page 48: Power Fail Led

    AS2021M-UR+ User's Manual Power Fail LED Power Fail LED The Power Fail LED connection is Pin Defi nitions (JF1) located on pins 5 and 6 of JF1. Refer Pin# Defi nition to the table on the right for pin defi ni- tions.

  • Page 49: Usb Headers

    Chapter 5: Advanced Serverboard Setup USB Headers Universal Serial Bus Headers Pin Defi nitions (USB4/5/6/7) Four additional USB2.0 headers USB2 USB3/4 Pin # Defi nition Pin # Defi nition (USB4/5 and USB6/7) are included on the serverboard. These may be con- nected to provide front side access.

  • Page 50: Power Led/Speaker

    AS2021M-UR+ User's Manual Power LED/Speaker PWR LED Connector Pin Defi nitions (JD1) Pin# Defi nition On JD1, pins 1, 2, and 3 are for the +Vcc power LED and pins 4 through 7 are for the speaker. See the tables on the Control right for pin defi...

  • Page 51: Wake-On-Lan

    Chapter 5: Advanced Serverboard Setup Wake-On-LAN Wake-On-LAN Pin Defi nitions The Wake-On-LAN header is desig- (JWOL) nated JWOL. See the table on the Pin# Defi nition right for pin defi nitions. You must +5V Standby have a LAN card with a Wake-On-LAN Ground connector and cable to use the Wake- Wake-up...

  • Page 52: Power Fail Alarm Reset Header

    AS2021M-UR+ User's Manual Power Fail Alarm Reset Alarm Reset Header Header Pin Defi nitions (JAR) Pin# Defi nition Connect JAR to the alarm reset but- Ground ton on your chassis (if available) or to Reset Signal a microswitch to allow you to turn off the alarm that sounds when a power supply module fails.

  • Page 53: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the Connector serverboard, jumpers can be used to Pins choose between optional settings. Jumpers create shorts between two pins to change the function of the Jumper connector.

  • Page 54: Vga Enable/Disable

    AS2021M-UR+ User's Manual VGA Enable/Disable VGA Enable/Disable Jumper Settings (JPG1) JPG1 allows you to enable or disable the VGA port. The default position is Jumper Setting Defi nition on pins 1 and 2 to enable VGA. See Pins 1-2 Enabled the table on the right for jumper set- Pins 2-3 Disabled...

  • Page 55: Compact Flash Master/Slave

    Chapter 5: Advanced Serverboard Setup Compact Flash Master/Slave Compact Flash Master/Slave Jumper Settings (JCF1) The JCF1 jumper allows you to assign Jumper Setting Defi nition either master or slave status a compact Closed Master fl ash card installed in IDE1. See the Open Slave table on the right for jumper settings.

  • Page 56: 5-10 Onboard Indicators

    AS2021M-UR+ User's Manual 5-10 Onboard Indicators LAN1/LAN2 LEDs LAN LED (Connection Speed Indicator) The Ethernet ports (located beside LED Color Defi nition the VGA port) have two LEDs. On 10/100 MHz each Gb LAN port, one LED indicates Amber 1 GHz activity when blinking while the other LED may be amber or off to indicate the speed of the connection.

  • Page 57: 5-11 Floppy, Ide And Sata Drive Connections

    Chapter 5: Advanced Serverboard Setup 5-11 Floppy, IDE and SATA Drive Connections Use the following information to connect the fl oppy and hard disk drive cables. The fl oppy disk drive cable has seven twisted wires. A red mark on a wire typically designates the location of pin 1. A single fl...

  • Page 58: Ide Connector

    AS2021M-UR+ User's Manual IDE Connector IDE Drive Connectors Pin Defi nitions (IDE#1) Pin# Defi nition Pin # Defi nition There are no jumpers to con- fi gure the onboard IDE#1 con- Reset IDE Ground nectors. See the table on the Host Data 7 Host Data 8 right for pin defi...

  • Page 59: 5-12 Enabling Sata Raid

    Chapter 5: Advanced Serverboard Setup 5-12 Enabling SATA RAID Serial ATA (SATA) Serial ATA (SATA) is a physical storage interface that employs a single cable with a minimum of four wires to create a point-to-point connection between devices. This connection is a serial link. The serial cables used in SATA are thinner than the traditional cables used in Parallel ATA (PATA) and can extend up to one meter in length, compared to only 40 cm for PATA cables.
  • Page 60 AS2021M-UR+ User's Manual 2. Use the arrow keys to move to Advanced > Floppy/IDE/SATA Confi guration > nVidia RAID Setup and press the <Enter> key. Once in the submenu, enable the "nVidia RAID Function" setting. 3. Hit the <F10> key to "Save Changes and Exit", then hit <Enter> to verify. 4.
  • Page 61 Chapter 5: Advanced Serverboard Setup Figure 5-5. SATA RAID Utility: Main Screen Figure 5-6. SATA RAID Utility: Array List 5-27...

  • Page 62: 5-13 Installing Drivers

    5-13 Installing Drivers After all the hardware and operating system have been installed, you need to install certain drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your serverboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-7 should appear.

  • Page 63: Chapter 6: Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC825TQ-R700U chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 64: Control Panel

    AS2021M-UR+ User's Manual Figure 6-1. Front and Rear Chassis Views 3.5" Drive Bays (2) Slim DVD-ROM Drive USB Ports (2), COM Port Control Panel Hard Drive Bays (8) Floppy Drive (optional) System Reset Main Power Keyboard/Mouse Ports PCI Add-on Card Slots USB Ports COM1 Port VGA Port...

  • Page 65: System Fans

    2. Installing a new fan Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro, p/n FAN-0070). Position the new fan into the space vacated by the failed fan previ- ously removed. A "click" can be heard when the fan is fully installed in place and the power connections are made.

  • Page 66: Drive Bay Installation/Removal

    AS2021M-UR+ User's Manual Figure 6-2. Removing System Cooling Fans Drive Bay Installation/Removal Accessing the Drive Bays SAS/SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SAS/ATA drives. Proceed to the next step for instruc- tions.
  • Page 67 Chapter 6: Advanced Chassis Setup SAS/SATA Drive Installation 1. Mounting a SAS/SATA drive in a drive carrier The SAS/SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drives.
  • Page 68 AS2021M-UR+ User's Manual 2. Installing/removing hot-swap SAS/SATA drives The SAS/SATA drive carriers are all easily accessible at the front of the chassis. These hard drives are hot-pluggable, meaning they can be removed and installed without powering down the system. To remove a carrier, push the release button located beside the drive LEDs.
  • Page 69 Chapter 6: Advanced Chassis Setup Hard Drive Backplane The SATA drives plug into a backplane that provides power, drive ID and bus termi- nation. A RAID controller can be used with the backplane to provide data security. The operating system you use must have RAID support to enable the hot-swap capability of the drives.
  • Page 70 AS2021M-UR+ User's Manual Installing the Air Shroud Under most circumstances you will not need to remove the air shroud to perform any service on the system. However, you may temporarily remove it if necessary (the air shroud should always be in place when the system is operating). 1.

  • Page 71: Power Supply

    The PWR Fail LED will illuminate and remain on until the failed unit has been replaced. Re- placement units can be ordered directly from Supermicro (see contact information in the Preface). The power supply units have a hot-swap capability, meaning you can replace the failed unit without powering down the system.
  • Page 72 AS2021M-UR+ User's Manual 6-10...

  • Page 73: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8DMU+. The AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 74: Main Menu

    AS2021M-UR+ User's Manual Main Menu When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys. The Main Menu screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.
  • Page 75 Chapter 7: BIOS Advanced ACPI Confi guration MCP55 ACPI HPET Table Use this setting to Enable or Disable the MCP55 ACPI HPET Table. ACPI Version Features Use this setting the determine which ACPI version to use. Options are ACPI v1.0, ACPI v2.0 and ACPI v3.0. ACPI APIC Support Determines whether to include the ACPI APIC table pointer in the RSDT pointer list.
  • Page 76 AS2021M-UR+ User's Manual MPS Revision This setting allows the user to select the MPS revision level. The options are MPS Revision 1.1 and 1.4. This setting allows the user to select the MPS revision level. The options are 1.1 and 1.4. POST Debugger Enable this setting to give the status of the AMI POST debugger in the next boot up.
  • Page 77 Chapter 7: BIOS Primary IDE Master/Slave Highlight one of the items above and press <Enter> to access the submenu for that item. Type Select the type of device connected to the system. The options are Not Installed, Auto, CDROM and ARMD. LBA/Large Mode LBA (Logical Block Addressing) is a method of addressing data on a disk drive.
  • Page 78 AS2021M-UR+ User's Manual DMA Mode Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2, MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3, UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA, UDMA=UltraDMA.) S.M.A.R.T. Self-Monitoring Analysis and Reporting Technology (SMART) can help predict impending drive failures.
  • Page 79 Chapter 7: BIOS decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a data transfer rate of 3.3 MBs.
  • Page 80 AS2021M-UR+ User's Manual PCI/PnP Confi guration Load Onboard LAN Option ROM Use this setting to Enable or Disable the onboard option ROM. Clear NVRAM Select Yes to clear NVRAM during boot-up. The options are Yes and No. Plug & Play OS Select Yes to allow the OS to confi...

  • Page 81: Advanced Chipset Control

    Chapter 7: BIOS Advanced Chipset Control NorthBridge Confi guration Memory Confi guration Memclock Mode This setting determines how the memory clock is set. Auto has the memory clock by code and Limit allows the user to set a standard value. MCT Timing Mode Sets the timing mode for memory.
  • Page 82 AS2021M-UR+ User's Manual ECC Confi guration DRAM ECC Enable DRAM ECC allows hardware to report and correct memory errors automati- cally. Options are Enabled and Disabled. 4-Bit ECC Mode Allows the user to enabled 4-bit ECC mode (also known as ECC Chipkill).
  • Page 83 Chapter 7: BIOS SouthBridge Confi guration USB 1.1 Controller Enable or disable the USB 1.1 controller. USB 2.0 Controller Enable or disable the USB 2.0 controller. MAC0 LAN0 Settings are Auto and Disabled for MAC0 LAN0. MAC0 LAN0 Bridge Settings are Enabled and Disabled for MAC0 LAN0 bridge. MAC1 LAN1 Settings are Auto and Disabled for MAC1 LAN1.

  • Page 84: Dmi Event Logging

    AS2021M-UR+ User's Manual Processor & Clock Options This submenu lists CPU information and the following settings: MTRR Mapping This determines the method used for programming CPU MTRRs when 4 GB or more memory is present. The options are Continuous, which makes the PCI hole non- cacheable, and Discrete, which places the PCI hole below the 4 GB boundary.

  • Page 85: Console Redirection

    Chapter 7: BIOS Mark All Events as Read Highlight this item and press <Enter> to mark all events as read. Clear Event Log Select Yes and press <Enter> to clear all event logs. The options are Yes and No to verify. Console Redirection Remote Access Allows you to Enable or Disable remote access.

  • Page 86: System Health Monitor

    AS2021M-UR+ User's Manual Sredir Memory Display Delay Use this setting to set the delay in seconds to display memory information. Op- tions are No Delay, 1 sec, 2 secs and 4 secs. System Health Monitor CPU Overheat Alarm Use the "+" and "-" keys to set the CPU temperature threshold to between 65 and 90 C.
  • Page 87 Chapter 7: BIOS IPMI Confi guration View BMC System Event Log Pressing the Enter key will open the following settings. Use the "+" and "-" keys to navigate through the system event log. Clear BMC System Event Log Selecting this and pressing the Enter key will clear the BMC system event log. Set LAN Confi...

  • Page 88: Boot Menu

    AS2021M-UR+ User's Manual Startup Delay Use this setting to Enable or Disable the startup delay. Event Message for PEF Action Use this setting to Enable or Disable event messages for a PEF action. BMC Watch Dog Timer Action This setting is used to set the Watch Dog function. The options are Disabled, Reset System, Power Down and Power Cycle.

  • Page 89: Security Menu

    Chapter 7: BIOS Security Menu AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set fi rst. Change Supervisor Password Select this option and press <Enter> to access the sub menu, and then type in the password.

  • Page 90: Exit Menu

    AS2021M-UR+ User's Manual Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system confi guration parameters can take effect.

  • Page 91: Appendix A: Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 92 AS2021M-UR+ User's Manual Notes...

  • Page 93: Appendix B: Bios Post Checkpoint Codes

    Appendix B: BIOS POST Checkpoint Codes Appendix B BIOS POST Checkpoint Codes When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. Uncompressed Initialization Codes The uncompressed initialization checkpoint codes are listed in order of execution: Checkpoint...
  • Page 94 AS2021M-UR+ User's Manual Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard fl oppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next. Initializing the DMA and Interrupt controllers next.
  • Page 95 Appendix B: BIOS POST Checkpoint Codes Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition. The BIOS stack has been built.
  • Page 96 AS2021M-UR+ User's Manual Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Confi guring the mono- chrome mode and color mode settings next.
  • Page 97 Appendix B: BIOS POST Checkpoint Codes Checkpoint Code Description The memory below 1 MB has been cleared via a soft reset. Clearing the memory above 1 MB next. The memory above 1 MB has been cleared via a soft reset. Saving the memory size next.
  • Page 98 AS2021M-UR+ User's Manual Checkpoint Code Description The password was checked. Performing any required programming before WIN- BIOS Setup next. The programming before WINBIOS Setup has completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
  • Page 99 Appendix B: BIOS POST Checkpoint Codes Checkpoint Code Description Returned from adaptor ROM at E000h control. Performing any initialization required after the E000 option ROM had control next. Initialization after E000 option ROM control has completed. Displaying the system confi guration next. Uncompressing the DMI data and executing DMI POST initialization next.
  • Page 100 AS2021M-UR+ User's Manual Notes...

  • Page 101: Appendix C: System Specifi Cations

    Appendix C: System Specifi cations Appendix C System Specifi cations Processors Single or dual AMD 64-bit Socket F, Opteron 2000 type processors Note: Please refer to our web site for a complete listing of supported processors. Chipset nVidia MCP55 Pro BIOS 8 Mb AMIBIOS®...
  • Page 102 AS2021M-UR+ User's Manual Serverboard H8DMU+ (Extended ATX form factor) Dimensions: 12 x 13.05 in (305 x 331 mm) Chassis 2021M-UR+: SC825TS-R700U, 2U rackmount Dimensions (both): (WxHxD) 16.8 x 3.5 x 25.5 in. (427 x 89 x 648 mm) Weight Bare Bone Weight (Net): 37 lbs. (16.8 kg.) Packing Weight (Gross): 57 lbs.
  • Page 103 Appendix C: System Specifi cations Non-operating Relative Humidity: 5 to 95% (non-condensing) Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant, UL Listed (USA), CUL Listed (Canada), TUV...
  • Page 104 AS2021M-UR+ User's Manual Notes...
