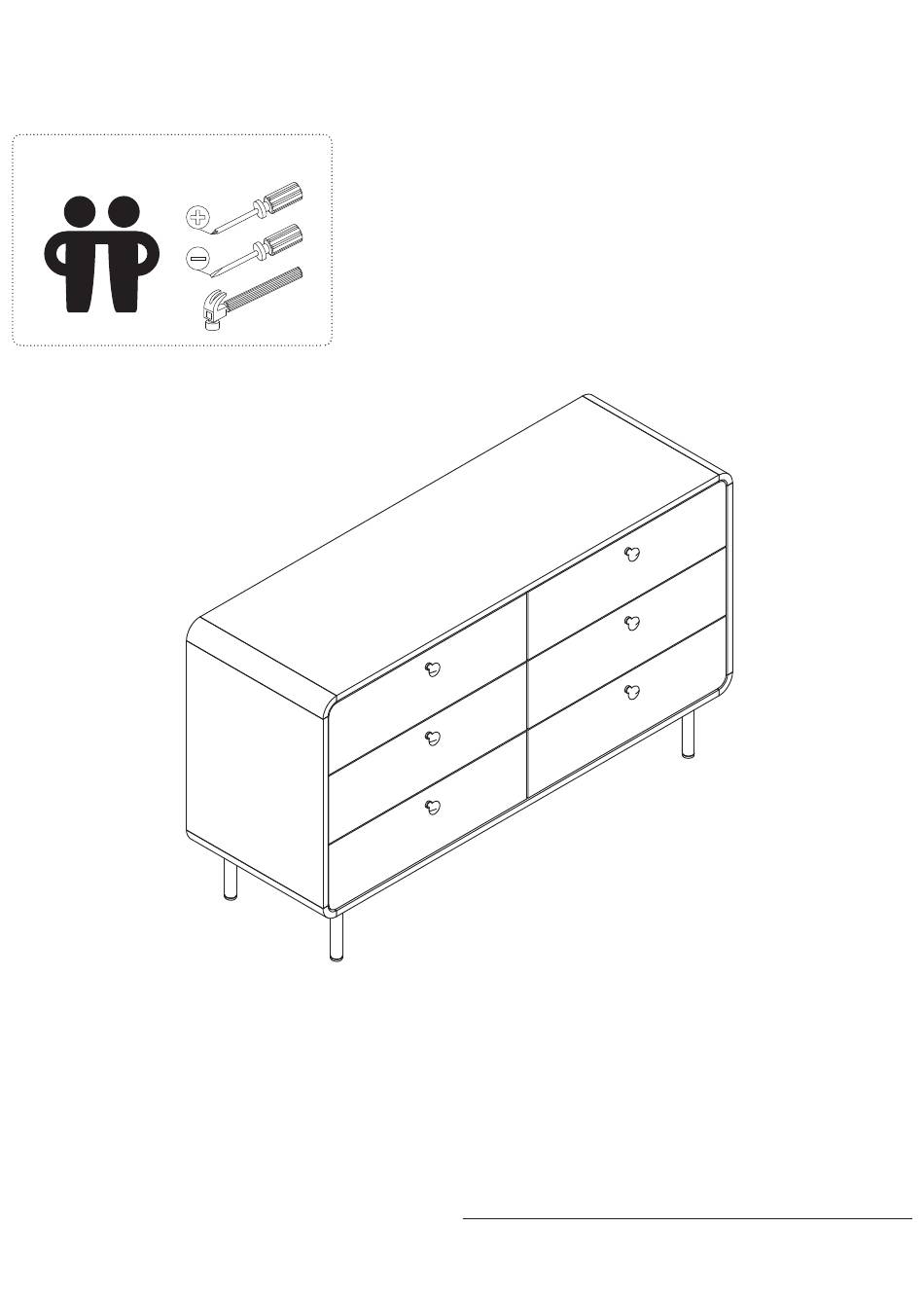

- Page 1 ASSEMBLY INSTRUCTIONS Please read the instructions carefully before assembly and keep it for future reference. TWO PERSONS AND TOOLS REQUIRED CHEST OF DRAWER Model : COD-VJ-SUYI-6D Version 2.0...
- Page 2 Assembly and Maintenance Tips 1. Keep children and pets away from 2. Some furniture may require two 3. To protect the surfaces of the the working area as small parts may persons to assemble for safety furniture, lay the parts and perform cause choking if swallowed.
-
Page 3: Assembly Checklist
Assembly Checklist Read Prepare Make sure you have all the required tools. Read through the instructions carefully before you begin. Never use power tools unless instructed. Assemble Identify Identify and lay out all of the components Please fully tighten all screws during the before you begin assembly. -
Page 4: Hardware List
Hardware List Please ensure that all parts and hardware are in the packaging contents. If there are any missing parts and/or hardware, please contact our Customer Service as soon as possible. Part A Part B Part C Part D 72pcs 72pcs 4pcs 32pcs... -
Page 5: Parts List
Parts List P 02... - Page 6 STEP 1 Part A 16pcs M6x35mm Flip 180° P 03...
- Page 7 STEP 2 Part B 16pcs Φ 15x11mm STEP 3 P 04...
- Page 8 STEP 4 Part A 24pcs M6x35mm Assemble 4 sets STEP 5 Part B 6pcs Φ15x11mm Part O 6pcs Φ6 x40mm P 05...
- Page 9 STEP 6 Part B Part C Part D Part O 6pcs 2pcs 2pcs 6pcs Φ15x11mm Φ6 x30mm Φ4x35mm Φ6 x40mm P 06...
- Page 10 STEP 7 Part J 4pcs M6x40mm Part I STEP 8 Part J 10pcs M6x40mm Part I P 07...
- Page 11 STEP 9 Part H 4pcs M6x10mm Part I STEP 10 P 08...
- Page 12 STEP 11 Part A Part B Part O 2pcs 6pcs 6pcs Φ15x11mm Φ6 x40mm M6x35mm P 09...
- Page 13 STEP 12 Part B Part C Part O 8pcs 2pcs 6pcs Φ15x11mm Φ6 x30mm Φ6 x40mm P 10...
- Page 14 STEP 13 Part G 36pcs CRx3 Φ3.5x12mm CLx3 Part L 6pcs STEP 14 Part K 16pcs P 11...
- Page 15 STEP 15 Part A Part E Part F 30pcs 6pcs 6pcs M6x35mm M4x18mm P 12...
- Page 16 STEP 16 Part D 30pcs Φ4x35mm Assemble 6 sets STEP 17 Assemble 6 sets P 13...
- Page 17 STEP 18 Part B 30pcs Φ15x11mm P 14...
- Page 18 STEP 19 Part G Part L 24pcs 6pcs Φ3.5x12mm P 15...
- Page 19 STEP 20 STEP 21 Part N 2 sets OPTIONAL Install Part N only if you wish to secure the product to a wall. See Step 22. P 16...
- Page 20 STEP 22 Part N 2 sets OPTIONAL OPTIONAL OPTIONAL Do this step only if you wish to secure the product to a wall. It is highly recommended that you do so for safety reasons. Pre-drill holes in the wall P 17...
-
Page 21: Care And Maintenance
CARE AND MAINTENANCE GENERAL • Periodically check all screws, bolts and joints connections and tighten them if necessary. • Periodically check for any damage and deteriorated parts and components and seek repairs or replacements if needed. • Do not allow any liquids to remain on the furniture as this may cause stains and allow the liquid to be absorbed into the finishes and materials. - Page 22 SPECIFIC CARE • Engage professional upholstery cleaning services for deeper cleaning if required. • For genuine leather, suede leather or synthetic leather upholstery, use an appropriate leather conditioner to maintain its suppleness and appearance and prevent drying and cracking. The conditioner also adds a thin protective layer on the leather surface to facilitate easier cleaning.
