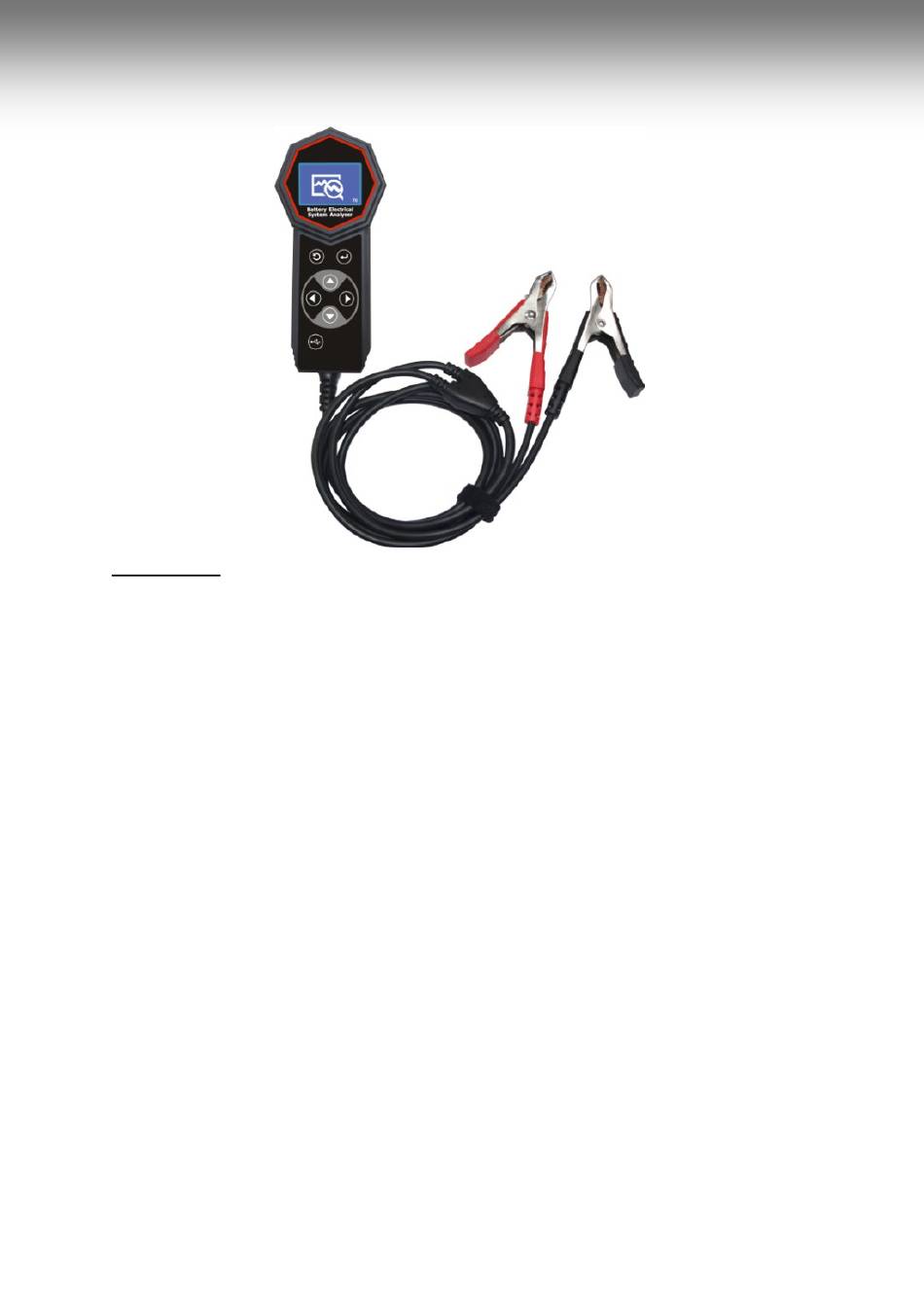

Battery Starter Alternator Analyser
T6
Introduction
With the advent of latest battery technology, this Battery Tester, Alternator/Starter/Electrical
Analyser introduces the modern method of battery testing. Coupled with its intuitive fully
graphical display, makes its operation easy and user friendly. With the simplicity of all the
graphical symbols used, it is simple enough for the non-English speaking countries to be
universally accepted and solves language barrier. It is designed to test all 12V Car and
Motorcycle Batteries, Starters and Alternators and charging conditions.
It uses microprocessor controlled testing and the results are accurate and repeatable. The
operation is quick (less than 7 sec) and does not create sparks (dedicated for more safety) or
drain the battery during the test.
1. Battery Test:
Analyses battery condition using microprocessor controlled testing methods without the
need of fully charging it before test.
Consume very little current during testing, hence the test can be repeated numerous
times without any worry on battery drainage and results are highly accurate.
Extremely safe as there is no sparks created during clamping and full analysed result
takes less than 7 seconds to obtain.
2. Starter Test:
Check
to crank based on voltage profiles with results and recommendations display.
3. Alternator and Diode Ripple Test:
Checks the alternator charging condition without load at 3,000 RPM and with load at
2,000 RPM. Furthermore, Diode AC ripple test with results displayed after each test.
the cranking effectiveness of the battery for indication on when the battery may fail
1
Version A1607

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T6 and is the answer not in the manual?

Questions and answers

Related Manuals for Lemania Energy T6

Summary of Contents for Lemania Energy T6

  • Page 1 Battery Starter Alternator Analyser Version A1607 Introduction With the advent of latest battery technology, this Battery Tester, Alternator/Starter/Electrical Analyser introduces the modern method of battery testing. Coupled with its intuitive fully graphical display, makes its operation easy and user friendly. With the simplicity of all the graphical symbols used, it is simple enough for the non-English speaking countries to be universally accepted and solves language barrier.

  • Page 2: Specifications

    After the test, the current results will be stored in the analyser memory for further reference. The analyser is also equipped with an USB port to connect to the PC for storage of results or have the result printed from the PC linked printer. Specifications Operating Voltage: 9V ~ 15V DC (max)

  • Page 3: Working With Batteries

    • Always have a fire extinguisher readily available and easily accessible in the workshop. Working with Batteries Lead-acid batteries contain a sulphuric acid electrolyte, a highly corrosive liquid which produce gases when recharged and explode if ignited which could cause severe injuries. When working with batteries, make sure that the working environment is well-ventilated, remove any jewelry, watch and wear protective eyewear (safety glasses), clothing, and exercise caution.
  • Page 4 7. If the battery is a WET type: non-sealed maintenance free, top up the level as specified by the markings on the battery with distilled water. This will help to purge the gas from the cells. However, please exercise with care and do not overfill the battery. 8.
  • Page 5 New Test: Clear Memory Selecting this item allow the Analyser to clear the previous results stored in the memory to start a new test. Repeat or Continue Test Selecting this option allows the continuation or updates of the last test carried out on the same car.
  • Page 6 Selecting allows the user to test Car Battery (up to 2000A), Starter and Alternator, whereas selecting allows testing of Motorcycle Battery (up to 600A) only. 6. When the user has selected , the display will change to the MENU with options shown inFig.12 below: Fig.12 Select...
  • Page 7 10. With the rating selection, the analyser screen will display as per Fig.16 below: Fig.16 11. When rating JIS# (Japanese Industrial Standard) was selected, please refer to the conversion chart provided with the package for the CCA ratings of the battery. Refer to the battery model (example: 80D26L or NX110-5L) on the Cold Cranking Amps (CCA), WET is 580 CCA and AGM is 630 CCA.
  • Page 8 16. The analyser will take surrounding temperature into consideration and prompt for temperature input shown in Fig.20 below when it detected marginal (SOC below 75%) battery condition: (+) 0°C and above (-) 0°C and below Fig.20 The user has to select the surrounding temperature when working with the battery. If the surrounding temperature is 15°C, select followed by .
  • Page 9 Fig.25 4. Once the battery type [WET] or [AGM] is selected, it will proceed to the display as shown below (Fig.26): Fig.26 5. To adjust the CCA value, press or  key will increase or decrease the value by 100 while or...

  • Page 10: Interpretation Of Results

    Interpretation of Results The battery is in good condition. The battery is weak, need to be replaced with a good one. Low SOC (State of Charge), the battery needs to recharge first and then test again to confirm the actual results. Basing on the example given in Fig.29, the final results can be explained as follows: Volts: 12.65V...
  • Page 11 From the above example, a 210 CCA rated battery measuring 160 CCA available power does not mean that the battery would pass a CCA test at 190 CCA. The available power reading shows that the battery is not able to perform up to its rated ability (210 CCA).
  • Page 12 IEC (International Electrotechnical Commission) Standard. • ° ° IEC amperes rating require that at 0 F (-18 C), the number of amperes that the 12V battery deliver while maintaining a voltage of at least of 8.4 Volts for 60 seconds during cranking. EN 1 (European Norms) Standard.

  • Page 13: Starter Test

    Note: Any battery whose voltage falls below 10.6V will be considered a shorted battery. State of Charge (SOC) Fig.31 2. Press key to continue and the display will show: (Fig.32) Fig.32 3. Check the battery ratings and enter it as described earlier and the results will show as per examples below: (Fig.33 and Fig.34) Fig.33 Fig.34...

  • Page 14: Alternator Test

    4. The display will change to as shown (Fig.36) Note: In event that the user did not crank the engine while on this screen, the starter test will terminate after 30 seconds and return to the display menu. 5. Now switch the ignition key to ON and start cranking the engine until it starts. As soon as the engine starts, the results will automatically display as shown in examples below: Normal High voltage drops...
  • Page 15 Average Charging Voltage Test Result Max. Volts captured during test Min. Volts captured during test Fig.41 With the captured values, evaluation can be done by referring to the limits as indicated that MAX voltage should not exceed 15.0V (max. voltage at 3,000 RPM) and MIN voltage should not less than 13.3V (min voltage at 3,000 RPM).
  • Page 16 10. If either minimum or maximum charging volts are not within the voltage range limits, the result will highlight as shown on the examples below (Fig.48&49) and it will prompt the user to check the alternator system for the fault. Min.

  • Page 17: View Test Results

    View Test Results To view the results of the last test, the T5 has to be connected to an external 12V DC power source by either clamping its clips directly to a 12Volt car battery or connected to a PC via the USB port. USB cable Fig.55 1.
  • Page 18 To rectify this problem, please uninstall the previously installed driver and then reinstall back with the correct steps as described below if the user has made the above mentioned mistake. Step 1. You can install the T11 T6 Software & Driver as provided. T11T6 Software &Driver First click to open the folder: The user will find the following files: Step 2.
  • Page 19 Look for the program icon: Double click on the icon to initiate the installation with the display shown below: Click on “OK” tab to allow the software to commence the installation process. A few seconds later, the display shows that the installation has been completed. Click “OK” tab to exit as below showed.
  • Page 20  Fig.63 Fig.64 2. Press key will allow the test results to be displayed as example shown (Fig.65). Fig.65 3. Press key on the keypad and display will show as per Fig.66 below. This means that the Analyser is ready to link up. Fig.66 Step 5.
  • Page 21 Fill in the particulars here and click: [Add to Test Report] tab to be included in the test report which will be stored and printed out. Test Results Fig.68 [Add to test report] Tab If there is no communication, a message text box will appear as per Fig.69below. Fig.69 In this case, unplug the Analyser from the PC and repeat Step 4 and Step 5.

  • Page 22: Saving Results

    Select printer connected computer here. Fig.70 Saving Results: Note: The results will be saved in MS Office Word Document format. The user needs to set the paper size to A4 if not the printout and the stored results page will not be in A4 size.
  • Page 23  Fig. B Fig. C To save the results, click on tab. A message box (Fig.71) will appear. Create a file name and then click [Save] tab as shown below. The document will be saved in this folder in drive C: Create file name here.

  • Page 24: Warranty Information

    Warranty Information Limited Warranty This limited warranty cover defects in materials and workmanship for a period of twelve (12) months which begins from the date the product is purchased by the end user and is subjected to the following terms and conditions: 1.
