HomeScenario HSM-300Z User Manual

HSM-300Z
Z-Wave Curtain Control Adapter
Introduction
The HSM-300Z is a Z-Wave enabled device which allows you to control a motorized
system through digital contacts. It provides digital outputs which can control the
UP/DOWN/STOP for all kinds of motorized system.
The HSM-300Z also is a repeater in the Z-Wave network. Acting as a bridge for
communication, it will automatically forward Z-Wave commands to their destinations if
the originating controller is out of range from the destination node.

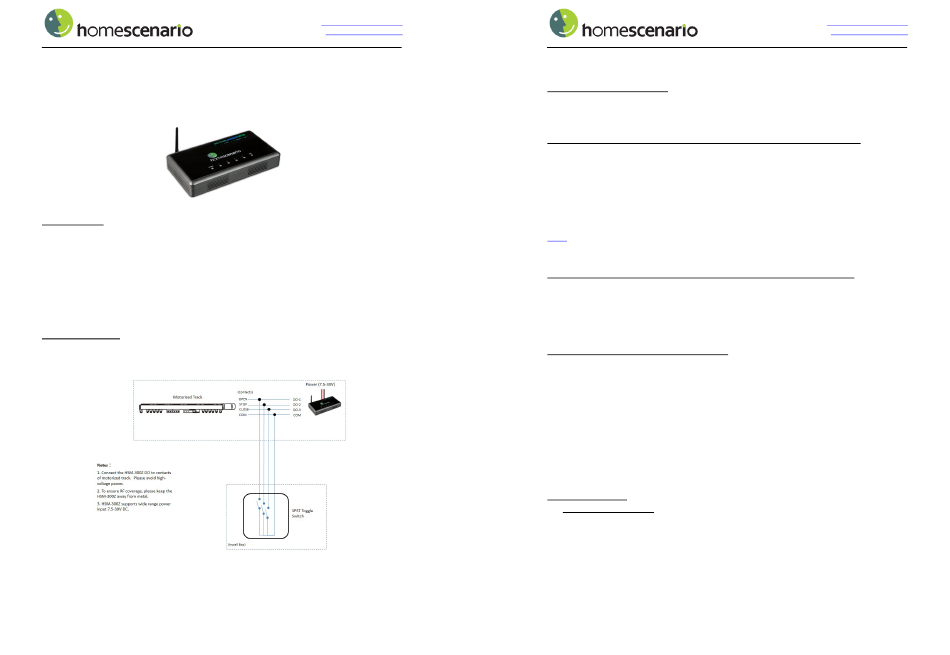

Wiring Diagram
IMPORTANT! A licensed electrician with knowledge of electrical systems should complete the electrical
installation inside the main circuit box (usually located outside of your house).
IMPORTANT! The main power circuit must be shut off during the installation for safety and to ensure
that wires are not short-circuited during installation, which will cause fatal damage to the device.
HSM-300Z Z-Wave Curtain Control Adapter - 1 -
HomeScenario, Inc.
sales@homescenario.com
www.homescenario.com
Product spec subject to change without notice.
Configure the HSM-300Z
The HSM-300Z needs to be paired (included) into a Z-Wave network before it can be
operated. Below lists the example of HBC-100 Scenario Control Gateway.
Adding/Including/Pairing the HSM-300Z into a Z-Wave Network
1. Start the "Inclusion" process of the HBC-100, which can be done by pressing the
[Learn] button from its web user interface via your PC;
2. While the HSM-300Z is properly powered on, press its Program Button to
acknowledge the inclusion request;
3. Assign a UI button to complete the Inclusion by selecting a room number and press
any of the three buttons (ON/OFF/PAUSE).
Note: Please refer to the operation manual for your controller regarding how to include Z-Wave devices
into an existing network.
Removing/Resetting the HGS-200Z from your Z-Wave Network
1. Start the "Exclusion" process of the HBC-100, this can be done by pressing the
[Setup/Device/Exclude Device] tab from its web user interface;
2. Acknowledge the exclusion request by pressing the Program Button of the
HSM-300Z.
Use the HSM-300Z for Motor Control
The following ways can be used to control the motor connected with the HSM-300Z:
1. Press the external switch button provided by the motorized track (please use the
momentary push button):
─
[Type I Motor] Short click for OPEN/STOP/CLOSE (or UP/STOP/DOWN);
─
[Type II Motor] Press and hold OPEN/CLOSE to keep the motor moving on the
desired direction, and release the button to stop the motor at target position;
2. Use Z-Wave commands built into Z-Wave controllers and gateways. You can
control the motor via Android/iOS smart phone, web UI, portable controller, or
intercom touch panel.
Advanced Setup
1. Motor Type Selection: The HSM-300Z supports both Type I & II motors (default as
Type I), which can be configured by:
 Press HSM-300Z program button before power on, hold the button until LED is
on (about 1 sec.);

Release program button, then LEDs turn on alternated. Press the button again
when desired LED is blinking (Type I: LED 3, Type II: LED 4);
 You can continue the setup for motor calibration step 3 (see below). If you
don't want to run calibration, please unplug power and plug it again.
