User manual

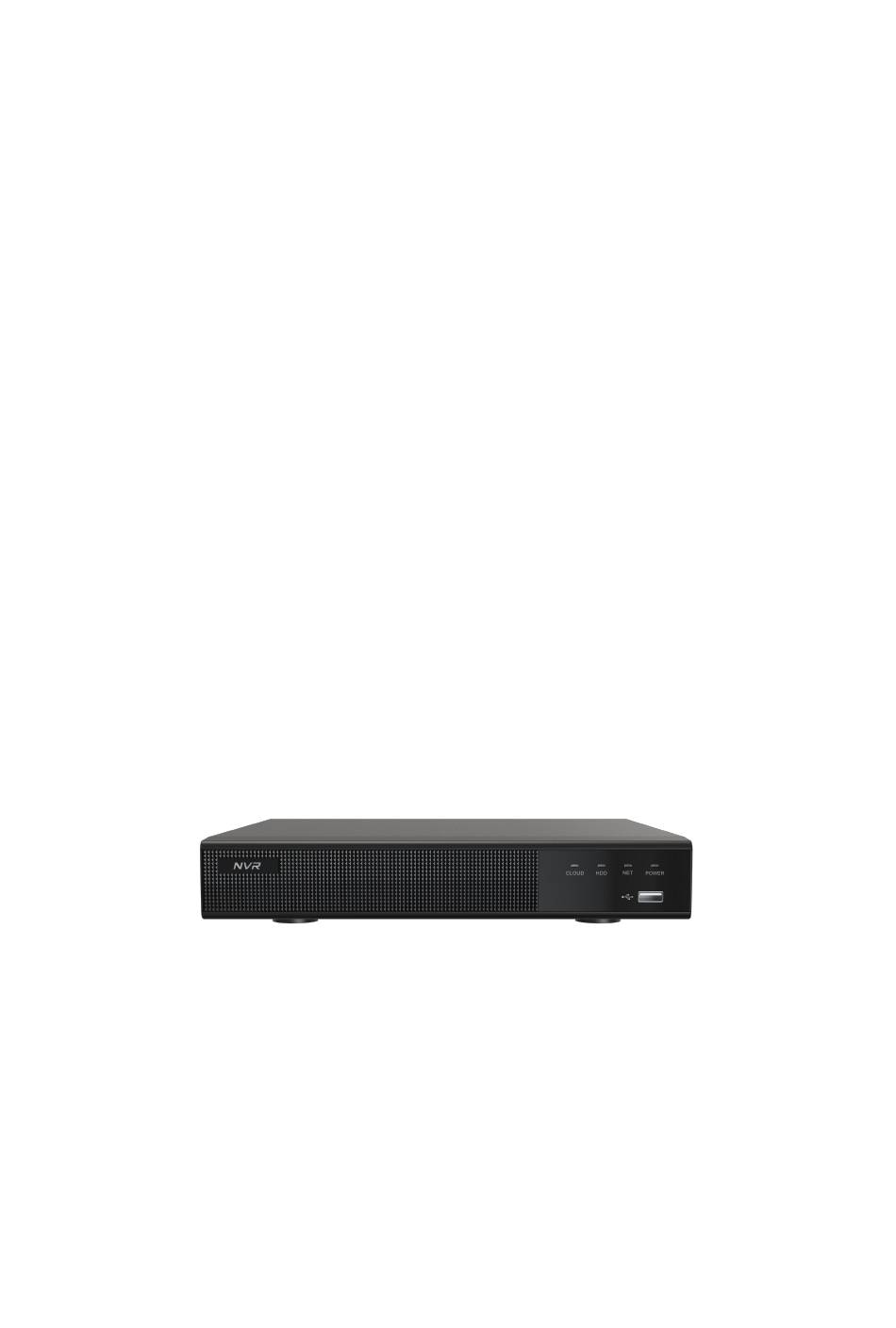

Device GSRV01
User Manual
Please read the User Manual carefully before using the product and save it.
Phone: 021- 6062 6388
A: IFC Tower II, 3691 No. 8, Century Ave. Pudong, Shanghai. China PR
W.:www.gsipacificasia.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the GSRV01 and is the answer not in the manual?

Questions and answers

Summary of Contents for GSi GSRV01

  • Page 1 User manual Device GSRV01 User Manual Please read the User Manual carefully before using the product and save it. Phone: 021- 6062 6388 A: IFC Tower II, 3691 No. 8, Century Ave. Pudong, Shanghai. China PR W.:www.gsipacificasia.com...
  • Page 2: Security Instructions

    User manual Statement This manual applies to PG / PGH / C / CB / DB / D / L / PGHP / DP / PGHxxPoE / DxxPoE  / CxxPoE NVR Enclosures. This manual may contain some content that is technically inaccurate or inconsistent ...
  • Page 3 User manual 3.1 Hard Drive Installation Guide for NVR PG Series (1)Unscrew the screws and remove the top cover. (2)Align the screw holes of the hard drive with the back plate of the chassis, and then tighten the screws. (3) Connect one end of the hard drive power cable and data cable to the motherboard and the other end to the hard drive.
  • Page 4 User manual 3.2 Hard Drive Installation Guide for D/DB/C/CB Series NVR (1)Unscrew the screws on the back and sides of the chassis and remove the cover. (2)Connect one end of the hard drive power cable and data cable to the motherboard and the other end to the hard drive.
  • Page 5 User manual 3.3 Hard Drive Installation Guide for NVR L Series (1)Unscrew the screws on the back panel and remove the cover. (2)Remove the HDD frame. (3)Install the HDD into the rack from top to bottom. (4)Fix the HDD with screws. (5)Install the frame and fix it.
  • Page 6 User manual VGA: video output interface Audio input or output interface. A-IN for audio input A-OUT for audio output eSATA interface RS485 interface for PTZ camera access alarm interface power switch interface 12V DC power interface, PoE NVR is 48V, the specific subject to prevail AC power 110V-240V interface 115V/230V power switch.
  • Page 7 User manual 4.2 8 channel C/CB/D/DB serial NVR rear panel interface. Description: 64 Channel L-series NVR Rear Panel Interface Description. NOTE:  The rear panel interface of the PoE NVR is similar to the picture above, but the appearance of the product, including buttons, interfaces and layout, for reference only, in kind prevail.
  • Page 8 User manual 5.Local basic operation 5.1 Start NOTE: It is recommended that you refer to international standards for power supply input with stable voltage values and low ripple interference. Some devices do not have a power button and will boot directly when connected to a power source Make sure the input voltage matches the power consumption of the NVR.
  • Page 9 User manual Step 1: The device automatically enters the Boot Wizard page after it is powered on. Click "Next", enter the admin password, select the language, click "Login", "Modify", modify the login password, and click "Save" to enter the "General" page " of the boot wizard. Step 2 –...
  • Page 10 User manual You need to reset the device administrator password (system default username is "admin" and password is "12345") at first startup. To ensure device security, save the administrator login password and change it periodically. Network Settings The network parameters must be configured correctly before operating the device over the network.
  • Page 11 User manual Add IP Device Before access and configure the IP channel, make sure the NVR the net the connection is correct and valid. Step 1: Choose "Menu > Camera > Add Camera" to enter the Add Camera interface. Step 2: Add IPC automatically or manually. Add automatically, click the "Add automatically"...
  • Page 12 User manual Step 2: Select the channel and recording type according to actual needs. Hold down the left mouse button and drag the mouse on the time period diagram or click " ” to set the recording schedule. instant playback Step 1: When the mouse clicks anywhere on the screen of the current channel, the control bar will automatically appear below the channel.
  • Page 13 User manual To close Choose "Menu > Shutdown", click "Shutdown". 4. WEB operation Access NVR LAN login (PC and device are on the same router) Step 1: Make sure the NVR and PC are in the same network segment. Otherwise, the network segment of PC should be set to the same segment with NVR, such as "192.168.1.99".
  • Page 14 User manual Step 3: Open the "Search Tool", double click the target device from the search result to enter the login interface, or open IE browser to enter the NVR address: as“http://192.168.1.88/”(If the NVR's http port is changed to 89, please enter "http:// 192.168.1.88:89/") to enter the login interface. Step 4 Enter the device username (default is "admin"), password (default is "12345"), and click "Login".
  • Page 15 User manual 5. Mobile app operation Step 1: Download and Install Use Android or iOS phone to scan the corresponding QR code or search "BitVision" in the app store to download and install the BitVision app. Step 2:Income Account Run the BitVision application,click on " "in the sliding sidebar, enter the account name and password, and click "Login"...
  • Page 16 Contact GSI If you have any questions or comments about GSI products, please visit www.gsismartface.com or contact GSI Customer Service at +86137-6441-3295 or by clickinghere.(Ctrl + Left Click) Phone: 021- 6062 6388 A: IFC Tower II, 3691 No.
