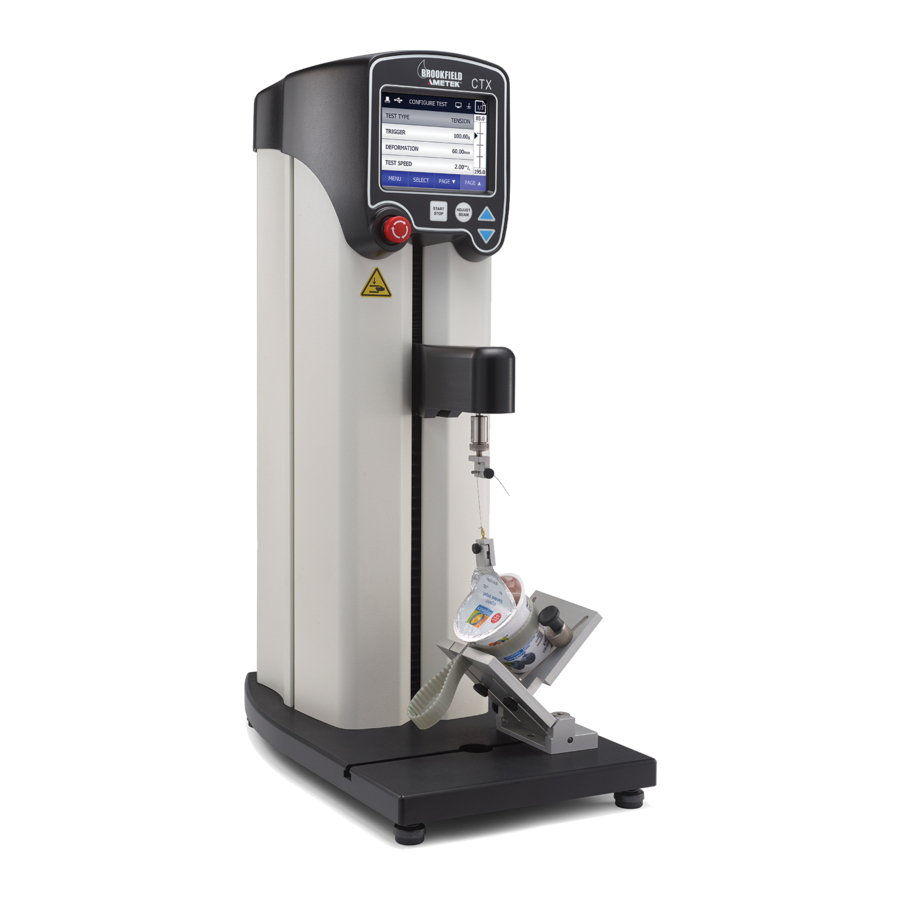

Ametek Brookfield CTX Manual

Instrument Setup

• Unpack the instrument. For more information, see the unpacking instructions or refer to the user manual.

• If load cell is in carrying case, remove and insert under the beak cavity, plug in the USB and secure the load cell with the Allen wrench provided (found in the case with the load cell(s)).
• If purchased, install base table in accordance with the instruction sheet that is enclosed with the base table.
• Plug in the power cord and turn on the instrument.
• Next, adjust the beak to the desired height by selecting the "adjust beam" button next to "start/stop" on the front panel. Use the Up/Down arrows to adjust the beam to the desired height. Then, press the back button.

• Remove the cap from the load cell and attach the selected probe. Refer to the manual for more in formation.

• Select Configure test

• Select the desired test.

• Set the test parameters. Refer to the manual for more information.

• The instrument is ready for testing, press the START/STOP to begin.
