Summary of Contents for Mayones ORI

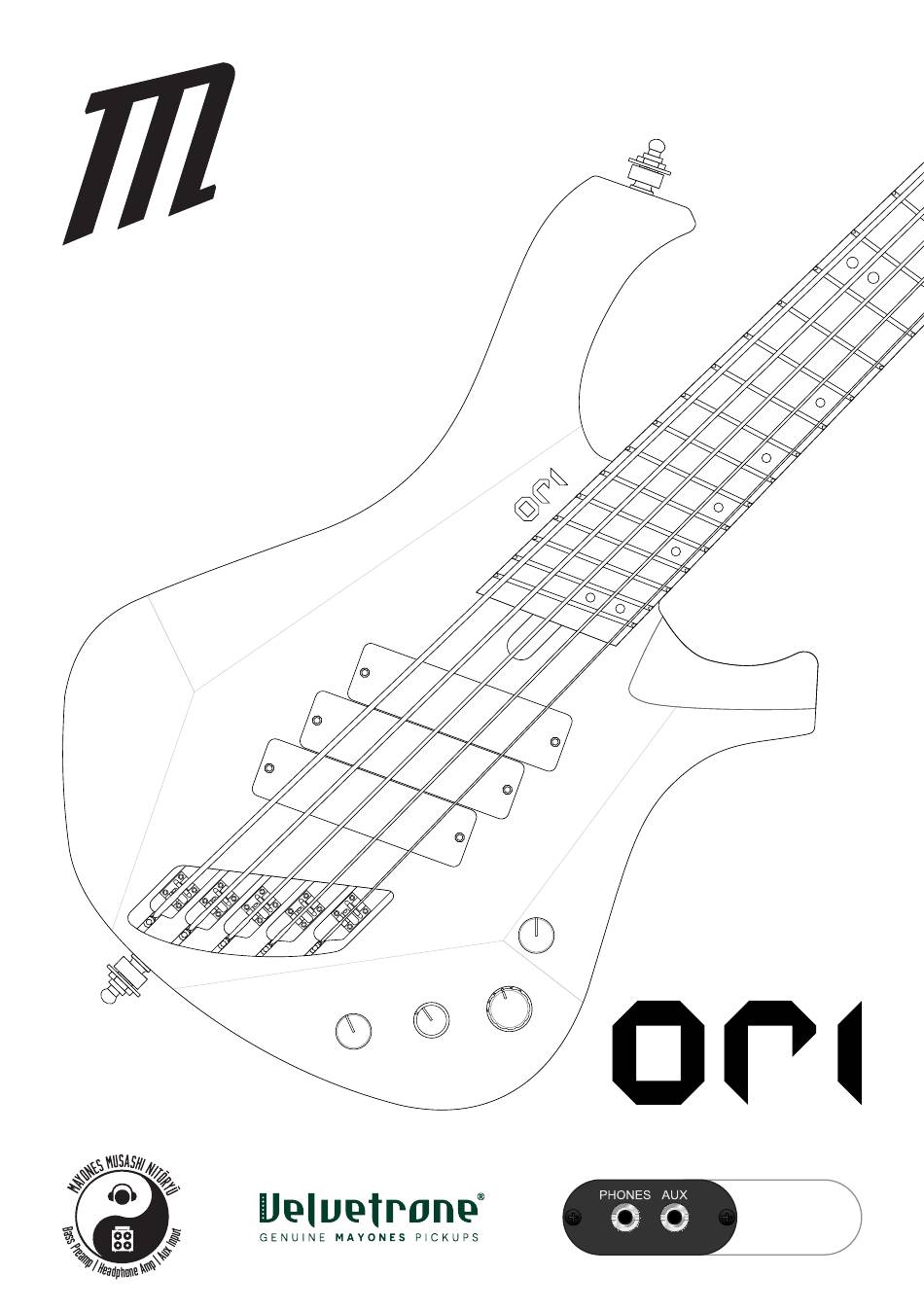

- Page 1 U S E R M A N UA L PHONES Out & AUX In...
- Page 2 Designed to bring musical ideas to life in the studio, perform reliably on stage, and support seamless practice at home or on the road, the ORI offers exceptional versatility and functionality. Mayones ORI is an extremely successful combination of the latest guitar design trends, carefully selected tonewoods, premium hardware, and the expertise of our skilled luthiers.
- Page 3 Body Contouring Our designers have ensured that the ORI bass is not only comfortable to play but also lightweight and imbued with its own unique character. In addition to a cutaway that facilitates access to the last frets, the body features multiple contouring planes on both the front and back, giving it a distinctive and striking appearance.
- Page 4 1/4" Instrument output jack 1/8" Headphones output jack and 1/8" AUX input jack 28. pickup height adjustment screws 29. Kissaki VFret bridge 30. bridge saddles 31. rear strap button - 4 - Mayones ORI – User Manual...
- Page 5 Due to the extended scale of the ORI bass, with the B string reaching a length of 37 inches, and the varying scale lengths for each string, standard string sets available on the market are unsuitable.
-
Page 6: Installing Strings
Graph Tech RATIO tuners The method for stringing the Graph Tech RATIO tuners is identical to that of modern bass tuners, as detailed in the Mayones Electric Bass Guitar user manual. What sets Graph Tech RATIO tuners apart is that each string has its own calibrated gear ratio. - Page 7 Kissaki bridge The Kissaki bridge has been specifically developed by Mayones for VFret instruments to provide an optimal adjustment range for each string, with a focus on 34–37 inch scale lengths. It features innovative three-dimensional adjustable saddle modules that allow for precise intonation tuning, adjustment of string height above the frets, and fine- tuning of string spacing.
- Page 8 Before changing the string spacing, loosen the screw , located at the front of the saddle (use a 1.5 mm Allen key). - 8 - Mayones ORI – User Manual...
- Page 9 It can significantly improve the intonation of the instrument. This is an additional advantage of the bridge with modular saddles. The illustration shows the saddle rotated 180 degrees under the thickest string. - 9 - Mayones ORI –User Manual...
- Page 10 Velvetrone GRIM Soapbar pickups The ORI bass guitar features three exceptionally versatile passive dual-coil Velvetrone GRIM pickups, housed in soapbar covers with ceramic magnets, designed and manufactured by Mayones. This model excels at faithfully capturing the instrument's natural sound while delivering every subtle nuance of articulation.
- Page 11 Configuration of pickups for positions 1 - 6 of the rotary switch - 11 - Mayones ORI – User Manual...
- Page 12 It is important to note that the ORI bass does not feature a tradi onal balance (blend) knob for mixing the signals from two ac ve pickups. The third and the fourth knob are stacked and allow for ac ve treble (upper knob), and bass (lower knob) adjustment.
- Page 13 After one finishes playing, one should always remove the headphone plug from the PHONES 1/8" socket, and/or remove the instrumental cable, to conserve the battery power. When not using the ORI bass, the blue LED (PREAMP ON), should always be off. Push-Pull Volume Knob...
- Page 14 Plate with two 1/8 inch inputs The presence of a stereo headphone amp onboard is a unique feature of your Mayones ORI bass. It includes PHONES output, and an extra stereo line input (AUX IN). That elevates the levels of instrument usability and allows one to play the bass with its true tone virtually anywhere, without disrup ng anyone's peace of mind.
- Page 15 OMTP, CTIA, or similar TRRS jack plugs are also not usable with ORI bass. Although a stereo headphone amp is a part of the instrument, one shall note that the ORI bass is not a stereophonic instrument. For that reason, both channels of the headphones (le and right) transmit the very same, monophonic pickup signal that is only split between the two channels of the headphone amp.
- Page 16 The wiring interconnects the elements mounted on the plate, and the remainder of the circuitry, inside the electronics compartment. - 16 - Mayones ORI – User Manual...
- Page 17 That would allow the user to retain the nominal ba ery capacity. LED indica on, depending on ba ery charge levels. 100% - 75% 75% - 50% 50% - 25% 25% - 1% <1% - 17 - Mayones ORI – User Manual...
- Page 18 In no case should you use force to remove the cable. You should not remove the plug at an angle as well. - 18 - Mayones ORI – User Manual...
- Page 19 Should a no ceable performance and capacity drop occur, the ba ery should be replaced by a specialized technician or service, or the user should get in touch with Mayones. Note: The electronics in the instrument may only be powered by the 3.7V ba ery which is the same as the original.
- Page 20 The built-in Li-Po ba ery can be safely charged when a 9V ba ery is installed and/or the power source switch is set to the 9V posi on. These two different power sources are completely separated from each other and operate independently. - 20 - Mayones ORI – User Manual...
-
Page 21: Battery Disposal
Important: Detailed informa on about the Mayones Musashi bass preamplifier with a 3-band EQ, a dedicated stereo headphone amplifier with an addi onal Aux input - Mayones Nitōryū 2.0, and the power module with a built-in lithium-polymer ba ery can be found in the specially prepared user manuals for these products. - Page 22 • If you plan not to use the instrument over a longer period, please remove the battery cell. In extreme cases it may explode, the electrolyte may leak out, fire or damage may occur, or stains may be formed by the leak. - 22 - Mayones ORI – User Manual...
-
Page 23: Maintenance
For these surfaces, there are usually no specific recommendations regarding their cleaning, apart from the general guidelines presented earlier. First of all, you should follow all the information, instructions and recommendations provided on the product you are using. - 23 - Mayones ORI – User Manual... - Page 24 Please note that the vast majority of fingerboard care products are not suitable for maple wood. Typically, maple fingerboards are protected with varnish coatings, and products appropriate for such surfaces should be used for cleaning them. - 24 - Mayones ORI – User Manual...
- Page 25 100 hours (fully charged onboard Li-Pol battery, Operating time with the headphone amplifier turned off) 3-band EQ Curve Charts Bass adjustment frequency curve Mids adjustment frequency curve Treble adjustment frequency curve - 25 - Mayones ORI – User Manual...
- Page 26 9 V alkaline battery (preamp only) Mayones Guitars and Basses care constantly about the quality of their instruments and release their newer and upgraded versions, as well as search for the best possible building materials. The company reserves the right to make changes without prior notice - 26 - Mayones ORI –...
- Page 27 Note: On our website www.mayones.com in the Tech Support Section you will find a number of other operating instructions for our instruments and accessories used. We encourage you to visit our website and familiarize yourself with the materials available there.
- Page 28 Find more information on guitar operation and maintenance and solving basic problems on our website www.mayones.com. Mayones Guitars and Basses care constantly about the quality of their instruments and release their newer and upgraded versions, as well as search for the best possible building materials.
