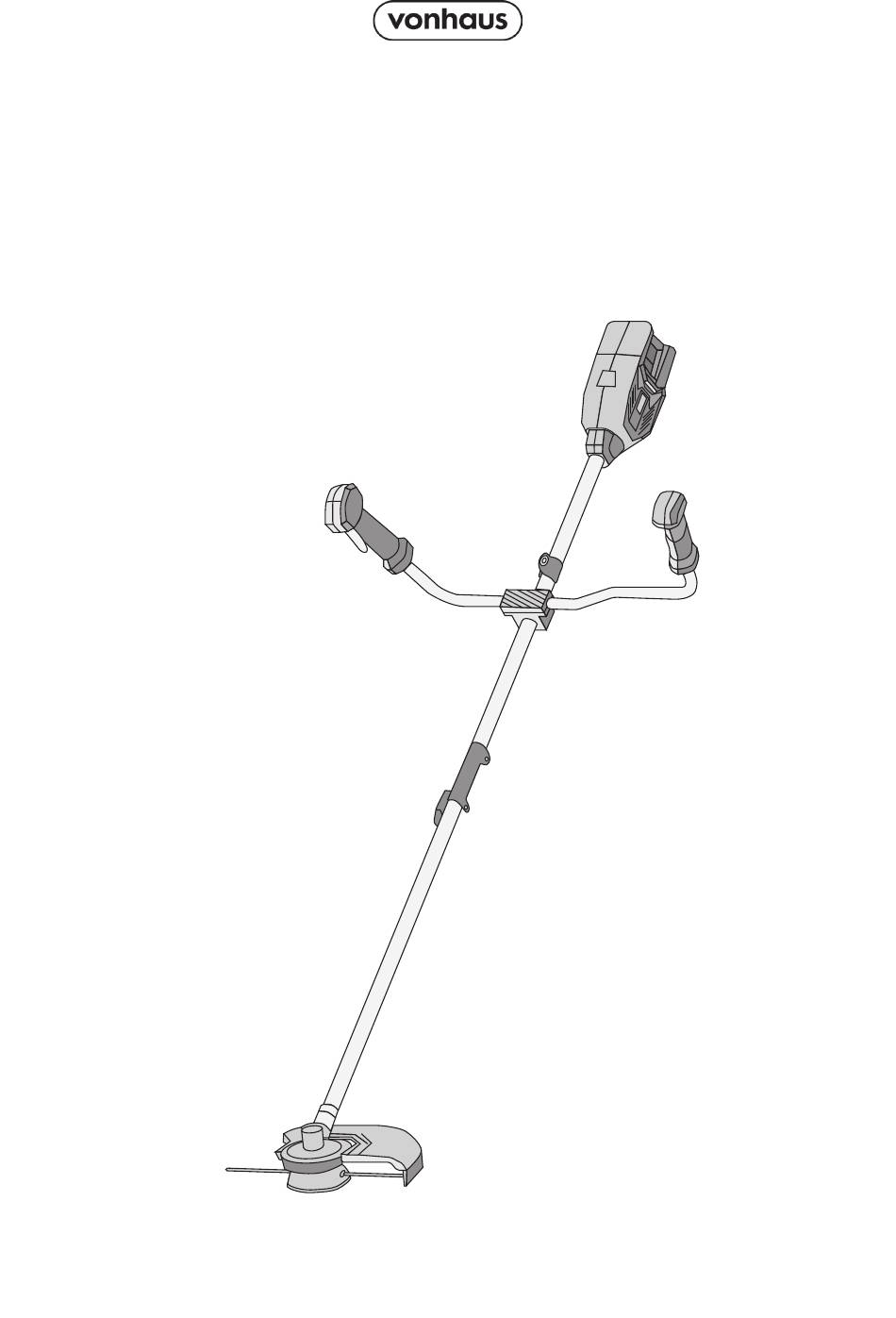

- Page 1 BRUSH CUTTER Setup Instructions Product No. 3519001...
- Page 2 Need further help? See our full range at support@vonhaus.com www.vonhaus.com Besoin d’aide supplémentaire ? Découvrez notre gamme complète sur support@vonhaus.com www.vonhaus.com Benötigen Sie weitere Hilfe? Entdecken Sie unser gesamtes Sortiment auf support@vonhaus.com www.vonhaus.com Necesita más ayuda? Descubra toda nuestra gama en support@vonhaus.com...
-
Page 3: Parts And Components
Parts & Components A. Cordless Brushcutter B. Mounting Screws x C. T-Key with Hexagon x 1 D. Cutting Blade x 1 E. Carrying Belt x 1 F. P rotective Guard x 1 G. Aluminum Handlebar Frame x 1 H. Batteries x 2 I. -
Page 4: Handle Assembly
Assembly Handle Assembly: • Align handlebar with aluminum frame • Secure upper clamp with 4 bolts... - Page 5 Assembly Shaft Tube Installation: • Insert aluminum tube into hole • Tighten locking knob...
- Page 6 Assembly Attach the protective cover to the motor housing with screws using the hexagon wrench (t he T-wrench with hexagon)
- Page 7 Assembly Spindle lock: To lock the spindle, press the spindle In order to mount a reel / knife, the locking pin and keep it pressed while spindle must always be locked. tightening or loosening.
- Page 8 Assembly Mount the mower blade Safety: Wear gloves, keep blade 1. Put blade onto lower blade holder clean, use blade cover when not in 2. Add upper blade holder, convex use. side out 3. Hold s pindle l ock, t ighten n ut clockwise...
-
Page 9: Safety Warning
Assembly Attach the strap SAFETY WARNING: • Connect the strap to the mount on • Never wear the strap diagonally top of the main unit across chest • Place the strap over your RIGHT • Keep it on one shoulder only shoulder only •... -
Page 10: General Safety
Information General Safety Electrical Safety • Use proper plugs and outlets This 2-in-1 cordless brush cutter functions as • Avoid wet conditions both a grass trimmer and a brush cutter. It can • Use appropriate extension cords trim grass edges after mowing or cut tall grass •... -
Page 11: Brush Cutter Safety
Information Brush Cutter Safety Technical Specifications When operating in brush cutter mode: Nominal Voltage: 36V DC (2 x 18V DC) Rotation Speed (First Gear): 6000 • Always wear heavy gloves when handling Grass Trimmer (Wire Spool): 340mm blades Brush Cutter (Blade): 255mm •... -
Page 12: Usage & Safety
Usage & Safety Sharp edges Protect your ears Protect your eyes Protect your hands Wear suitable footwear Protective clothing must be worn Beware of Potential finger Maintain a safe distance kickback trap points from bystanders Do not use in wet conditions Grass Sweeper No. -
Page 13: Disposal Information
VonHaus is a registered trademark of DOMU Please retain a proof of purchase receipt or Brands Ltd. statement as proof of the purchase date. - Page 14 Product No. 3519001...
