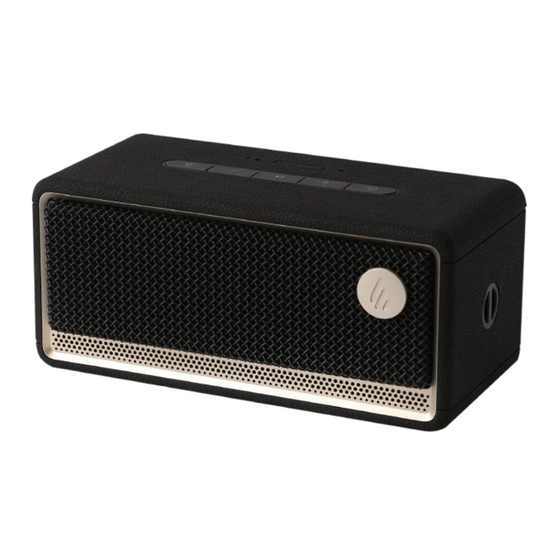

EDIFIER ES60 Manual

Portable Bluetooth Speaker
EN
1. EDIFIER ConneX mobile app
With this app, you can
•control play from the Bluetooth
source device,
•control the master volume,
•select sound effects or customize EQs,
•upgrade the firmware, and
•more functions.
Download EDIFIER ConneX app
1. With your smart device, scan the QR code on the quick start guide or the
packaging.
•You can also search for "EDIFIER ConneX" in Apple App Store (iOS devices) or
Google Play (Android devices).
2. Download and install the app.
How to use this app
1. Connect your smart device with the speaker via Bluetooth.
2. In Bluetooth mode, open EDIFIER ConneX App on your smart device.
3. Tap the menu for settings and playback control.
2. What's in the box?
USB-C to USB-C audio cable
Quick start guide
Note:
•Images are for illustrative purpose only and may differ from the actual product.
•For the need of technical improvement and system upgrade, information and
specifications contained herein may be slightly different from actual product. If
any difference is found, the actual product prevails.
3. Charging
8-10
W
Note:
•Power input: 5 V
•"8" is the minimum power required by the radio equipment to charge.
"10" is the maximum power required by the radio equipment to achieve
maximum charging speed.
4. Power on/off
Press and hold the "
5. Source selection
x1
Input
Indicator
6. Bluetooth connection
This speaker supports the simultaneous connection of two Bluetooth devices.
Connect to a device
1. Press the " " button to switch to Bluetooth input mode. If no device is
connected, the speaker will auto-enter Bluetooth pairing mode (LED blinking
in blue). If not, press and hold the "
2. On your device, select "EDIFIER ES60" in its Bluetooth device list to connect,
and the blue LED will be steady lit when the connection is established.
•To disconnect from the current Bluetooth device, press and hold the "
button for 1.5 seconds.
Connect to two devices
1. Connect to a device, and then press and hold the "
(LED blinking in blue).
2. On the second device, select "EDIFIER ES60" in its Bluetooth device list to
connect, and the blue LED will be steady lit when the connection is established.
3. On the first device, select "EDIFIER ES60" in its Bluetooth device list to reconnect.
•Pause or stop playback on the current Bluetooth device before streaming audio
from the second one.
Note:
•Pin code for connection is "0000" if needed.
•To enjoy all Bluetooth functions of this product, make sure that your audio
source device supports HFP, A2DP and AVRCP profiles.
•If no device is connected in 10 minutes, the speaker will switch to Bluetooth
hidden mode. The blue indicator will blink slowly. In this mode, (1) new devices
cannot find the speaker, but (2) for a device that exists in the pairing record of
this speaker, you can select "EDIFIER ES60" from its Bluetooth device list to
reconnect. To exit from Bluetooth hidden mode, press "
speaker.
•After switched to Bluetooth input, the speaker will reconnect to the last
connected devices automatically.
7. Bluetooth stereo pairing
①
①
Pair two ES60 speakers to enjoy stereo sound.
1. Double press the "
breathing pattern.
2. Double press the "
breathing pattern.
•Once the connection is established, the white LED on the first ES60 will be
steady lit or blink rapidly, and the white LED on the second ES60 will light off.
3. Connect the first ES60 to your Bluetooth device and start playing.
•To exit the stereo mode, double press the "
Note:
•The first ES60 will work as the master speaker. You can control play on the first
ES60.
•The first ES60 will deliver the right channel audio and the second one is for the
left channel audio.
8. USB connection
Note:
1. The following operating systems support USB audio streaming: Windows 11,
Windows 10, Windows 8, and Windows 7.
2. In USB audio streaming mode, volume sync is not supported. To adjust the
volume, adjust on the speaker and your device separately.
9. Play control
10. Phone calls
11. Light effects
12. Specifications
Total output power (RMS): 8 W + 8 W + 18 W
Frequency response: 58 Hz~20 kHz
Declaration for EU
Frequency Band: 2.402 GHz ~ 2.480 GHz
RF Power Output: ≤10 dBm (EIRP)
There is no restriction of use.
13. Troubleshooting
Cannot connect to your Bluetooth device
•Make sure that the distance between this product and your Bluetooth device
is less than 10 meters and there are no obstacles between them.
•Make sure that no device is connected to this product via Bluetooth.
•Make sure that this product is in Bluetooth pairing mode. If not, manually
switch it to this mode.
•Restart this product, enable Bluetooth function on your Bluetooth device,
and then try again.
•Reset this product to factory settings and try again.
No power
•Make sure that the power cable is properly connected.
•Make sure that the power supply is not disconnected.
No sound
•Make sure that this product and your device is properly connected.
•Make sure that the correct audio input source is selected.
•Make sure that the playback is not paused.
•Increase the volume of this product and your device.
Noise coming from speakers
•EDIFIER speakers generate little noise, while the background noise of some
audio devices are too high. Please unplug audio cables and turn the volume
up. If no sound can be heard at 1 meter away from the speaker, there is no
problem with this product.
To learn more about EDIFIER, please visit www.edifier.com
For EDIFIER warranty queries, please visit the relevant country page on
www.edifier.com and review the section titled Warranty Terms.
USA and Canada: service@edifier.ca
South America: Please visit www.edifier.com (English) or
www.edifierla.com (Spanish/Portuguese) for local contact information.
ES60
Manual
2 A
ON
" button for 1.5 seconds to power on/off the speaker.
USB
USB
Blue Red
Settings
Bluetooth
DEVICES
EDIFIER ES60
x2
Settings
Bluetooth
DEVICES
EDIFIER ES60
" button on the first ES60. The white LED will be in
" button on the second ES60. The white LED will be in
x1
x1
x1 ：
Speaker
Important safety instructions
1.5s
OFF
1.5s
Bluetooth stereo pairing
White
2:12
Bluetooth
" button for 1.5 seconds.
②
②
2:12
Bluetooth
" button.
x1
x1
x1
x2 ：
EDIFIER ConneX app
Strap
5V 2A
x1
" button for 1.5 seconds
" button on the
x2
EDIFIER ES60
：
"
