Summary of Contents for BatteryEVO Walrus Arctic

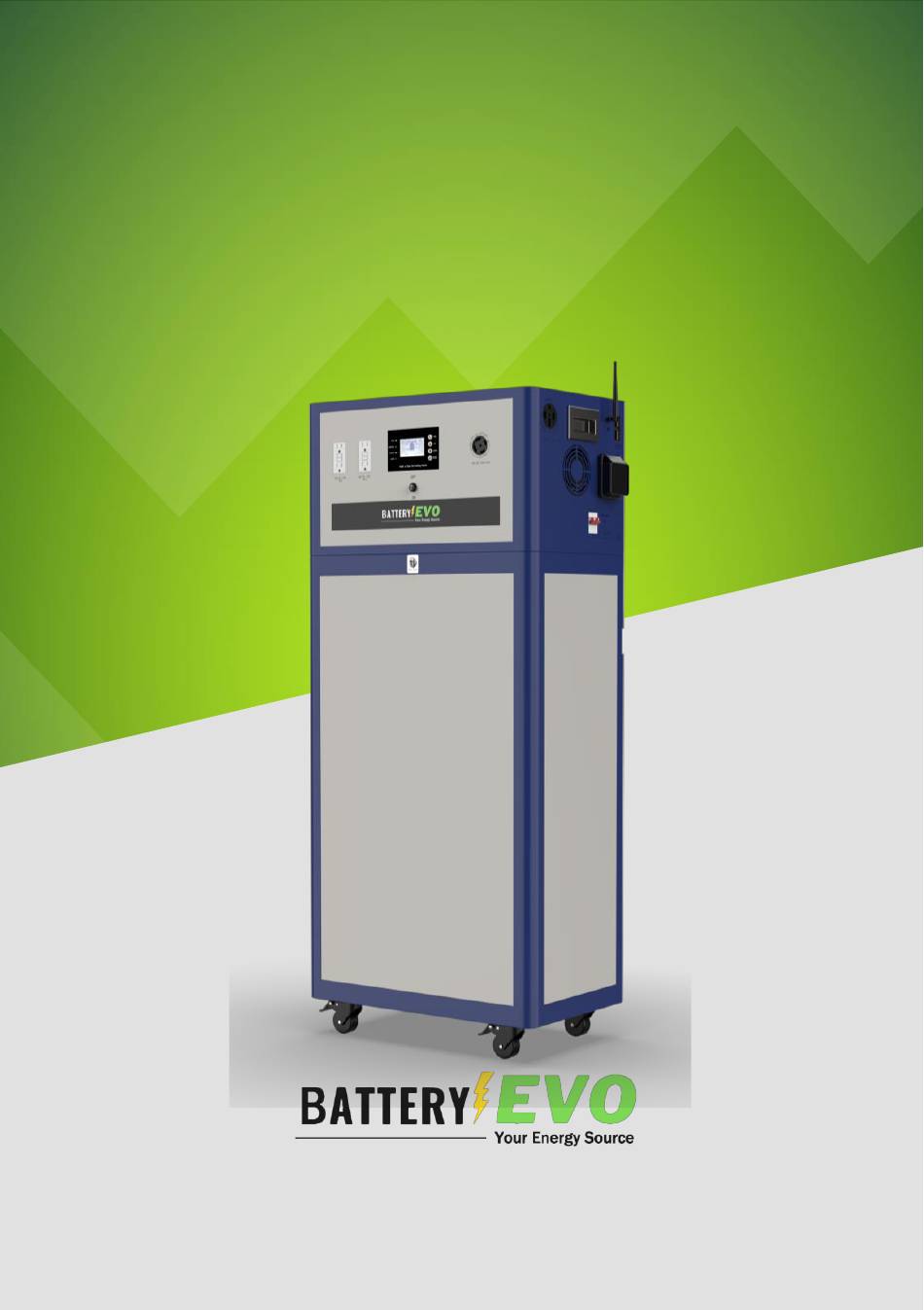

Page 1 Walrus Arctic B0815-72 USER MANUAL INSTALLATION GUIDE 48V Walrus USER MANUAL...
Page 2: Table Of Contents
Features & Applications Product Specifications Unit Specification Product Detail Screen Menu Mobile Application Guide Download & Install Registration & Sign in Add device & Connection Accessories Technical Safety Guidelines Transportation Recycling Warranty & Return Information Warnings & Precautions Walrus Arctic USER MANUAL...
Page 3: Introduction
Walrus Arctic. The document applies explicitly to the BatteryEVO WALRUS B0815-72. Features & Applications BatteryEVO’s Walrus Arctic is a 15.5kWh portable energy unit, ideal for solar systems, off-grid setups, and emergency power supply. It incorporates an advanced BMS (Battery Management System) for safe operation across a broad temperature range, ensuring quick and secure charging even at temperatures as low as -20°C.
Page 4: Product Specifications
AC OUTPUT RECEPTACLE (ON THE NEMA 14-50R (120VAC/240VAC , 50Amp) SIDE) AC OUTPUT RECEPTACLE 4x 120V Receptacle , 1x L14-30R (ON FRONT PANEL) (120VAC/240VAC , 30Amp) USB PORT 2x Rs485, COMMUNICATION PORT 1x Generator Kick Off Port , Wi-Fi Walrus Arctic USER MANUAL...
Page 5: Product Detail
In this status, known as the bypass status, the battery of Walrus cannot be charged or discharged. These are 360-degree rotating wheels, and the front two wheels equipped with manual brakes. Walrus Arctic USER MANUAL...
Page 6 10 seconds, triggering the external electric generator to start. After 1 minute, the dry contact will automatically disconnect. It is a communication port for interacting with the Walrus's BMS (Battery Management System). Walrus Arctic USER MANUAL...
Page 7 NEMA L14-30 & NEMA14-50R:Line1 + Neutral = 120VAC Line2 + Neutral = 120VAC Line1 + Line2 = 240VAC SS2-50P: X + W = 120VAC Y + W = 120VAC X + Y = 240VAC Walrus Arctic USER MANUAL...
Page 8 AC In L2 Black AC Out L2 Black AC in L2 Black AC Out N White AC Out N White L1 Red DC in L1 Red L2 Black DC in L2 Black N White The Fire Extinguisher is included: Walrus Arctic USER MANUAL...
Page 9: Screen Menu
Screen Menu BatteryEVO's Walrus has an interaction area, which includes an LCD, signal indicator lights, and interactive buttons. Users can configure various working parameters on this screen, such as charging power and operational mode, for the Walrus. Additionally, it provides real-time information on the Walrus's operational status, including the inverter's output power and load percentage, parameters, and the working status of each feature.
Page 10 Priority status Enabling mode Battery voltage and capacity Image #1 percentage Solar charging current Local time Hold ↲3sec “ENTER/CONFIRM” and it shows like Image#2, Password: 0101 Image#2: Only able to edit the value after enter the password. Walrus Arctic USER MANUAL...
Page 11 Hit “ Output-V ” you can enter Inverter Output Voltage page, shown like Image#3.1, Image#3.1 Editing the output voltage of the standard GFCI class A outlets, while the output voltage of the Twist Lock Outlet (NEMA L14-30) will be two times (= 2 X selected voltage). Walrus Arctic USER MANUAL...
Page 12 Outlet (NEMA L14-30), and Embedded Ground Blade Power Outlet (NEMA14-50R). Hit “ AC Chg. Amps ” you can enter AC Charging Current page, shown like Image#3.3 Image#3.3： Select the AC charging current from the options provided. Walrus Arctic USER MANUAL...
Page 13 AC fails, maintaining power without interruption. Inverter mode mainly uses the battery, converting DC to AC, and can keep powering loads even without external AC, provided the battery has enough charge. Walrus Arctic USER MANUAL...
Page 14 ACT is the most cost-effective solution. During charging, if the PV remains connected, Walrus will not block it. Once the battery is fully charged, Walrus will not continue to charge and will only operate in bypass mode. Walrus Arctic USER MANUAL...
Page 15 Hit “ SAV MODE ” you can enter Power Saving Output page, show like Image#3.7 Image#3.7: Select whether to activate the power saving mode, which will limit the power consumption of Walrus in standby mode. Walrus Arctic USER MANUAL...
Page 16 'Normal (1Min)' mode will maintain the backlight for one minute during each operation in Walrus interaction area. Hit “ Set Time ” you can enter Time Setting page, show like Image#3.9 Image#3.9: Modify the local time on the machine. Walrus Arctic USER MANUAL...
Page 17 Once the voltage reaches the 72.0V, DC charging will become available. This may occur when setting the priority to solar, and the solar charging is no longer available. Warning: Please don’t change any parameter , It might lead to a very danger situation. Walrus Arctic USER MANUAL...
Page 18 120V AC output socket2 info Battery voltage(V), SOC(%), temperatures(F° ) Image#3.11 Using Up/Down buttons, switch to ‘PV Status’ page, as shown in Image#3.12 Solar charging voltage Solar charging current Solar providing power Solar providing energy Solar charging voltage Image#3.12 Walrus Arctic USER MANUAL...
Page 19 Using Up/Down buttons, switch to ‘Battery Status’ page, as shown in Image#3.14 Battery Charging Voltage Upper Limit Battery Discharge Voltage Lower Limit Battery total charge(+) or discharge(-) current Battery state of charge percentage Battery BMS communication status Image#3.14 Walrus Arctic USER MANUAL...
Page 20: Mobile Application Guide
Installing the App • Once the download is complete, the app will automatically begin the installation process. • After installation, you'll find the BatteryEVO app icon on your home screen or app drawer. Walrus Arctic USER MANUAL...
Page 21: Registration & Sign In
Service and Privacy Policy, then submit your registration. • You may be asked to verify your email address. Check your email inbox for a verification code from BatteryEVO and click on it to confirm your account. Walrus Arctic USER MANUAL...
Page 22: Add Device & Connection
• Enter the provided PN number to the input text bar at the bottom, or use the scan option to scan the bar code to get the PN number. • After the PN number is entered, you can go to the next step. Walrus Arctic USER MANUAL...
Page 23 GPS to get the location. • At the top left of the page, find the drop-down list of presentation types. • Click on the drop-down list and select "Datalogger“. Added devices will displayed in the list. Walrus Arctic USER MANUAL...
Page 24 • Click the “Me” option on the navigation menu at the button. 中国移动 • Click the “Network tools” icon the option box will pop up here. • Select “Wi-Fi network” to go to the Wi-Fi pairing setting page. Walrus Arctic USER MANUAL...
Page 25 • Before the next step, the mobile device should connect to the datalogger as the Wi-Fi connection. • Select the datalogger network that is the same as the PN number on Walrus. • The password for the datalogger: 12345678 Walrus Arctic USER MANUAL...
Page 26 • If a prompt window pops up, the datalogger connection has failed and needs to try again. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected. • Enter the router’s password. Walrus Arctic USER MANUAL...
Page 27 Alternatively, contact BatteryEVO technical support team for assistance. Bluetooth Pairing • Click the “Network tools” icon the option box will pop up here. • Select “BLE network” to go to the Bluetooth pairing setting page. Walrus Arctic USER MANUAL...
Page 28 • Bluetooth either activates automatically or requires manual enabling. • The App then initiates a search for nearby devices with Bluetooth capabilities. • Select the Bluetooth which has same PN number with datalogger from the listed device. Walrus Arctic USER MANUAL...
Page 29 • Click “Internet Settings” to continue the datalogger pairing to the local router. • Enter or select (by clicking the Wi- Fi icon) the local router to which the datalogger should connected. • Enter the router’s password. Walrus Arctic USER MANUAL...
Page 30 Viewing Walrus Status • At the top left of the page, find the drop-down list of presentation types. • Click on the drop-down list and select "Datalogger“. Added dataloggers will displayed in the list. Walrus Arctic USER MANUAL...
Page 31 • Click triangle icon on the left of the datalogger. Devices that are already connected to datalogger will be shown below. • Click the device. • The system status and data are synchronized in real-time. Walrus Arctic USER MANUAL...
Page 32: Accessories
(NEMA14 grid. -50R) 50 Amp This cable is suitable for 10 Ft RV connecting the battery output to Optional Extension the power grid. Cable Optional items are available on the BatteryEVO website. Walrus Arctic USER MANUAL...
Page 33: Technical Safety Guidelines
Regularly checking and maintaining the air circulation paths around the device is also key to maintaining effective cooling, ensuring that there are no obstacles hindering air flow. Air Outlet Air Intake Walrus Arctic USER MANUAL...
Page 34: Transportation
Before installing, make sure to review all safety guidelines, warnings, and precautions thoroughly. 1. Walrus should be kept upright, and the brakes on the wheels should be engaged to secure Walrus. DOWN, Brakes UP, Brakes OFF Walrus Arctic USER MANUAL...
Page 35: Recycling
& return policy: • For all returns or warranty claims contact support@BatteryEVO.com. • 30-day money back guarantee. Full refunds may be issued for returns of undamaged batteries not related to warranty claims, subject to a 20% restocking fee.
Page 36 Replacement batteries or components will only be sent after we have received and inspected your returned Walrus or component to determine the cause of any problems. BatteryEVO is not responsible for return shipping. •...
Page 37: Warnings & Precautions
Do not install batteries in a zero-clearance compartment to prevent overheating. Ensure at least 4 inches of clearance on all sides and the top of Walrus for necessary heat dissipation. • Walrus compartment and any material within two feet should be noncombustible. Walrus Arctic USER MANUAL...
Page 38 Walrus to a safe and open area for 2-3 days to prevent any potential hazards. • During a fire, batteries can release large amounts of corrosive gases. Stay away from the area or wear breathing apparatus for protection. Walrus Arctic USER MANUAL...
Page 39 https://batteryevo.com...
Page 40 https://batteryevo.com...
