Summary of Contents for Feider NEXO8B

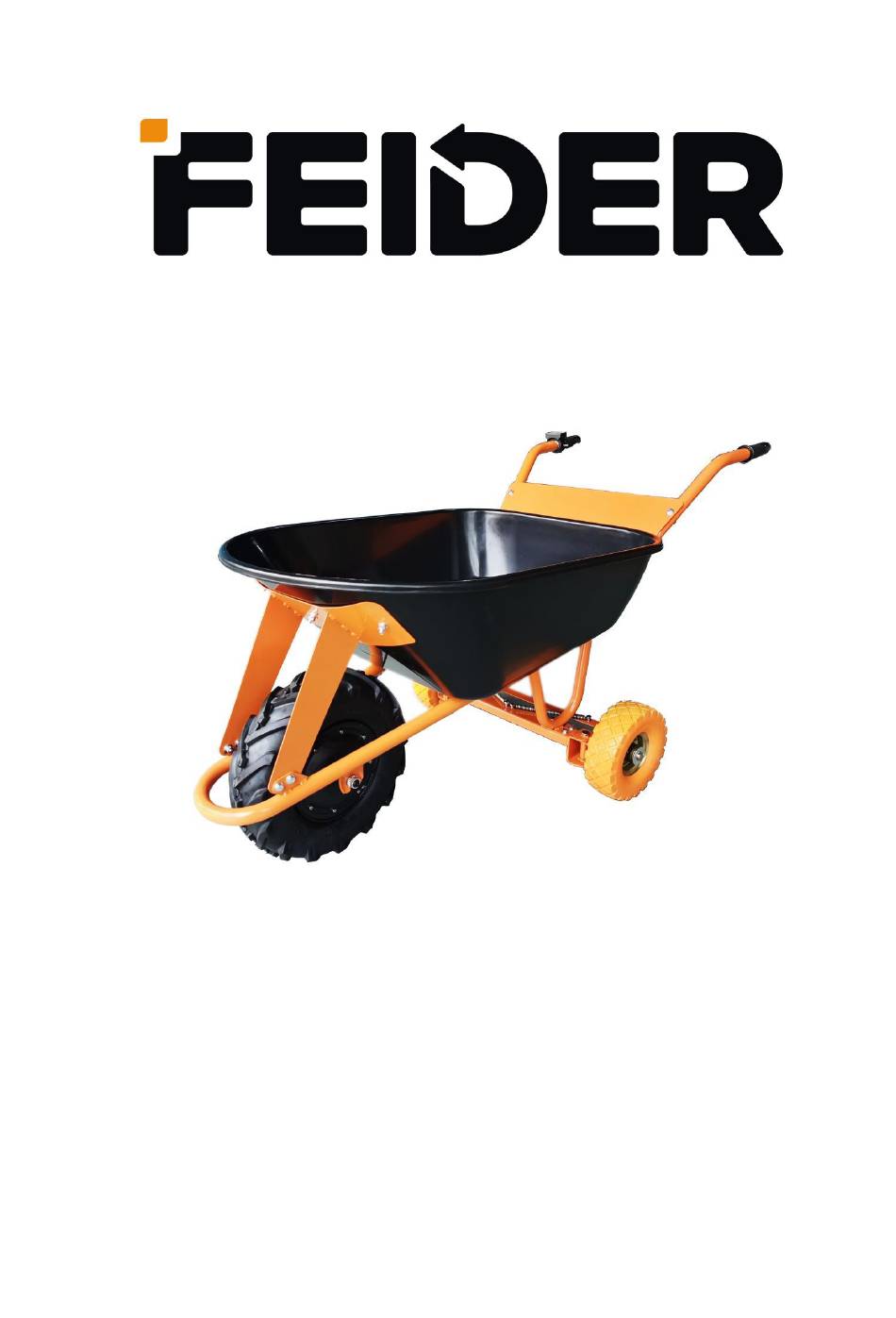

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC WHEELBARROW NEXO8B USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. THE PRODUCT............................7 3. ASSEMBLY.............................8 4. OPERATION............................11 5. MAINTENANCE AND STORAGE....................14 6. TROUBLE SHOOTING........................15 7. SPARE PARTS.............................15 8. DISPOSAL............................16 9. DECLARATION OF CONFORMITY....................17 10. WARRANTY............................18 11. PRODUCT FAILURE........................19 12. WARRANTY EXCLUSIONS......................20... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 Intended use The machine must only be used for its intended purpose! Any use other than listed in this manual is deemed misuse. To use the machine properly you must observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions described in this manual. - Page 4 A safety check must be performed on the machine before each use. Take caution when operating the machine near pools, ponds or any body of water. The machine should not be operated in rain, damp or wet areas. ...
- Page 5 It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity. When disposing of batteries, follow the instructions given in the section “Protecting the ...
- Page 6 and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 7: The Product
Right handle Speed control lever Steering system with rear wheels Front frame Tyre 5.00-8 Motor Front tray support 1.2 Technical data Model NEXO8B 40 V Rated voltage Battery capacity 4 Ah Max Battery work time 4 hours Motor power 280 W speed max.forward 6 km/h reverse 2 km/h... -
Page 8: Assembly
21 V 2.5A Output Charge time Protection class Battery: TYPE FB4A 20 V Rated voltage Battery capacity 4 Ah Battery power 80Wh Weight 0.7kg Dimension 130x80x75 mm 3. ASSEMBLY Please check the product contents immediately after receipt for any eventual transport damage or missing parts. - Page 10 3.2 Assembly-steps for cable 3.2.1 Connect control lever cable （10pin plug & socket） 3.2.2 Connect motor cable（3&5 pin plug&socket）...
-
Page 11: Operation
Warning: Only nut #1 is allowed to be turned in order to fasten or unfasten the plug, nut #2 is prohibited to be turned otherwise for professional repair. 4. OPERATION The machine must be operated in a perfect state only. Inspect the machine visually every time it is to be used. - Page 12 1) Battery capacity indicator There is a battery capacity indicators on the battery pack; you can check the capacity status of the battery if you squeeze the button. Before using the machine, please press the switch trigger to check if the battery is full enough to properly work. 2) Inserting and removing the battery.
- Page 13 wheelbarrow will go faster after pressing the throttle lever #1 Electronic Brake System: This wheelbarrow is equipped with electronic brake EBS/BAS The BAS will work only when BAS ON Button on the battery box is "1:=ON". Thumb switch #1 is at its original position, no acceleration. ...
-
Page 14: Maintenance And Storage
5. MAINTENANCE AND STORAGE ATTENTION Unplug battery before all maintenance and settings! Serious injury due to unintentional or automatic activation of the machine! The machine does not require extensive maintenance. If malfunctions and defects occur, it must be serviced by trained persons only. NOTICE Clean your machine regularly after every use –... -
Page 15: Trouble Shooting
6. TROUBLE SHOOTING BEFORE YOU START WORKING FOR THE ELIMINATION OF DEFECTS, UNPLUG THE BATTERY. Problem Possible cause Solution Battery is not charged Recharge battery Motor stuck Check motor No electrical support Power switch is damaged Check switch Broken or loose cables Check cables No charging of battery Loosen cable... -
Page 16: Disposal
PART NAME Tray 100L Battery box support Battery box Left handle Handle grip Right handle Speed control lever Steerying system with rear wheels Protector plate for plug Front frame tyre 5.00-8 Motor Front tray support Battery Charger 8. DISPOSAL Do not dispose of the machine and the battery in residential waste. Contact your local authorities for information regarding the available disposal options. -
Page 17: Declaration Of Conformity
SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Declare that the machine designated below ELECTRIC WHEELBARROW NEXO8B Serial number: 20250642020-20250642200 Conforms to the provisions of the Machinery Directive 2006/42 / EC and the national regulations transposing it;... -
Page 18: Warranty
10 . WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 19: Product Failure
1 1 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 20: Warranty Exclusions
1 2 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 21 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Made in PRC...
