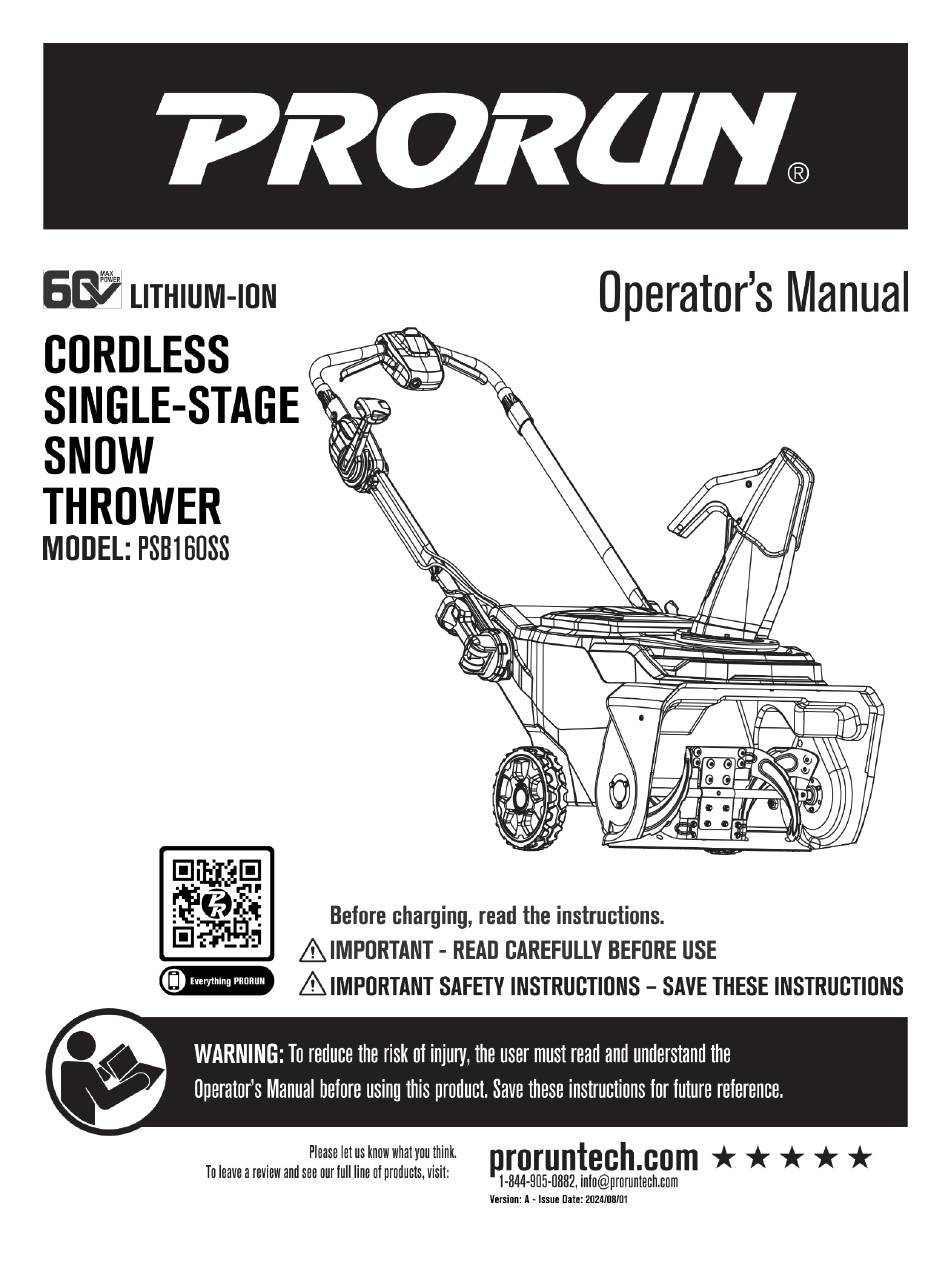

PRORUN PSB160SS Operator's Manual

Cordless single-stage snow thrower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSB160SS and is the answer not in the manual?

Questions and answers

Summary of Contents for PRORUN PSB160SS

  • Page 2: Product Specifications

    1. PRODUCT SPECIFICATIONS Machine Model PSB160SS Voltage DC 60V Motor Type BLDC Maximum Speed Of Spindle 2000 (high) / 1300 (low) r/min Working Width 21 inches (533 mm) Weight (Without Battery) 55.15 Lbs. (25 Kg) Diameter Or Blade 7 inches (180 mm) Max.

  • Page 3: Table Of Contents

    2. TABLE OF CONTENTS 1. Product Specifications……………………………………. 2. Table of Contents …………………………………………. 3. Important Safety Instructions……………………………. 4. General Machine Safety Warnings……………………... 5. Symbols…………………………………………………… 6. Components and Controls…….………………………… 7. Assembly Instructions……………………………………. 8. Operations………...………………………………………. 9. Maintenance and Repairs……………………………….. 10. Transportation and Storage………………………….. 11.

  • Page 4: Important Safety Instructions

    3. IMPORTANT SAFETY INSTRUCTIONS WARNING DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 5 ▪ Have servicing performed by a PRORUN approved qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
  • Page 6 SAFE OPERATION PRACTICES FOR PEDESTRIAN-CONTROLLED SNOW THROWERS GENERAL This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. TRAINING 1. Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit.
  • Page 7 BATTERY CHARGER The battery chargers are only used for fast charging of PRORUN replacement batteries. This manual contains important safety and operating instructions for battery chargers. Before using the battery charger, read all instructions and cautionary markings on battery charger, and product using battery.
  • Page 8 MINIMIZE THE RISK OF ELECTRIC SHOCK OR SHORT CIRCUIT AS FOLLOWS: ▪ Never insert any object into the charger’s cooling slots. ▪ Do not try to dismantle the battery charger. ▪ Never connect the charger terminals to metal objects as this can short circuit the battery charger.
  • Page 9 DO NOT USE: ▪ A faulty or damaged battery charger ▪ The battery in the battery charger outdoors. DO NOT CHARGE: ▪ Or never use a faulty, damaged or deformed battery. ▪ The battery in the rain or in wet conditions. The battery in direct sunlight.

  • Page 10: Symbols

    5. SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it. DO NOT USE YOUR HANDS TO UNCLOG THE CHUTE. STOP THE MOTOR BEFORE REMOVING DEBRIS.
  • Page 12 The following units may be used in this manual: PEOPLE WITH ELECTRONIC DEVICES, SUCH AS PACEMAKERS, SHOULD CONSULT THEIR PHYSICIAN(S) BEFORE USING THIS PRODUCT. OPERATION OF ELECTRICAL EQUIPMENT IN CLOSE PROXIMITY TO A HEART PACEMAKER COULD CAUSE INTERFERENCE OR FAILURE OF THE PACEMAKER.

  • Page 13: Components And Controls

    6. COMPONENTS AND CONTROLS PACKING LIST...
  • Page 14 1. Auger Drive Switch 9. LED Headlights Switches the Auger ON/OFF, prevents the Used to illuminate the forward path in the Auger from starting unintentionally. dark. 2. Power Switch Handle 10. Discharge Chute Switches the power source ON/OFF. Snow removal channel. 3.
  • Page 15 BATTERY AND CHARGER OPERATION This section describes the battery and battery charger safety for your battery product. Only use PRORUN original batteries for PRORUN products and only charge them in an original battery charger from PRORUN. The batteries are software encrypted.
  • Page 16 RISK OF ELECTRIC SHOCK AND SHORT CIRCUITING. USE APPROVED AND INTACT WALL SOCKETS. MAKE SURE THAT THE POWER CORD IS NOT DAMAGED. REPLACE THE POWER CORD IF IT APPEARS TO BE DAMAGED IN ANY WAY CONNECT THE BATTERY CHARGER Connect the battery charger (3) to the voltage and frequency specified on the rating plate.
  • Page 17 The battery will not be charged if the battery temperature is deviating from normal. In that case the Charger LED Light (3) flashes RED until the battery cools down or heats up to its normal operating temperature. THE BATTERY WILL NEVER BE CHARGED IF THE BATTERY IS DAMAGED.

  • Page 18: Assembly Instructions

    7. ASSEMBLY INSTRUCTIONS UNPACKING ▪ This machine requires assembling the discharge chute. ▪ Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. ▪ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
  • Page 19 4. Align the flange on the bottom of the Discharge Chute assembly (10) with the channels on top of the snow thrower. Refer to Figure 3 5. Slide the Discharge Chute into place. Fix the assembly by tightening the two screws.
  • Page 20 2. The Chute Deflector (11) on the top of the Discharge Chute controls the height of the snow stream. Rotate the Discharge Chute Handle to raise or lower the Chute Deflector to the desired height and distance of snow you wish to throw.

  • Page 21: Operations

    REMOVE THE BATTERY PACK: 1. Open the battery chamber cover. 2. Depress the Battery Release Button (c) and pull out (d) the battery simultaneously. Refer to Figure 9 MAKE SURE THE BATTERY PACK IS FULLY SEATED AND SECURE IN THE BATTERY CHAMBER BEFORE BEGINNING OPERATION. Failure to securely seat the batteries could cause the batteries to fall out, resulting in serious personal injury or machine damage.
  • Page 22 ▪ The battery is not fully charged at the time of purchase. Charge the battery fully before using the product for the first time. IF YOU STRIKE A FOREIGN OBJECT, STOP THE MOTOR, THOROUGHLY INSPECT THE SNOW THROWER FOR ANY DAMAGE AND REPAIR THE DAMAGE BEFORE RESTARTING AND OPERATING THE SNOW THROWER.
  • Page 23 POWER ON THE SNOW THROWER 1. Compress the Power Switch Handles (2) in the direction of the Handlebar (4). 2. The snow thrower’s power is ON. Refer to Figure 10 TO START THE AUGER 1. Push the Auger Drive Switch (1) forward to power the Auger (7).

  • Page 24: Maintenance And Repairs

    9. MAINTENANCE AND REPAIRS MAKE SURE TO TURN OFF THE MACHINE’S POWER AND REMOVER THE BATTERY BEFORE PERFORMING ANY MAINTENANCE TASK ON YOUR SNOW THROWER. GENERAL INTRODUCTION ▪ DO NOT attempt to repair the machine unless you have the proper tools and instructions for ▪...
  • Page 25 REPLACING THE BELT AND PULLEY DETERMINE THE LEFT AND RIGHT HAND SIDE OF THE SNOW THROWER BY STANDING BEHIND THE UNIT IN THE NORMAL OPERATING POSITION. 1. Remove the screws from the left panel of the snow thrower and remove the left panel.
  • Page 26 5. To install the new belt, remove the spring and lift the belt tension pulley and roll the new belt onto the small pulley at an angle. Then roll the belt onto the top of the big pulley by rotating the big pulley counterclockwise as the belt grips the top of the big pulley.
  • Page 27 The charger requires no servicing and cannot be repaired. ▪ If the charger has a malfunction or is damaged, replace the charger. ▪ If the connecting cable has a malfunction or is damaged: DO NOT use the charger and contact PRORUN customer service.

  • Page 28: Transporting And Storage

    LIMITATIONS ▪ The manufacturer disclaims any responsibility if the device has not been used for its intended purpose or if the user has not followed the safety instructions for use. ▪ Read the instructions carefully before each use of the machine. ▪...

  • Page 29: Troubleshooting

    ▪ Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box. ▪ Store the battery where the temperature is between 5 °C (41 °F) and 25 °C (77 °F) and never in direct sunlight. STORING THE CHARGER ▪...

  • Page 30: Disposal

    12. DISPOSAL All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and specific instructions.
  • Page 34 PRORUN regularly improves our products, and you may find slight differences between your machine and the descriptions contained within this operator’s manual. Modifications can be made to the machine without notice and without the obligation to update the manual, providing that the essential safety and functional characteristics remain unaltered.
