Summary of Contents for ITC G119

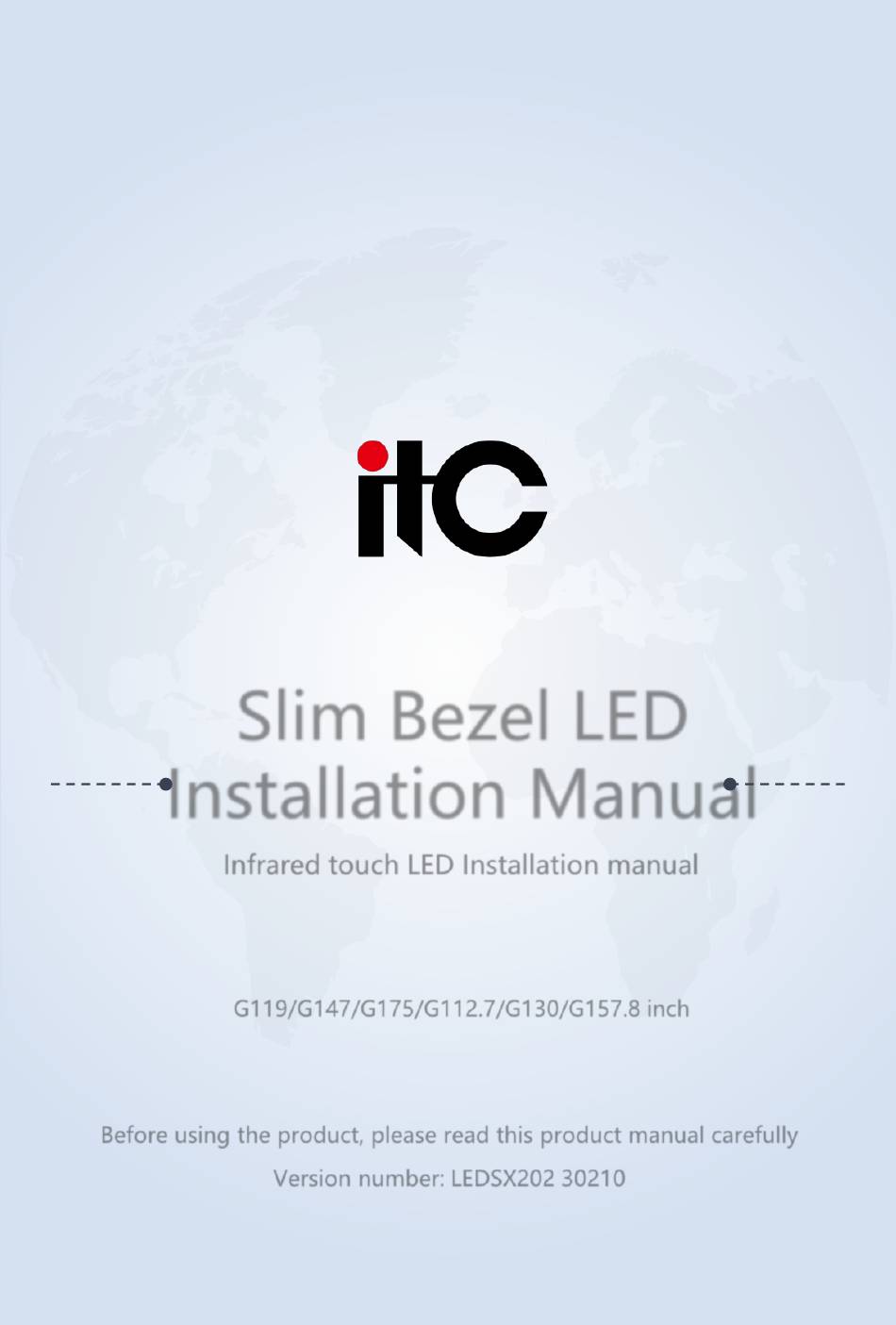

- Page 1 Slim Bezel LED Installation Manual Infrared touch LED Installation manual G119/G147/G175/G112.7/G130/G157.8 inch Before using the product, please read this product manual carefully Version number: LEDSX202 30210...
- Page 2 Ultra-thin frame LED large screen T h i s m a n u a l m a i n l y i n t r o d u c e s t h e o p e r a t i o n m e t h o d o f t h e u l t r a - t h i n b e z e l L E D c o n f e r e n c e s c r e e n s y s t e m , a n d i s u s e d t o g u i d e u s e r s t o q u i c k l y u s e t h e u l t r a - t h i n b e z e l L E D c o n f e r e n c e s c r e e n s y s t e m .
-
Page 3: Installation Notes
Installation Notes Installation instructions... - Page 4 Ultra-thin frame LED large screen display size...
- Page 5 Ultra-thin frame LED large screen display size...
- Page 6 Ultra-thin frame LED large screen display size...
- Page 7 Ultra-thin frame LED large screen Installation Notes Applicable to commercial display series G series; Display screens of different sizes have different arrangement numbers of cabinets and different positions of the pendants on the back of the cabinets, and the other installation methods are the same; installation steps: A.
- Page 8 Ultra-thin frame LED large screen A: Box installation (connection diagram) 1. The conventional cabinet power cord and network cable are connected as shown in the figure below...
- Page 9 Ultra-thin frame LED large screen 2. As shown in the figure below, the upper and lower cabinets are assembled and connected. First, the positioning pins at the bottom of the cabinets are used to limit the position, and then the adjacent cabinets are connected with connecting pieces.
- Page 10 Ultra-thin frame LED large screen 3. Install the hooks on the back of the cabinet as shown in the figure below. (Quantity of cabinets: 110 inches 4x4 ; 138 inches 5x5 ; 165 inches 6x6 )
- Page 11 Ultra-thin frame LED large screen B: Frame Assembly 1. When installing, first place the columns and beams on the ground, and connect them with screws at the corresponding joints. After all the nodes are fastened, the whole frame can be erected. (The connecting column will only be used when assembling a 165 -inch TV) (Remarks: The columns and beams have been assembled in the factory and shipped as semi-finished products.
- Page 12 Ultra-thin frame LED large screen B: Frame Assembly 2. The column and the beam are connected with hexagon socket bolts, as shown in the figure below beam bolt column...
- Page 13 Ultra-thin frame LED large screen C: Box hanging 1. Hang the assembled cabinets on the frame in a column-by-column manner. Hanging from the front to the back, first hang a row of boxes from the front of the frame to the back; hang from the top down, first hang the top hanging beam and then hang the bottom ones in turn;...
- Page 14 Ultra-thin frame LED large screen 2. After the box is hung on the frame, the left and right sides of the box are assembled and connected as shown in the figure below. First, the left and right sides of the box are tightened with screws, and then the adjacent boxes are connected with connecting pieces, and then adjusted up and down, front and back.
- Page 15 Ultra-thin frame LED large screen 3. After the box is hung on the frame, connect the box horizontally with the horizontal connecting piece. When connecting horizontally, pay attention to the flatness of the box surface between the columns of the box, and then connect the box after leveling the box. The piece is locked.
- Page 16 Ultra-thin frame LED large screen...
- Page 17 Ultra-thin frame LED large screen 4. Pay attention when hanging. After hanging the two rows of boxes in the middle on the hanging beam, adjust the position first, and then fix the connecting pieces at the upper and lower ends with the box.
- Page 18 Ultra-thin frame LED large screen D: Ultra-thin frame buckle 1. As shown in the figure below, first fix the ultra-thin frame on the cabinet with screws, and then fix the corners on the frame with screws, and lock the screws to prevent it from falling. corner top border bottom...
- Page 19 Ultra-thin frame LED large screen D: Ultra-thin frame buckle 2. As shown in the figure below, first fix the ultra-thin frame on the cabinet with screws, then install the corners on the four corners of the frame, and fix and lock the corners and the frame with screws. frame corner screw...
- Page 20 Ultra-thin frame LED large screen E: Play box installation 1. Install the playback box on the beam behind the TV play...
- Page 21 Ultra-thin frame LED large screen E: Play box installation 2. First fix the pendant on the player box with screws; pendant screw play...
- Page 22 Ultra-thin frame LED large screen E: Play box installation 3. Then fix the play box on the beam of the bracket. screw play pendant...
- Page 23 Ultra-thin frame LED large screen F: Module assembly 1. Check the corresponding box number and module number before putting together the module. The module has a magnetic iron sheet, which is positioned with the box through the positioning column and magnetically installed;...
- Page 24 Ultra-thin frame LED large screen Schematic diagram of the connection between the play box and the screen Slim Touch Signal signal line aviation Screen plug Type-C main power pass cord lose Wire Play box power cord...
