RSS IP Lite P1

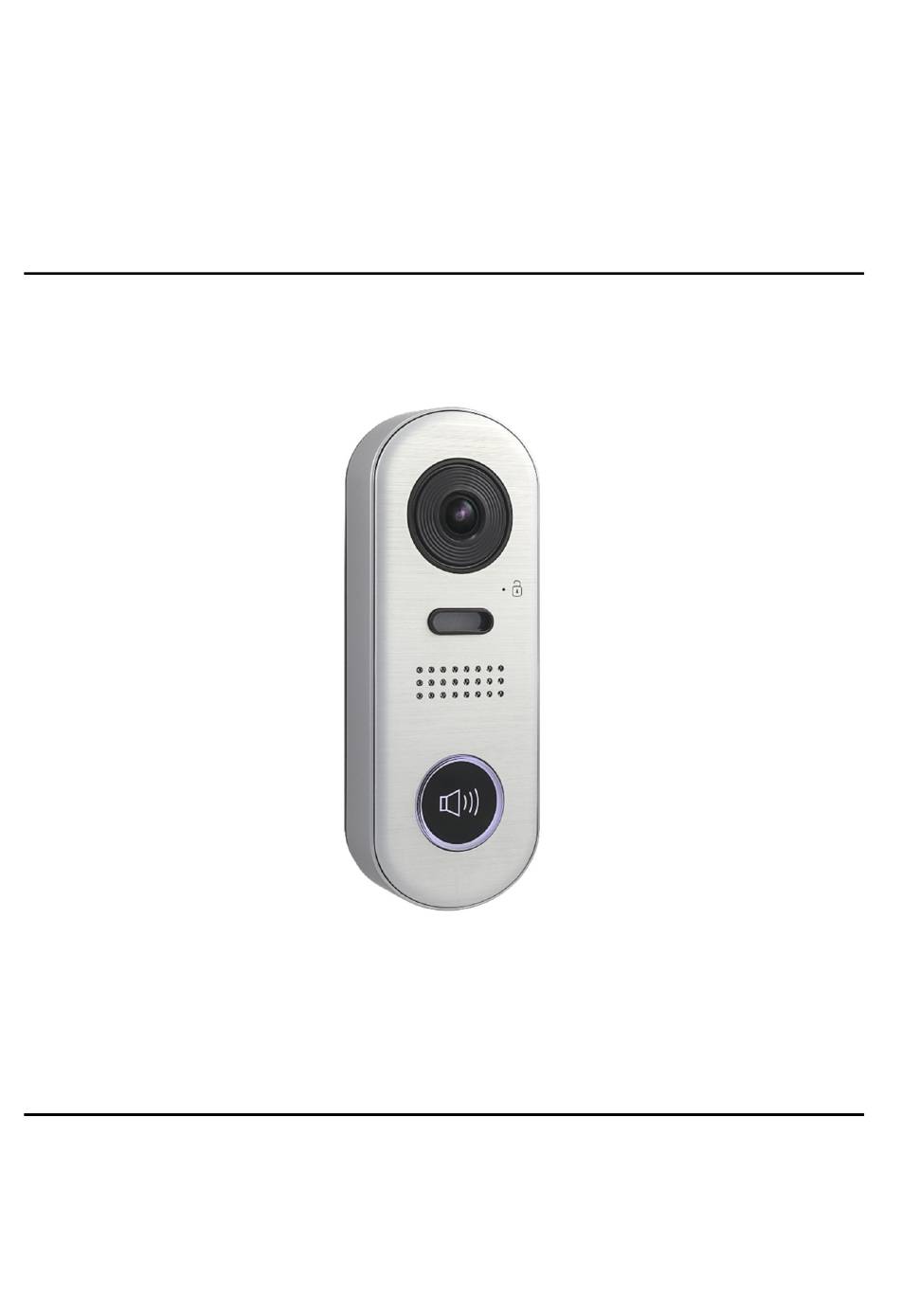

IP Video Entrance Panel
Installer Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP Lite P1 and is the answer not in the manual?

Questions and answers

Summary of Contents for RSS IP Lite P1

  • Page 1 RSS IP Lite P1 11/05/20 RSS IP Lite P1 IP Video Entrance Panel Installer Manual...

  • Page 2: Parts And Functions

    1. Parts and Functions Camera Lens Call Button illumination LED Indicates status. LED - Lock Microphone Indicates unlock status. LED - Camera Lan connector Indicates monitoring status. Use to connect the IP-P1 Entrance Panel to the network. Speaker Terminal connector Use to connect external devices to the IP-P1 Entrance Panel Call button...
  • Page 3 2. Mounting 1. The installation height for the Entrance Panel is usually 145~160cm 2. The Entrance Panel is supplied with a foam gasket to be fitted behind the back panel, if required use appropriate sealant at the top and sides of the back panel to inhibit water ingress, leaving the bottom clear for drainage.

  • Page 4: Electric Lock Connection

    3. Electric Lock Connection Door Lock Output from Entrance Panel The Entrance Panel provides a 12V DC output when the lock release command is received. 12V DC locks of less than 300mA can be powered directly from the lock output. All other locks and higher loads will need to be configured via an interface relay (AR-821RB-18 or similar) with a separate dedicated power supply.
  • Page 5 4. Entrance Panel Operations Associating an IP-P1 Entrance Panel with a monitor in a single dwelling system Connect all devices and power on: On the Master monitor (IP-M7) 1. From the main menu, tap "Setting" icon. 2. Tap "Ext.Unit", and then tap "Auto setup wizard". The Entrance Panel will be renamed and will be linked to this monitor Associating an IP- P1 Entrance Panel with a monitor in a multi dwelling system...
  • Page 6 Setting Lock Release Time On the Master monitor (IP-M7) 1. From the main menu, tap the “Settings” icon. 2. Tap “Ext.Unit” and then tap “Outdoor stations” Enter the Manager password if requested. 3. If there is more than one IP P1 Entrance Panel showing select the required Entrance Panel by tapping it’s description.
  • Page 7 Status check Press and hold the Call button for 5s, release the button as soon as the Camera LED flashes once. The status prompts are as follows: LED’s Lock LED Call Button Status illumination SIP registered ok Fast flashing SIP registered error Normal flashing SIP disabled/Not connected Paired Monitor found...

  • Page 8: Specifications

    5. Specifications ● Power Source: Power-over-Ethernet (IEEE 802.3af Class 0) ● LAN Interface: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45) ● Camera: Type 1/3.7" Ultra Sense, ISP with 77dB WDR ● Lens angle: 170 degree with Fisheye correction ● Minimum illumination: 5 lux ●...
  • Page 9 6. Precautions • Clean the unit with a soft cotton cloth, do not use organic or chemical cleaning agents. If necessary, please use pure water or dilute soapy water to remove dust. • The unit is weather resistant. However do not spray high pressure water on the unit directly.
  • Page 10 Automatic time updates on the Door entry Network Access to system firmware updates via a SIP server. The design and specifications can be modified without notice to the user. Right to interpret and copyright of this manual are reserved. RSS IP Lite P1 11/05/20...
