Summary of Contents for Bravi Platforms SKYDECK

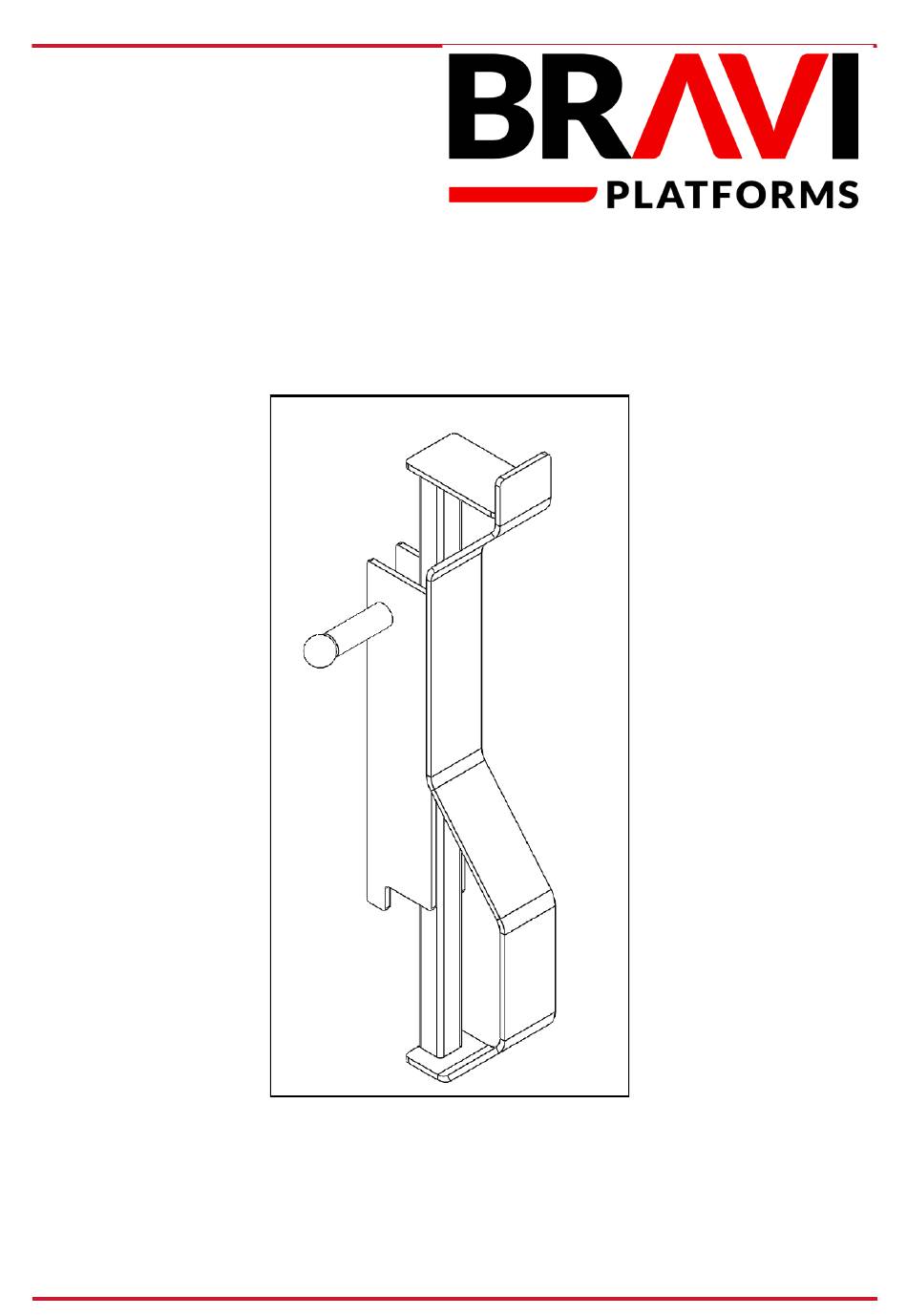

- Page 1 USER AND MAINTENANCE MANUAL Original instructions SKYDECK PANEL HOLDER English EC Directives 05-2015 - Rev.01...
- Page 2 In this way, BRAVISOL DIVIONE MECCANICA wants to draw – unequivocally- the operator’s attention to WARNINGS, CAUTIONS and HAZARDS concerning him. This Skydeck Panel Holder has been manufactured in Italy by: BRAVIISOL DIVISIONE MECCANICA SRL S.S.16 Adriatica km. 314,600 60022 Castelfidardo (AN) Tel.
- Page 3 Therefore, who works in these areas or is responsible for these phases must be a trained person acquainted with the fact that are “dangerous” and as regards the Skydeck Panel Holder protections category, has not been possi- ble to eliminate them entirely.
-
Page 4: Table Of Contents
EC Declaration form Residual risk Index Introduction Delivery Note Warranty Device identification and serial number Safety prescription TUV certification 1.10 Skydeck Panel Holder Installation 1.11 Skydeck Panel Installation 1.14 Cleaning 1.16 Maintenance tips 1.17 Spare part list 05-2015 - Rev.01... -
Page 5: Introduction
The Skydeck Panel Holder is a device intended to be installed on LUI MINI HD. The Skydeck Panel Holder is intended to be used ONLY for mounting and demounting Skydeck panels. The Skydeck Panel Handle is intended to be INDOOR USE ONLY Any other use different from the provided use is to be considered IMPROPER USE. -
Page 6: Delivery Note
The manufacturer hopes that you can take advantage of the Skydeck Panel Holder. It is strictly forbidden any re- production, even partial, of the text and illustrations. Skydeck Panel Holder can be shipped in containers, or on a pallet wrapped in a protective film, packed in boxes or on the platforms... -
Page 7: Warranty
LIMITED WARRANTY—Warranty Statement IF THE WARRANTY IS NOT INCLUDED IN THE SALES CONTRACT, THE FOLLOWING GUIDELINES APPLY TO THE DEVICE WARRANTY. The Manufacturer BRAVIISOL srl warrants that all new units of equipment manufactured and sold by it conform to the Company latest specifications. -
Page 8: Device Identification And Serial Number
Each Skydeck Panel Holder has its own number, with the consequent CE marking. To contact Braviisol Divisione Meccanica srl or its centres of assistance concerning the Skydeck Panel Holder, please always refer the model and serial number legibly affixed to the identification plate. -
Page 9: Safety Prescription
DO NOT use the device for any other purpose than supporting Skydeck Panel. k) Only use the device to raise or lift Skydeck panels. After raising the panel, immediately fix in place using the recommended type, number and pattern of nails, adhesive or screws. Do not use this holder to store panels. -
Page 10: Tuv Certification
TUV CERTIFICATION 1.10 05-2015 - Rev.01... -
Page 11: Skydeck Panel Holder Installation
150cm x 75cm x 12cm(4,9ft x 2,4ft x 0,39) MAXIMUM ALLOWABLE SKYDECK HOLDERS FOR EACH MACHINE 4.2 Product installation After having entered inside the cage, extend both side of the cage and install the Skydeck Panel Holder as showed in Pic1 Pic1 1.11... - Page 12 Secure the Skydeck Panel Holder pulling the black pommel, as showed in Pic2a and then releasing it in order to lock the device as showed in Pic2b Pic2a Pic2b 1.12 05-2015 - Rev.01...
- Page 13 Do the same procedure for fitting the other two Skydeck Panel Holders as showed in Pic3 taking care to secure them with the related pins Pic3 1.13 05-2015 - Rev.01...
-
Page 14: Skydeck Panel Installation
5 SKYDECK PANEL INSTALLATION Put the Skydeck Panels in the Skydeck Panel Holders as showed in Pic4a and raise the basket few cen- timeters as showed in Pic4b in order to move the machine, with the speed reduction activated, in the working area. - Page 15 As soon as the working area is reached raise the basket at the desired working height and install the Skydeck panel as showed in Pic5a,b,c. Repeat the procedure with the other Skydeck panels. For demounting the Skydeck panels follow the same procedures in reverse. Pic5a Pic5c Pic5b 1.15...
-
Page 16: Cleaning
6 CLEANING As the Skydeck Panel Holder works in presence of dusts, it must be daily or whenever it would be nec- essary clean it. The person in charge with the cleaning must have read and well understood the safety prescriptions... -
Page 17: Spare Part List
7 SPARE PARTS LIST PART NUMBER DESCRIPTION 210.60081 SKYDECK PANEL HOLDER RIGHT SIDE 210.60082 SKYDECK PANEL HOLDER LEFT SIDE 108.9002 BLACK POMMEL 107.203501001 SPRING 251.0029 1.17 05-2015 - Rev.01... - Page 18 BRAVIISOL Divisione Meccanica S.r.l. S.S. 16 Adriatica km. 314,600 60022 Castelfidardo (AN) Tel. 071.7819090 Fax 071.7819355 E-mail: info@bravi-platforms.com Website : www.bravi-platforms.com 1.18 05-2015 - Rev.01...
