Summary of Contents for Highlite International SHOWTEC Octostrip

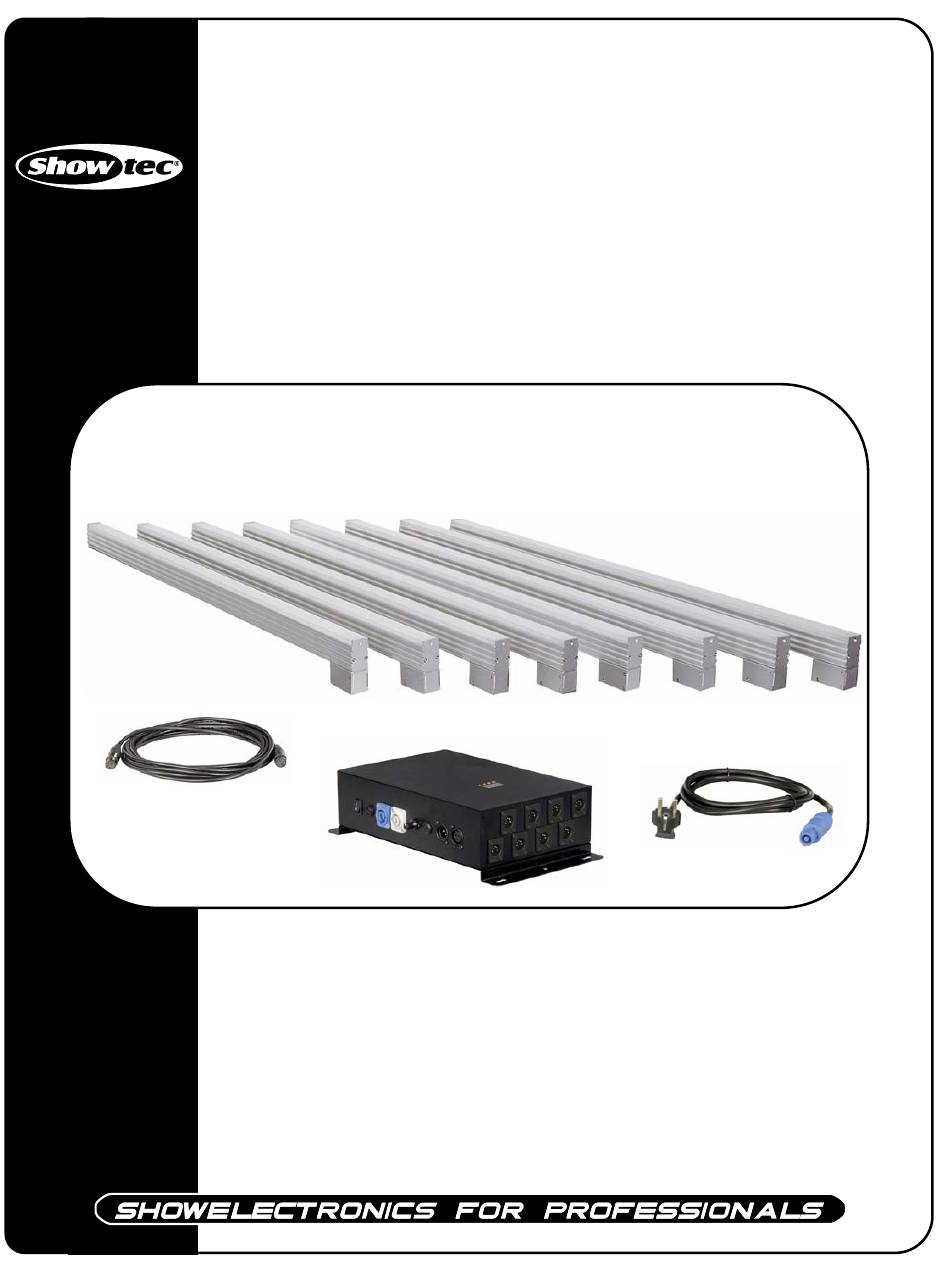

- Page 1 Octostrip ORDERCODE 42220...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. Showtec LED Octostrip brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products. We design and manufacture professional light equipment for the entertainment industry.
-
Page 3: Table Of Contents
Showtec Showtec LED Octostrip Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features…….……………………………………………………………………………………….……...…. Overview……………………………………………………………………………………………………….. Installation................…...…………………………………….….. Set Up and Operation..............……..…………………………….…… Panel Functions……..……………………………………………………………………………….……...… - Mode…..........…………......……………………..………….. - F / S…................…..…………..………………….. Stand-Alone…………………………..…………………………………………………………….……...….. Sound-Active……..…………………..…………………………………………………………….……...….. Operation…………..…………..…………………………………………………………….……...….. - DMX Modes..….......…………......……………………..……………. Maintenance...................………..………….…….……………… Changing the Fuse................…………………….………….……… Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure that the device is not exposed to extreme heat, moisture or dust. Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the device and the power- cord from time to time. -
Page 6: Description
Description of the device Features LED Octostrip is a LED system from Showtec. • 8x Octostrip and 1x controller • 4x4 meter DC / Signal cable and 4x8 meter DC / Signal cable • 8x Installation Bracket • Adjustable Fade time / Chase time •... -
Page 7: Installation
Installation Remove all packing materials from the Octostrip. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 8: Stand-Alone
2) F / S Adjust Chase Fade Time from 0-100%. Adjust Chase Speed from 1-500/min. Stand-alone Operation Refer to the four buttons on the front panel of the controller: Mode F / S Down Press the MODE button to view the Chase menu: Select Chases 1-9 using the UP and DOWN buttons. -
Page 9: Dmx Operation
DMX Operation Press the MODE button to view the DMX address setting rnenu: Select the DMX starting address for the controller using the UP and DOWN buttons. The DMX Channel functions are: Channel 1: Rainbow Channel 2: Red (0-255) Channel 3: Green (0-255) Channel 4: Blue (0-255) -
Page 10: Dmx Modes
DMX Modes Press the MODE button to view the DMX mode selection menu. Use the UP and DOWN buttons to select the DMX mode. DMX Mode 1 : 48-channel operation (Control each LED Octostrip fixture independently) DMX Mode 2 : 24-channel operation (Control 4 sets of 2 LED Octostrip fixtures) DMX Mode 4 : 12-channel operation (Control 2 sets of 4 LED Octostrip fixtures) DMX Mode 8 : 6-channel operation (Control 8 LED Octostrip fixtures simultaneously) -
Page 13: Maintenance
Maintenance The LED Octostrip requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 14: Product Specifications
Product Specification Model: Showtec Controller for LED Octostrip Voltage: AC 230V-50Hz (CE) Power: 200W 4 different DMX Modes (48 Channels, 24 channels, 12 channels, 6 channels) 8 built-in chases Adjustable Fade time / Chase time Sound active Mode Powerconnection: Powercon (IN and Out) Data connection: 5 Pole XLR connector Dimensions: 200 x 360 x 95 mm (LxWxH) Weight: 5,15 kg... - Page 15 Other Showtec Products: LED Tube (41000) LED Cove Tube (41005) LED Wallpainter (41200) LED Aqua Painter (41220) Octopod 90 (30987)
