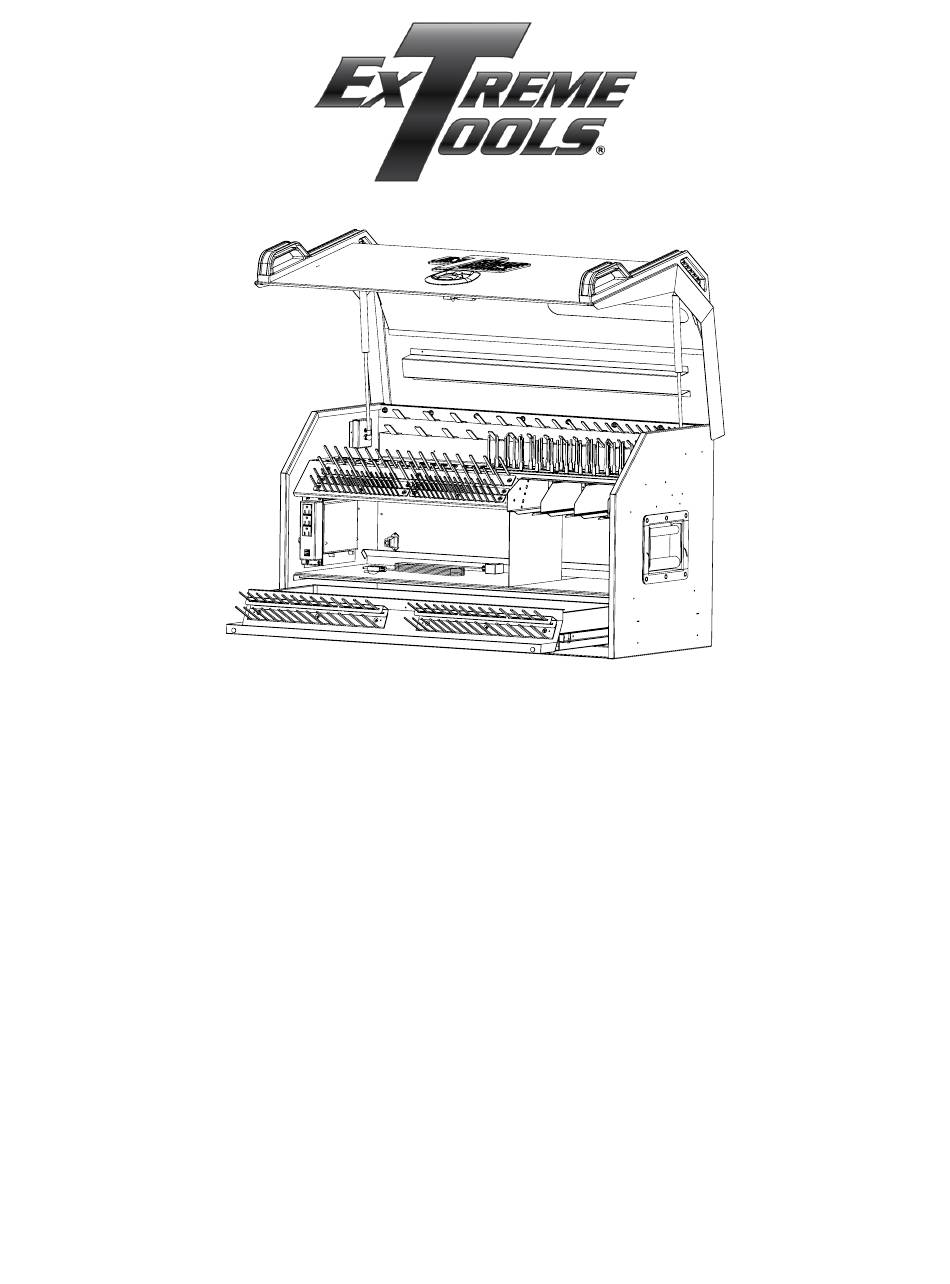

Extreme Portable Workstation®
Owner's Manual
Model:
PWS4120
Closed position: 41.25 in. W x 22.63 in. D x 23.6 in. H
Opened position: 41.25 in. W x 26 in. D x 41.25 in. H
Extreme Tools, Inc.
740 Frontenac Rd.
Naperville, Illinois 60563
630.369.9303
www.ExtremeTools.com
sales@extremetools.net
Advertisement
Related Manuals for Extreme Tools Portable Workstation PWS4120
Summary of Contents for Extreme Tools Portable Workstation PWS4120
- Page 1 Owner’s Manual Model: PWS4120 Closed position: 41.25 in. W x 22.63 in. D x 23.6 in. H Opened position: 41.25 in. W x 26 in. D x 41.25 in. H Extreme Tools, Inc. 740 Frontenac Rd. Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.com...
- Page 2 Extreme Portable Workstation ® Model PWS4120 Parts Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
- Page 3 New Universal Power Tool Holder, 3 slots OPTIONAL PWS41 Bottom channel for Forks / Casters (sold separately) ZCH979CF147 Z-LGL Extreme Tools Logo (large nameplate) ZSHP419D28 PWS Drawer Socket Holder 419mm, Double Row, 28 Pegs ZSHP584D32 PWS Shelf Socket Holder 584mm, Double Row, 32 Pegs...
- Page 4 Pre-drilled Pre-drilled holes holes Roller Cabinet Securing PWS3620, PWS4120 and PWS4124 Extreme Portable Workstations and Optional Roller Cabinet (sold separately) 1. Remove tools from Extreme Portable Workstation to make aligning the pre-threaded holes easier.Using Drawer Removal instructions, remove the top drawer of the roller cabinet and remove the lower interior drawer of the Extreme Portable Workstation.
- Page 5 6.5 in OPTIONAL CASTER / FORKLIFT CHANNEL and CASTER INSTALLATION (sold separately) To install forklift/caster channels: 1. Remove all tools from the Extreme Portable Workstation®. 2. Using the instructions for drawer removal, take out bottom drawer (#5). 3. Place a large soft cloth or other non-scratching surface on the ground. Arrange the caster channels on the soft surface so that the U-shape (open side) is facing up.
-
Page 6: Operating Procedure
OPERATING PROCEDURE Drawer Removal Pull drawer out so that it is almost fully extended. Push up on the black lever on one drawer slide and at the same time push down on the lever on the other side. With the levers in these positions, pull the drawer out until it releases from the drawer slides. - Page 7 SAFETY WARNING Do not attempt to lift the cabinet by its side handle using chains, ropes or lifting device. Side handle may fail resulting in personal injury or damage to the product! Use a forklift or similar lifting device with forks placed under the bottom of the tool box to move if tool box cannot be moved by two people.
