Summary of Contents for AVMATRIX VP30

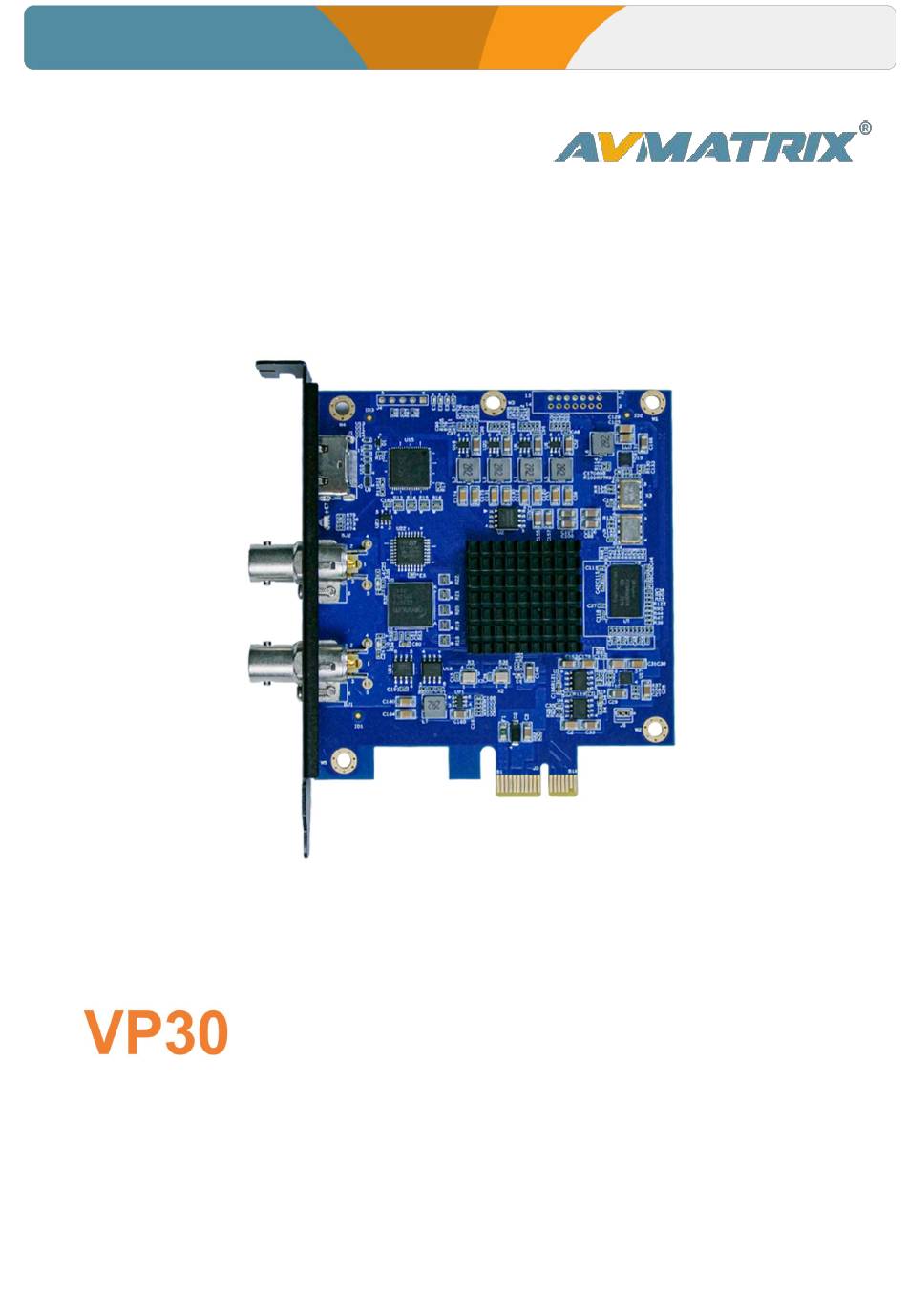

- Page 1 PCIE Playback Card VP30 3-CH SDI/HDMI PCIE Playback Card...
-
Page 2: Table Of Contents
PCIE Playback Card VP30 CONTENT 1.Introduction ................................1 1.1 Overview .................................1 1.2.Main Features ..............................1 2.Interfaces ................................... 2 3.Specification ................................2 4.Installation ..................................3 4.1 Hardware Installation ............................3 4.2 Driver Installation .............................. 4 5. Control Software ..............................4 6. Vmix Operating Instructions ..........................6... -
Page 3: Introduction
PCIE Playback Card VP30 1.Introduction 1.1 Overview VP30 is a playback card with superior image quality and flexibility. It features 1-CH HDMI output, 2-CH SDI output. It supports 1080p60 resolution output for HD video production and provides ultra-low latency for live streaming and recording. -
Page 4: Interfaces
PCIE Playback Card VP30 2.Interfaces HDMI Output SDI Output SDI Output PCIE-X1 Interface 3.Specification Slot Interface PClex1 (Gen2) Interface 2x3G-SDI Video Output Interface 1xHDMI 1.4 1080p60、 1080p59.94、 1080p50、 1080p60 DCI、 1080p59.94 3G Video Format DCI、1080p50 DCI 1080p30、1080p29.97、1080p25、1080p24、1080p23.98、 1080p30 DCI、1080p29.97 DCI、1080p25 DCI、1080p24 Video Format DCI、1080p23.98 DCI... -
Page 5: Installation
PCIE Playback Card VP30 SDI Color Precision YUV 4:2:2 8bit HDMI Color Precision YUV 4:2:2 8bit Color Space REC 601 REC 709 、 SMPTE 259M 、 SMPTE 292M 、 SMPTE 296M 、 SMPTE SDI Standard 372M、SMPTE425M、 ITU-R BT.656 和 ITU-R BT.601... -
Page 6: Driver Installation
Step 3: After the installation is complete, restart computer. Otherwise the computer may crash. In particular, if any of Blackmagic Design's PCIe capture or output card drivers are already installed on computer, pls uninstall it before installing the AVMATRIX PCIe card driver. Otherwise, the AVMATRIX PCIe card will not work properly. - Page 7 PCIE Playback Card VP30 1. Preview screen Display output preview image. 2. Setting parameters (1) Set the video format and video bit depth according to the user's needs. Users need to stop playing before changing the video format, decibel value, audio period and other parameters.
-
Page 8: Vmix Operating Instructions
When timecode is off, the timecode is hidden on the output. 6.Vmix Operating Instructions Step 1: Open Vmix, click "External Settings" to select external output settings. Step 2: Select "VP30" as the video output device in the external output settings. - Page 9 PCIE Playback Card VP30 Step 3: When the setting is finished, click "External", the icon will turn red, and the output will start. Note: 1. If users need to use Vmix, OBS or other software to set up, a patch programme is needed to installed.
- Page 10 PCIE Playback Card VP30 2. Do not repeat the selection of the same signal source after Vmix is configured. There will be an error report if repeat to select.
