Summary of Contents for FlightScope i4
- Page 1 USER MANUAL...
-
Page 3: Table Of Contents
Contents In the box Charging Care The i4 Rangefinder Viewfinder indicators Avoid Technical specifications Operating instructions Support Get the FS Golf App Set up FS Mode Operating FS Mode... -
Page 4: In The Box
In the Box i4 Rangefinder USB-A to USB-C charging cable Carry case Quickstart Guide Micro-fibre cloth... -

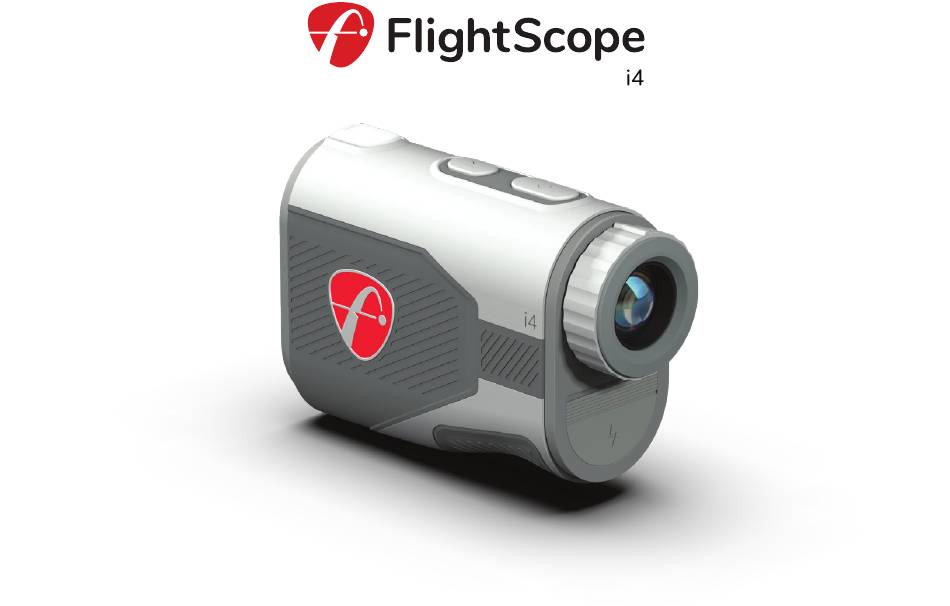

Page 5: The I4 Rangefinder
The i4 Rangefinder Mode Slope mode indicator Magnet for easy cart attachment Power 6x adjustable focus USB-C port 1000 yrd/m range to target lens... -
Page 6: Viewfinder Indicators
Viewfinder indicators Personalized club recommendations based on personal launch data, current weather launch data, current weather, and envrionmental conditions Effective playing distance provides a dynamic effective distance that uses your home Pin detection indicator location as a reference and then factors in real-time local environmental conditions User-selectable wind... -
Page 7: Operating Instructions
Operating instructions Press the power button briefly to turn on the Rangefinder. Look through the viewfinder to see the display. It will turn off automatically after 10 seconds. power Aim at a target and briefly press the button again to measure the direct distance. You will feel a vibration indicating that the measurement has been taken. - Page 8 Briefly press the mode button to toggle the SLOPE MODE on and off. Mode Press and hold the mode button to change the units of measurement between METERS and YARDS. mode button Press the twice quickly to activate bluetooth, the BT logo will be visible next to the battery icon when activated.
-
Page 9: Get The Fs Golf App
Get the FS Golf App... -
Page 10: Set Up Fs Mode
Set up FS Mode Use your mobile device or tablet to setup your i4 rangefinder for use with FS Mode. Make sure your smart device’s bluetooth connection is turned on. On your smart device, open the FS golf app. Select devices, then select i4 Rangefinder. -
Page 11: Operating Fs Mode
Mode FS mode requires your smart device to be nearby, running the FS Golf application and having Bluetooth activated on your i4 Rangefinder. When the Rangefinder is switched on, it will return to the same mode and settings as were used previously. FS mode can be disabled by simply deactivating Bluetooth. -
Page 12: Charging
Charging 3.7V 730mAh Polymer lithium 500hrs run time 2 hours Estimated charging time 5V 1A Power supply USB-C 1m cable length USB-A... -
Page 13: Care
Care Clean with Store in pouch microfibre cloth when not in use... -
Page 14: Avoid
Avoid Solvent Chemicals Moisture, Water immersion including rain Flames and Excessive weight Physical impact direct heat loading... -
Page 15: Technical Specifications
Technical specifications 72.6mm 102.4mm 40mm... -
Page 16: Support
Support If you need assitance please email our support at... - Page 17 E19-UF184-ISS1...
