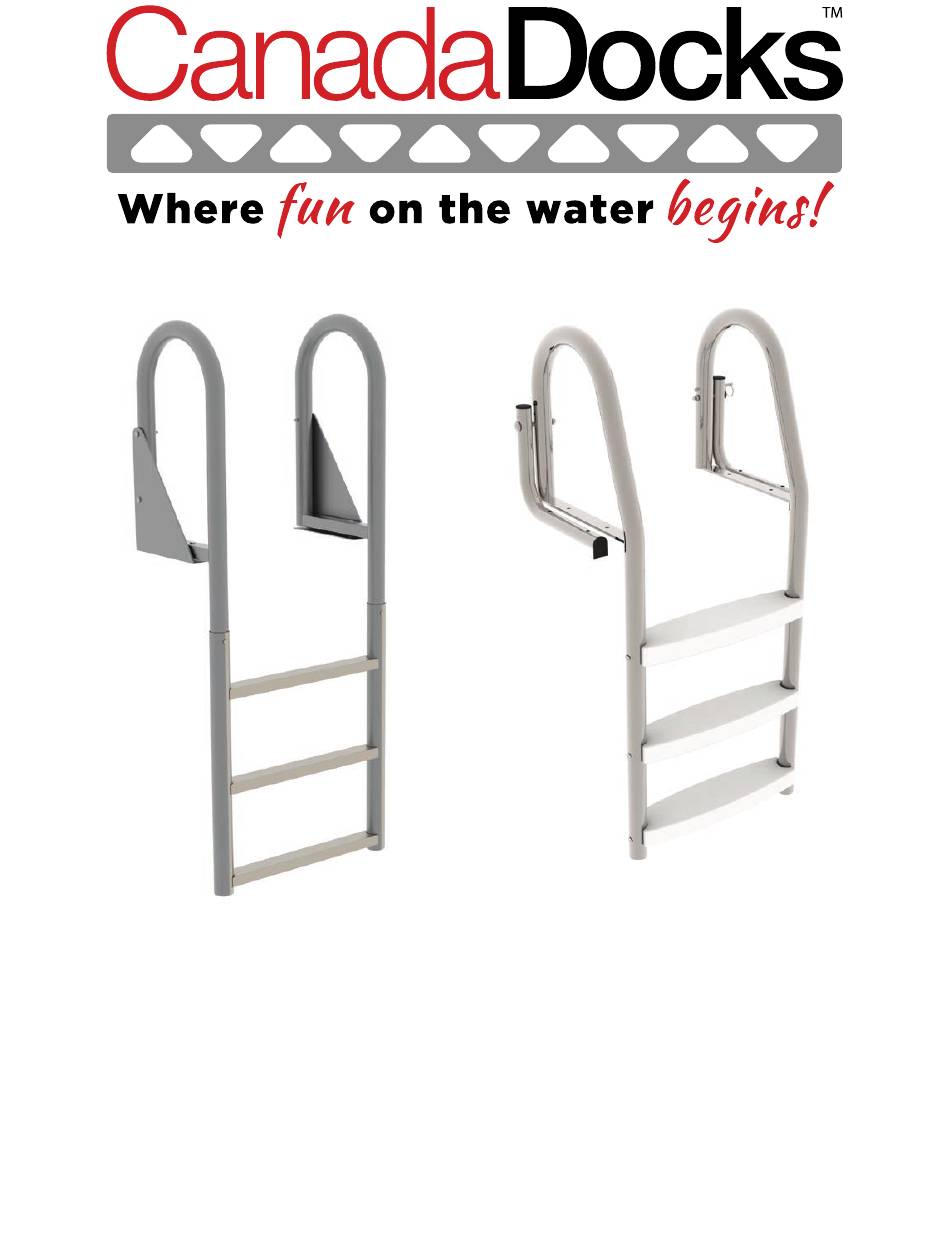

- Page 1 Aluminum Ladder Stainless Steel Ladder With & Without Flip-up Models Read this manual and related assembly instructions before attempting to assemble the parts enclosed to ensure that your new CanadaDocks System is assembled safely and correctly. Page 1...
- Page 2 Pages 3-6 Aluminum Ladder w/o Flip-Up Pages 7-8 Aluminum Ladder with Flip-Up Pages 9-12 Stainless Steel Ladder w/o Flip-Up Pages 13-17 Stainless Steel Ladder with Flip-Up Page 2...
-
Page 3: Tools Required
SUIT OR 9/16” WRENCH with 13/32” Drill Bit Safety Phillips Screwdriver 1/2” SOCKET WITH RATCHET TO Protection or #3 Driver SUIT OR 1/2” WRENCH ALUMINUM LADDER w/o FLIP-UP LFR1 LFL1 Remove the flip up bracket from both frames if necessary. Page 3... - Page 4 LFL1 LFL1 LFB3* LFB4* LFB5* LFB3 PLEASE NOTE: The following instructions illustrate the 3 step ladder. For STEP 2 and all proceeding instructions you may substitute the three step bottom (LFB3) for the 4 (LFB4) or 5 (LFB5) step bottom that you have purchased. LFR1 LFR1 SB516...
- Page 5 Ensure that the ladder is placed in an area that will not interfere with any other accessories attached to the dock. CB35S TIP: If you are finding it difficult placing the bolts through the ladder frame holes and into the decking, then simply drill through each hole with a 13/32” drill bit. Always wear personal protection to avoid injury.
- Page 6 NL38 Repeat STEP 7 for the opposite side of the ladder. Page 6...
- Page 7 ALUMINUM LADDER with FLIP-UP LFL1 LFL1 LFB3* LFB4* LFB5* LFB3 LFR1 LFR1 PLEASE NOTE: The following instructions illustrate the 3 step ladder. For STEP 2 and all proceeding instructions you may substitute the three step bottom (LFB3) for the 4 (LFB4) or 5 (LFB5) step bottom that you have purchased.
- Page 8 Ensure that the ladder is placed in an area that will not interfere with any other accessories attached to the dock. CB35S TIP: If you are finding it difficult placing the bolts through the ladder frame holes and into the decking, then simply drill through each hole with a 13/32” drill bit. Always wear personal protection to avoid injury.
- Page 9 INCLUDED IN KIT: Stainless Steep & Flip-Up Model CB35S NL38 BST25 NFL25 LCAP1 LCAP2 Additional Parts with Flip-Up Model LCAP3 * Ladders come in 3,4 or 5 step models. For each addition step you will need to at 1x step (LS1), 2x step bolts (BST25), 2x Locknut (NFL25). Tools Required: Safety 9/16”...
- Page 10 NFL25 Apply a lock nut (NL25) hand tight to each step bolt (BST25) that connects the steps to the frame. After adding all lock nuts (NL25) to the frame, Tighten each connection completely. Repeat STEP 1-2 on the opposite side. NFL25 BST25 Page 10...
- Page 11 Ensure that the ladder is placed in an area that will not interfere with any other accessories attached to the dock. CB35S If you are finding it difficult placing the bolts through the ladder frame holes and into the TIP: If you are finding it difficult decking the drill the decking as described in placing the bolts through the ladder STEP 4.
- Page 12 LCAP1 NL38 LCAP2 From underneath the dock, connect the bracket and 4x locknut’s (NL38). PLEASE NOTE: Some components have been hidden from the above image to better illustrate assembly. Page 12...
- Page 13 STAINLESS STEEL with FLIP-UP BST25 Ensure the Head of the bolts (BST25) are rotated to match the curvature of the frame (LF1). PLEASE NOTE: These instructions are using the 3 step model. If you are installing a 4 or 5 step ladder, simply apply STEPS 1-4 for any additional steps you need to add to your ladder frame.
- Page 14 BST25 NFL25 CB35S NL38 Page 14...
- Page 15 Ensure that the ladder is placed in an area that will not interfere with any other accessories attached to the dock. With the ladder frame flush against the dock use the L-shaped bracket holes as a guide to drill through the surface of the decking to accommodate the hardware for fastening the ladder to the dock.
- Page 16 CB35S NL38 From underneath the dock, connect the bracket and 4x locknut’s (NL38). PLEASE NOTE: Some components have been hidden from the above image to better illustrate assembly. Page 16...
- Page 17 LCAP3 Page 17...
- Page 18 NOTES: Page 18...
- Page 19 NOTES: Page 19...
- Page 20 Please leave us a Google review We’d love to hear from you and see your photos! Phone 705.434.0358 1.822.434.0359 Email info@canadadocks.ca Address CanadaDocks.ca 3690 Adjala-Tecumseth Tl, Beeton ON L0G 1A0 /CanadaDocks Page 20 Rev 03 11.10.24...
