Contents
Hy5B Vehicle Detector Features ..................................................... 1
Table 1: LED Display Status ............................................................ 1
Hy5B Installation ............................................................................. 2
Test the Vehicle Loop........................................................................... 2
Check the Version of Software ............................................................. 2
Install Hy5B Vehicle Detectors ............................................................. 2
Table 2: Vehicle Loop Sets ............................................................. 3
Test Loop and Gate Operation ........................................................ 4
Advanced Loop Configuration via the Installer Menu ....................... 4
Accessing the Installer Menu .............................................................. 4
Table 3: Menu Mode Navigation Buttons ...................................... 4
Setting Gate Function for Reversing Loops ........................................ 5
Viewing and Configuring Loop Set Features ....................................... 5
Table 4: Loop Frequency, Sensitivity, and Presence ...................... 5
Table 5: Sensitivity Settings via the Installer Menu ........................ 5
Loop Health ......................................................................................... 6
Loop Presence ..................................................................................... 6
Table 6: Setting Loop Presence ..................................................... 6
Technical Support ............................................................................ 7
Troubleshooting ................................................................................... 7
Table 7. Troubleshooting Tips ........................................................ 7
Hy5B Loop Health Scores ................................................................ 9
Loop Noise Score ................................................................................ 9
Table 8. Loop Noise Score ............................................................. 9
Possible Causes of Loop Noise .......................................................... 9
Loop Step Changes Score ................................................................... 9
Table 9. Loop Step changes Score ................................................. 9
Possible Causes of Loop Step Changes: ............................................. 9
Loop Reference Changes Score ........................................................ 10
Table 10. Loop Reference Changes Score ................................... 10
Possible causes of loop reference changes: ...................................... 10
How a Vehicle Detector Works ...................................................... 11
Site design considerations: ............................................................ 11
Loop Wire Installation ................................................................... 12
Table 11: Loop Wire Considerations ............................................ 12
Loop Phasing ..................................................................................... 12
Table 1: LED Display Status
LED Activity
Indicates
OFF
Hy5A mode
GREEN
PULSING Heart beat
RED
ON
Call Mode
View display
for more
information:
Initializing
RED
FLASHING
or
Faulty loop
www.SecureOpeners.com | (800) 878-7829 | Sales@SecureOpeners.com
User and Reference Guide
Condition & Resolution
Emulation mode. Some Hy5B features are
unavailable.
Normal operation.
Status indicates loop activation in process.
If initializing, wait until initialization is
complete.
If flashing during loop operation, take
following steps:
1. Check loop wiring.
See Test the Vehicle Loop on page
2.
2. Replace loop.
3. If loop is not at issue, swap out
Hy5B vehicle detector with a known
operational Hy5B.
4. If necessary, replace Hy5B.
Hy5B Vehicle Detector: MX4125
Hy5B Vehicle Detector Features

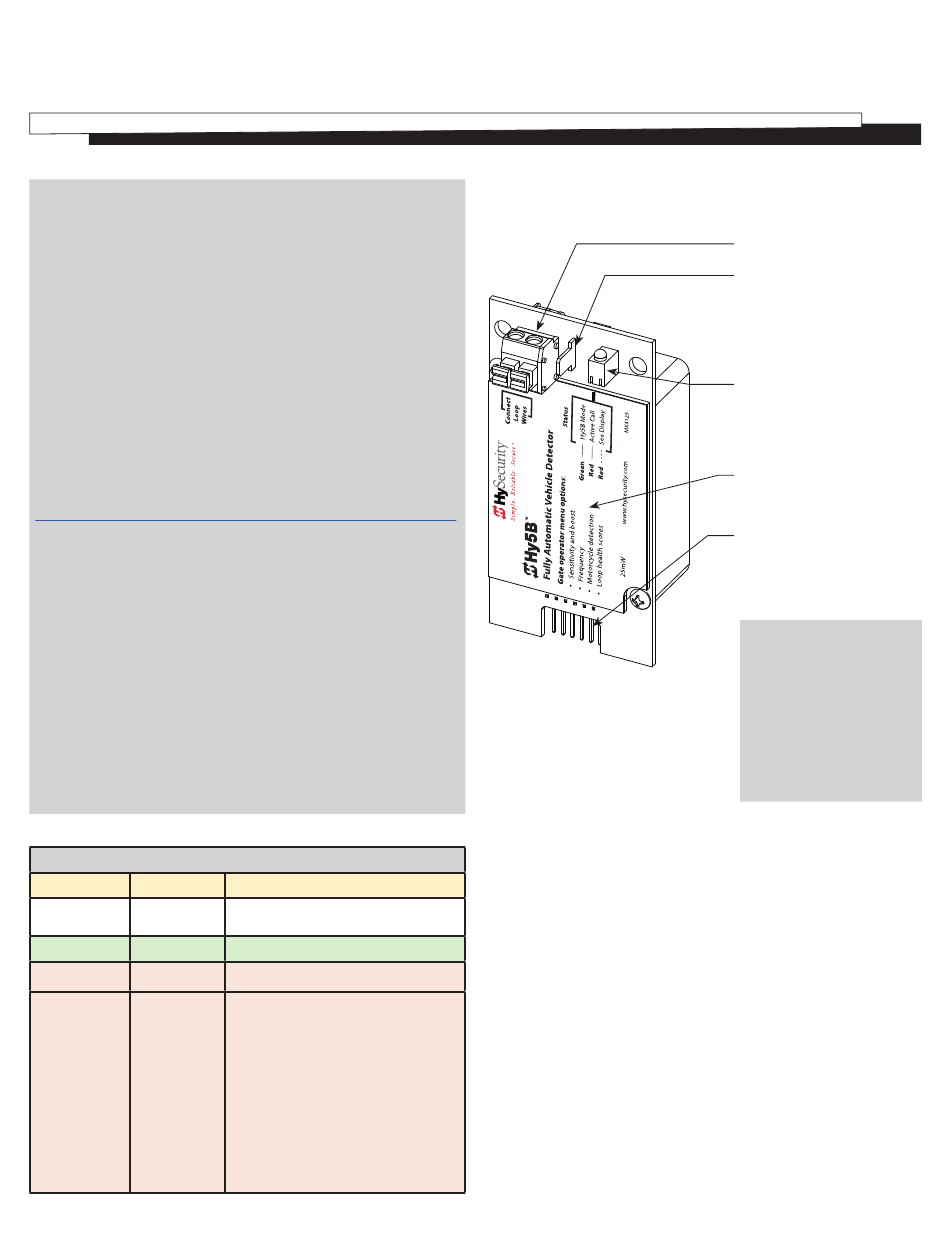

Diagram 1. Hy5B Vehicle
Detector - front view
Automatic Sensitivity - The Hy5B monitors vehicle traffic
•
over the loop and automatically adjusts the loop sensitivity
based on vehicle type and volume.
Automatic Gate Compensation - The Hy5B discerns gate
•
travel over the loop and automatically compensates for its
effect. The compensation allows the Hy5B to operate with a
higher sensitivity which provides better detection capability.
•
No Loop Crosstalk - Exclusive use of Hy5B vehicle
detectors in HySecurity gate operators, completely
eliminates crosstalk and the need to set frequency levels.
•
Vehicle Counting - Hy5B detects passenger vehicles and
motorcycles.
•
Automatic Lightning Suppression - Where lightning strikes
occur often, connecting to the ground terminal minimizes
the chance of activation or lock-up.
Health Scores for Loop - Hy5B monitors the loop for
•
changes that are indicative of possible problems. A score is
accessible through the event log, LG menu item.
Automatic Hy5A emulation mode for backward
•
compatibility.
Push terminals for loop wires
Ground terminal for lightning
protection Optional - Use
where lightning strikes occur.
LED indicator. Refer to
Table 1: LED Display Status.
Vehicle loop features and
functions explained on the
front label.
Metal pins fit into a socket on
the controller board.
Parts in Box
• Hy5B
• 3 plastic standoffs (
2 for
)
Hy5B install, 1 extra
• Installation Instructions
Tools Needed
• Wire cutters
• Wire strippers
• Needle nose pliers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for HySecurity Hy5B
-
Page 1: Table Of Contents
Emulation mode. Some Hy5B features are Hy5A mode unavailable. effect. The compensation allows the Hy5B to operate with a higher sensitivity which provides better detection capability. GREEN PULSING Heart beat Normal operation. -
Page 2: Hy5B Installation
Plastic standoff vehicle detectors. NOTE: Hy5A emulation mode does not include all the features of Hy5B. If you are replacing Hy5A detectors and updating the gate operator software, be aware Build Year 1 (BY1) or Build Year 2 (BY2) will need to be addressed. - Page 3 NOTE: If the Hy5B is unplugged after it is initialized, an alert appears on the display, ALERT 10. If the issue is not resolved, ERROR 3 appears. When faults of this nature occur, the gate operator functions as if the Hy5B is triggered.
-
Page 4: Test Loop And Gate Operation
Closed). second open/close cycle. The effects of the passing gate are learned and the Hy5B software masks it for future gate cycles. 1. Press the Menu button twice. This feature increases the ability to detect smaller vehicles without falsely detecting the gate and provides a more accurate vehicle 2. -
Page 5: Setting Gate Function For Reversing Loops
Boost increases the sensitivity during a call and is FS 1 (FREQUENCY) useful for maintaining continuous detection if the signal becomes weak. SHADOW LOOP FREQ * The Hy5B sensitivity numbers equate to the Hy5A sensitivity dial. In OPEN CLOSE STOP... -
Page 6: Loop Health
INFINITE. NOTE: The Hy5B has the ability to continue counting vehicles passing over the loop even though a stationary vehicle may be on a portion of the loop. The controller and Hy5B detector also exchange pertinent information, so if a power failure were to occur, the controller can determine if a vehicle is on the loop when power returns. -
Page 7: Technical Support
Check Loop Health via the Installer Menu. To access loop health (SHOW HEALT), select the associated socket abbreviation. See Table 2: Vehicle Loop Sets. Scores on the low scale (0 through 5) indicate issues. A perfect Health score is 777. See Hy5B Loop Health Scores on page 9. - Page 8 Resolution ALERT 10 Communications error alert. Hy5B has been removed or a lack of integrity in the socket connection exists. The display indicates which detector the alert applies to: Exit C BUS ERROR Loop (ELD), Inside Obstruction Loop (ILD), Outside Obstruction Loop (OLD), Center Loop (CLD).
-
Page 9: Hy5B Loop Health Scores
Hy5B Loop Health Scores Loop Step Changes Score Table 9. Loop Step changes Score Loop Noise Score Possible Impact on Gate Score Meaning Operation Table 8. Loop Noise Score Possible Impact on Gate No step changes None Score Meaning recorded... -
Page 10: Loop Reference Changes Score
Loop Reference Changes Score Table 10. Loop Reference Changes Score Possible Impact on Gate Score Meaning Operation None Very stable reference None Stable reference None Edge of normal temperature swing Wide temperature Not likely – False detects swing Edge of effects due Not likely –... -
Page 11: How A Vehicle Detector Works
“all clear” signal to close the gate which could cause damage to vehicles or injury to persons. If more than one loop is connected to an Hy5B, then the direction in which each loop is wound electrically is critical for safety and proper gate operation. -
Page 12: Loop Wire Installation
Loop Wire Installation Loop Phasing When two or more loops are connected to the same The direction of the windings in the loop determine loop vehicle detector, the loops must be the same type (for phasing. example, two reversing loops) and identical in length and Phasing Cancellation Effect width and number of windings.
