Table of Contents

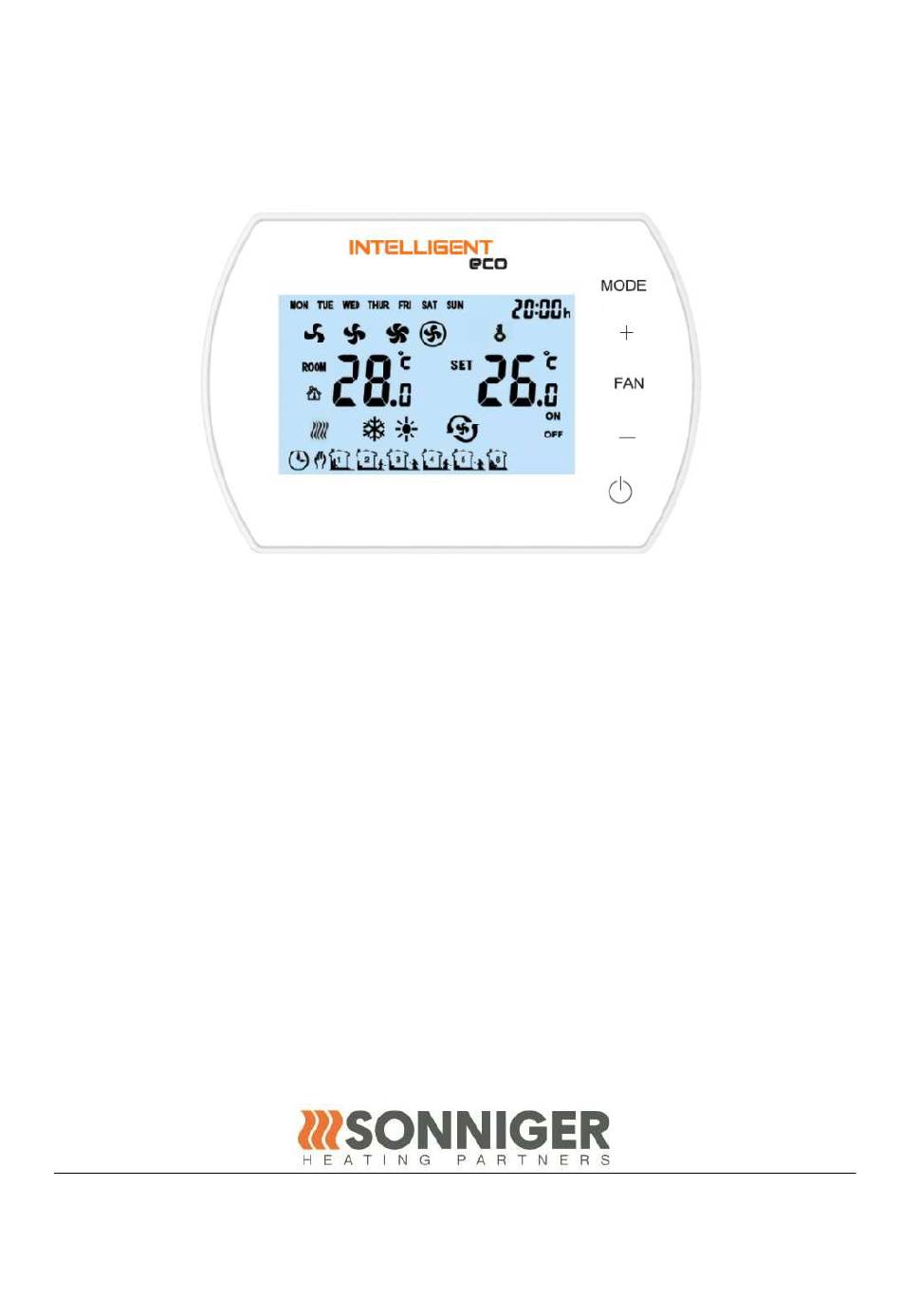

INTELLIGENT WIFI EC Control Panel Manual v202401
INTELLIGENT WIFI EC controller manual
SONNIGER S.A.
ul. Podolska 21, 81-321 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com
Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego,
KRS 0000966611, NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTELLIGENT WIFI EC and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonniger INTELLIGENT WIFI EC

  • Page 1 INTELLIGENT WIFI EC controller manual SONNIGER S.A. ul. Podolska 21, 81-321 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000966611, NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN...

  • Page 2: Specifications

    INTELLIGENT WIFI EC Control Panel Manual v202401 PURPOSE The INTELLIGENT panel is designed to control the operation of water heaters and air curtains. The controller pilots the functioning of actuators/valves and fan speed of the heater in manual and automatic modes depending on the set room temperature. The fan gear automatically changes to a lower one when reaching the set temperature in the room.

  • Page 3: Parameter Settings

    21. connection to the Internet 13. controller lock 22. Consent/no consent to work 14. on/off in schedule fan operation speed: Intelligent WIFI EC has the ability to regulate the motor in the Operation speed in Automatic three-speed mode operation range of 2 to 10V. In this case, the current operating speed will...

  • Page 4: Button Lock

    INTELLIGENT WIFI EC Control Panel Manual v202401 Setting menu Option Value Temperature calibration –9°C ~ +9°C 0:no memory EEPROM 1: memory C1: Thermostatic mode Fan status C2: Continuous mode 0: Internal Sensor Temperature sensor 1: External Sensor NTC (optional) 0: Off...

  • Page 5: Bms Communication

    INTELLIGENT WIFI EC Control Panel Manual v202401 Sixth zone time setting (hour and minute) -> FAN -> Sixth zone status setting (ON / OFF) -> FAN -> Sixth zone temp. setting. Example settings Mon - Fri Saturday Sunday 1 06:00 ~ 08:00 22°C...
  • Page 6 INTELLIGENT WIFI EC Control Panel Manual v202401 IMPORTANT!  RISK OF ELECTRIC SHOCK. Before any electrical connection actions conceringt the INTELLIGENT control panel, switch off any power suplies The TUYA SMART mobile app The Tuya Smart application allows to create and modify settings of the INTELLIGENT panel with any smartphone using an Adroid/iOS software.

  • Page 7: Basic Functions

    INTELLIGENT WIFI EC Control Panel Manual v202401 In case there is no “Add” function, choose “Small Devices” and the function “Termostat (Wi-Fi)”. Nextly enter the data required to grant access to the chosen WI-FI connection , then choose “Blikn slowly”.
  • Page 8 INTELLIGENT WIFI EC Control Panel Manual v202401 8.4. CREATING A GROUP OF CONTROL PANELS In Tuya Smart choose the paired control panel then select the symbol next to the controller’s name. A menu will open, where the option „Create a group” must be picked.

  • Page 9: Schedule Setup

    INTELLIGENT WIFI EC Control Panel Manual v202401 8.5. SCHEDULE SETUP When launching Tuya Smart, select the group of control panels for which we want to create the Schedule On the parameter screen, pick the knob icon, after that press „title”. A list of time schedules to customize will appear on the screen.
  • Page 10 INTELLIGENT WIFI EC Control Panel Manual v202401 Byte Instruction Related Register Address Bit 0 On/off Flag-Hi is 0 0000H Bit 1 On/off Flag- Lo: 0-Thermostat Off;1-Thermostat On Bit 2 Room Temperature Measurement-Hi:(Hi and Lo bytes stand for measured room temperature)
