Foamit FST-E Service Manual

Flooded suction tank
Hide thumbs

Advertisement

Table of Contents

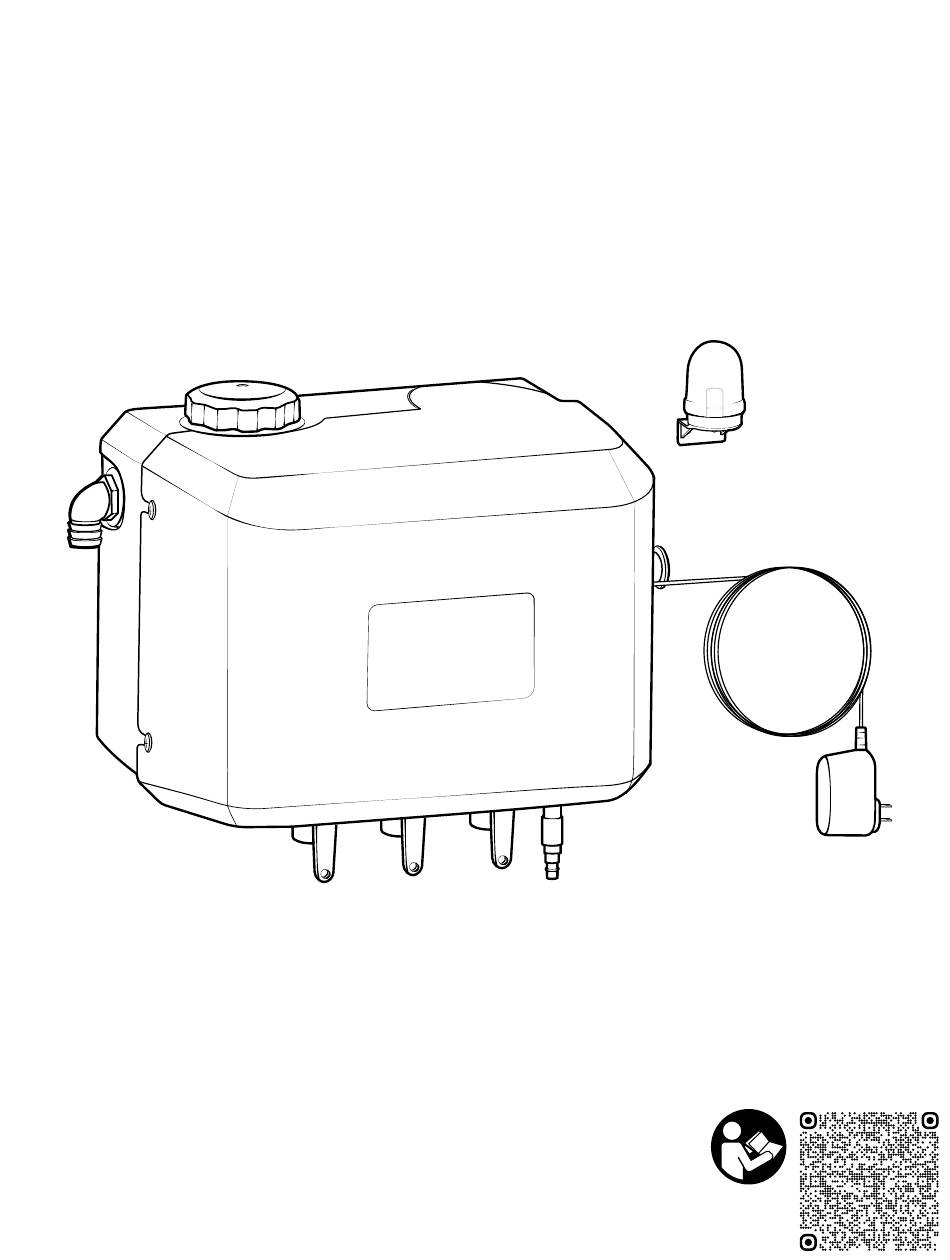

Flooded Suction Tank
Service Manual
FST-E | FSTV-V | FSTK-T
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FST-E and is the answer not in the manual?

Questions and answers

Summary of Contents for Foamit FST-E

  • Page 1 Flooded Suction Tank Service Manual FST-E | FSTV-V | FSTK-T READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
  • Page 2 Always flush unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 2 of 12...

  • Page 3: Protect The Environment

    Crescent wrench (2x) Flat head screwdriver #2 Phillips head screwdriver Hose cutters • • • • 5/8 in. (16 mm) open-ended wrench Thread seal tape #3 Phillips head screwdriver Knife Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 3 of 12...
  • Page 4 • Unit error. Inspect the unit with the following instructions: on-board LED is red 1. Unplug the unit and inspect components. Plug back into power source. 2. If error persists, replace level sensor. Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 4 of 12...

  • Page 5: Tank Assembly

    5 BVPP12MF to 1/2 FNPT - Viton seal 6 CP-35BK Cap - 3.5 in. - polypropylene - black Tank - 4 gallon natural - flooded 7 TNK-4N-FST suction Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 5 of 12...

  • Page 6: Plate Assembly

    Plate Assembly FST-E, FSTV-V PLA-FST-E: Plate assembly for FST-E units - includes Santoprene pump and an air-operated valve with EPDM seals PLA-FSTV-V: Plate assembly for FSTV-V units - includes Viton pump and an air-operated valve with Viton seals Item number...
  • Page 7 Union tee 1/ 4 in. tube - 12 QFT14 polypropylene Hose barb adapter 3/8 MPT 13 HBB38AP14 to AP14 Plug-in voltage transformer 14 PS120VAC-24VDC-1.5A 120 VAC input - 24 VDC output 1.5 A output Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 7 of 12...
  • Page 8 Plate Sub-assemblies FST-E, FSTV-V VLVA-AOVE-FST: Valve assembly for FST-E units - includes air operated valve with EPDM seal, hose, hose barb elbow, quick fit, and SS screw band clamp VLVA-AOVV-FST: Valve assembly for FST-V units - includes air operated valve with Viton seal, hose, hose barb elbow, quick fit,...
  • Page 9 3/8 in. id clear clearbraid hose PVC - 4 H38CL-CB available per ft. - max 100 ft. section Quick fit - 1/8 MPT x 1/ 4 od tube - 5 QF1814 polypropylene VLVA-AOVT-FST Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 9 of 12...
  • Page 10 - for 3/8 in. hose ⅜ in. blue hose - hybrid TPE 11 H38BL-F available per ft. Hose barb adapter 3/8 MPT 12 HBB38AP14 to AP14 RGA-R25-FST Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 10 of 12...

  • Page 11: Bracket Assembly

    3 WMS14A 1/ 4 in. - plastic - 5/16 in. drill size Bolt - 1/ 4 -20 x 1/2 in. - stainless steel 4 B142012 truss head Phillips WMA-TNK4 Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 11 of 12...

  • Page 12: Additional Components

    Bolt - 1/ 4 -20 x 1 in. - stainless 7 B14201 steel - truss head Phillips Tank - 4 gallon natural tank lid - 8 TNK-4N-LID-FST flooded suction Model: FST-E | FSTV-V | FSTK-T V20250122 • Page 12 of 12...
