Relion
620 series
Transformer Protection and Control
RET620
IEC 60870-5-103 Point List Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Relion 620 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABB Relion 620 Series

Summary of Contents for ABB Relion 620 Series

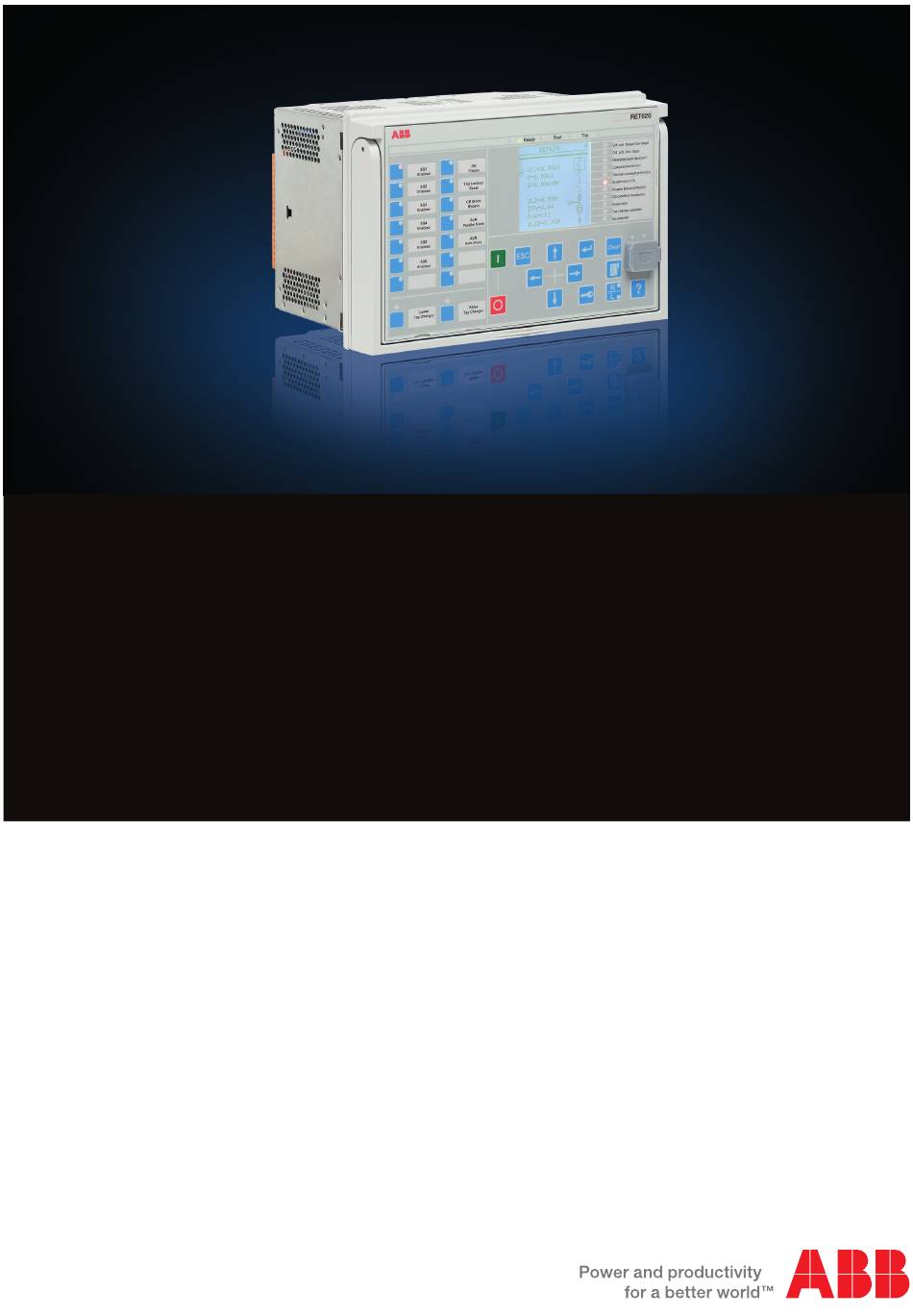

  • Page 1 ® Relion 620 series Transformer Protection and Control RET620 IEC 60870-5-103 Point List Manual...
  • Page 3 Document ID: 1MRS757661 Issued: 2013-05-07 Revision: A Product version: 2.0 © Copyright 2013 ABB. All rights reserved...
  • Page 4 Copyright This document and parts thereof must not be reproduced or copied without written permission from ABB, and the contents thereof must not be imparted to a third party, nor used for any unauthorized purpose. The software or hardware described in this document is furnished under a license and may be used, copied, or disclosed only in accordance with the terms of such license.
  • Page 5 In case any errors are detected, the reader is kindly requested to notify the manufacturer. Other than under explicit contractual commitments, in no event shall ABB be responsible or liable for any loss or damage resulting from the use of this manual or the application of the equipment.
  • Page 6 (EMC Directive 2004/108/EC) and concerning electrical equipment for use within specified voltage limits (Low-voltage directive 2006/95/EC). This conformity is the result of tests conducted by ABB in accordance with the product standards EN 50263 and EN 60255-26 for the EMC directive, and with the product standards EN 60255-1 and EN 60255-27 for the low voltage directive.

  • Page 7: Table Of Contents

    Table of contents Table of contents Section 1 Introduction...............7 This manual..................7 Intended audience................7 Product documentation...............7 Product documentation set............7 Document revision history.............8 Related documentation..............8 Symbols and conventions..............8 Symbols..................8 Document conventions..............9 Functions, codes and symbols............10 Section 2 IEC 60870-5-103 data mappings........17 Overview...................17 Supported functions................17 Indications and controls..............20 General Data(FUN=0) IEC 60870-5-103 standard......20...
  • Page 8 Table of contents CTRL.CCRDIF1 Current circuit failure protection......28 CTRL.CCRDIF2 Current circuit failure protection......29 CTRL.CTSRCTF1 Current circuit supervision for transformers................29 LD0.TPOSSLTC1 Tap position...........29 LD0.MAPGAPC1 Multipurpose analog protection function (1)....................29 LD0.MAPGAPC2 Multipurpose analog protection function (2)....................30 LD0.MAPGAPC3 Multipurpose analog protection function (3)....................30 LD0.MAPGAPC4 Multipurpose analog protection function (4)....................30 LD0.MAPGAPC5 Multipurpose analog protection function...
  • Page 9 Table of contents LD0.PSPTUV2 Positive-sequence undervoltage protection - stage 2..................36 LD0.PSPTUV1 Positive-sequence undervoltage protection - stage 1..................37 LD0.NSPTOV2 Negative-sequence overvoltage protection - stage 2..................37 LD0.NSPTOV1 Negative-sequence overvoltage protection - stage 1..................37 LD0.ROVPTOV1 Residual overvoltage protection - stage 1..38 LD0.ROVPTOV2 Residual overvoltage protection - stage 2..38 LD0.ROVPTOV3 Residual overvoltage protection - stage 3..38 LD0.XBGGIO105 Physical binary I/O signal (status only)...38 LD0.XHBGGIO105 Physical binary I/O signal (status only)..39...
  • Page 10 Table of contents LD0.PHLPTOC2 Phase overcurrent protection - low stage 2....................46 LD0.DEFLPDEF1 Directional earth-fault protection - low stage 1..................47 LD0.DEFLPDEF2 Directional earth-fault protection - low stage 2..................47 LD0.DEFHPDEF1 Directional earth-fault protection - high stage 1..................47 LD0.INPHAR1 Three-phase inrush detection......47 LD0.T2PTTR1 Thermal overload protection (2)......48 LD0.LREFPDIF1 Low-impedance restricted earth-fault protection (1)................48 LD0.LREFPDIF2 Low-impedance restricted earth-fault...
  • Page 11 Table of contents CTRL.ESSXSWI1 Earth switch (1) - non-controllable object...................55 CTRL.ESSXSWI2 Earth switch (2) - non-controllable object...................56 LD0.LEDGGIO1 LHMI LED indications Type 1 (2 states)...56 LD0.LEDGGIO1 LHMI LED indications Type 2 (3 states. 1:1 LED state)................56 LD0.FKEYGGIO1 LHMI LED indications........57 Class 2 data measurands..............57 Class 2 private measurand data (6 and 7)........58 Section 3 Interoperability profile for 620 series IEC...

  • Page 13: Section 1 Introduction

    Section 1 1MRS757661 A Introduction Section 1 Introduction This manual The point list manual describes the outlook and properties of the data points specific to the IED. The manual should be used in conjunction with the corresponding communication protocol manual. Intended audience This manual addresses the communication system engineer or system integrator responsible for pre-engineering and engineering for communication setup in a...

  • Page 14: Document Revision History

    1.3.2 Document revision history Document revision/date Product version History A/2013-05-07 First release Download the latest documents from the ABB Website http://www.abb.com/substationautomation. 1.3.3 Related documentation Name of the document Document ID IEC 60870-5-103 Communication Protocol Manual 1MRS757647 Symbols and conventions 1.4.1...

  • Page 15: Document Conventions

    Section 1 1MRS757661 A Introduction of a hazard which could result in corruption of software or damage to equipment or property. The information icon alerts the reader of important facts and conditions. The tip icon indicates advice on, for example, how to design your project or how to use a certain function.

  • Page 16: Functions, Codes And Symbols

    Section 1 1MRS757661 A Introduction 1.4.3 Functions, codes and symbols Table 1: RET620 functions, codes and symbols Function IEC 61850 IEC 60617 IEC-ANSI Protection Three-phase non-directional overcurrent protection, low stage, PHLPTOC1 3I> (1) 51P-1 (1) instance 1 Three-phase non-directional overcurrent protection, low stage, PHLPTOC2 3I>...
  • Page 17 Section 1 1MRS757661 A Introduction Function IEC 61850 IEC 60617 IEC-ANSI Three-phase undervoltage PHPTUV1 3U< (1) 27 (1) protection, instance 1 Three-phase undervoltage PHPTUV2 3U< (2) 27 (2) protection, instance 2 Three-phase undervoltage PHPTUV3 3U< (3) 27 (3) protection, instance 3 Three-phase overvoltage protection, PHPTOV1 3U>...
  • Page 18 Section 1 1MRS757661 A Introduction Function IEC 61850 IEC 60617 IEC-ANSI Circuit breaker failure protection, CCBRBRF2 3I>/Io>BF (2) 51BF/51NBF (2) instance 2 Three-phase inrush detector INRPHAR1 3I2f> (1) 68 (1) Master trip, instance 1 TRPPTRC1 Master Trip (1) 94/86 (1) Master trip, instance 2 TRPPTRC2 Master Trip (2)
  • Page 19 Section 1 1MRS757661 A Introduction Function IEC 61850 IEC 60617 IEC-ANSI Earthing switch position indication, ESSXSWI1 I <-> O ES (1) I <-> O ES (1) instance 1 Disconnector position indication, DCSXSWI3 I <-> O DC (3) I <-> O DC (3) instance 3 Disconnector position indication, DCSXSWI4...
  • Page 20 Section 1 1MRS757661 A Introduction Function IEC 61850 IEC 60617 IEC-ANSI Residual current measurement, RESCMMXU2 Io(B) (1) In(B) (1) instance 2 Three-phase voltage measurement VMMXU1 3U (1) 3V (1) Residual voltage measurement RESVMMXU1 Uo (1) Vn (1) Sequence voltage measurement VSMSQI1 U1, U2, U0 (1) V1, V2, V0 (1)
  • Page 21 Section 1 1MRS757661 A Introduction Function IEC 61850 IEC 60617 IEC-ANSI Generic control points, instance 1 SPCGGIO1 SPCGGIO (1) SPCGGIO (1) Generic control points, instance 2 SPCGGIO2 SPCGGIO (2) SPCGGIO (2) Generic control points, instance 3 SPCGGIO3 SPCGGIO (3) SPCGGIO (3) Remote Generic control points SPCRGGIO1 SPCRGGIO (1)

  • Page 23: Section 2 Iec 60870-5-103 Data Mappings

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings Section 2 IEC 60870-5-103 data mappings Overview This document describes the IEC 60870-5-103 data points and structures available in the IED. The point lists describe a superset of all data available through the standard configuration/s.
  • Page 24 Section 2 1MRS757661 A IEC 60870-5-103 data mappings Function block TE201 PHPTUV3 ● PHPTOV1 ● PHPTOV2 ● PHPTOV3 ● PSPTUV1 ● PSPTUV2 ● NSPTOV1 ● NSPTOV2 ● FRPFRQ1 ● FRPFRQ2 ● FRPFRQ3 ● OEPVPH1 ● OEPVPH2 ● T2PTTR1 ● PHPTUC1 ●...
  • Page 25 Section 2 1MRS757661 A IEC 60870-5-103 data mappings Function block TE201 ESXSWI1 ● DCXSWI3 ● DCXSWI4 ● ESXSWI2 ● DCSXSWI1 ● DCSXSWI2 ● ESSXSWI1 ● DCSXSWI3 ● DCSXSWI4 ● ESSXSWI2 ● SECRSYN1 ● TPOSSLTC1 ● OLATCC1 SSCBR1 ● SSCBR2 ● TCSSCBR1 ●...

  • Page 26: Indications And Controls

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings Indications and controls Table 3: Explanations of the indications and controls table columns Column name Description IEC 61850 Original IED data object identification. Described in the IEC 61850 format as name Logical Device.Logical Node and thereafter .Data Object.Data Attribute. Logical Node is the same as the application function block name.

  • Page 27: General Data(Fun=10) - 620-Specific

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.2 General Data(FUN=10) - 620-specific Table 5: General Data(FUN=10) - 620-specific IEC 61850 name SA name Description DPI value ASDU LD0.TRPPTRC1 .Op.general Trip1 input 10=On .Tr.general Trip1 output 10=On LD0.TRPPTRC2 .Op.general Trip2 input 10=On .Tr.general Trip2 output...

  • Page 28: Ld0.Mvgapc1 Multipurpose Binary Inputs (1)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.4 LD0.MVGAPC1 Multipurpose binary inputs (1) Table 7: LD0.MVGAPC1 Multipurpose binary inputs (1) IEC 61850 name SA name Description DPI value ASDU LD0.MVGAPC1 .Q1.stVal Input 1 signal 10=On .Q2.stVal Input 2 signal 10=On .Q3.stVal Input 3 signal...

  • Page 29: Ld0.Mvgapc4 Multipurpose Binary Inputs (4)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.7 LD0.MVGAPC4 Multipurpose binary inputs (4) Table 10: LD0.MVGAPC4 Multipurpose binary inputs (4) IEC 61850 name SA name Description DPI value ASDU LD0.MVGAPC4 .Q1.stVal Input 1 signal 10=On .Q2.stVal Input 2 signal 10=On .Q3.stVal Input 3 signal...

  • Page 30: Ld0.Spcggio1 Multipurpose Binary Outputs (1)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .Rs6.ctlVal Reset flip-flop 6 10=Reset .Rs7.ctlVal Reset flip-flop 7 10=Reset .Rs8.ctlVal Reset flip-flop 8 10=Reset 2.3.10 LD0.SPCGGIO1 Multipurpose binary outputs (1) The binary outputs can be configured either as pulse- or persistent-type outputs. Pulse- type outputs are triggered with the write value "ON".

  • Page 31: Ld0.Spcggio3 Multipurpose Binary Outputs (3)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings Table 14: LD0.SPCGGIO2 Multipurpose binary outputs (2) IEC 61850 name SA name Description DPI value ASDU LD0.SPCGGIO2 .SPCS01.ctlVal Output control 1 10/01=On/Off 1,20 .SPCS02.ctlVal Output control 2 10/01=On/Off 1,20 .SPCS03.ctlVal Output control 3 10/01=On/Off 1,20 .SPCS04.ctlVal...

  • Page 32: Ld0.Spcrggio1 Multipurpose Remote Binary Outputs (1)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .SPCS12.ctlVal Output control 12 10/01=On/Off 1,20 .SPCS13.ctlVal Output control 13 10/01=On/Off 1,20 .SPCS14.ctlVal Output control 14 10/01=On/Off 1,20 .SPCS15.ctlVal Output control 15 10/01=On/Off 1,20 .SPCS16.ctlVal Output control 16...

  • Page 33: Ld0.Nsptoc2 Negative-Sequence Overcurrent Protection (2)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.15 LD0.NSPTOC2 Negative-sequence overcurrent protection Table 18: LD0.NSPTOC2 Negative-sequence overcurrent protection (2) IEC 61850 name SA name Description DPI value ASDU LD0.NSPTOC2 .Op.general OPERATE Stage2 operate 10=Operate .Str.general START Stage2 start 10=Start 2.3.16 LD0.SECRSYN1 Synchrocheck indications Table 19:...

  • Page 34: Ld0.Frpfrq3 Frequency Protection (3)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .Op.general OPR_OFRQ -Operate 10=Operate LD0.FRPTUF2 Underfrequency .Op.general OPR_UFRQ -Operate 10=Operate LD0.FRPFRC2 Frequency gradient .Op.general OPR_FRG -Operate 10=Operate 2.3.19 LD0.FRPFRQ3 Frequency protection (3) Table 22: LD0.FRPFRQ3 Frequency protection (3) IEC 61850 name SA name...

  • Page 35: Ctrl.ccrdif2 Current Circuit Failure Protection

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.22 CTRL.CCRDIF2 Current circuit failure protection Table 25: CTRL.CCRDIF2 Current circuit failure protection IEC 61850 name SA name Description DPI value ASDU CTRL.CCRDIF2 .Alm.stVal ALARM Fail Alarm 10=Alarm .Op.general FAIL Fail Operate 10=Operate 2.3.23 CTRL.CTSRCTF1 Current circuit supervision for...

  • Page 36: Ld0.Mapgapc2 Multipurpose Analog Protection Function (2)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.26 LD0.MAPGAPC2 Multipurpose analog protection function Table 29: LD0.MAPGAPC2 Multipurpose analog protection function (2) IEC 61850 name SA name Description DPI value ASDU LD0.MAPGAPC2 .Str.general START Stage Start 10=Start .Op.general OPERATE Stage Operate 10=Operate 2.3.27 LD0.MAPGAPC3 Multipurpose analog protection function...

  • Page 37: Ld0.Mapgapc6 Multipurpose Analog Protection Function (6)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.30 LD0.MAPGAPC6 Multipurpose analog protection function Table 33: LD0.MAPGAPC6 Multipurpose analog protection function (6) IEC 61850 name SA name Description DPI value ASDU LD0.MAPGAPC6 .Str.general START Stage Start 10=Start .Op.general OPERATE Stage Operate 10=Operate 2.3.31 LD0.MAPGAPC7 Multipurpose analog protection function...

  • Page 38: Ld0.Mapgapc10 Multipurpose Analog Protection Function (10)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.34 LD0.MAPGAPC10 Multipurpose analog protection function (10) Table 37: LD0.MAPGAPC10 Multipurpose analog protection function (10) IEC 61850 name SA name Description DPI value ASDU LD0.MAPGAPC10 .Str.general START Stage Start 10=Start .Op.general OPERATE Stage Operate 10=Operate 2.3.35...

  • Page 39: Ld0.Oepvph1 Voltage Per Hertz Protection (1)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.38 LD0.OEPVPH1 Voltage per Hertz protection (1) Table 41: LD0.OEPVPH1 Voltage per Hertz protection (1) IEC 61850 name SA name Description DPI value ASDU LD0.OEPVPH1 .Str.general START Stage Start 10=Start .Op.general OPERATE Stage Operate 10=Operate 2.3.39...

  • Page 40: Ld0.Dphhpdoc1 Three-Phase Directional Overcurrent Protection - High Stage (1)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.42 LD0.DPHHPDOC1 Three-phase directional overcurrent protection - high stage (1) Table 45: LD0.DPHHPDOC1 Three-phase directional overcurrent protection - high stage (1) IEC 61850 name SA name Description DPI value ASDU LD0.DPHHPTOC1 High stage .Str.phsA -phsA start 10=Start...

  • Page 41: Ld0.Phptov2 Phase Overvoltage Protection - Stage 2

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.45 LD0.PHPTOV2 Phase overvoltage protection - stage 2 Table 48: LD0.PHPTOV2 Phase overvoltage protection - stage 2 IEC 61850 name SA name Description DPI value ASDU LD0.PHPTOV2 Stage 3 .Str.phsA -phsA start 10=Start .Str.phsB -phsB start...

  • Page 42: Ld0.Phptuv2 Phase Undervoltage Protection - Stage 2

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.48 LD0.PHPTUV2 Phase undervoltage protection - stage 2 Table 51: LD0.PHPTUV2 Phase undervoltage protection - stage 2 IEC 61850 name SA name Description DPI value ASDU LD0.PHPTUV2 Stage 2 .Str.phsA -phsA start 10=Start .Str.phsB -phsB start...

  • Page 43: Ld0.Psptuv1 Positive-Sequence Undervoltage Protection

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.51 LD0.PSPTUV1 Positive-sequence undervoltage protection - stage 1 Table 54: LD0.PSPTUV1 Positive-sequence undervoltage protection - stage 1 IEC 61850 name SA name Description DPI value ASDU LD0.PSPTUV1 Stage 1 .Str.phsA -phsA start 10=Start .Str.phsB -phsB start...

  • Page 44: Ld0.Rovptov1 Residual Overvoltage Protection - Stage 1

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.54 LD0.ROVPTOV1 Residual overvoltage protection - stage 1 Table 57: LD0.ROVPTOV1 Residual overvoltage protection - stage 1 IEC 61850 name SA name Description DPI value ASDU LD0.ROVPTOV1 .Str.general START Stage 1 start 10=Start .Op.general OPERATE...

  • Page 45: Ld0.Xhbggio105 Physical Binary I/O Signal (Status Only)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .SPCSO2.stVal XB105-Output 2 10/01=On/Off .SPCSO3.stVal XB105-Output 3 10/01=On/Off .SPCSO4.stVal XB105-Output 4 10/01=On/Off 2.3.58 LD0.XHBGGIO105 Physical binary I/O signal (status only) Table 61: LD0.XHBGGIO105 Physical binary I/O signal (status only) IEC 61850 name SA name Description...

  • Page 46: Ld0.Xggio100 Physical Binary I/O Signals (Status Only)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.60 LD0.XGGIO100 Physical binary I/O signals (status only) Table 63: LD0.XGGIO100 Physical binary I/O signals (status only) IEC 61850 name SA name Description DPI value ASDU LD0.XGGIO100 .SPCSO1.stVal X100-Output 1 10/01=On/Off .SPCSO2.stVal X100-Output 2 10/01=On/Off .SPCSO3.stVal...

  • Page 47: Ld0.Lshdpfrq1 Load Shedding - Instance 1

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .ErrParTra.stVal PAR_FAIL Parallel failure detected 10=Failure .TapChg.ValWTr.ctl Tap changer control lower 10=Lower .TapChg.ValWTr.ctl Tap changer control higher 10=Higher 2.3.63 LD0.LSHDPFRQ1 Load shedding - instance 1 Table 66: LD0.LSHDPFRQ1 Load shedding - instance 1 IEC 61850 name...

  • Page 48: Ld0.Lshdpfrq4 Load Shedding - Instance 4

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .RestLodOp.general RESTORE Restore the load 10=Restore .ManRest.Oper.ctlV MAN_RESTORE Manual restore 10=Restore .BlkRest.Oper.ctlVal BLK_REST Cancel restore 10=Cancel 2.3.66 LD0.LSHDPFRQ4 Load shedding - instance 4 Table 69: LD0.LSHDPFRQ4 Load shedding - instance 4 IEC 61850 name...

  • Page 49: Ld0.Arcsarc1 Fault Arc Protection - Stage 1

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .RestLodOp.general RESTORE Restore the load 10=Restore .ManRest.Oper.ctlV MAN_RESTORE Manual restore 10=Restore .BlkRest.Oper.ctlVal BLK_REST Cancel restore 10=Cancel 2.3.69 LD0.ARCSARC1 Fault arc protection - stage 1 Table 72: LD0.ARCSARC1 Fault arc protection - stage 1 IEC 61850 name...

  • Page 50: Ld0.Eflptoc1 Non-Directional Earth-Fault And Sensitive

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.72 LD0.EFLPTOC1 Non-directional earth-fault and sensitive earth-fault protection - low stage 1 Table 75: LD0.EFLPTOC1 Non-directional earth-fault and sensitive earth-fault protection - low stage 1 IEC 61850 name SA name Description DPI value ASDU LD0.EFLPTOC1 Low (1) stage...

  • Page 51: Ld0.Phiptoc2 Phase Overcurrent Protection

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.76 LD0.PHIPTOC2 Phase overcurrent protection - instantaneous stage 2 Table 79: LD0.PHIPTOC2 Phase overcurrent protection - instantaneous stage 2 IEC 61850 name SA name Description DPI value ASDU LD0.PHIPTOC2 Instantaneous stage (2) .Str.phsA -phsA start 10=Start...

  • Page 52: Ld0.Phhptoc1 Phase Overcurrent Protection - High Stage

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.79 LD0.PHHPTOC1 Phase overcurrent protection - high stage Table 82: LD0.PHHPTOC1 Phase overcurrent protection - high stage 1 IEC 61850 name SA name Description DPI value ASDU LD0.PHHPTOC1 High stage (1) .Str.phsA -phsA start 10=Start .Str.phsB...

  • Page 53: Ld0.Deflpdef1 Directional Earth-Fault Protection - Low Stage 1

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.82 LD0.DEFLPDEF1 Directional earth-fault protection - low stage 1 Table 85: LD0.DEFLPDEF1 Directional earth-fault protection - low stage 1 IEC 61850 name SA name Description DPI value ASDU LD0.DEFLPTOC1 Low (1) stage .Str.general START -start...

  • Page 54: Ld0.T2Pttr1 Thermal Overload Protection (2)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.86 LD0.T2PTTR1 Thermal overload protection (2) Table 89: LD0.T2PTTR1 Thermal overload protection (2) IEC 61850 name SA name Description DPI value ASDU LD0.T2PTTR1 .Str.general START Start 10=Start .AlmThm.general ALARM Thermal alarm 10=Alarm .Op.general OPERATE Operate...

  • Page 55: Ld0.Hrefpdif2 High-Impedance Restricted Earth-Fault Protection (2)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.90 LD0.HREFPDIF2 High-impedance restricted earth-fault protection (2) Table 93: LD0.HREFPDIF2 High-impedance restricted earth-fault protection (2) IEC 61850 name SA name Description DPI value ASDU LD0.HREFPDIF2 .Str.general START Stage start 10=Start .Op.general OPERATE Stage operate 10=Operate 2.3.91...

  • Page 56: Ld0.Vmmxu1 Phase Voltage (1) Limit Supervision

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.94 LD0.VMMXU1 Phase voltage (1) limit supervision Table 97: LD0.VMMXU1 Phase voltage (1) limit supervision IEC 61850 name SA name Description DPI value ASDU LD0.VMMXU1 .HiAlm.stVal HIGH_ALARM High alarm 10=Alarm .HiWrn.stVal HIGH_WARN High warning 10=Warning .LoWrn.stVal...

  • Page 57: Ctrl.cxxxxx2 Circuit Breaker (2) Cb Object And Failure Protection

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .BlkCls.stVal BLK_CLOSE Close blocked 10=Blocked CTRL.CCBRBRF1 .Str.general CB_FAULT_AL Start, timer running 10=Start .OpEx.general TRBU Failure, ext trip 10=Failure .OpIn.general TRRET Operate, retrip 10=Operate CTRL.CBCSWI1 .stSeld.stVal SELECTED...

  • Page 58: Ld0.Sscbr2 Circuit Breaker (2) Condition Monitoring

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .ClsAlm.stVal TRV_T_CL_ALM Cls travel time alarm 10=Alarm .SprChaAlm.stVal SPR_CHR_ALM Spring charge time alarm 10=Alarm .OpNumAlm.stVal OPR_ALM CB operations alarm 10=Alarm .OpNumLO.stVal OPR_LO CB operations lockout 10=Lockout .LonTmAlm.stVal MON_ALM...

  • Page 59: Ctrl.dcxswi2 Disconnector (2) - Controllable Object

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .ItlByPss.stVal ITL_BYPASS Interlocking bypass 10=Bypassed CTRL.DCXSWI1 .BlkOpn.stVal BLK_OPEN Open blocked 10=Blocked .BlkCls.stVal BLK_CLOSE Close blocked 10=Blocked CTRL.DCCSWI1 .stSeld.stVal SELECTED DC selected 10=Selected .Pos.stVal/ctlVal POSITION DC pos/control 10/01=Close/Open...

  • Page 60: Ctrl.dcxswi4 Disconnector (4) - Controllable Object

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.104 CTRL.DCXSWI4 Disconnector (4) - controllable object Table 107: CTRL.DCXSWI4 Disconnector (4) - controllable object IEC 61850 name SA name Description DPI value ASDU CTRL.DCCILO4 .EnaOpn.stVal ENA_OPEN Open enabled 10=Enabled .EnaCls.stVal ENA_CLOSE Close enabled 10=Enabled .ItlByPss.stVal...

  • Page 61: Ctrl.dcsxswi1 Disconnector (1) - Non-Controllable Object

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU .BlkCls.stVal BLK_CLOSE Close blocked 10=Blocked CTRL.ESCSWI2 .stSeld.stVal SELECTED ES selected 10=Selected .Pos.stVal/ctlVal POSITION ES pos/control 10/01=Close/Open 1,20 2.3.107 CTRL.DCSXSWI1 Disconnector (1) - non-controllable object Table 110: CTRL.DCSXSWI1 Disconnector (1) - non-controllable object IEC 61850 name...

  • Page 62: Ctrl.essxswi2 Earth Switch (2) - Non-Controllable Object

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings 2.3.112 CTRL.ESSXSWI2 Earth switch (2) - non-controllable object Table 115: CTRL.ESSXSWI2 Earth switch (2) - non-controllable object IEC 61850 name SA name Description DPI value ASDU CTRL.ESSXSWI2 .Pos.stVal POSITION Earth switch pos 10/01=Close/Open 2.3.113 LD0.LEDGGIO1 LHMI LED indications Type 1 (2 states)

  • Page 63: Ld0.Fkeyggio1 Lhmi Led Indications

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name SA name Description DPI value ASDU 00/01/11=LED .ISCSO7.stVal LED 7 state State 00/01/11=LED .ISCSO8.stVal LED 8 state State 00/01/11=LED .ISCSO9.stVal LED 9 state State 00/01/11=LED .ISCSO10.stVal LED 10 state State 00/01/11=LED .ISCSO11.stVal...

  • Page 64: Class 2 Private Measurand Data (6 And 7)

    Section 2 1MRS757661 A IEC 60870-5-103 data mappings Start Length Length Start Cntrl Addr Link user data Csum ASDU Addr Measurand data Meas value ix1 Meas value ix2 Meas value ix3 Meas value ix4 Meas value ixN GUID-7FE191AF-F805-4C25-ACA1-7296D59448D7 V1 EN Figure 1: Class 2 frame response in the predefined private Class 2 frames, numbers 6 or 7...
  • Page 65 Section 2 1MRS757661 A IEC 60870-5-103 data mappings Table 120: Class 2 private measurand data (6 and 7) IEC 61850 name Description Scale LD0.CMMXU1 Phase currents (1) LD0.CMMXU1 Phase-to-ground current .A.phsA.cVal.mag -phsA magnitude .A.phsB.cVal.mag -phsB magnitude .A.phsC.cVal.mag -phsC magnitude LD0.RESCMMXU1 Residual current (1) LD0.RESCMMXU1 Residual current .A.res.cVal.mag...
  • Page 66 Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name Description Scale LD0.VMMXU1 Voltage measurands (1) LD0.VMMXU1.phV Phase-to-ground voltage .phsA.cVal.mag -phsA magnitude .phsB.cVal.mag -phsB magnitude .phsC.cVal.mag -phsC magnitude LD0.VMMXU1.PPV Phase-to-phase voltage .phsAB.cVal.mag -phsAB magnitude .phsBC.cVal.mag -phsBC magnitude .phsCA.cVal.mag -phsCA magnitude LD0.VSMSQI1 Sequence of voltages (1) LD0.VSMSQI1 Sequence of voltages...
  • Page 67 Section 2 1MRS757661 A IEC 60870-5-103 data mappings IEC 61850 name Description Scale .AnIn1.mag RTD input 1 10000 .AnIn2.mag RTD input 2 10000 .AnIn3.mag RTD input 3 10000 .AnIn4.mag RTD input 4 10000 .AnIn5.mag RTD input 5 10000 .AnIn6.mag RTD input 6 10000 .AnIn7.mag RTD input 7...

  • Page 69: Section 3 Interoperability Profile For 620 Series Iec 60870-5-103

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 Section 3 Interoperability profile for 620 series IEC 60870-5-103 Physical layer 3.1.1 Electrical interface ⊠ EIA RS-485 ⃞ Number of loads ......for one protection equipment NOTE - EIA RS-485 standard defines unit loads so that 32 of them can be operated on one line. For detailed information refer to clause 3 of EIA RS-485 standard.

  • Page 70: Application Layer

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 Application layer 3.3.1 Transmission mode for application data Mode 1 (least significant octet first), as defined in 4.10 of IEC 60870-5-4, is used exclusively in this companion standard. 3.3.2 COMMON ADDRESS of ASDU ⊠...

  • Page 71: Supervision Indications In Monitor Direction

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 ⃞ <27> Auxiliary input 1 ⃞ <28> Auxiliary input 2 ⃞ <29> Auxiliary input 3 ⃞ <30> Auxiliary input 4 Note <27>...<30>: Depending on Binary I/O options and application usage there may be additional auxiliary inputs available in the IED.

  • Page 72: Auto-Reclosure Indications In Monitor Direction

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 ⃞ <66> Start /pick-up L ⃞ <67> Start /pick-up N ⊠ <68> General trip ⃞ <69> Trip L ⃞ <70> Trip L ⃞ <71> Trip L ⃞ <72> Trip I>> (back-up operation) ⃞...

  • Page 73: Measurands In Monitor Direction

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 3.3.3.7 Measurands in monitor direction Semantics ⊠ <144> Measurand I ⊠ <145> Measurands I, V ⊠ <146> Measurands I, V, P, Q ⊠ <147> Measurands I ⊠ <148> Measurands I , P, Q, f L1,2,3 L1,2,3...

  • Page 74: Basic Application Functions

    Section 3 1MRS757661 A Interoperability profile for 620 series IEC 60870-5-103 3.3.5 Basic application functions ⊠ Test mode ⃞ Blocking of monitor direction ⊠ Disturbance data ⃞ Generic services ⊠ Private data 3.3.6 Miscellaneous Measurands are transmitted as Class2 data using ASDU 3 or ASDU 9. The default MVAL scalings in this IED series is 2.4.

  • Page 75: Section 4 Glossary

    Section 4 1MRS757661 A Glossary Section 4 Glossary Autoreclosing ASDU Application-layer service data unit Double-point information Electromagnetic compatibility Human-machine interface International Electrotechnical Commission IEC 60870-5-103 1. Communication standard for protective equipment 2. A serial master/slave protocol for point-to-point communication IEC 61850 International standard for substation communication and modeling Intelligent electronic device...
  • Page 80 Contact us ABB Oy Medium Voltage Products, Distribution Automation P.O. Box 699 FI-65101 VAASA, Finland Phone +358 10 22 11 +358 10 22 41094 www.abb.com/substationautomation...

This manual is also suitable for:

Ret620
