Summary of Contents for Lollipop Lolly CRUSH

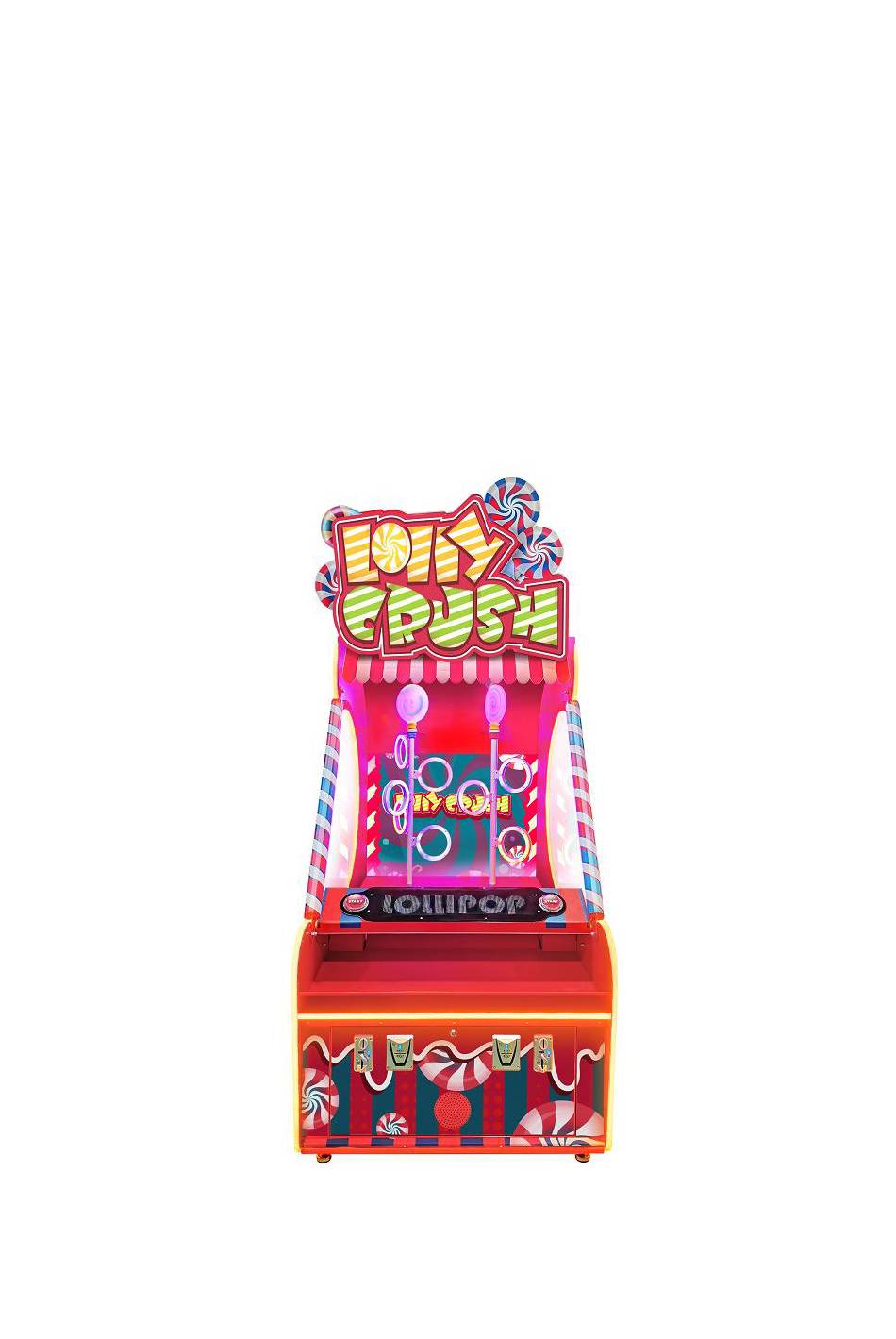

- Page 1 《Lolly Crush》 Operator Manual V0.9...
- Page 2 1. OPERATION INSTRUCTIONS 1.1.Specifications and technical parameters of the machine 1.Voltage：AC220V / AC110V ; 50/60Hz（Please refer to the nameplate on the machine） 2.size：W1140×D1860×H2633mm（组装完整） 3.Weight：385Kg 4.Power：360W 5.Attention: 1. This machine is only suitable for use in indoor environments. 2. This machine can not be placed in an inclined position, it is easy to cause accidents when placed in an inclined position.
- Page 3 2. Settings & Testing 2.1.Switch settings： SWs on mainboard as below： Content coins Game Time SW1- Free Play 1 coin per 1 Play（Each Player） 2 coins per 1 Play（Each Player） 3 coins per 1 Play（Each Player） 4 coins per 1 Play（Each Player）...
- Page 4 Factory Default Settings...
- Page 5 Ticket Pay out Game Prize Content Credits/ball setting Speed style SW2- 1 credit per ball 51 credit per ball 101 credit per ball 201 credit per ball Ticket Function Capsule/Card Prohibiting Prohibiting(T (Capsule icket function) function)) Over 0 1credit 1 credit pay ticket out 1 ticket...
- Page 6 Demonstration OFF Music ON Music OFF Data Saving ON Data Saving OFF Factory Default Setting...
-
Page 7: Button Instructions
Testing 2.2. >Button Instructions： Up(Test) ：In standby mode, tap to enter the test program; tap in the test program to page up Down(Service) ：Tap in the standby mode to play for free once; tap in the test program to page down Enter ：Select or Confirm during Testing >... - Page 8 Press the "ENTER" key and the light of the 2P start button will light BT LED 2 up, and press the 2P Start Button Light "ENTER" key again and Testing the light of the 2P start button will go out.。 Press the "ENTER"...
- Page 9 When the input signal changes, the color of the corresponding INPUT A-X letter on the screen will Show all the input Show all the input info change. Please check the table below for details. Green info represents ON; red represents OFF.
- Page 10 > When browsing the input signal, the correspondence between the letters displayed on the screen and the input signal is as follows: 1P Ball dropping 1P coin mech signal 1P rotating sensor signal 2P ball dropping 2P Rotating sensor 2P coin mech signal signal Gate status sensor 1P Ticket out sensor...
-
Page 11: Errors And Solutions
3. Errors and Solutions Error code and how to fix it 3.1. Error Code Errors Reason/Solution Error-1 1P Tickets Shortage 1、Add tickets；2、clear dispensor；3、Change the dispenser Error-2 2P Tickets Shortage 1、Add tickets；2、clear dispensor；3、Change the dispenser 1、Set the coin mech “always on”；2、Reject trapped coins； Error-3 1P Coin selector problem 3、Change the coin acceptor...
