Summary of Contents for Hanter 9304-HUV-M88A84K

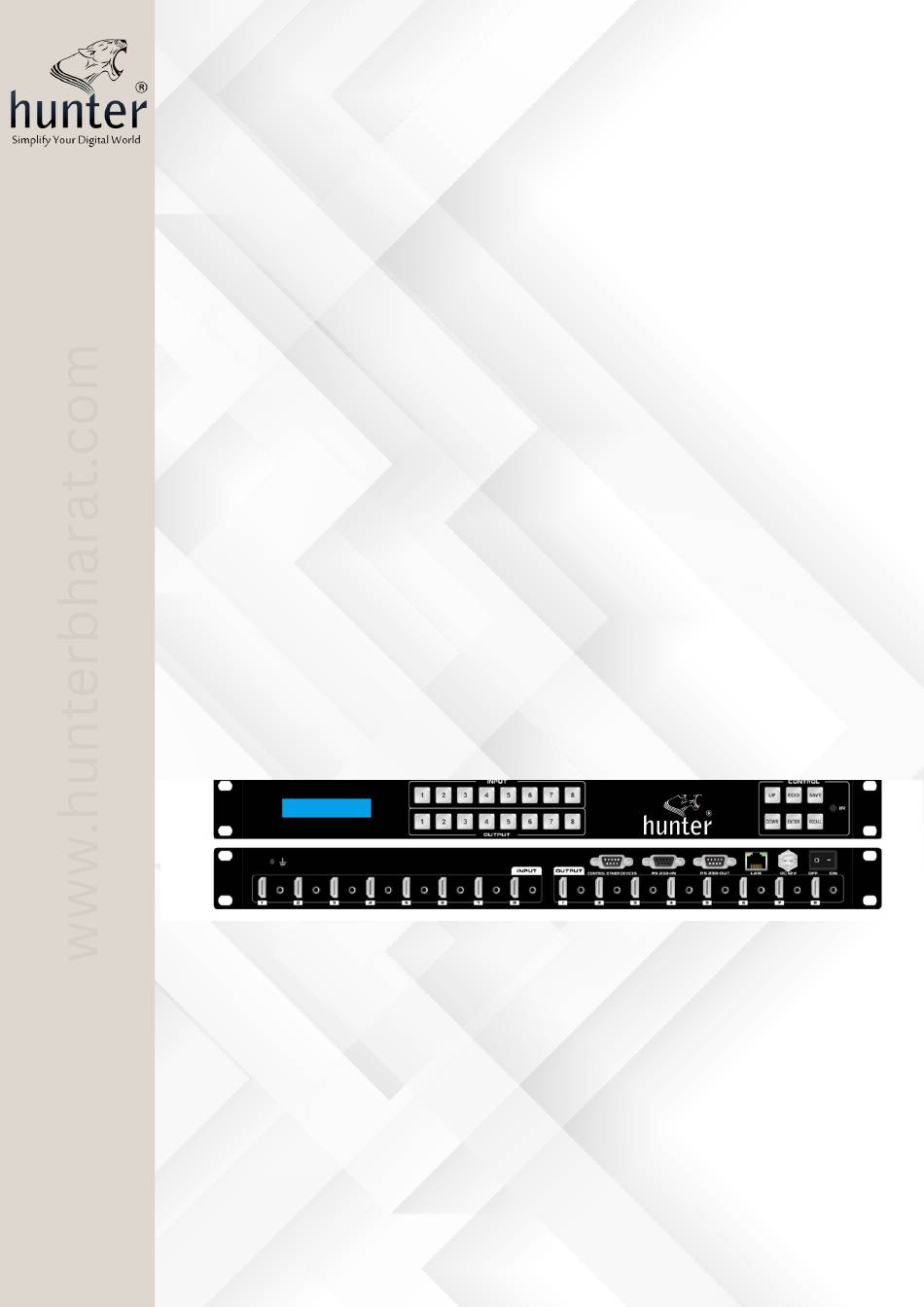

- Page 1 9304-HUV-M88A84K - Hunter HDMI 2.0 4K Matrix 8x8 With Audio 9304-HUV-M88A84K User Manual...
-
Page 2: Product Introduction
Product Introduction Hunter HDMI matrix switcher supports 4K@60 with 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs; each HDMI port has audio 3.5 port, the resolution can up to 4K60Hz and all ports are HDCP 2.2 compliant. User Control methods - IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and RS232/UDP commands, this matrix switcher can work with the Blu- Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI... -
Page 3: Specification
Specification Resolutions 480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K@60Hz Input ports 8* HDMI, 1* RS-232(control), 1 * RJ-45(control), 8*3.5mm audio Output Ports 8* HDMI, 1* RS-232(control),8*3.5mm audio ESD Protection ±8kV (Air-gap discharge), ±4kV (Air-gap discharge) Controlling IR remote control, front buttons control, RS232, UDP Power DC:12V 2A Dimension... -
Page 4: Remote Control
Matrix Switcher control Hunter Matrix switcher can support IR remote, APP, RS232/TCP/IP software, WEB GUI browser or the front push-buttons control. Remote control Users also can control this matrix switcher with the remote control Channel Switching Press the input from number “1~8”, then press “SWITCH”, then press the output from number“1~8”, can press the outputs continually. - Page 5 Click Enter and login with the user name and password, the default User name is admin, password is admin. WEB GUI browser Control Users also can use the WEB browser to control the matrix switcher, users can have the matrix switcher connected with the PC with the LAN cable directly or have the matrix switcher connected the same network switch.
- Page 6 Caption tab is from users to change then input, output, scene names, also can setup the control other devices commands here. Config/EDID setting tab for users to select or setup the EDID for the specific inputs Setup interface for users to do the IP address, COM baud rate and buzzer settings: Account interface for users to change the login user name and password:...
- Page 7 The 3rd Party Control command IP address: 192.168.1.80 (default IP) Protocol: TCP(5000), UDP(4000)
- Page 8 RS232 Baud rate: 9600, N, 8, 1 Use RS232 direct cable Commands Functional Description Example Yall Switch input Y to all outputs Switch 1 to all outputs: 1all. Switch input Y to output Y Switch input 2 to output 9:2x9. YxY.YxY.YxY Switch input Y to output Ys Switch input 3 to output 2, 3, 4:3x2.3x3.3x4.
