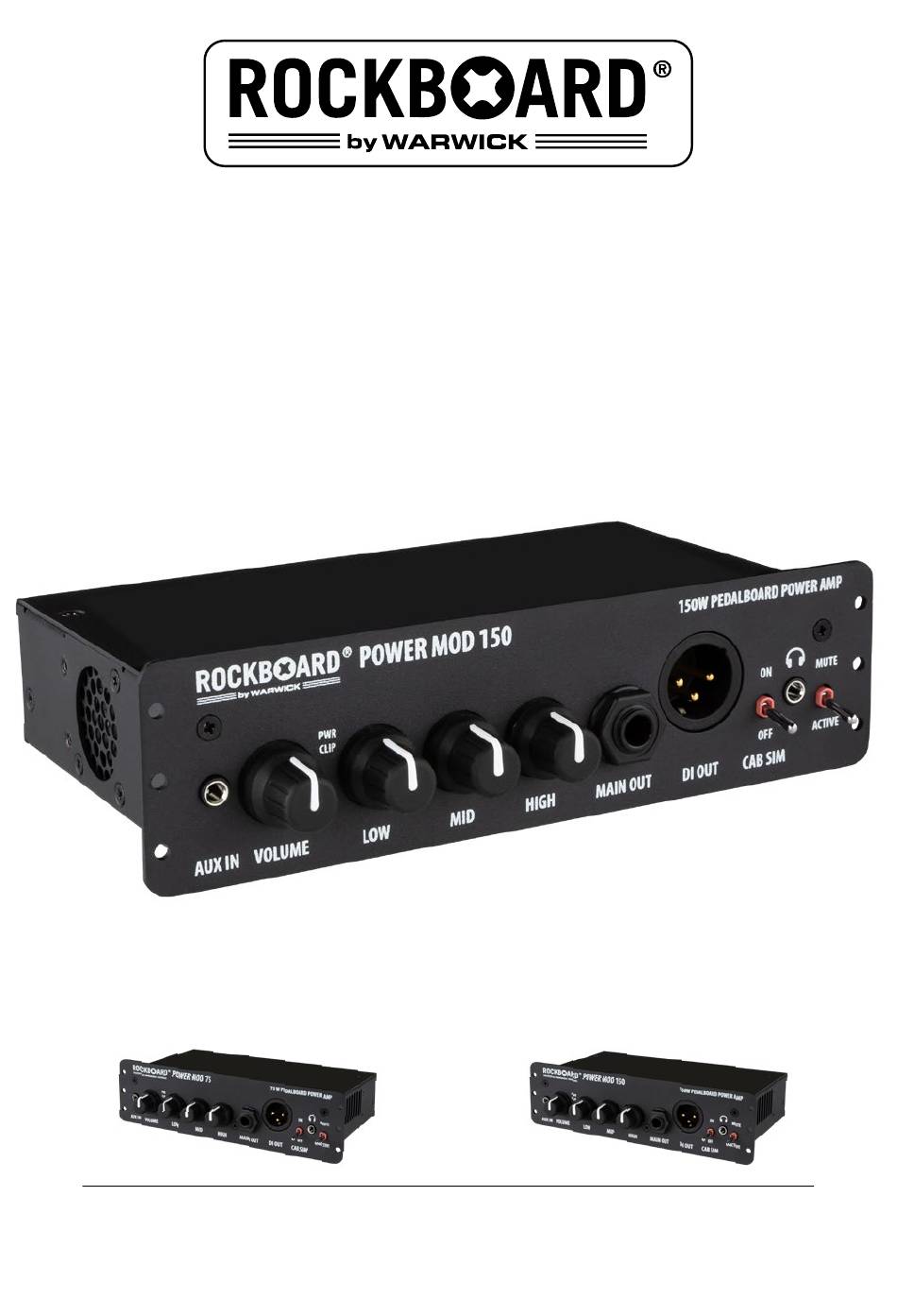

- Page 1 Manual for RockBoard® Power MOD Pedalboard Power Amp RockBoard® PowerMOD 75 RockBoard® PowerMOD 150 75 Watt Pedalboard Power Amp 150 Watt Pedalboard Power Amp...
-
Page 2: Table Of Contents
Contents Introduction ........................2 Precautions . -
Page 3: Recycling Information
Handling Do not apply excessive force to the switches or controls. Do not block any ventilation openings. Install in accor- dance to the instructions. Do not let paper, metal, dirt or other objects come into contact with the device or its connections. -
Page 4: Controls
Controls Front Panel POWER MOD 75 (similar to POWER MOD 150) Rear panel POWER MOD 75 (similar to POWER MOD 150) - 4 -... - Page 5 1. – Volume Control This Master Volume controls the output volume for the speaker and headphone outputs of the amplifier. It does not affect the DI OUT signal. 2. – Tone Stack This is an active EQ control which can boost or attenuate bass, middle and high frequency bands. The 12 o’clock position is neutral, 7-12 is attenuation, 12-5 is boost.
-
Page 6: Mounting
Mounting There are several ways to mount your new PowerMOD on a RockBoard® pedalboard. You can mount it directly into the MOD slot (available on all RockBoard® pedalboards except the DUO series), or you can remove the front panel of the MOD and mount it on the top or bottom of your pedalboard. Mounting on a RockBoard®... - Page 7 STEP 6 For added security, screw on the counter nut on the back. Now the MOD is ready to be connected to your setup! A simple solution to mount the PowerMOD to your RockBoard® pedalboard in a safe and secure fashion is the RockBoard® MOD Brace (sold separately). The RockBoard® MOD Brace is designed to provide additional support for your MOD by reinforcing the connection to your RockBoard®...
- Page 8 Mounting on a non-RockBoard® pedalboard There are multiple ways to mount your PowerMOD on a non-RockBoard® pedalboard. You can either mount it directly to the board surface using hook & loop tape or another reusable fastener. In addition, RockBoard® offers the MOD Rack (sold separately) to mount your PowerMOD in various ways onto, into or underneath the pedalboards of other manufacturers.
-
Page 9: Setup & Operation
Setup & Operation Setup Example POWER SUPPLY INPUT POWER IN MAIN OUT DI OUT HEADPHONE OUT HEADPHONE MIXER - 9 -... -
Page 10: Quick Start Guide
Quick Start Guide To use your new RockBoard® PowerMOD, follow the quick start instructions: 1. Unpacking – Carefully unpack the power amplifier from the box. 2. Mounting – If desired, mount the PowerMOD on, in or under your pedalboard according to the instructions in the Mounting section of this manual. -
Page 11: Specifications
Specifications • compact amplifier for pedalboards • solid-state design, class D amplifier circuitry • 3-band EQ • Mute function • switchable cabinet simulation for full-range speakers • 1 speaker output • fits MOD slots on RockBoard® pedalboards • compatible with a wide variety of other pedalboards •... - Page 12 NORTH EUROPEAN DISTRIBUTION: W-Music Distribution | www.w-distribution.de | info@w-distribution.de Headquarters: Warwick GmbH & Co. Music Equipment KG | 08258 Markneukirchen / Germany | +49 (0) 37422 / 555 - 0 Family Owned • Solar Powered • Sustainably Manufactured in a Green Environment...
