Unity UTC03 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UTC03
USER MANUAL
2024
VER.8.3/22.02.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC03 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unity UTC03

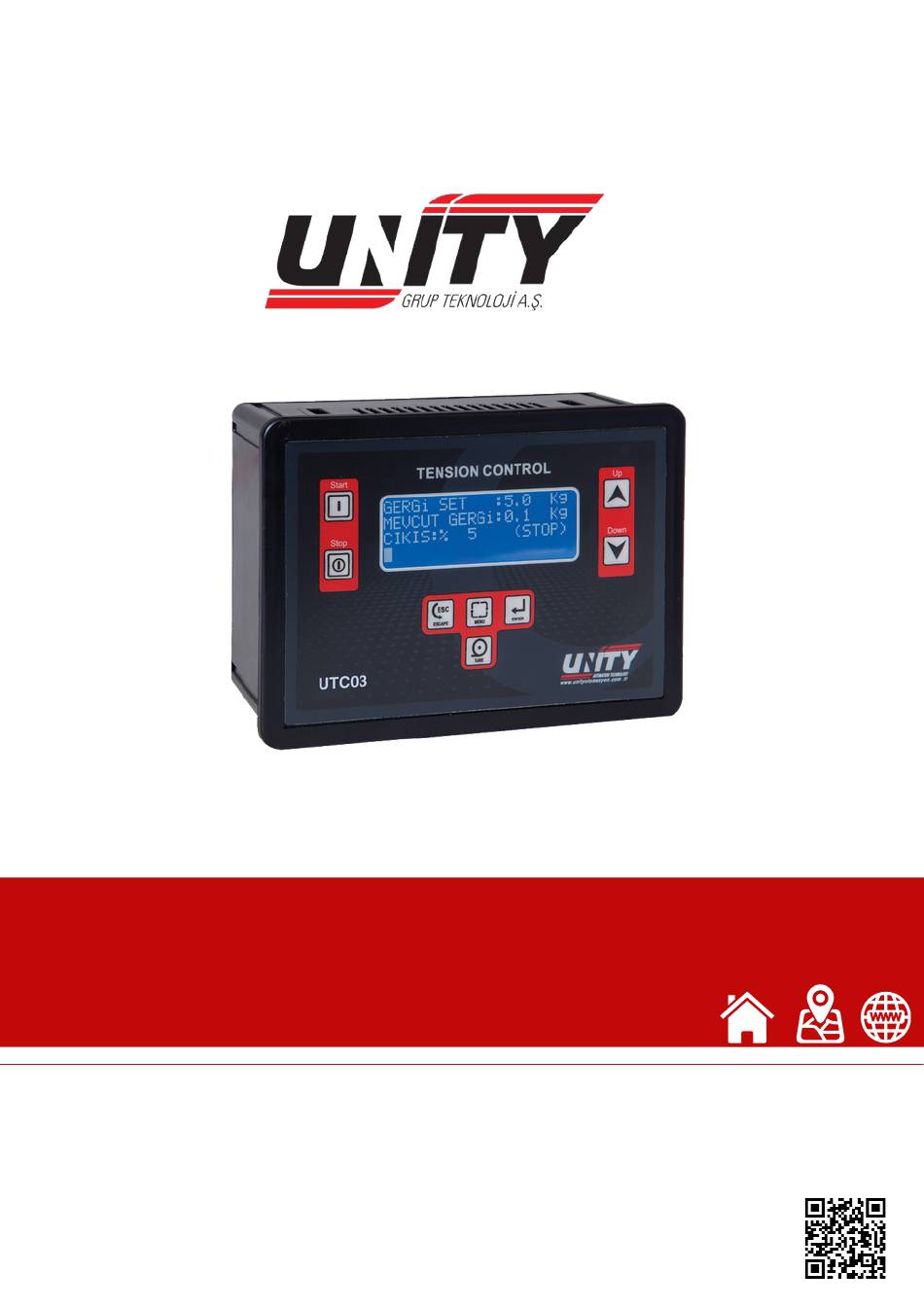

  • Page 1 UTC03 USER MANUAL 2024 VER.8.3/22.02.2023...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety precaut ons..................2 2. Warn ngs for safe use and nstallat on.…..........4 3. Overv ew..................5 4. General and techn cal spec f cat ons............6 5. Where to use?....................7 6. Connect on d agram..................8 7. Flow d agram....................9 8. Funct on keys....................10 9.

  • Page 3: Security Measures

    SECURITY MEASURES 1-) A product su table for a healthy and safe work ng env ronment should be selected and the dev ce should be used n accordance w th the nstruct ons. necessary checks, ma ntenance and clean ng of the dev ce should be done before product on.
  • Page 4 SECURITY MEASURES 5-) Attent on should be pa d to the l ght ng of the env ronment accord ng to the locat on of the dev ce. 6-) Employees should be requ red to comply w th the safety measures and s gns n the env ronment.

  • Page 5: Warn Ngs For Safe Use And Nstallat On

    SAFE USE WARNINGS Before perform ng any operat on on the dev ce, d sconnect all supply voltages. Do not d sassemble the dev ce wh le t s energ zed. Do not clean the dev ce w th solvents or s m lar substances. Use only a dry cloth to clean the dev ce.

  • Page 6: Overv Ew

    OVERVIEW Un ty UTC03 tens on control dev ces are des gned for very prec se w nd ng and unw nd ng operat ons w th a m croprocessor. It ensures that the tens on of the mater al s kept the same n every d ameter dur ng w nd ng and unw nd ng of the bobb n.

  • Page 7: General And Techn Cal Spec F Cat Ons

    GENERAL AND TECHNICAL SPECIFICATIONS WORKING VOLTAGE 24 VDC BRAKE OUTPUT VOLTAGE AND 0-24VDC 3A CURRENT WORKING TEMPERATURE -40 ve +80 RESPONSE TIME PROTECTION CLASS IP 20 CONNECTION TYPE PLUG-IN TERMINAL GROUPS MOUNTING TYPE PANEL TYPE DIMENSIONS (W*H*D) 138 X 105 X 50 INDICATOR 4 X 20 LCD SCREEN 2X LOADCELL, EXTERNAL START, EXTERNAL SET...

  • Page 8: Where To Use

    WHERE IS IT USED? It s used to control the tens on of the mater al n w nder and unw nder appl cat ons. It s used n the ron and steel ndustry n the stage of w nd ng the w res produced on the reels w th constant tens on.

  • Page 9: Connect On D Agram

    CONNECTION DIAGRAM www.un tygrup.com All data is subject to change without prior notice.

  • Page 10: Flow D Agram

    FLOW DIAGRAM 1. Take the dev ce out of the box and check t. 2. Before start ng the nstallat on of the dev ce, read page 15. 3. Before start ng the nstallat on of the cables suppl ed w th the dev ce, please read page 6.

  • Page 11: Funct On Keys

    KEY USER GUIDE Hold for 3 seconds to enter. 'UP and DOWN keys are used for parameter trans t ons w th n the menu. Also, outs de the menu, the set value parameter from the dev ce parameters s used to ncrease or decrease the TENSION SET value f selected v a the panel.

  • Page 12: Device Parameters

    DEVICE PARAMETERS (Press and hold the MENU button for 3 seconds.) Press ENTER to enter the Language Opt on parameter. Here, the UP and DOWN keys determ ne whether the language w ll be TURKISH or ENGLISH. (Press and hold the MENU button for 3 seconds.) By press ng the ENTER key, the FACTORY SETTINGS parameter s entered.
  • Page 13 DEVICE PARAMETERS (Press and hold the MENU button for 3 seconds.) By press ng the ENTER key, the MAXV voltage s determ ned as a percentage w th the OK keys. The MAXV voltage nd cates the output level of the dev ce n the start pos t on at max mum voltage.
  • Page 14 DEVICE PARAMETERS (Press and hold the MENU button for 3 seconds.) Press ng ENTER determ nes LOADCELL capac ty select on. The values you can select are 50, 100, 250 kg. The we ght nformat on com ng from LOADCELL (Press and hold the MENU button for 3 s compared w th the set value.
  • Page 15 DEVICE PARAMETERS (Press and hold the MENU button for 3 seconds.) By press ng the TARE button on the panel, the we ght of the roller to wh ch the Loadcell s connected s reset. Th s we ght s recorded n the TARE WEIGHT parameter.
  • Page 16 DEVICE PARAMETERS (Press and hold the MENU button for 3 seconds.) Th s parameter s used to set the f lter sett ngs of the loadcell. It s used to prevent problems that may ar se from v brat ons n the roller connected to the loadcell.

  • Page 17: Cal Brat On

    CALIBRATION WHAT IS UTC03 CALIBRATION AND WHY IS IT DONE? Press the menu button for 3 seconds to enter the dev ce's parameters sect on. The cal brat on (15- (CALIBRATION)) menu s entered from the parameters. Wh le on the cal brat on menu, press the enter button once and sw tch to the sub-tab.

  • Page 18: Technical Drawing

    TECHNICAL DRAWING www.un tygrup.com All data is subject to change without prior notice.

  • Page 19: Our Contact Information

    OUR CONTACT INFORMATION Adres: Telefon: +90 212 549 30 56 GSM: +90 552 366 30 56 Ma l: nfo@un tygrup.com www.un tygrup.com www.un tygrup.com All data is subject to change without prior notice.
