Summary of Contents for NAVAC NMT1000

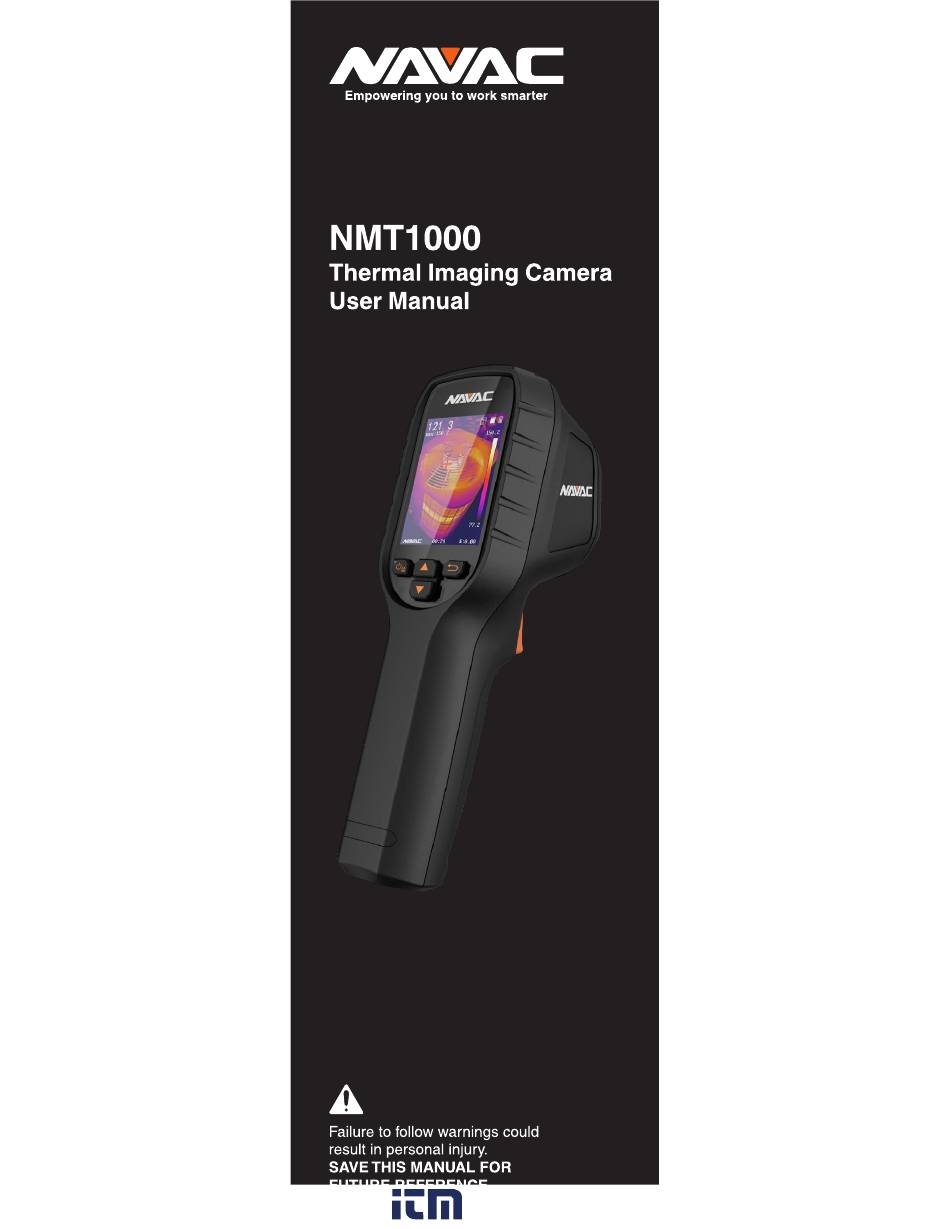

- Page 1 1.800.561.8187 information@itm.com www. .com...
- Page 2 About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. B 급 기기 : 이 기기는 가정용 (B 급 ) 전자파적합기기로써 주로 가정에서 사용하는 것을 목적으로 하며 , 모든 지역에서 사용할 수 있습니다 . Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 5 small quantity of ethanol, if necessary. ● If the equipment is used in a manner not specified by the manufacturer, the protection provided by the device may be impaired. ● We recommend you send the device back for calibration once a year, and please contact the local dealer for the information on maintenance points.
- Page 6 the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re- export the thermal series products between different countries.
-
Page 7: Table Of Contents
Contents 1 Introduction ............1 1.1 Box Content ............. 1 1.2 Product Introduction ........1 2 Appearance ............2 2.1 Dimensions ............2 2.2 Interfaces............2 3 Basic Operations ..........3 3.1 Charging the Device ......... 3 3.2 Interface Description ........4 3.3 Format Micro SD Card ........ -
Page 8: Introduction
The thermal imaging camera includes one battery and one Micro SD card. 1.2 Product Introduction NMT1000 Thermal Imaging Camera is a camera with thermal images. It can do thermometry, and snapshot capturing. The built-in high- sensitivity IR detector and high-performance sensor detects the temperature change and measure the real-time temperature. -
Page 9: Appearance
2 Appearance 2.1 Dimensions The dimension may vary according to different camera model. 2.2 Interfaces Screen Charging Back Indicator On/OK/Menu Navigation Hold: Power On/Off Press: Display menu or confirm operation Exit the menu or return to previous menu. Navigation Button Press the button to select parameters. -
Page 10: Basic Operations
Note: The warning sign is under the laser and on the left side of the device. Charging When the device is charging, Indicator the LED indicator is red. When the device is fully charged, the LED indicator is green. Charge the battery and export Interface snapshots with the USB cable. -
Page 11: Interface Description
Note: For the first charge, charge the device for more than 8 hours when the device is turned on. The built-in cell battery that powers the real time clock (RTC) of the device may drain during longtime transportation or storage. -
Page 12: View Snapshots
Note: You can not capture when the device is connected with PC. 3.5 View Snapshots Steps: Go to Menu > Picture to view the capture snapshots. Press button to view the selected picture, press button to switch pictures. (Optional) Press button to delete picture in picture view interface. -
Page 13: Other Configurations
Purpose: The thermometry (temperature measurement) function provides the real-time temperature of the scene and display it on the left of your screen. The thermometry function is turned on by default. The thermometry parameters affect the accuracy of temperature measurement. Steps: In the live view interface, press button show the menu bar. -
Page 14: System Information
Note: Other parameters, such as temperature measurement range, unit, palettes and so on, can be configured as steps above. 5 System Information Go to Menu > About to view the device information: Model, Version No., FPGA Version No., Serial No., Capacity and so on. You can also set the auto power-off duration, date and time in Menu. - Page 15 1. Whether the device is connected to your PC and the capture function is unavailable. 2. Whether the storage space is full. 3. Whether the device is low-battery. Q: The PC cannot identify the camera. A: Examine whether the device is connected to your PC with standard USB cable.
