Summary of Contents for Power Acoustik HDVD-94

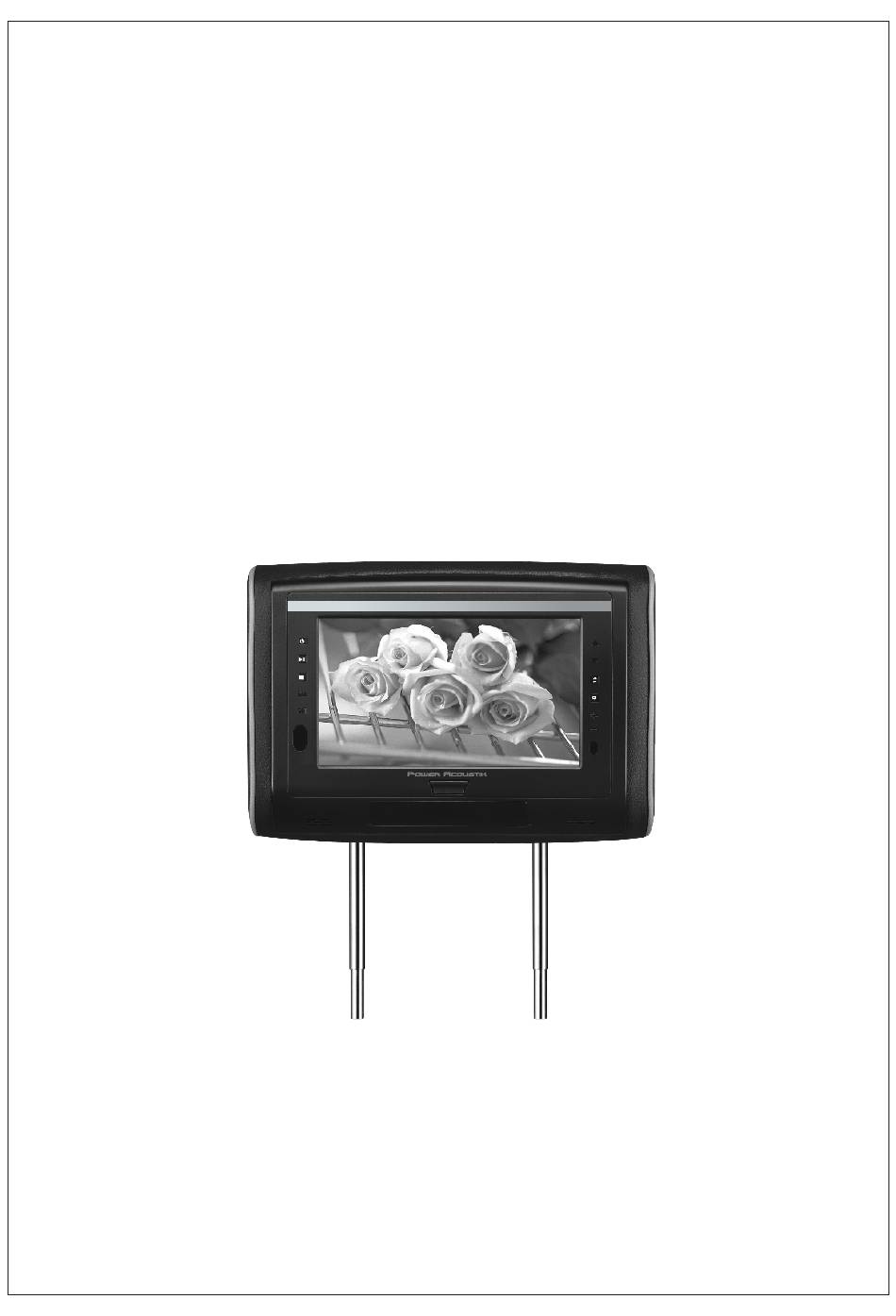

- Page 1 HEADREST LCD MONITOR DVD PLAYER DVD/VCD/CD/MP3/MP4/JPEG Support MPEG5 Format HDVD-94 USER'S MANUAL...
-
Page 3: Appearance And Functions
Features 12V DC Input Appearance and functions 1. Power on/off 2. Play/Pause key 3. Stop/Return 4. Previous track 5. Next track 6. IR window 7. Open front panel 8. Up select 9. Down select 10. AV switching 11. Menu 12. Volume+/Analogue+ 13. -
Page 4: Remote Control
Remote control... -
Page 5: Operation Of Dvd System
Operation of DVD System Play DVD/DCD/CD When put the disc into the DVD player, pls keep the lable towardback, auto-matically playing Press on panel or on remote control to stop. Press on panel or on remote control to pause. Play Mp3 Insert the file storage media into the DVD Player to autoplay Press on remote control to stop. - Page 6 Introduction of USB/SD Function Menu Function Setup...
-
Page 7: Wiring Diagram
Wiring Diagram 110~210mm Fuse box (Yellow) Video output (White) Audio L output (Red) Audio R output (Yellow) Video input (White) Audio L input (Red) Audio R input Trouble Shooting... - Page 8 GENERAL NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
