Summary of Contents for ETS 90001848

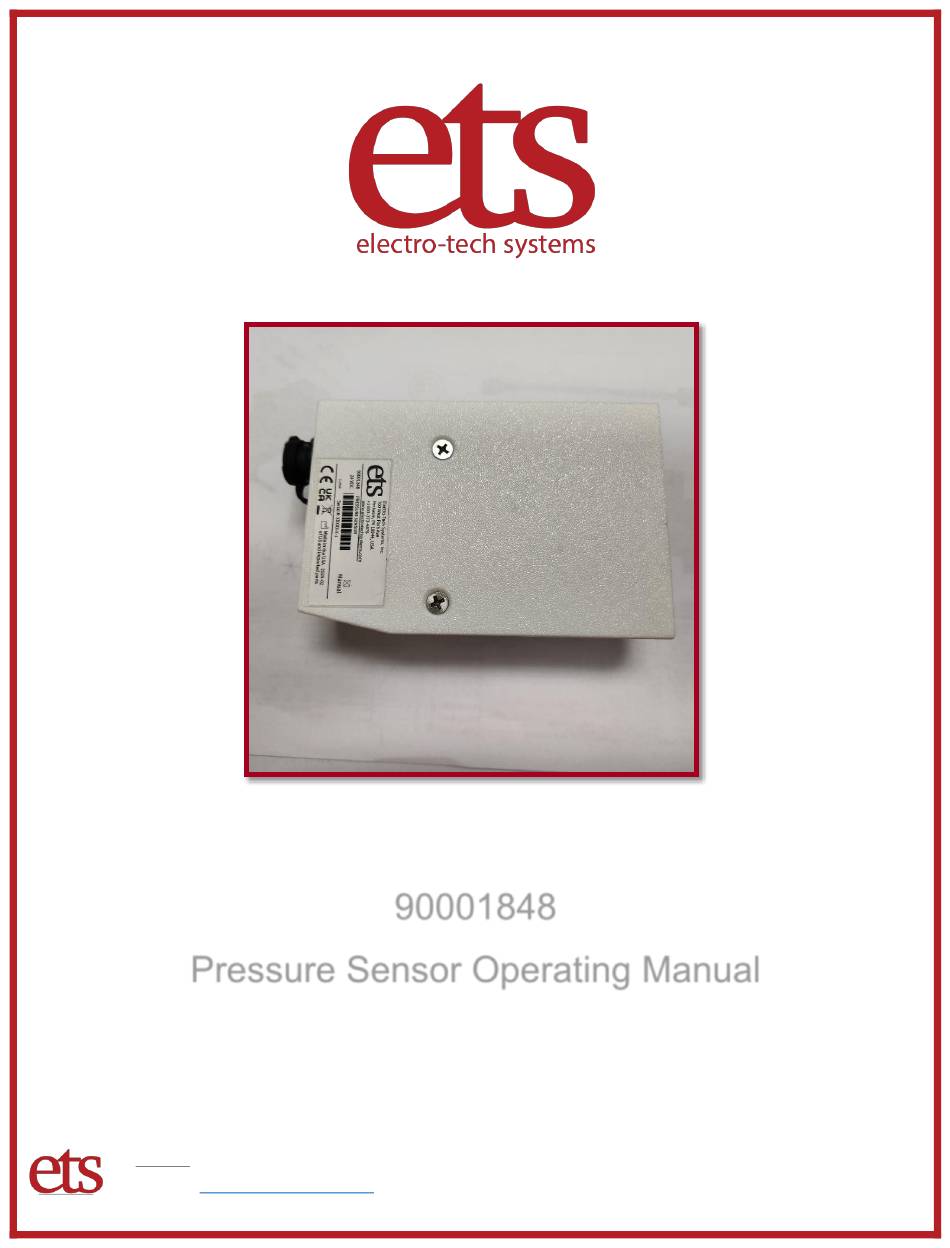

- Page 1 90001848 Pressure Sensor Operating Manual www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02114 Rev A...
-
Page 2: Table Of Contents
Table of Contents I. Important Safety Information ..................3 II. Description of Contents ..................... 7 III. Set-Up Guide ......................8 IV. Functionality ......................10 V. Specifications ....................... 111 VI. Repair and Maintenance ..................12 Preventive Maintenance ................... 12 VII. Troubleshooting ....................13 VIII. -
Page 3: Important Safety Information
I. Important Safety Information This symbol accompanied by the This symbol accompanied by the This symbol indicates the presence word “WARNING” calls attention to word “CAUTION” indicates a of hazardous AC or DC voltages an act or a condition which can potentially hazardous situation constituting the risk of electric lead to serious personal injury or... -
Page 4: Operation
POWER POWER CORD: Use only the power cord specified for this equipment and certified for the country of use. If the power (mains) plug is replaced, follow the wiring connections specified for the country of use. When installing or removing the power plug, hold the plug, not the cord. The AC supply must be single phase, with RMS Voltage in range 90 –... -
Page 5: Consignes De Sécurité
Informations Importantes d’inocuite Ce symbole accompagné du mot « Ce symbole accompagné du mot « Ce symbole indique la présence d’une climatisation dangeureuse AVERTISSEMENT »( WARNING) ATTENTION » (CAUTION )indique attire l’attention sur un acte ou une ou d’un courant continu constituant une situation potentiellement dangereuse qui, si elle n’est pas condition qui peut entraîner des... -
Page 6: Opération
l'installation, l'utilisation et l'entretien. Lisez les consignes de sécurité suivantes avant d'utiliser l'instrument. ALIMENTATION CORDON D'ALIMENTATION : Utilisez uniquement le cordon d'alimentation spécifié pour cet équipement et certifié pour le pays d'utilisation. Si la fiche d'alimentation (secteur) est remplacée, suivez les connexions de câblage spécifiées pour le pays d'utilisation. Lors de l'installation ou du retrait de la fiche d'alimentation, tenez la fiche, pas le fil. -
Page 7: Description Of Contents
II. Description of Contents Item Item Qty. Description 90001848 Pressure Sensor. For use with ETS Controllers, your 90001848 will include Power / Signal Cable the appropriate cable assembly to connect to: Assembly • M 5300 Series EnviroPro PLC 8-32 X 1-1/8” Flat head... -
Page 8: Set-Up Guide
The Power / Signal Cable is a single 4- wire cable with a quick disconnect connector on each end. Step 2. Install Power/Signal Cable Assembly to 90001848 Pressure Sensor Plug the 4 Pin Connector into the 4 Pin Receptable labeled PRESSURE on the PLC and connect to the sole connector on the 90001848. - Page 9 Step 3 – Zero the Pressure Sensor The pressure sensor must be zeroed before operation so that it may accurately detect pressure differentials. To zero the sensor, do the following: 1. Open the chamber door to depressurize the chamber. 2. On the M 5300, Log onto an admin profile by pressing the “Profile”...
-
Page 10: Functionality
IV. Functionality The 90001848 Pressure Senor is a bidirectional differential pressure transmitter used to measure very small differences in pressure. • Measures very small differential pressure in neutral, non-corrosive gaseous media. • Provides a digital MODBUS pressure signal output utilized by the M 5300 EnviroPro PLC. -
Page 11: Specifications
V. Specifications MECHANICAL • External Dimensions: 5” W x 0.90” D x 3.33” H (12.7cm x 2.3cm x 8.5cm) • Material: PLA enclosure • Weight: 0.3 lbs (0.14 kg) HARDWARE PORTS: • Micro-USB • Quick Lock Circular Waterproof Aviation Plug connector ELECTRICAL •... -
Page 12: Repair And Maintenance
VI. Repair and Maintenance To return equipment to ETS for repair, it is first necessary to obtain a RMA number, please call 215-887-2196 or email service@ets2.com. Preventive Maintenance The Pressure Sensor is maintenance free. www.electrotechsystems.com 833-ENV-GURU (833-368-4878) D02114 Rev A... -
Page 13: Troubleshooting
VII. Troubleshooting Troubleshooting Guide Problem Possible Causes Corrective Actions Ensure 4-pin power/signal cable is connected Sensor is not receiving properly (See Step 2 on page 8 in the Setup No Power to Unit power Guide) and ensure M 5300 Series EnviroPro PLC is powered on. -
Page 14: Warranty
VIII. Warranty Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder shall (a) conform to any samples, drawings, specifications, or other written documents provided to Seller by Buyer or approved by Buyer to Seller and (b) be free from all defects in workmanship and material.
