9K & 12K BTU ROOFTOP AIR CONDITIONER AND
DISTRIBUTION BOX WITH LED AND REMOTE
CONTROL (AU)
MODEL (LIPPERT PN)
FACTRCSM-PS (2021132281) FACTRCSM-PS-A (2023041404)
FACR09SM-PS_KIT-A(2023041405) FACR12SM-PS_KIT-A (2023041406)
TROUBLESHOOTING AND SERVICE MANUAL

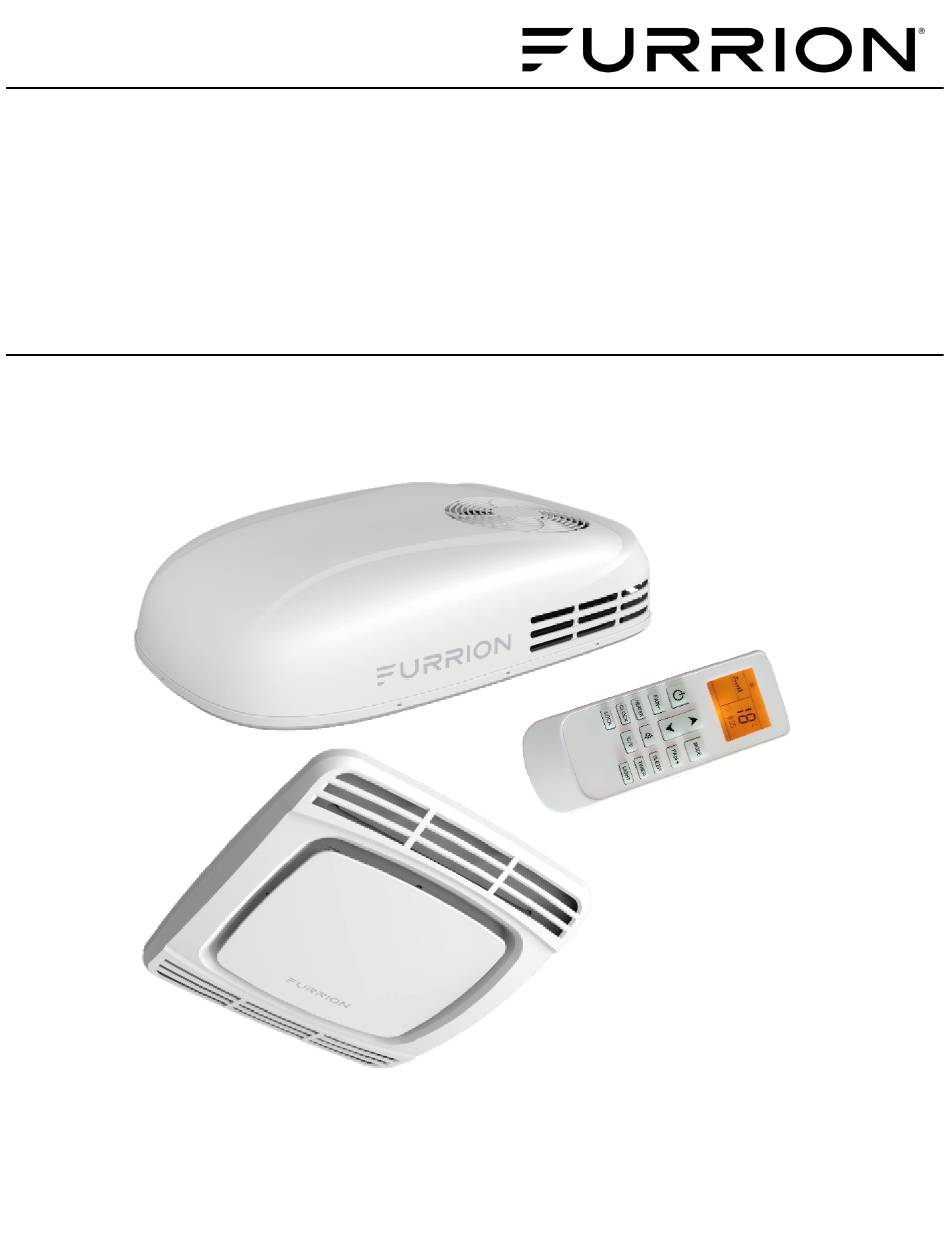

* Picture shown here is for reference only.
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.
AIR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lippert FURRION FACTRCSM-PS
Summary of Contents for Lippert FURRION FACTRCSM-PS
- Page 1 9K & 12K BTU ROOFTOP AIR CONDITIONER AND DISTRIBUTION BOX WITH LED AND REMOTE CONTROL (AU) MODEL (LIPPERT PN) FACTRCSM-PS (2021132281) FACTRCSM-PS-A (2023041404) FACR09SM-PS_KIT-A(2023041405) FACR12SM-PS_KIT-A (2023041406) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance,...
-
Page 2: Table Of Contents
Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual. -
Page 3: Handling The Device
Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Handling the device Installation and repair of the rooftop air conditioner must only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations. -
Page 4: Maintenance
Refer to NEC (National Electric Code) for proper sizing of wire gauge (awg) based on cable length and overcurrent protection rating that is suppling power to the air conditioner. See rooftop unit nameplate for proper overcurrent protection sizing. Attach and lay the cables so that they cannot be tripped over or damaged. •... -
Page 5: Replacable Parts List
Replaceable Parts List Callout Part # Description Model 2023009326 Display Board (IR Receiver PCB) 2023009327 Filter 2023009328 2023009310 Remote Control + Remote Control Bracket Kit FACTRCSM-PS-A, Power Plug Pig Tail (J Series - Open End) FACR09SM-PS_KIT-A, Locally Sourced FACR12SM-PS_KIT-A 2023042153 Push Latch 2024000057 400 X 400 Opening Adapter Gasket... -
Page 6: Troubleshooting
Troubleshooting If the air conditioning equipment cannot work normally, please carry out inspection as follows to remove the faults: Check whether the fuse of air conditioning equipment or leakage circuit breaker of the RV is turned on; If the air conditioner is powered by a generator, please first confirm whether the generator power matches the air conditioner, whether the generator runs normally and generates electricity, and whether voltage output of the generator is stable. -
Page 7: Error Code Of Display Board
Error Code of Display Board Code Cause Solution Check the sensor butt joint and replace the Fault of indoor temperature sensor temperature sensing head. Check the sensor butt joint and replace the Fault of indoor coil temperature sensor temperature sensing head. Check the sensor butt joint and replace the Fault of outdoor coil temperature sensor temperature sensing head. - Page 8 FURRION.COM The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. ...
