Eaton Electric Vehicle Power Charging

Station MODBUS Device E2 Setup

P/N 527-0354

This document will guide you through setting up and commissioning the Eaton Electric Vehicle Power Charging Station MODBUS device in

the E2 controller.

NOTE

Note that Open MODBUS Description files require E2 firmware version 3.01FO1 or higher.

STEP 1: Upload the description file to the E2 controller

From UltraSite, connect to your E2 controller.

Right-click the E2 icon and select Description File Upload.

Browse to the location of the description file and click Upload.

After uploading, you will need to reboot the E2 controller.

026-4913 R2

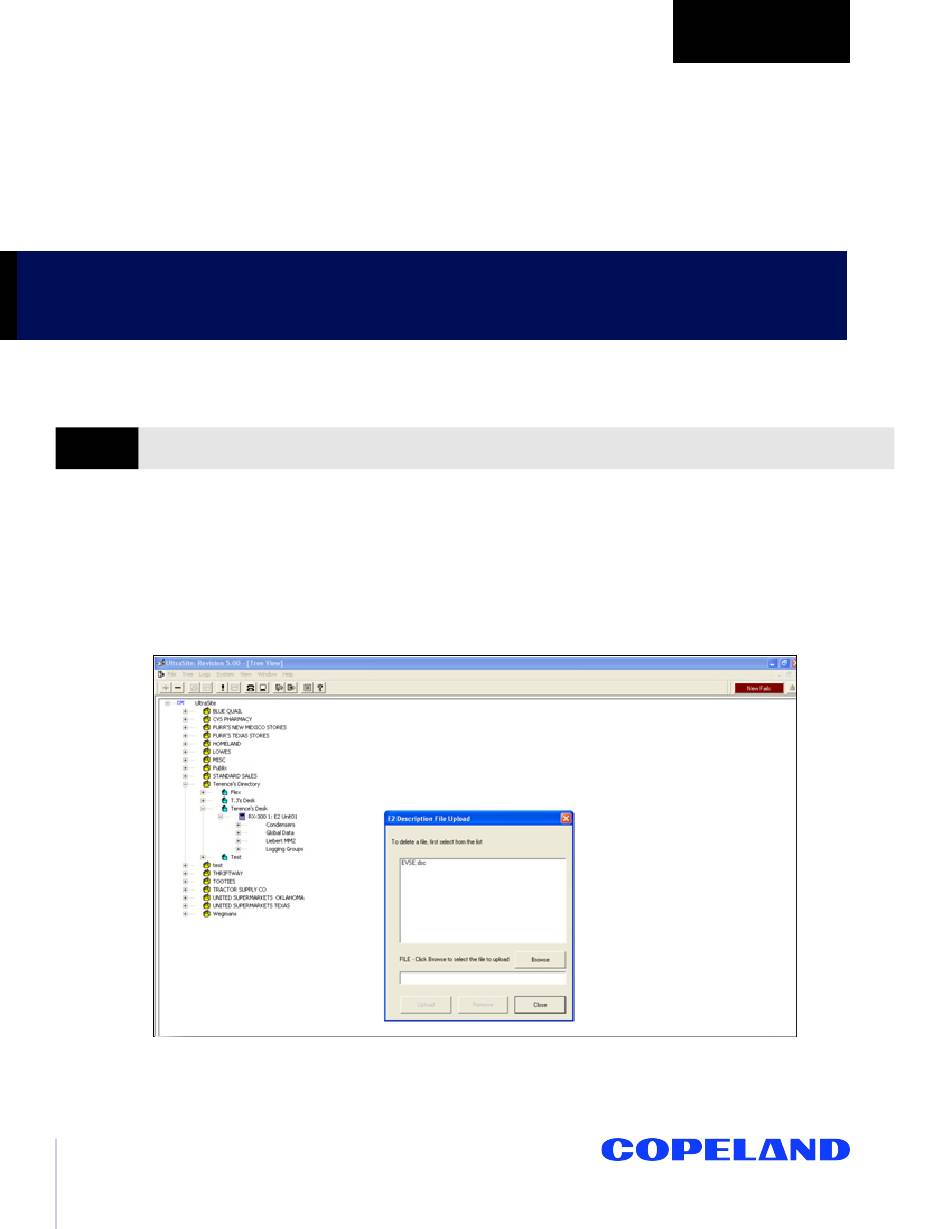

Figure 1 - Description File Upload

QUICK START GUIDE

Need help?

Do you have a question about the Eaton 527-0354 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copeland Eaton 527-0354

Page 1 Right-click the E2 icon and select Description File Upload. Browse to the location of the description file and click Upload. After uploading, you will need to reboot the E2 controller. Figure 1 - Description File Upload 026-4913 R2 ©2024 Copeland LP.
Page 2 Press F2 (NEXT TAB) to go to the C4: Third Party tab. You should see the device in the list. Enter the number of devices to add and press the  button to save your changes. 026-4913 R2 ©2024 Copeland LP.
Page 3 Press , 7 (System Configuration), 4 (Remote Communications), 3 (TCP/IP Setup). Select the COM port the device is connected to, press F4 (LOOK UP) and select the appropriate MODBUS selection. Figure 3 - COM Port Setup Figure 4 - Option List Selection Screen - Connection 026-4913 R2 ©2024 Copeland LP.
Page 4 The baud rate also needs to be configured using dip switches on the EVSE device. The baud rate must match the E2 baud rate setting. The diagram below provides the dip switch setting for the baud rates. Figure 6- Dip Switch Setting 026-4913 R2 ©2024 Copeland LP.
Page 5 Highlight the device and press F4 (COMMISSION). Select the MODBUS port that you will be assigning the device, then select the MODBUS device address. Figure 7 - Network Summary Screen Figure 8 - MODBUS Port Assignment 026-4913 R2 ©2024 Copeland LP.
Page 6 The device has a four-terminal Phoenix connector. Wire Data Line A on terminal 1, Data Line B on terminal 2, and the shield wire on terminal 3/Common. There should be no termination on terminal 4. Figure 10 - Four-Terminal Phoenix Connector 026-4913 R2 ©2024 Copeland LP.
Page 7 Figure 11 - RS-485 COM6 Connector on the E2 PIB (E2 Version 4.01 shown) Figure 12 - Wiring Diagram 026-4913 R2 ©2024 Copeland LP.
Page 8 Mapped Value (Name Plate Current Rating): 0 - 16A 1 - 30A Name Plate Current Rating 2 - 48A 3 - 60A 4 - 70A Automatic Reclosure on Fault Time Temp Fault TO Milliseconds (ms) 026-4913 R2 ©2024 Copeland LP.
Page 9 EVSE State 4 - Permissive run Disabled EVSE State 5 - Service Required 6 - Temporary Fault Condition 7 - EVSE Charging 8 - EV Connected; Not Charging 9 - EV Connected; ALC, Charging Disabled 026-4913 R2 ©2024 Copeland LP.
