The Art of Preservation
An artful approach to undercounter refrigeration
S4 Series
Use & Care Manual
Single Zone Wine & Beverage Coolers
S4-100SS | S4-100PANR
S4-125SS | S4-125PANR
S4-150SS | S4-150PANR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stirling S4 Series

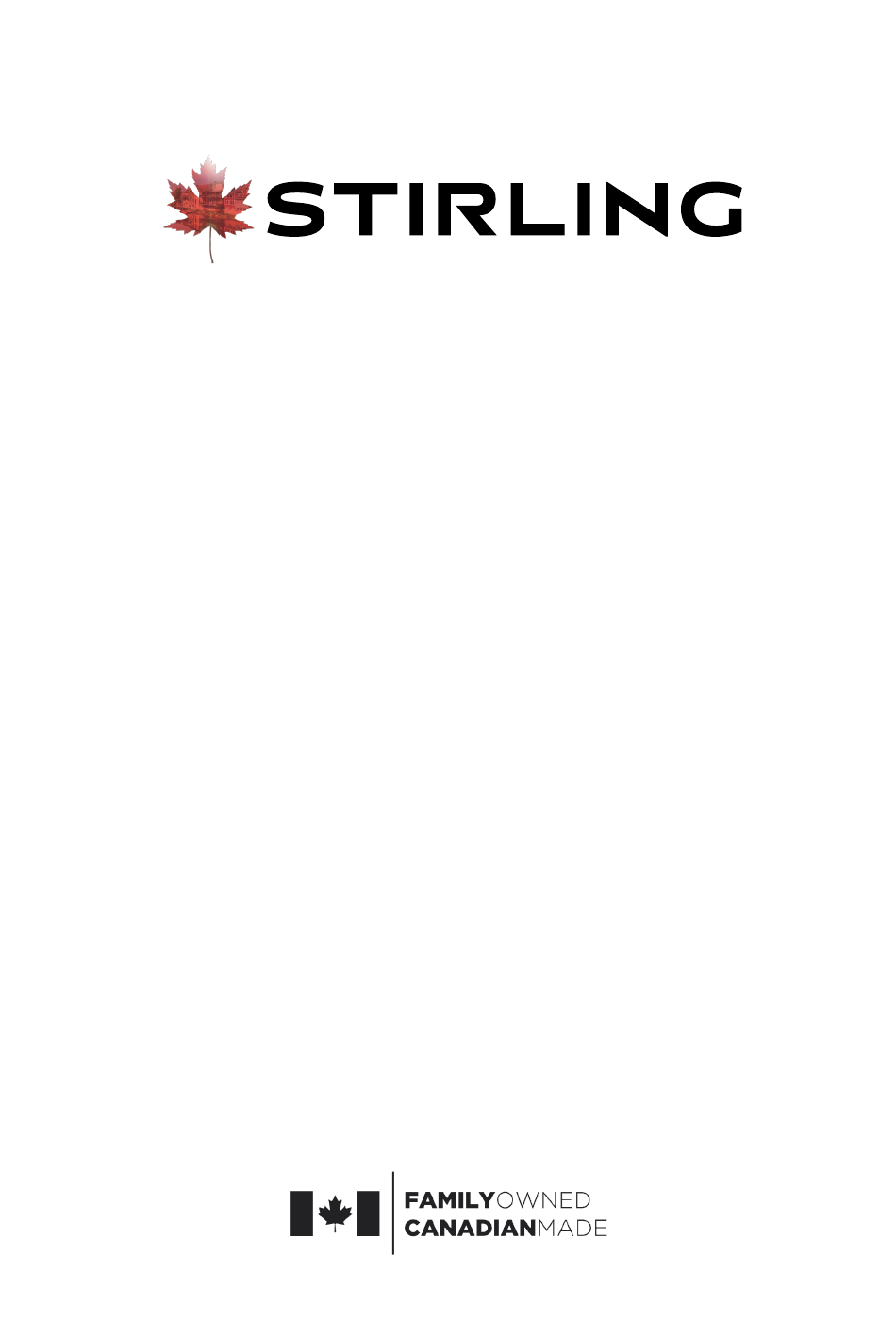

  • Page 1 The Art of Preservation An artful approach to undercounter refrigeration S4 Series Use & Care Manual Single Zone Wine & Beverage Coolers S4-100SS | S4-100PANR S4-125SS | S4-125PANR S4-150SS | S4-150PANR...
  • Page 2: Table Of Contents

    Rough-In Dimensions Panel Ready Frame Dimensions Rough-In Dimensions Panel Ready Pre-Drilled Handle Holes OPERATING INSTRUCTIONS Understanding the Control Panel Basic Controls Stirling Tempsync Progress Bar Specialty Control Demo Mode Farenheit Mode Sabbath Mode Light Modes Default Setting Light Always On Video Instructions Shelving Configuration Options &...
  • Page 3 Should you need assistance or have any questions, please do not hesitate to reach out. As a proud Canadian, family-owned business, we have taken great pride in manufacturing your Stirling appliance in Elora, Ontario and are always committed to providing exceptional customer service whenever you need it.
  • Page 4: Important Safety Information

    Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. • If the power cord is damaged, it must be replaced by a Stirling Marathon authorized servicer or a similarly qualified individual to avoid a hazard.
  • Page 5: Anti-Tip Bracket Installation

    A) DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost your wine & beverage cooler. Do not puncture refrigerant tubing. This marking shall be located on or near any evaporator that can be contacted by the user. B) DANGER - Risk of fire or explosion.
  • Page 6: Anti-Tip Installation On Freestanding Unit

    flange touches the underside of the cabinet above. Hinge raising to the desired height Step 2: Use the two self-tapping screws found in your STIRLING enclosure package to secure the anti-tip bracket with the cabinet. Step 3: Turn the screws from step 1 clockwise 2.5 turns until tight.
  • Page 7 Step 4: Note: Install the metal bracket along the lower edge behind the wine cooler or at the side margin of the drywall to ensure sufficient operational space during installation. Step 5: Using a self-tapping screw, secure the second metal bracket to the lower back leg of the wine cooler, as shown in the figure.
  • Page 8: Built-In Installation Guidelines

    Built-In Installation Guidelines Model: S4-100SS, S4-125SS, S4-150SS Cabinet Dimensions Note: With legs fully retracted the minimum overall height is 25 1/16" * 636.45mm 34 3/16" [868.0mm] from top to bottom. The legs can be extended up to 13/16" [20.0mm] to make the unit taller. 23 13/16"...
  • Page 9: Electrical Outlet Rough-In Location

    Electrical Outlet Rough-In Location BACK FRONT 7/8" [22mm] 5 1/8" [131mm] A: Recommended area for installation connection B: To route power cord to outlet - a 2 " [63mm] diameter hole through wall of the adjacent cabinet is recommended 5 1/8" [130mm] *The cabinet on the right hand side (when facing the front of the cabinet) is the preferred location to wire through.
  • Page 10: Built-In Panel Ready Installation Guidelines

    Built-In Panel Ready Installation Guidelines Model: S4-100PANR, S4-125PANR, S4-150PANR Cabinet Dimensions Note: With legs fully retracted the minimum overall height is Depth dimension does not 34 3/16" [868.0mm] from top to bottom. The legs can be include panel & handle extended up to 13/16"...
  • Page 11: Electrical Outlet Rough-In Dimensions

    Electrical Outlet Rough-In Location BACK FRONT 7/8" [22mm] 5 1/8" [131mm] A: Recommended area for installation connection B: To route power cord to outlet - a 2 " [63mm] diameter hole through wall of the adjacent cabinet is recommended 5 1/8" [130mm] *The cabinet on the right hand side (when facing the front of the cabinet) is the preferred location to wire through.
  • Page 12: Panel Ready Frame Dimensions

    Panel Ready Frame Dimensions Model: S4-100PANR, S4-125PANR, S4-150PANR " 590mm* " 505mm " " X4 " 73mm 15mm 19.05mm " " " 777mm 631mm 42mm It is recommended the panel to be 590mm width but +/- 1mm tolerance is acceptable. Also, the aluminum frame can accommodate 5/8”...
  • Page 13: Rough-In Dimensions

    Panel Ready Pre-drilled Handle Holes 33.30 776.00 762.60 691.60 Note A: All holes are M5. 635.60 Note B: Manually adding custom screw holes can be done by drilling M5 holes through the aluminum frame. 441.60 i) Holes drilled for vertical handles should 413.60 be 15.3 ±...
  • Page 14: Understanding The Control Panel

    Understanding the Control Panel Back-lit Logo Stirling TempSync Progress Display Bar The Desired Set Temperature Temperature Adjustment Power Button Lights On/Off BASIC CONTROLS Press and hold for 5 seconds to power on or off the wine cooler, this turns off all components and lights.
  • Page 15: Stirling Tempsync Progress Bar

    The TFT screen displays the actual internal air temperature of your Stirling Wine & Beverage Cooler. Stirling TempSync Progress Display Bar will remain solid white once the set temperature is reached. The bars will “roll” while the appliance is in active TempSync mode, to synchronize the ambient temperature with the desired set temperature.
  • Page 16: Light Modes

    LIGHT MODES: Press to turn on or off the lights. DEFAULT SETTING: Interior LED lights, logo and control buttons are OFF when door is closed and ON when door is open. Temperature display appears at 100% brightness when door is opened or closed.
  • Page 17: Shelving Configuration Options & Adjustment Instructions

    Shelving Configuration Options & Adjustment Instructions SINGLE ZONE SHELVING ADJUSTMENTS (S4-100SS, S4-125SS, S4-150SS, S4-100PANR, S4-125PANR, S4-150PANR) SCAN OR CLICK LINK FOR VIDEO Refer to images A-I below for visual representation of each step. For optimal INSTRUCTIONS versatility, your wine & beverage cooler has multiple different configurations of shelving positions.
  • Page 18 3. Once the shelf is off its rails, place aside in a safe place and begin to adjust the two rails of the shelf by retracting both slider rails backwards. Unlock the shelf rail mechanism by pulling the steel tab underneath the rail towards you .
  • Page 19 Identify the set screw hole locations on the interior cabinet that you would like to secure the shelf to. Using a 2.5mm hex key (A) turn counterclockwise to remove the set screws. Take the set screws you just removed and insert them into the shelf lock screw locations and use the 2.5 mm hex key to tighten by turning clockwise.
  • Page 20: Single Zone Shelving Options

    Single Zone Shelving Options The Single Zone Stirling Wine and Beverage Cooler has 3 recommended configurations for shelving. These shelving positions optimize the use of space in the Cooler. See configuration , and below. Configuration can fit a standing short can on the top shelf and a bottle on the middle shelf, however it “B”...
  • Page 21: Stirlingflex Shelf Design

    Shelving Configuration Options & Adjustment Instructions STIRLINGFLEX SHELF DESIGN Adjustable aluminum shelf slats enable the flexibility to store large & abnormal bottle sizes such as champagne, prosecco and rosé. The silicone bottle contact inserts absorb and dampen any noise or vibrations from the wine &...
  • Page 22: Carbon Filters Replacement

    Carbon Filters Replacement INSTRUCTIONS To replace the filters in your Stirling Wine Cooler, begin by locating the filter in the upper right corner of the Wine Cooler. If your Wine Cooler is the Dual Zone model, there will be two filters, one in the upper right corner of each section of the fridge.
  • Page 23: Warranty & Service

    When operated and maintained according to the instructions in the Use & Care Guide, STIRLING a registered trademark of Stirling Marathon Limited agrees to repair or replace this product for 2 years from the date of original purchase and/or agrees to pay for parts and service/labour required to correct defects in materials or workmanship.
